Home » Bolt-on D-Ring Anchor with 5/8" Hole – 7435H – FallTech
Falltech

Bolt-on D-Ring Anchor with 5/8" Hole – 7435H – FallTech

SKU: 7435H
$54.80
Estimated Lead Time:1 to 2 Days

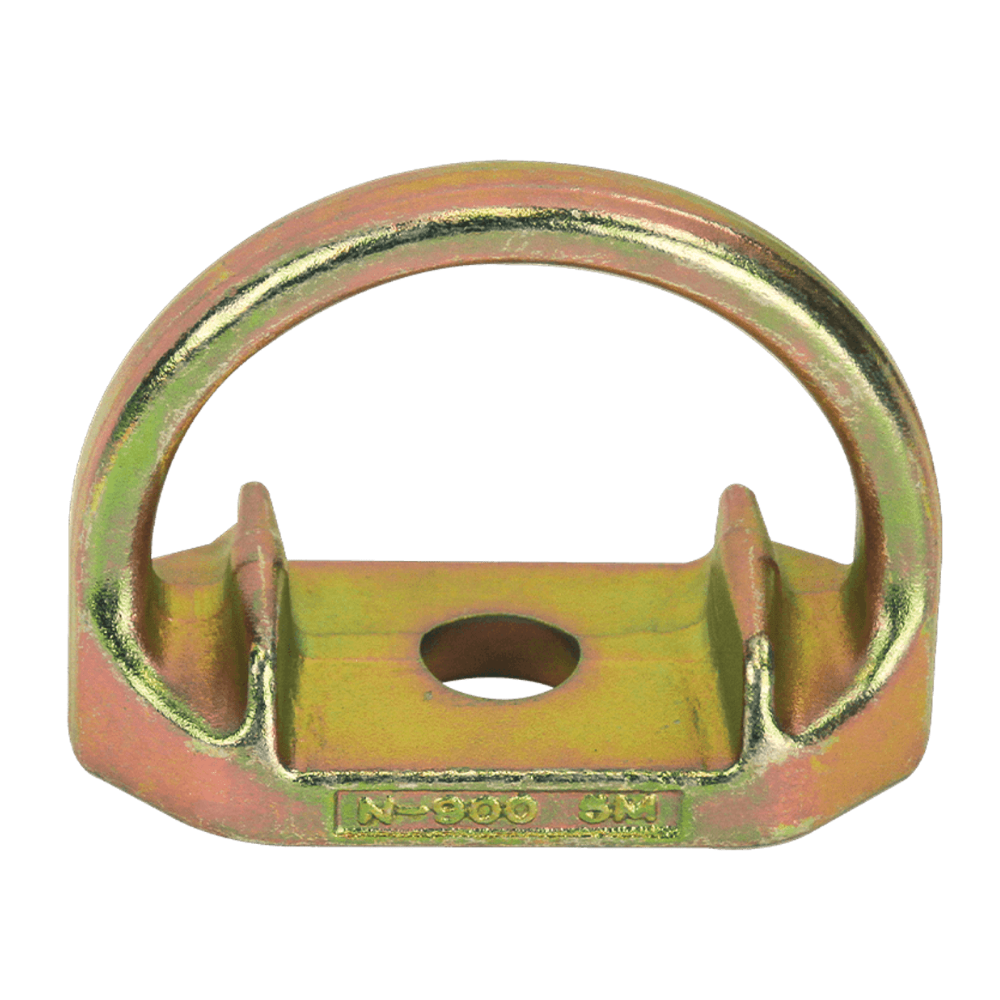

The FallTech 7435H Bolt-on D-Ring Anchor is a rugged, one-piece forged alloy steel anchorage solution designed for permanent installation on steel structures. Its large 2" x 3-1/4" internal D-ring opening allows for easy attachment of connectors, while the 5/8" bolt hole supports secure mounting using user-supplied fasteners. Built for long-term durability, this anchor meets ANSI Z359.18-2017 requirements and supports both ANSI and OSHA-rated user capacities.
  • Product Code: 7435H
  • Anchor Material: Plated alloy steel
  • D-Ring Opening: 2" x 3-1/4" internal dimensions
  • Bolt Hole: 5/8"
  • Static Strength: 5,000 lb min
  • User Capacity (ANSI): 130–310 lb
  • User Capacity (OSHA): 130–425 lb
  • Compliance: ANSI Z359.18-2017; OSHA 1926.502 & 1910.66
  • Weight: 1.36 lbs each

User Manual (PDF)
