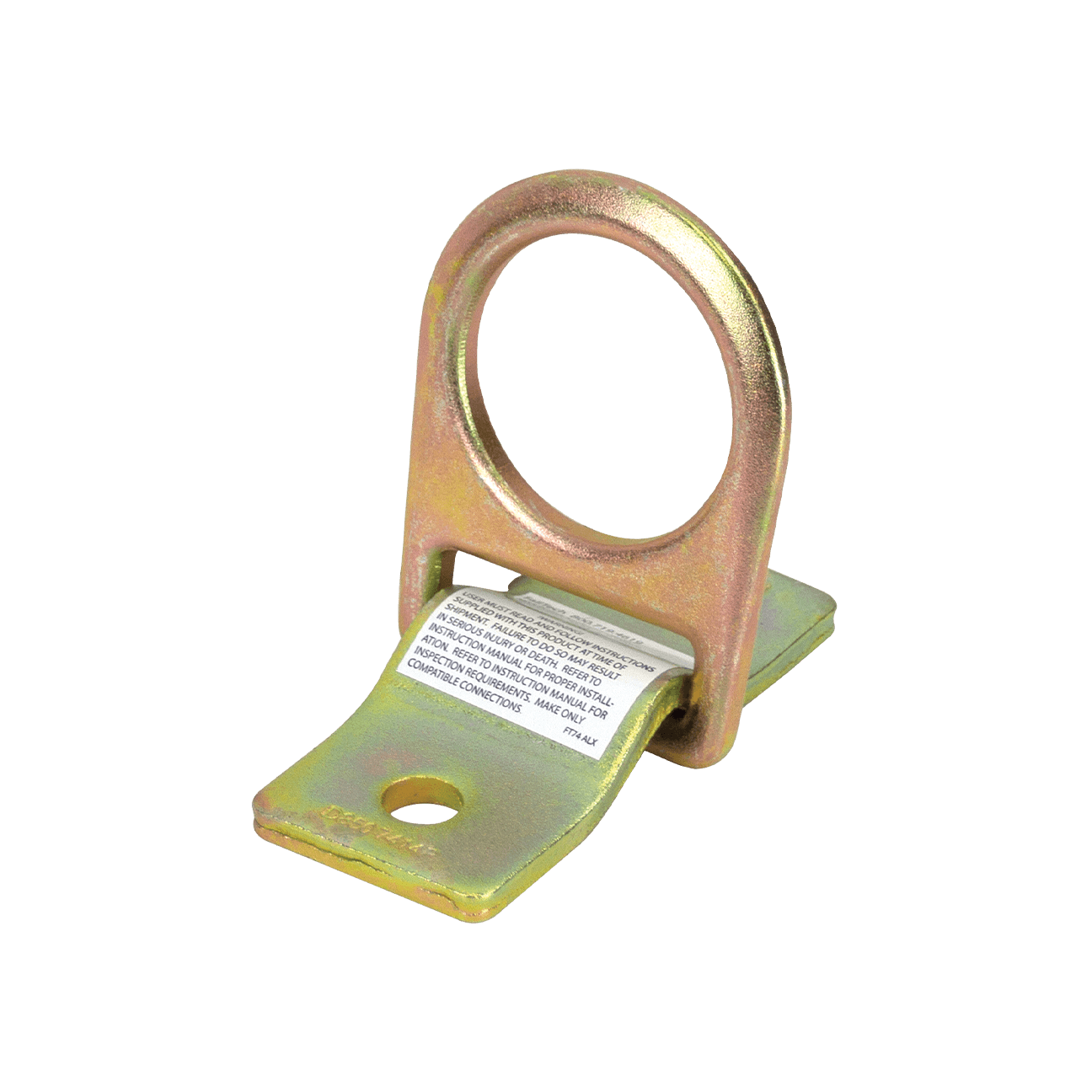

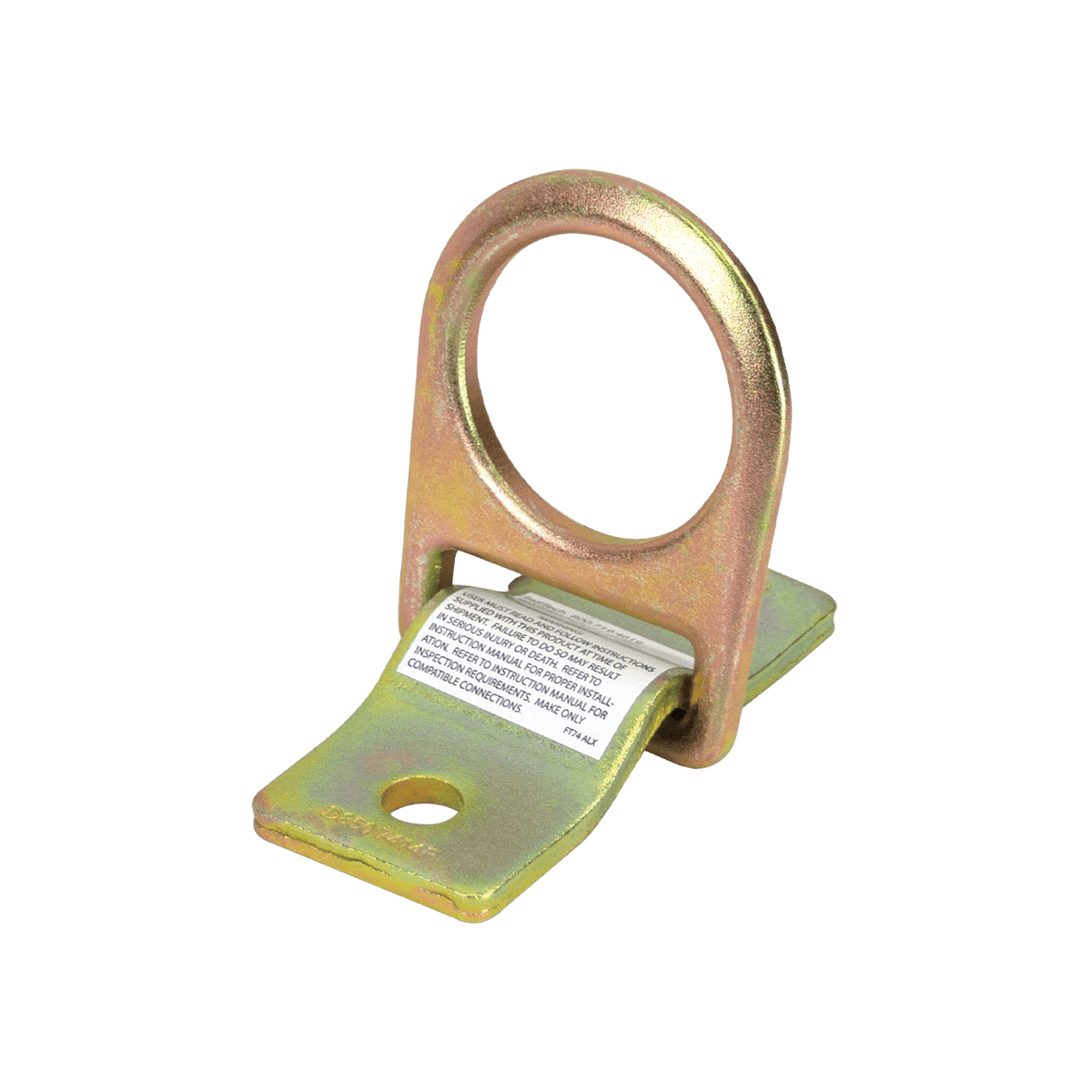

Bolt-On D-Ring Anchor

FalltechSKU: 7414

Price:
Sale price$32.21

Description

Our Bolt-On D-Ring Anchor connector is built from top-quality materials guaranteeing high strength and durability to stand up to the toughest environments. Anchorage connectors are the unsung heroes of most fall protection systems, often overlooked but critical components because they securely attach your system to the anchorage. Your choice of anchor depends on the type of work being done. Anchorages are sold by what they connect to (general/all-purpose, steel, concrete, roof, or specialty), whether they are fixed or mobile, and whether they are permanent or portable. They all must provide a secure point of attachment for a complete personal fall arrest system, and must be capable of supporting a load of 5,000 lbs.

  • 5,000 lb min Static Strength
  • Plated alloy steel
  • 130 to 310 lb max ANSI User Capacity
  • 130 to 425 lb max OSHA User Capacity
  • High strength steel construction
  • D-ring anchorage plate with plated steel D-ring and plate
  • Extremely rugged and corrosion resistant
  • Features 2" x 4-1/2" alloy steel anchoring plate and D-ring
  • 1/2" bolt holes require user-supplied fasteners for fixed position installation.
  • Plated alloy; 5,000 lb min static strength
  • Complies with ANSI Z359.18-2017 and OSHA 1926.502 and 1910.66

User Manual (Click for PDF)

Spec Sheet (Click for PDF)
