Beam Stanchion Temporary HLL System - 30ft - 4" to 24" Beam Clamps - FallTech
Regular price
$1,352.00
Estimated Lead Time:1 to 2 Days
Couldn't load pickup availability
Horizontal lifeline stanchion kit for temporary or permanent installation

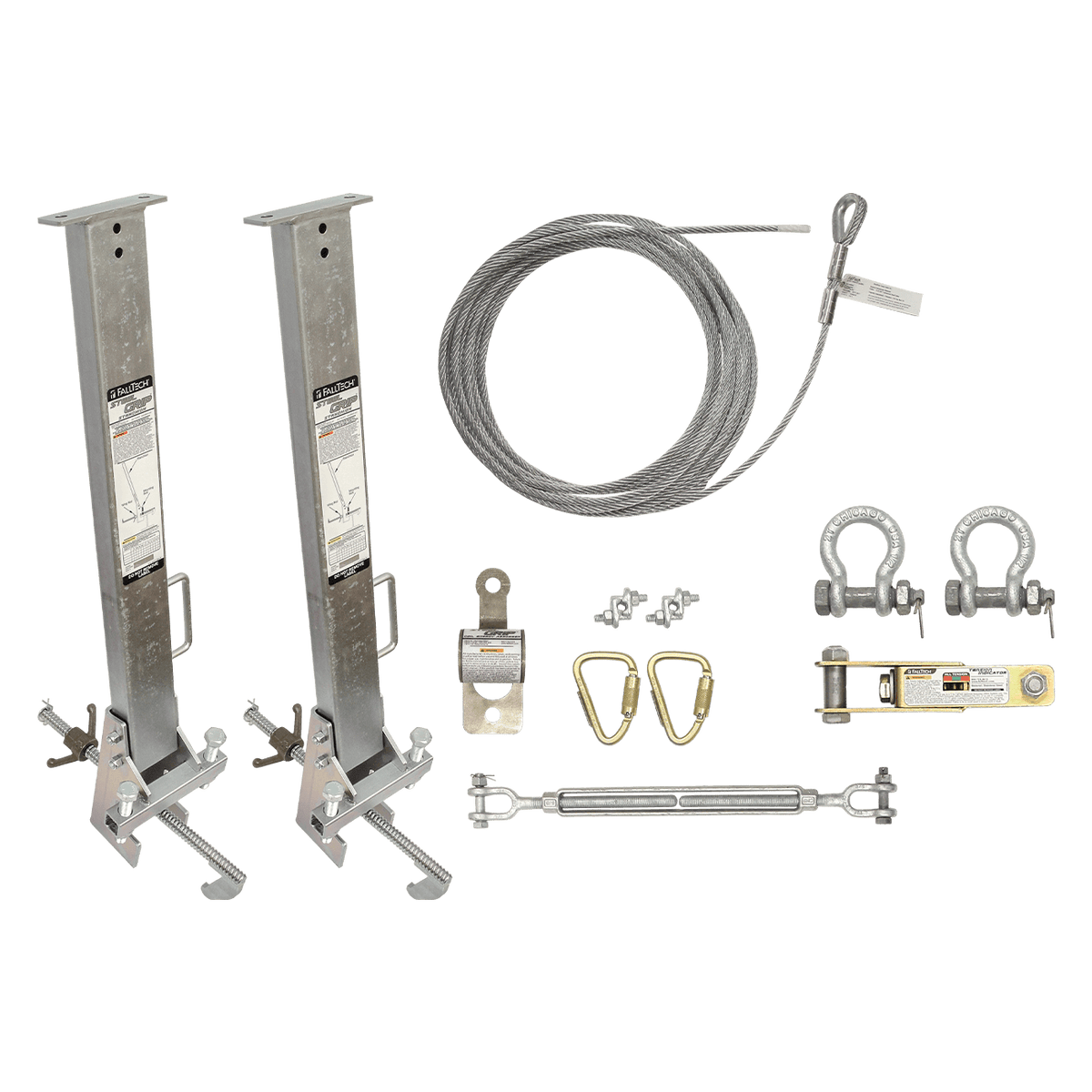

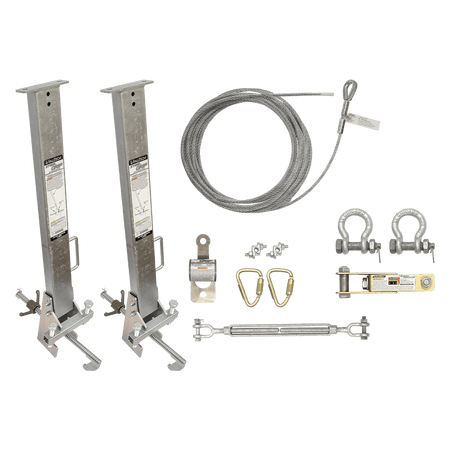

Kit includes horizontal lifeline, shock absorber, tensioner, carabiners, stanchions & mounting brackets
-
30' Horizontal Lifeline Kit for Single Span
-
Qty. 2 Stanchions
- Adjustable to mount to beam flanges from 4" to 24" wide
-
3/8" dia. galvanized steel cable
-
Stanchions: Plated carbon steel post, base and clamp
-
Carabiners: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
- Qty. 1 stainless steel coil energy absorber and 2 connecting carabiners
- In-line tension indicator included with 2 galvanized steel shackles
- Wire rope clips and tensioning turnbuckle
- Cable HLL System meets OSHA 1926.502 and 1910.140 regulations
- OSHA User Capacity 310 lb max. per user / 2 users max. per single span
User Manual (pdf)
Declaration of Conformance (pdf)
Spec Sheet (pdf)
