Base Swivel Kit - EF46G - Easyfit

SKU: EF46G-25
$17.00
Size
Estimated Lead Time:3 to 5 Days

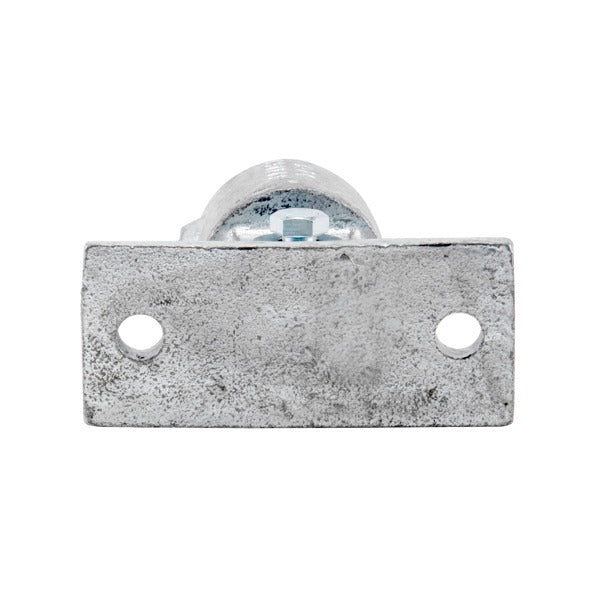

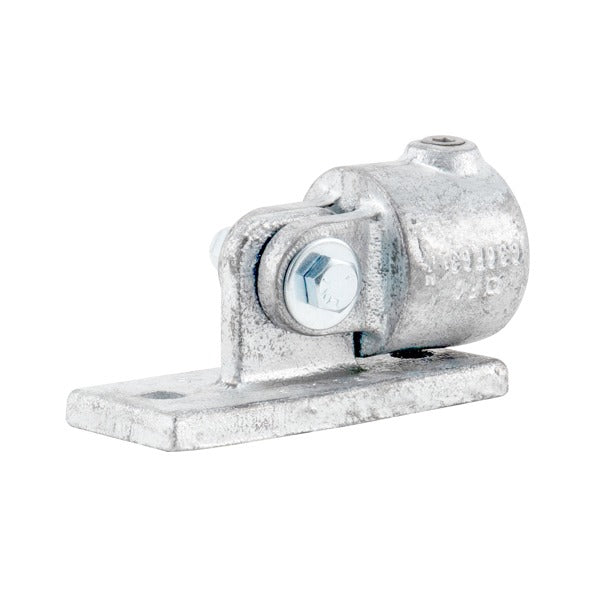

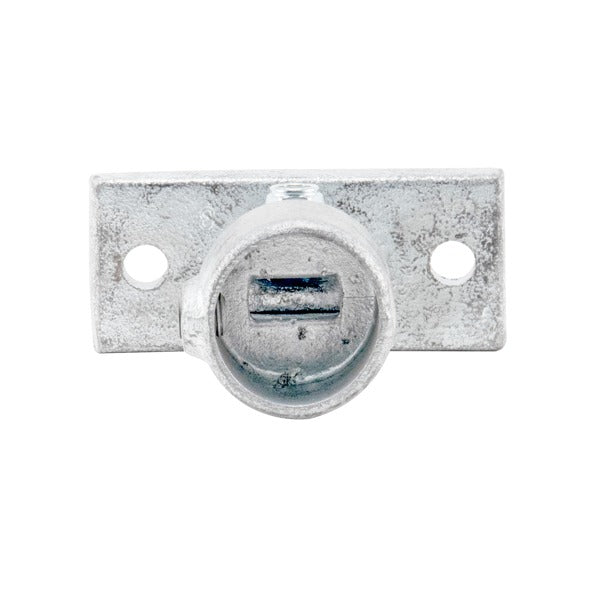

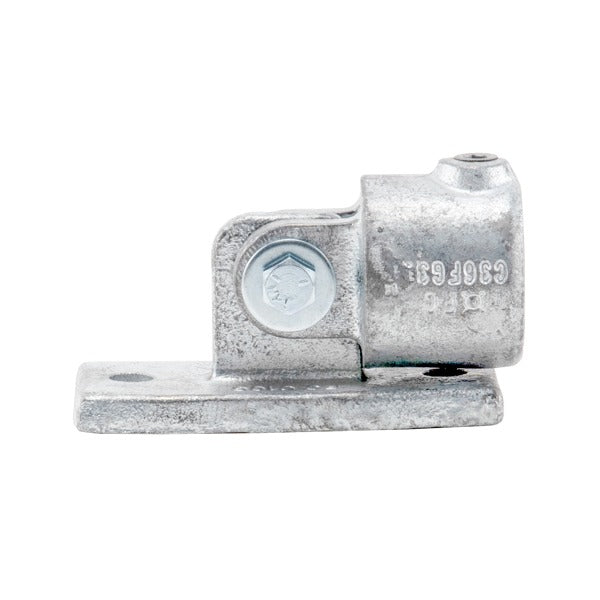

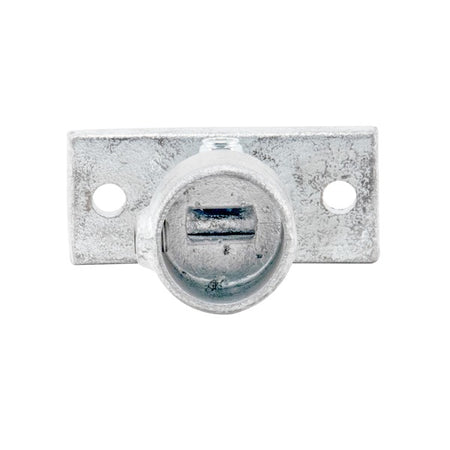

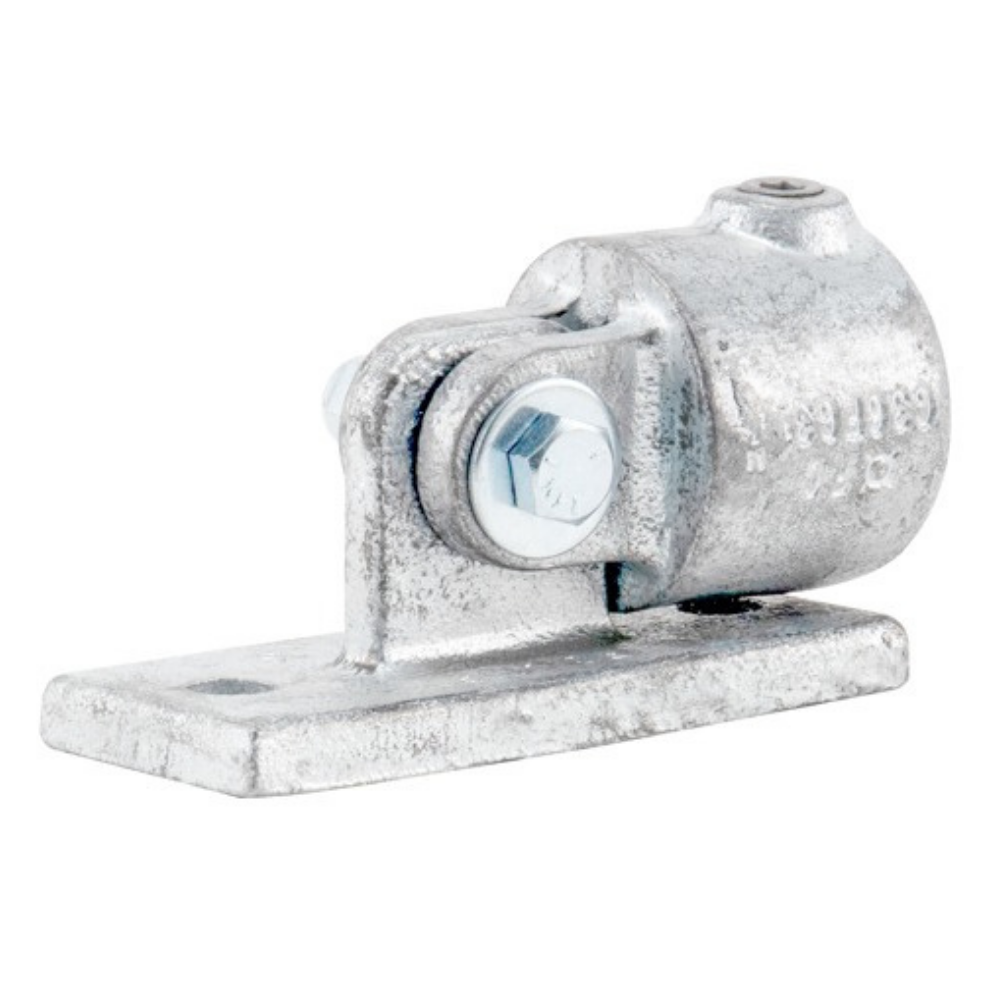

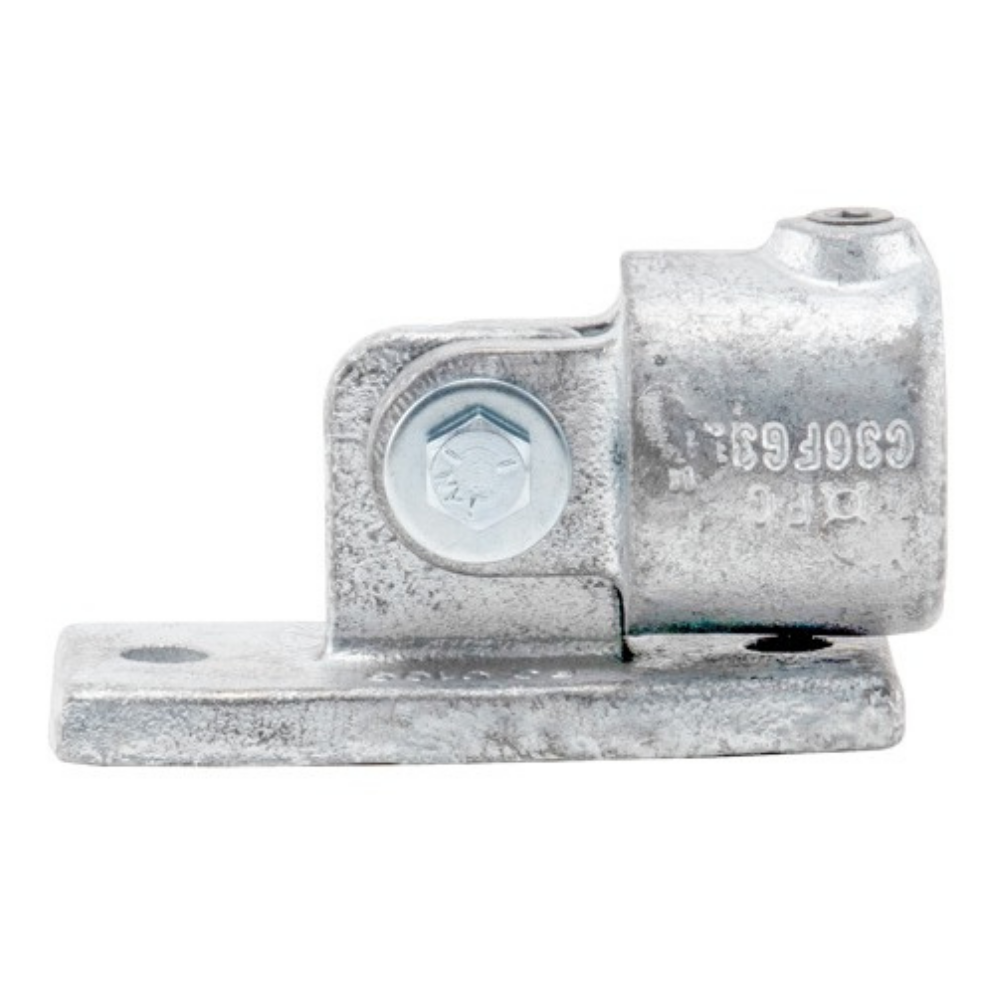

The Easyfit Base Swivel Kit (EF46G) includes an EF36G Female Swivel and an EF10G Swivel Base, preassembled to create a versatile angled connection to a mounting surface. Commonly used as a brace or cantilever support, this kit adds rigidity to pipe structures in applications like platforms, racking, and angled reinforcement.

The swivel design allows for flexible adjustment during installation, while the bolted assembly provides better strength, reusability, and easier maintenance compared to riveted solutions. Made from galvanized cast iron and hot-dip galvanized to BS EN ISO 1461 standards, the EF46G is ideal for indoor or outdoor environments requiring corrosion resistance and adaptability.
  • Includes EF36G Female Swivel and EF10G Swivel Base
  • Ideal for angled bracing or cantilever supports
  • Flexible swivel connection with bolt assembly
  • Hot dip galvanized for corrosion resistance
  • Indoor and outdoor use
  • No welding required
  • Mounting hardware size: 2 @ 3/8" diameter
  • Installs with standard hand tools
  • Compatible with Easyfit structural tubing
