Easyfit

Base Flange Square - EFSQ12G-40 - Easyfit

SKU: EFSQ12G-40
$40.00
Estimated Lead Time:3 to 5 Days

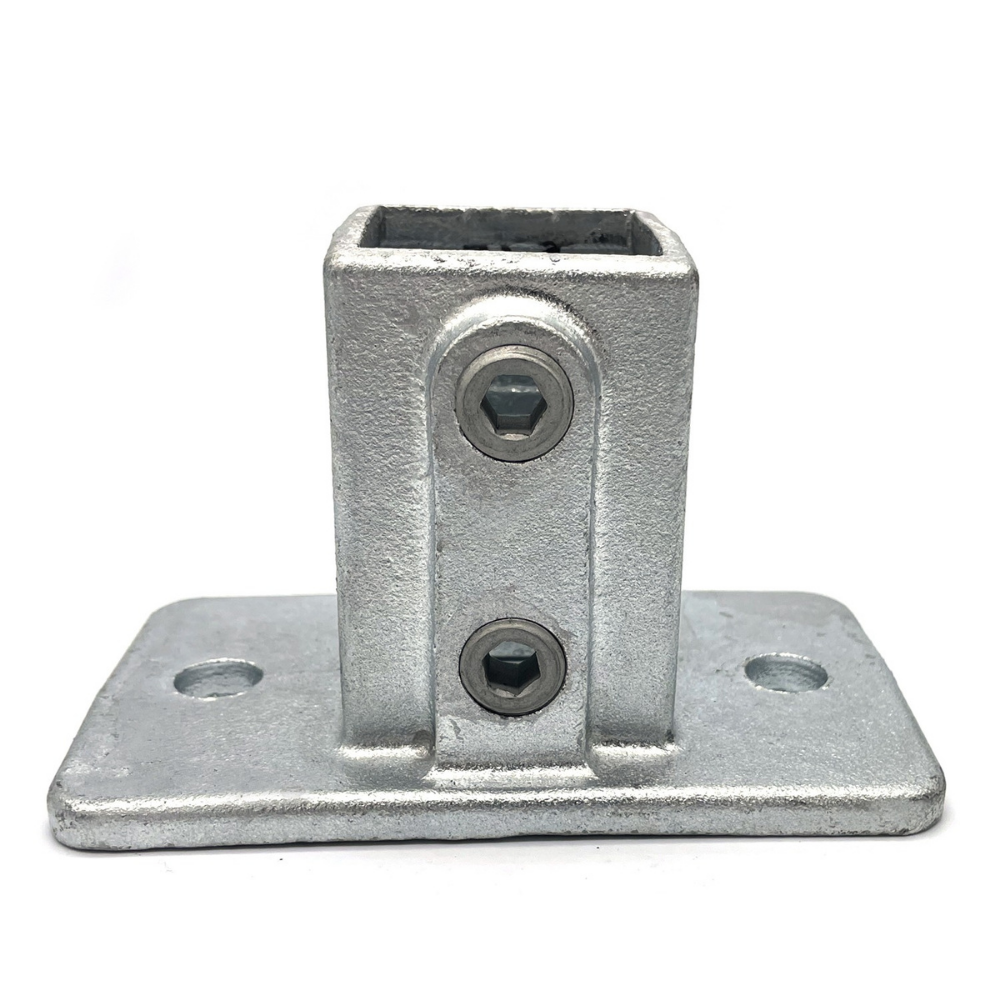

The Easyfit Base Flange – Square (EFSQ12G-40) is designed to create a strong structural connection between a 1-1/2" x 1-1/2" (40 mm) square post and a solid surface such as concrete, wood, or steel. Ideal for securely mounting guardrails, handrails, or other square-tube structures, this flange features two 3/8" diameter fixing holes and two steel set screws for a firm hold.

Made from galvanized cast iron, the EFSQ12G-40 ensures corrosion resistance and long-term performance in both indoor and outdoor environments. Installation is simple with a standard allen wrench—no welding required.
  • Creates structural connection between square post and floor
  • Mounting hardware size: 2 @ 3/8" diameter
  • Compatible with 1-1/2" x 1-1/2" (40 mm) square galvanized tube (2 mm wall)
  • Only requires an allen wrench for installation
  • Indoor and outdoor use
  • No welding needed
  • Includes steel set screws for secure connection
  • Galvanized cast iron for durability and corrosion resistance
