Barrel Mount Davit Base – 65012F – FallTech

SKU: 65012F
$1,476.40
Estimated Lead Time:3 to 5 Days

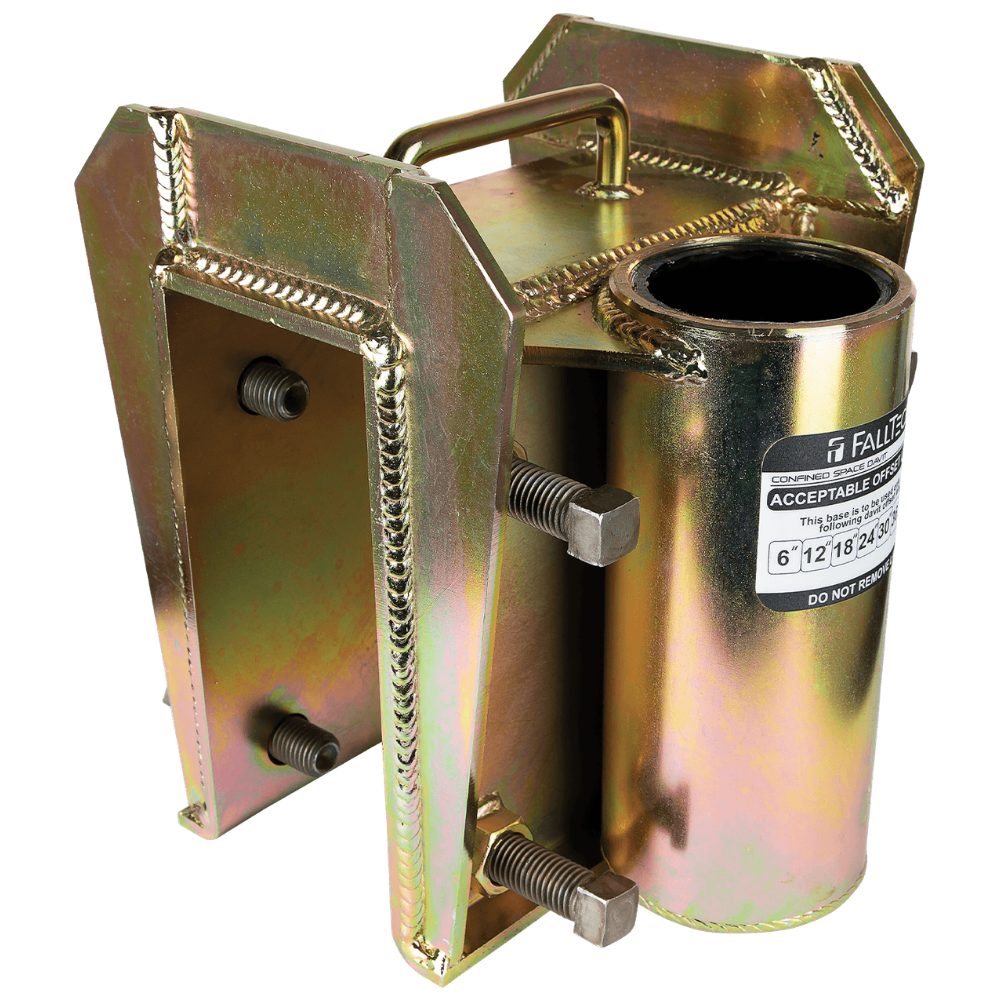

The FallTech 65012F Barrel Mount Davit Base provides a secure anchoring solution for confined space and retrieval systems. Designed for bolt-on installation to existing edges, walls, and other rated structures up to 3.5 inches thick, it is compatible with FallTech 29-inch and 44-inch offset davit arms and corresponding lower mast extensions. Constructed from plated carbon steel with a PVC sleeve insert, the base offers durability and portability, aided by an integral carry handle. The unit includes eight 3/4" × 3" square head set screws for structural attachment. When integrated into a complete system, it meets OSHA 1926.502 and 1910.66 regulations.
  • Product Code: 65012F
  • Base Material: Plated carbon steel
  • Sleeve Material: PVC
  • Maximum Mounting Thickness: 3.5 in
  • Rescue Static Strength: 6,750 lb minimum
  • Entry/Egress Static Strength: 1,800 lb minimum
  • Rescue User Capacity: 2 users, 310 lb max each
  • Entry/Egress User Capacity: 1 user, 310 lb max
  • Compliance: OSHA 1926.502 and 1910.66 (when used as part of a complete system)
  • Weight: 37 lbs

Product Brochure (PDF)
User Manual (PDF)
