Angled Flange - EF53G - Easyfit

SKU: EF53G-32
$39.00
Size
Estimated Lead Time:3 to 5 Days

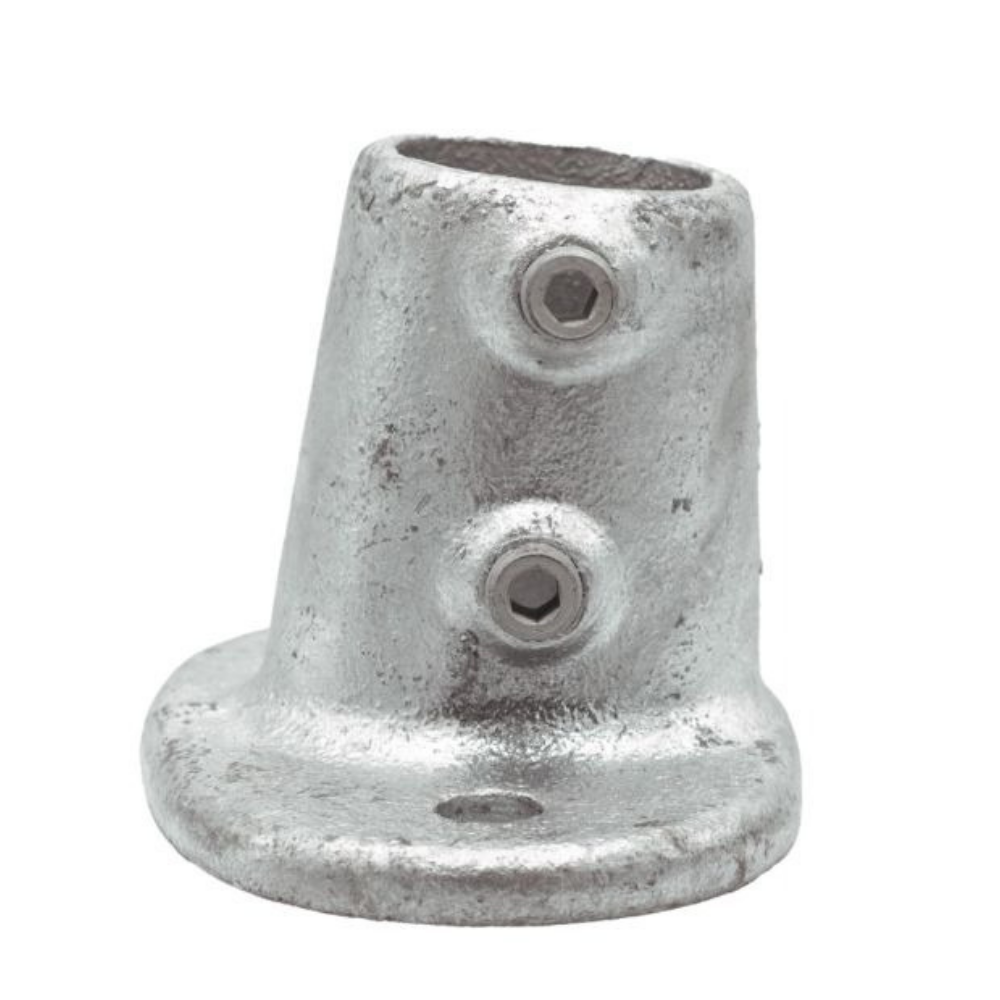

The Easyfit Angled Flange (EF53G) is designed for mounting posts to sloped surfaces with an angle range of 3° to 11°, making it ideal for ADA-compliant railing systems on ramps or inclined walkways. For optimal performance, it is recommended to align the fixing holes in the base with the direction of the applied load during installation.

Constructed from galvanized cast iron and hot-dip galvanized to BS EN ISO 1461 standards, the EF53G offers excellent corrosion resistance and durability in both indoor and outdoor environments. It secures to the surface using two 1/2" diameter mounting bolts.
  • Mounts railing posts to sloped surfaces from 3° to 11°
  • Suitable for ADA-compliant railing applications
  • Fixing holes should align with applied load

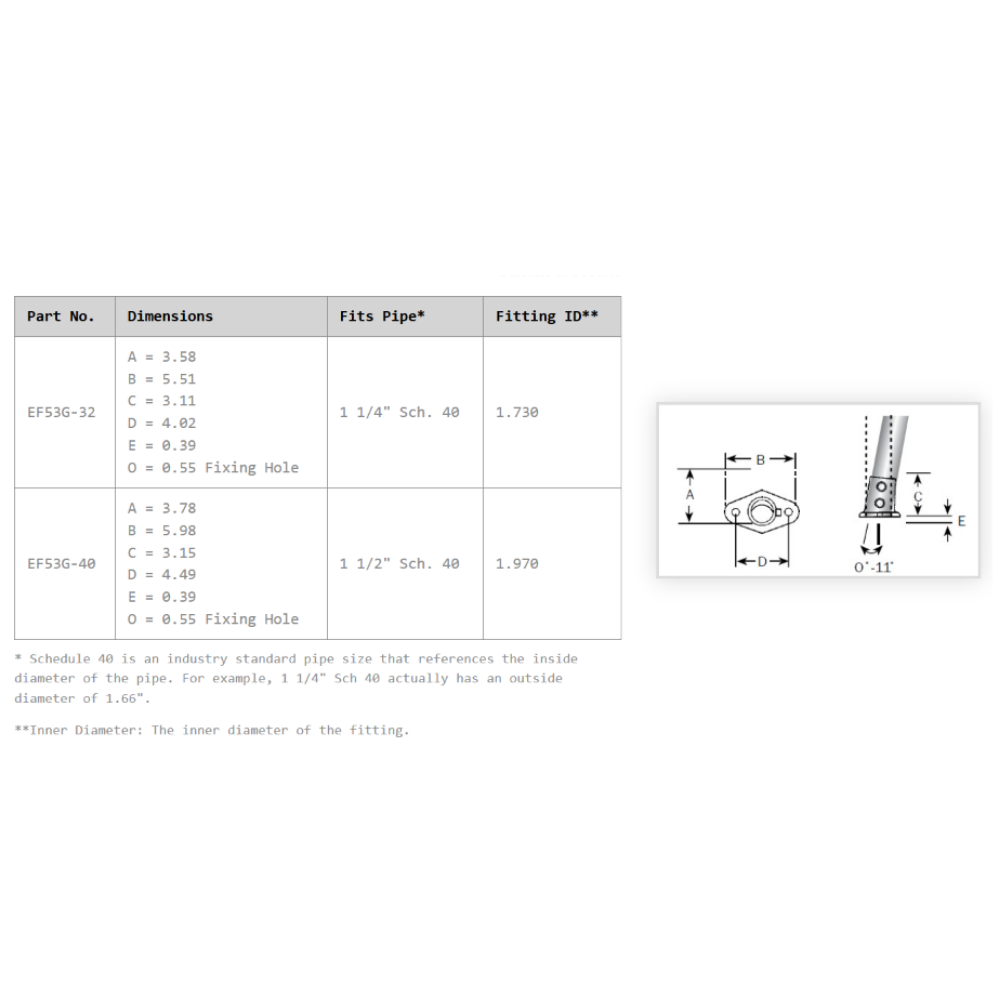

  • Mounting hardware size: 2 @ 1/2" diameter
  • Hot dip galvanized for corrosion resistance
  • Indoor and outdoor use
  • No welding required
  • Installs with standard hand tools
  • Compatible with Easyfit structural tubing
