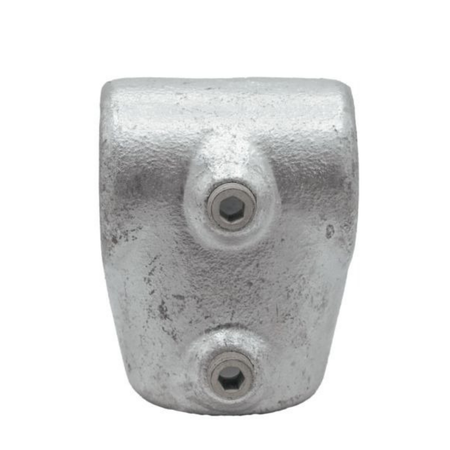

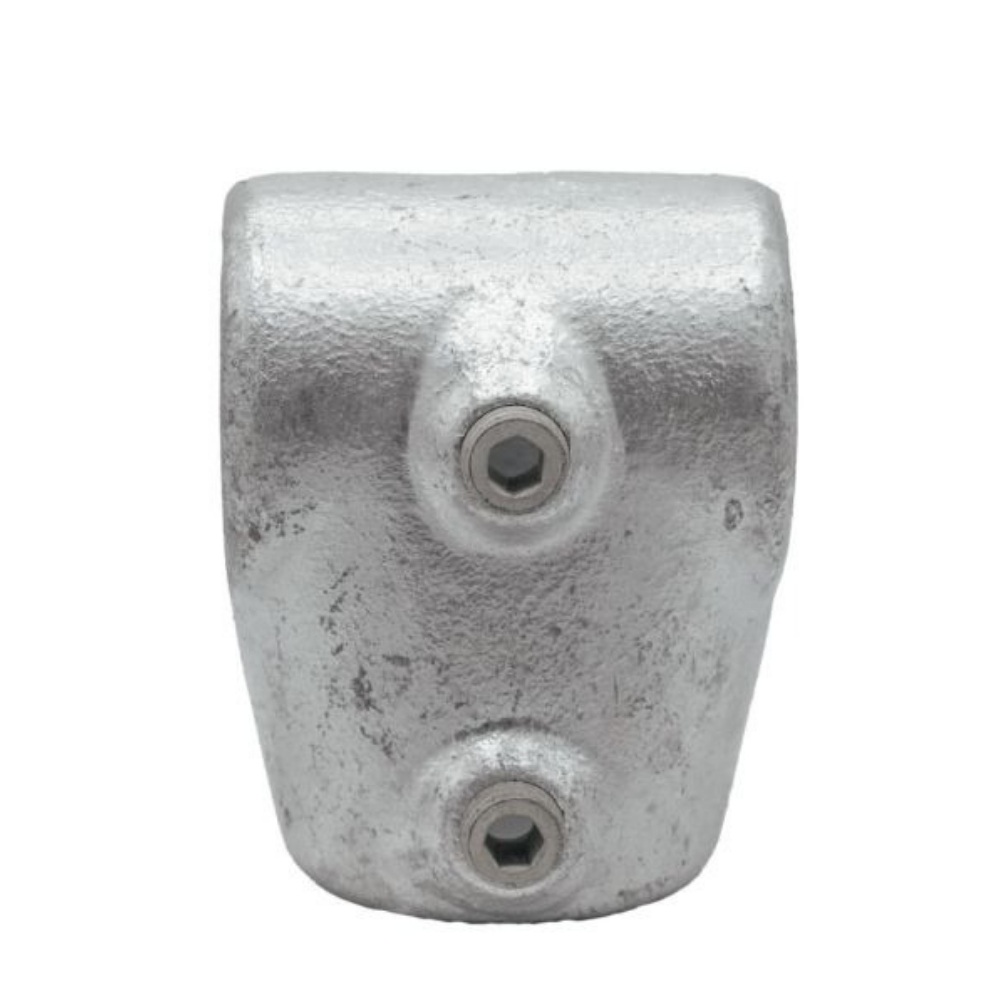

Angle Tee - EF51G - Easyfit

SKU: EF51G-32
$30.50
Size
Estimated Lead Time:3 to 5 Days

The Easyfit Angle Tee (EF51G) is designed to connect the middle or lower rail to an end upright on guardrails installed on slopes ranging from 0° to 11°. Commonly used in ADA-compliant railing systems, this fitting is ideal for base or bottom fall protection railings where a clean, angled connection is required.

The EF51G is not intended to join pipe within the fitting but rather to terminate a rail into the upright. Constructed from galvanized cast iron and hot-dip galvanized to BS EN ISO 1461 standards, it offers exceptional corrosion resistance and durability in both indoor and outdoor applications.
  • Connects middle or lower rail to end upright on 0°–11° slopes
  • Designed for base rail applications in ADA-compliant guardrails
  • Not intended for pipe-to-pipe joining within the fitting
  • Hot dip galvanized for corrosion resistance
  • Indoor and outdoor use
  • No welding required
  • Installs with standard hand tools
  • Compatible with Easyfit structural tubing
