Aluminum I-Beam Fixed Anchor - ST18AV - Frontline

SKU: ST18AV
$209.99
Estimated Lead Time:1 to 2 Days

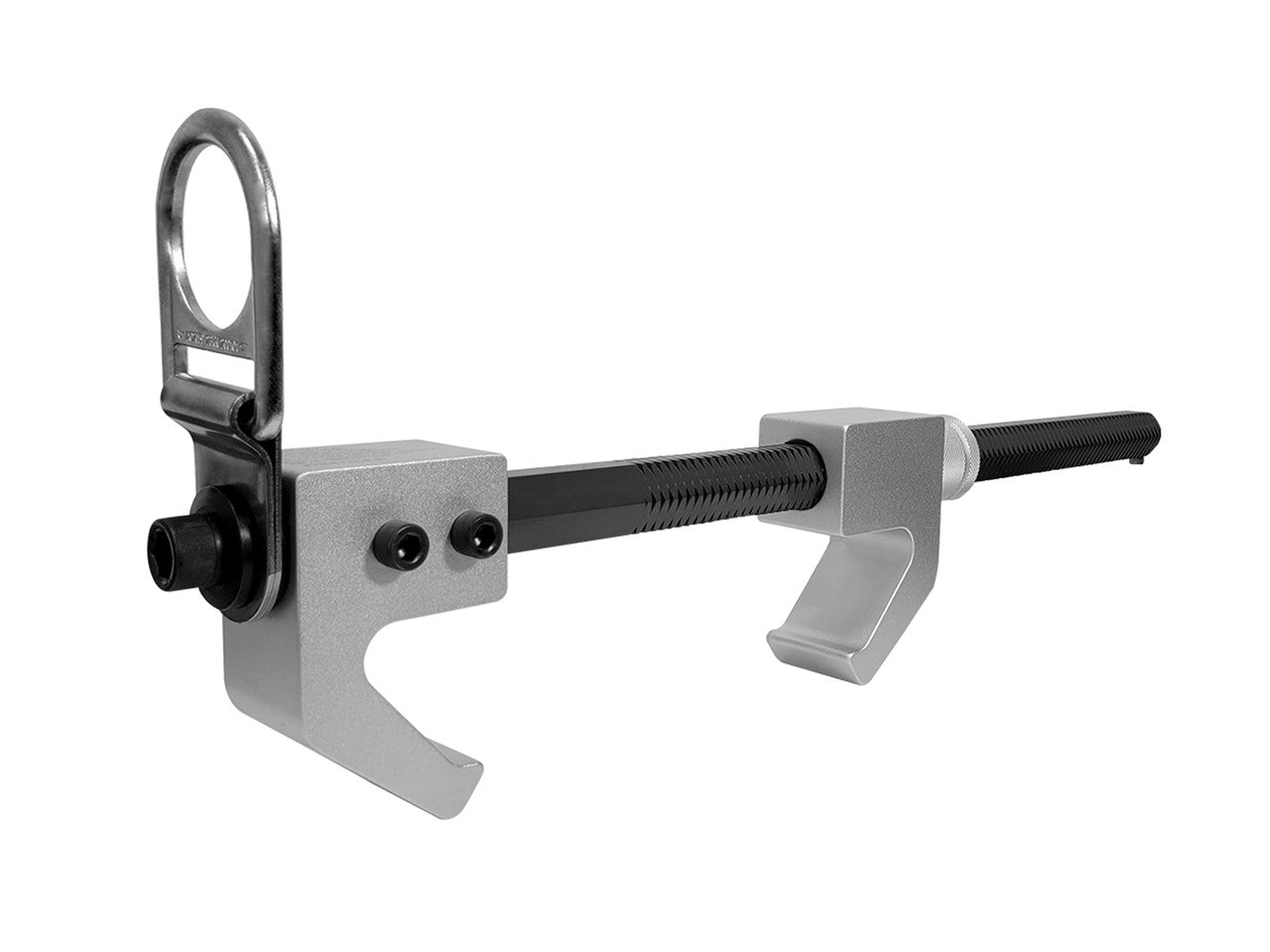

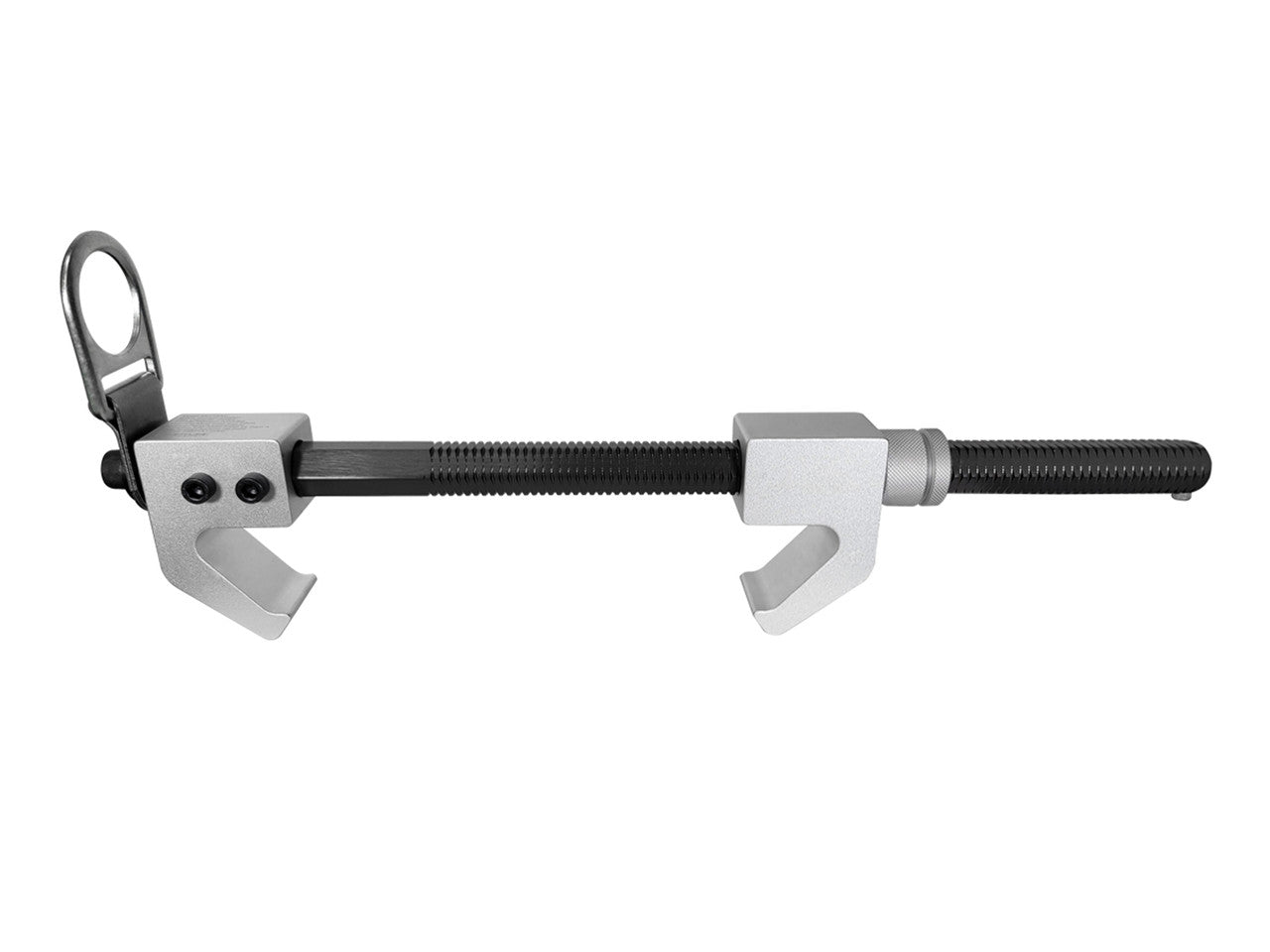

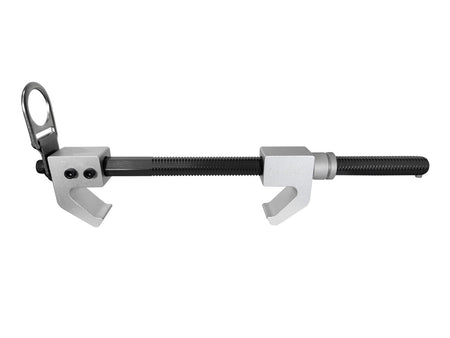

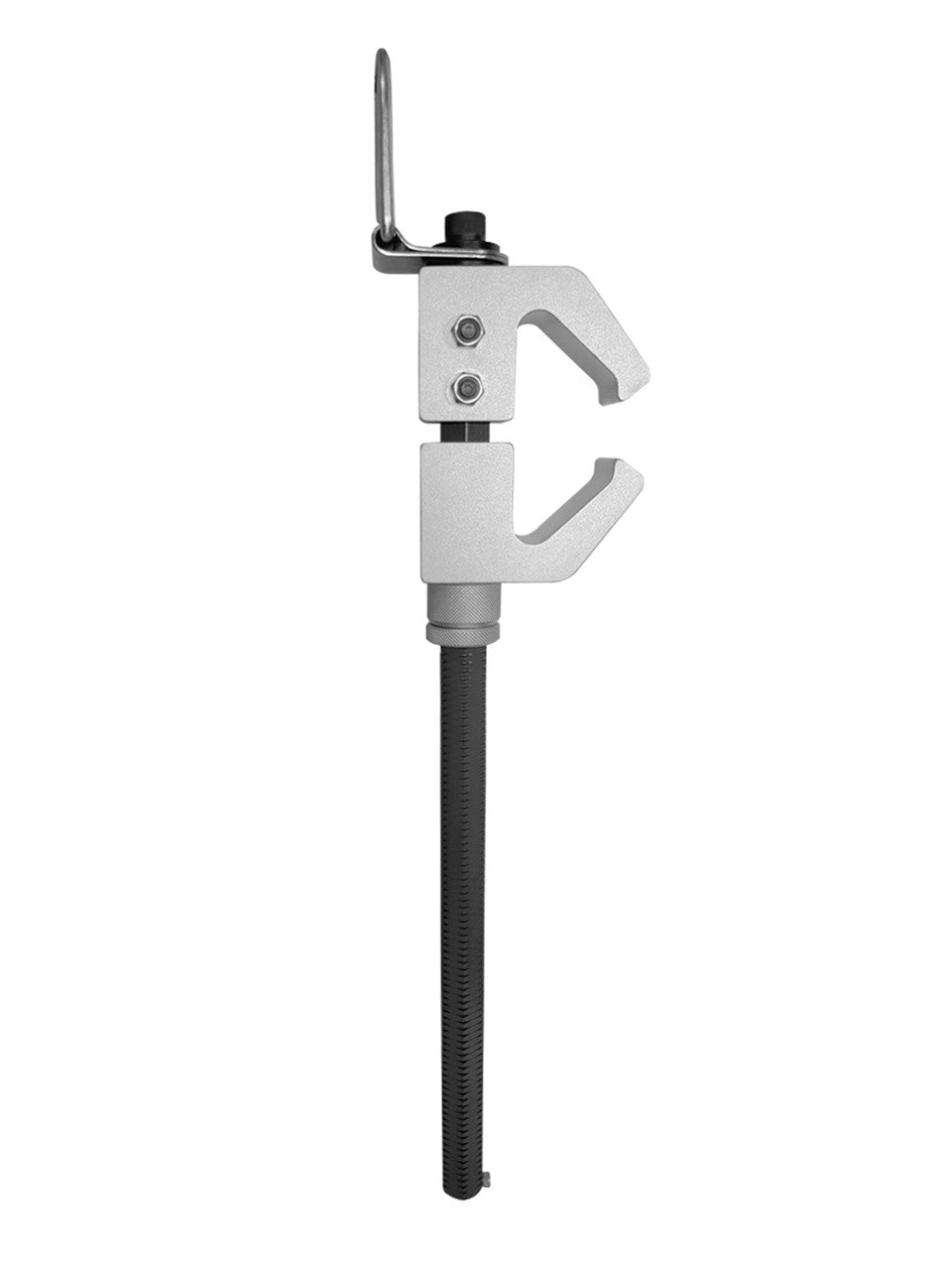

The Frontline ST18AV I-Beam Fixed Anchor is a lightweight, durable solution designed to create a secure anchorage point on vertical or horizontal steel I-beams. Constructed from aluminum alloy, this anchor features a tool-free, side-adjusting mechanism that quickly adapts to I-beam widths from 4" to 18", making it both portable and versatile for job site use.

The anchor includes a swiveling D-ring that enhances user mobility by reducing lanyard tangling, and it is compatible with self-retracting lifelines or shock-absorbing lanyards. Engineered for single-user applications, the ST18AV offers dependable strength and ease of installation without sacrificing safety or convenience.

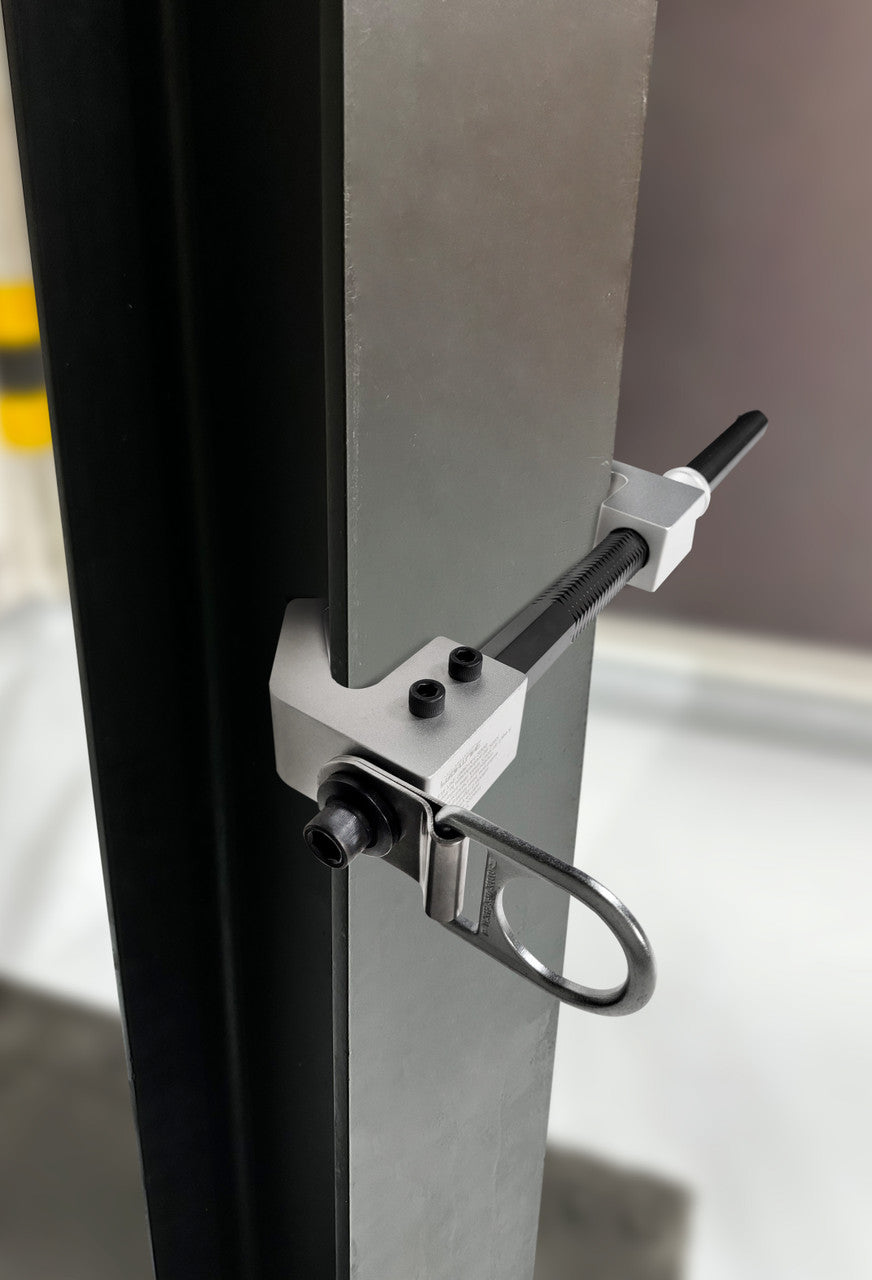

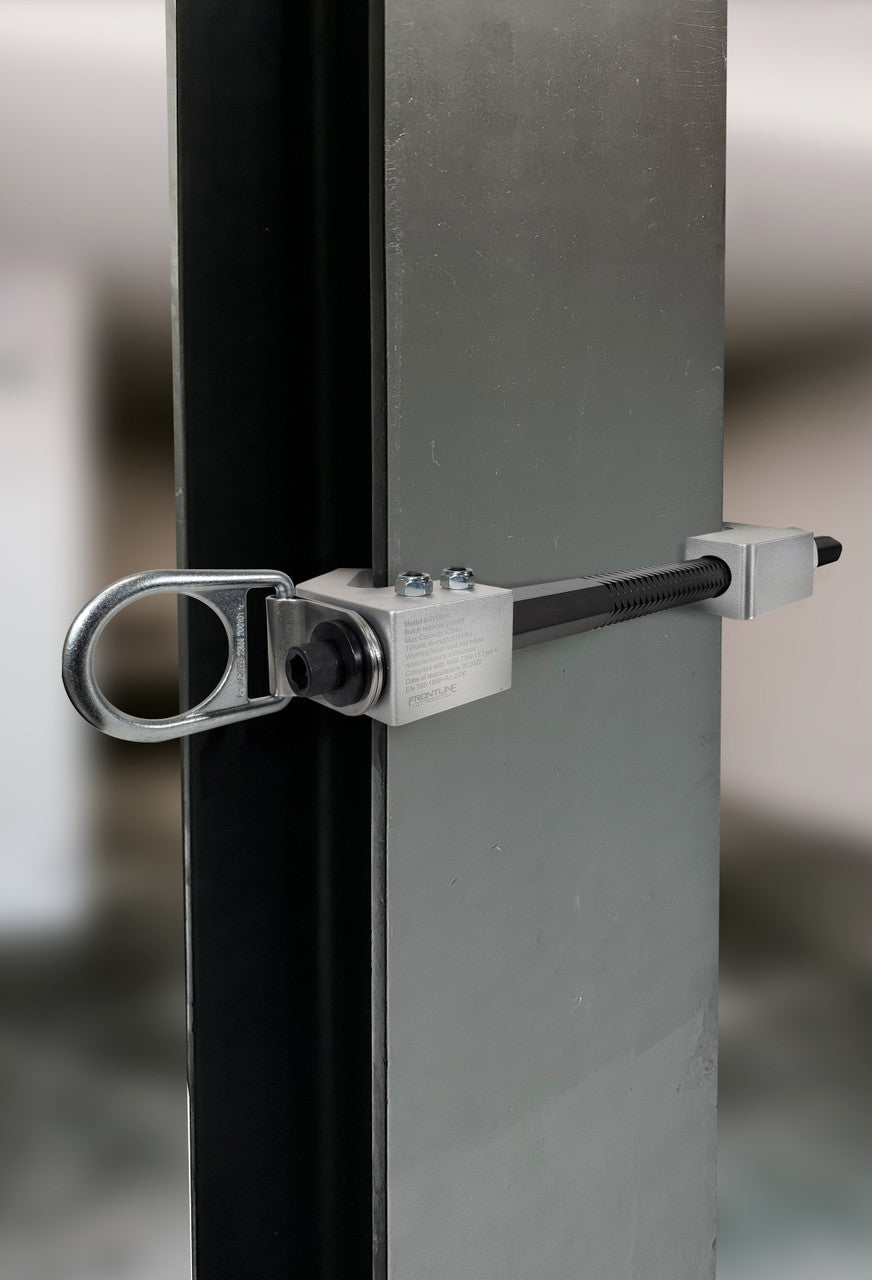

  • Application: Horizontal/Vertical I-beams
  • Static tensile strength: 5,000 lbs
  • User maximum capacity: 425 lbs
  • Product weight: 5 lbs
  • Fits I-beam flanges from 4" to 18" wide

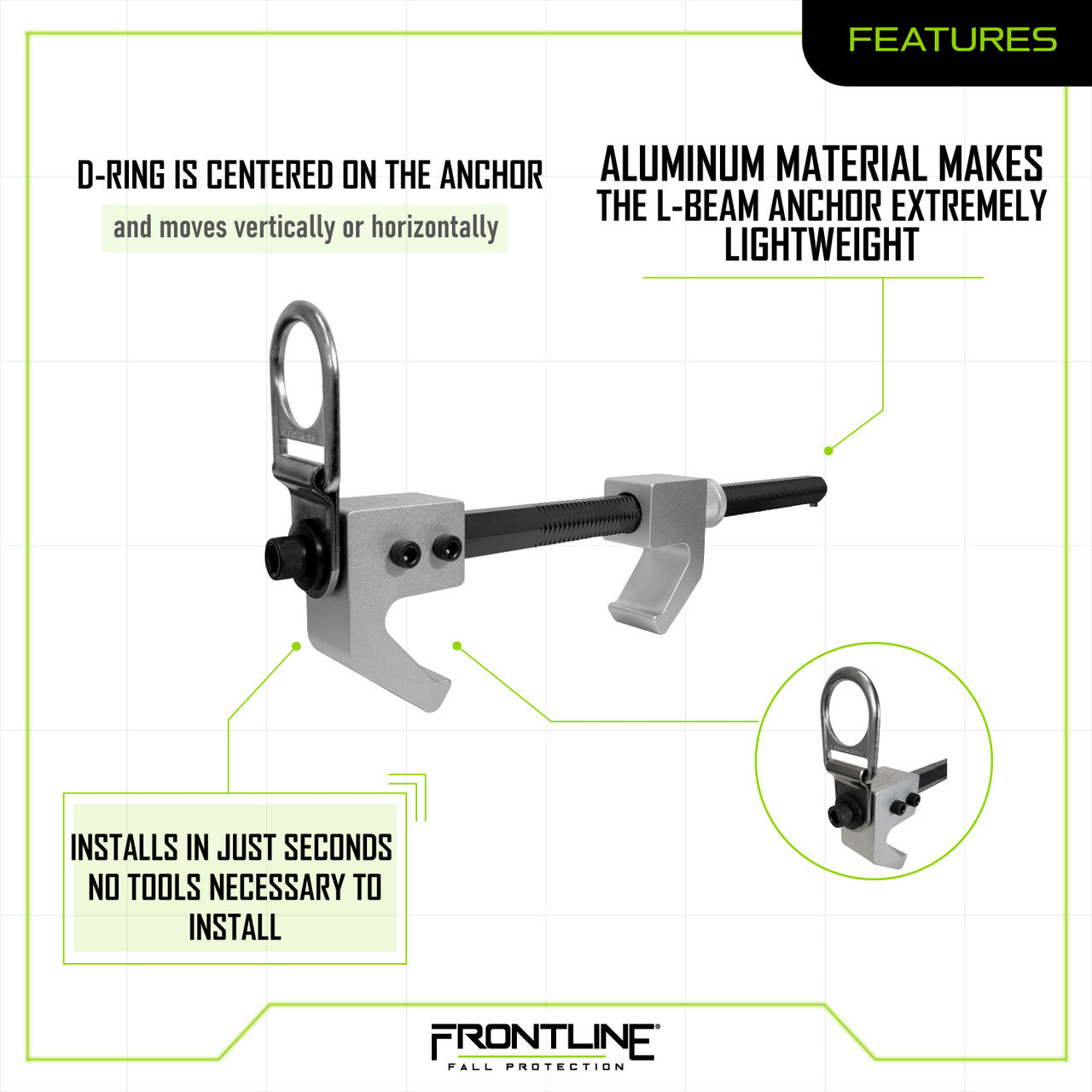

  • Lightweight aluminum alloy construction

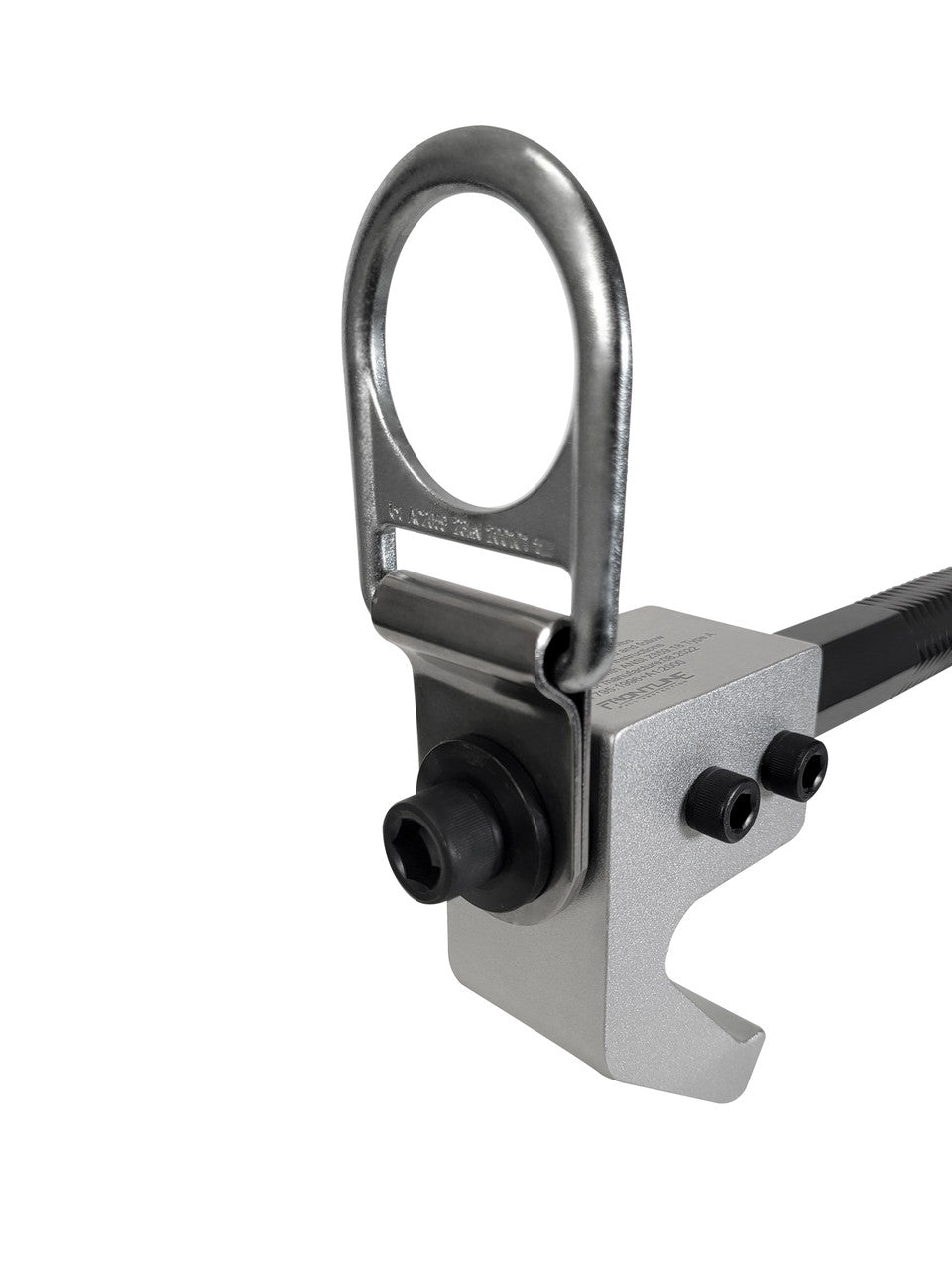

  • Swiveling D-ring for reduced lanyard tangling
  • Tool-free installation via turn locking adjuster

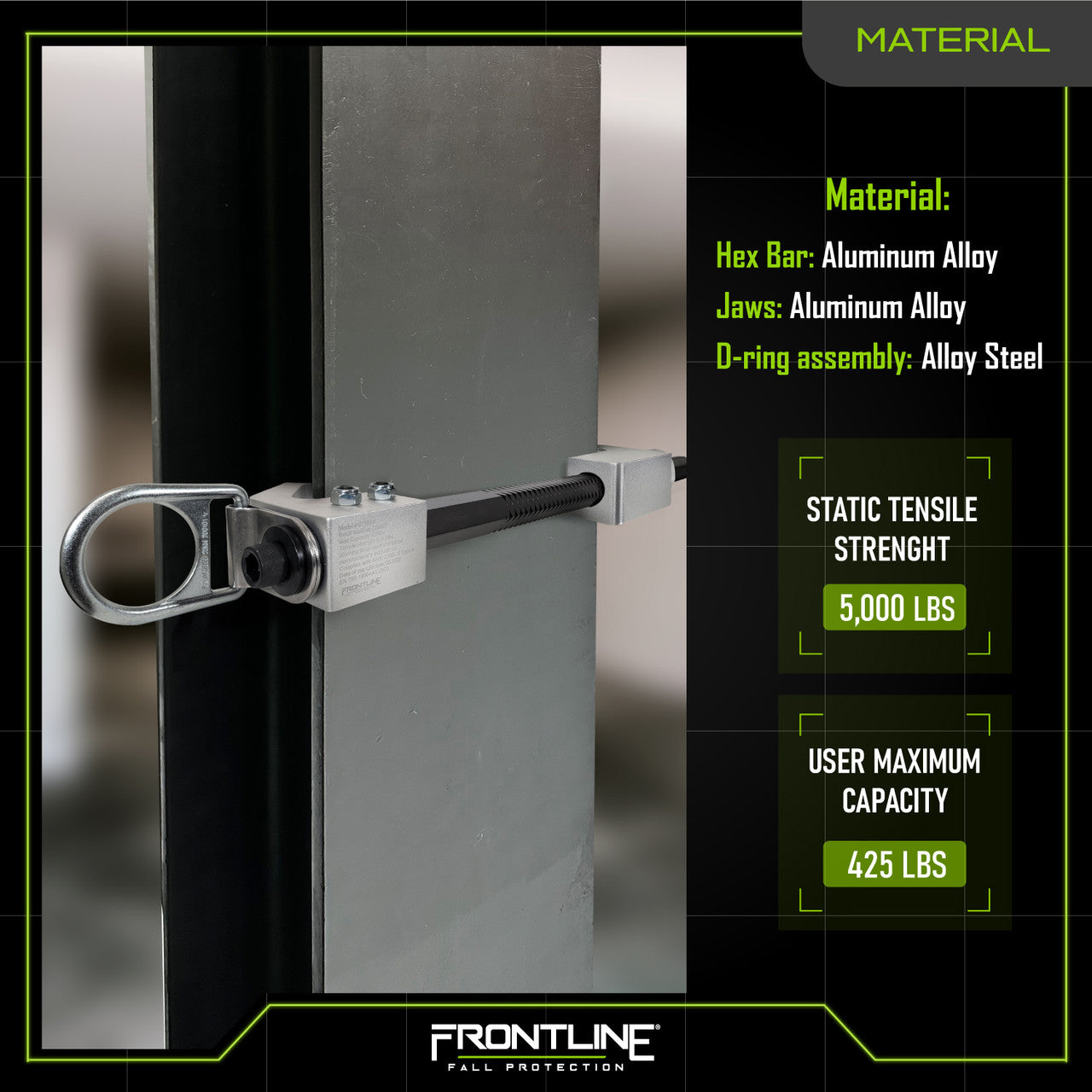

  • Hex bar and jaws made of aluminum alloy
  • D-ring made of alloy steel

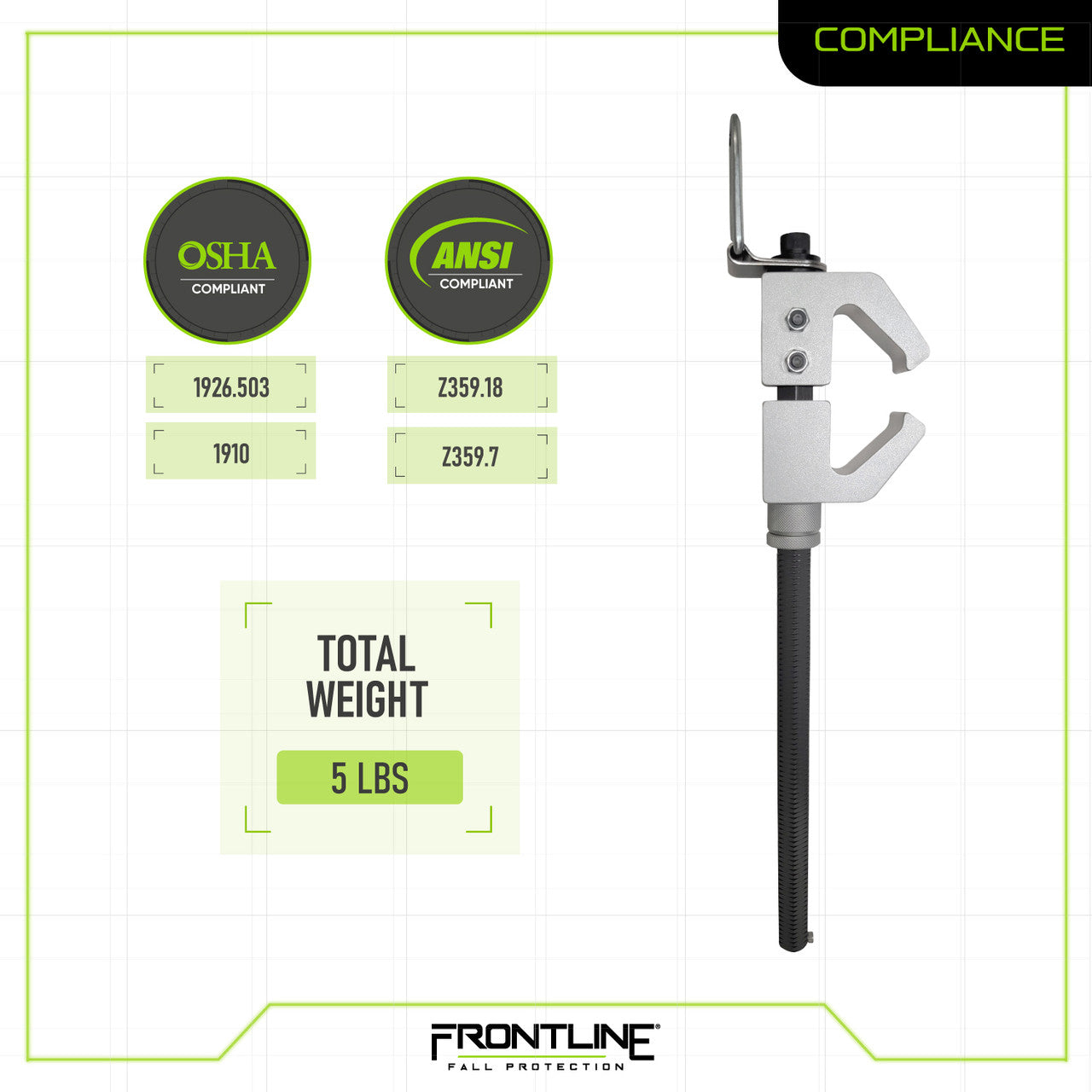

  • Meets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1910.140, OSHA 1926.503, EN 795:2012
