Aluminum Beam Trolley Anchor for 3"–10" Wide I-Beams - ST10HT - Frontline

SKU: ST10HT
$599.99
Estimated Lead Time:

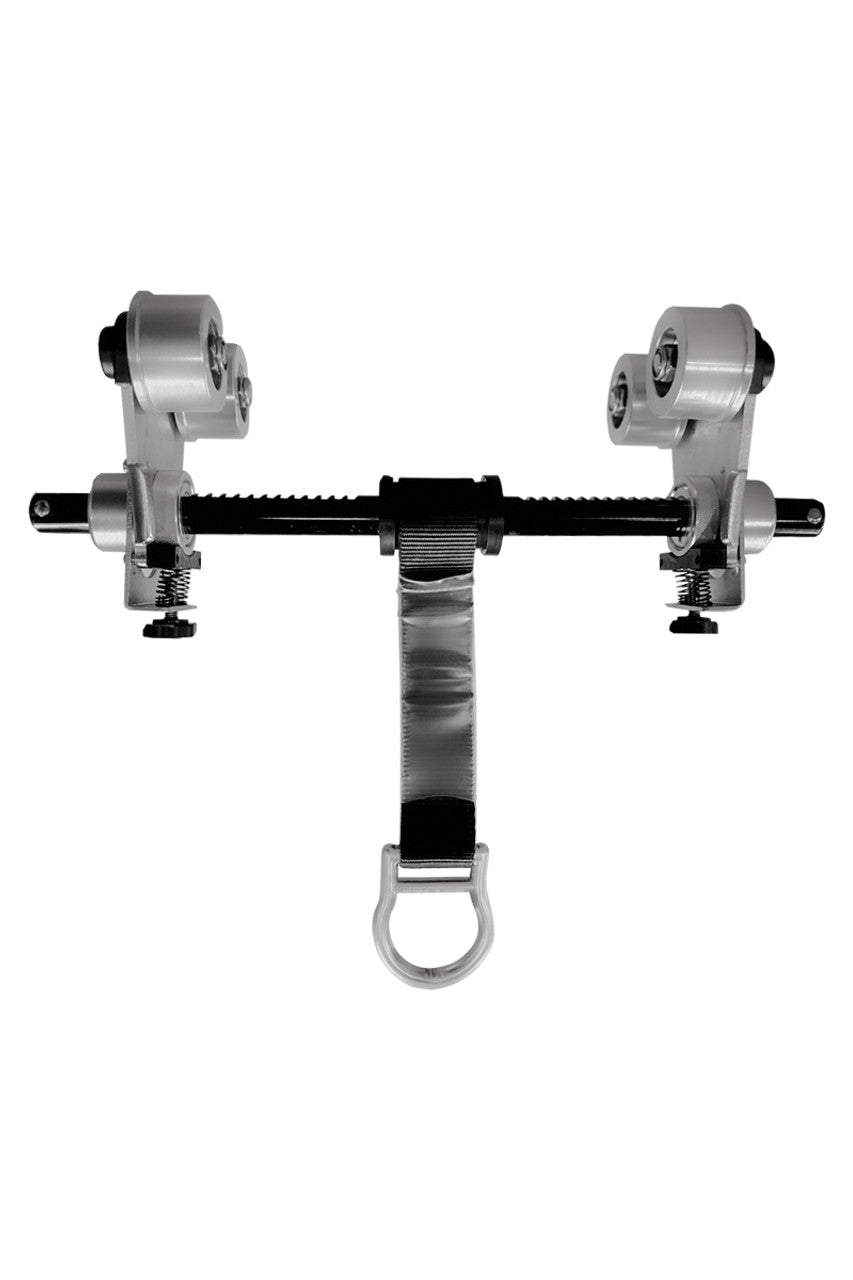

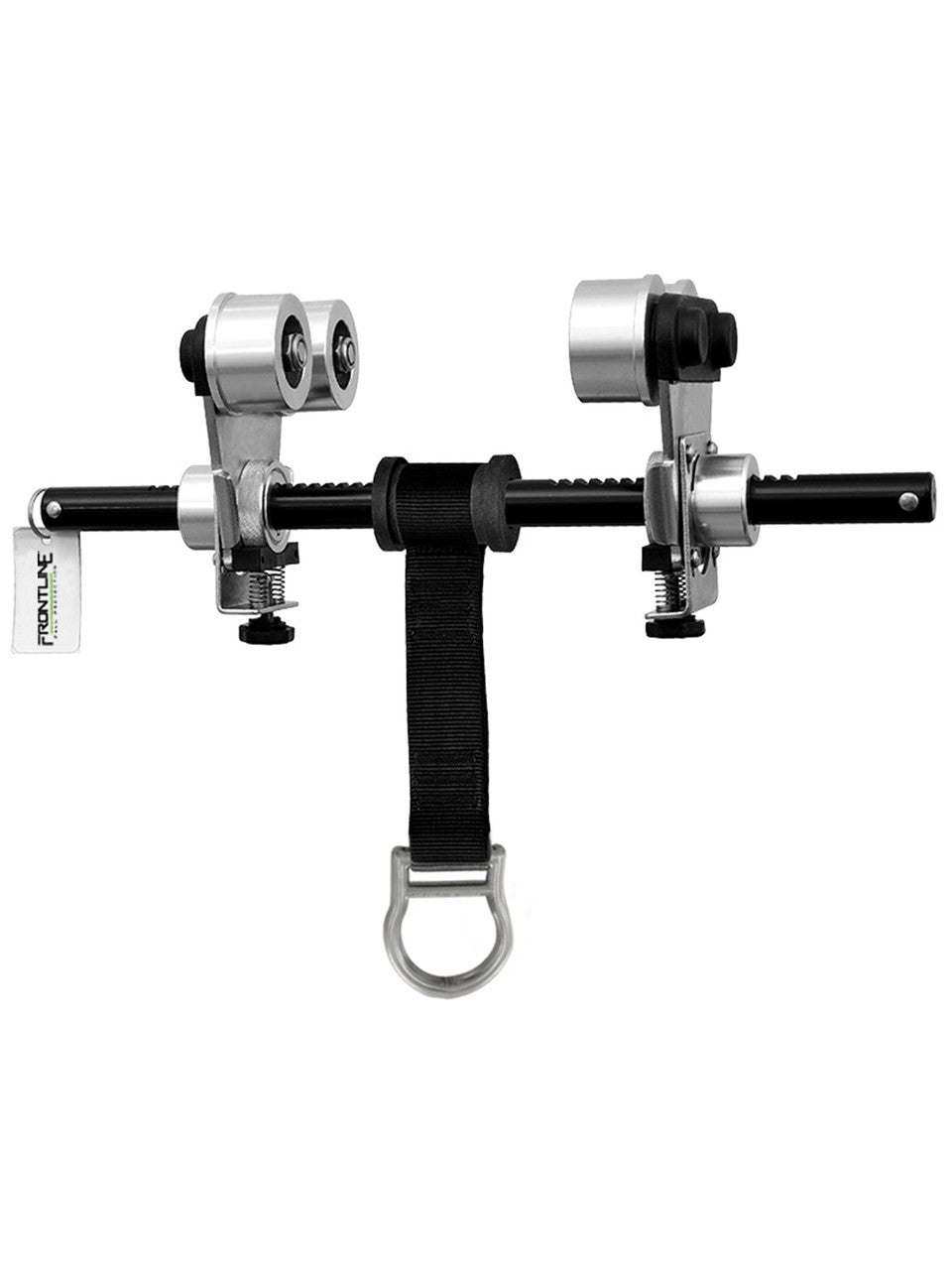

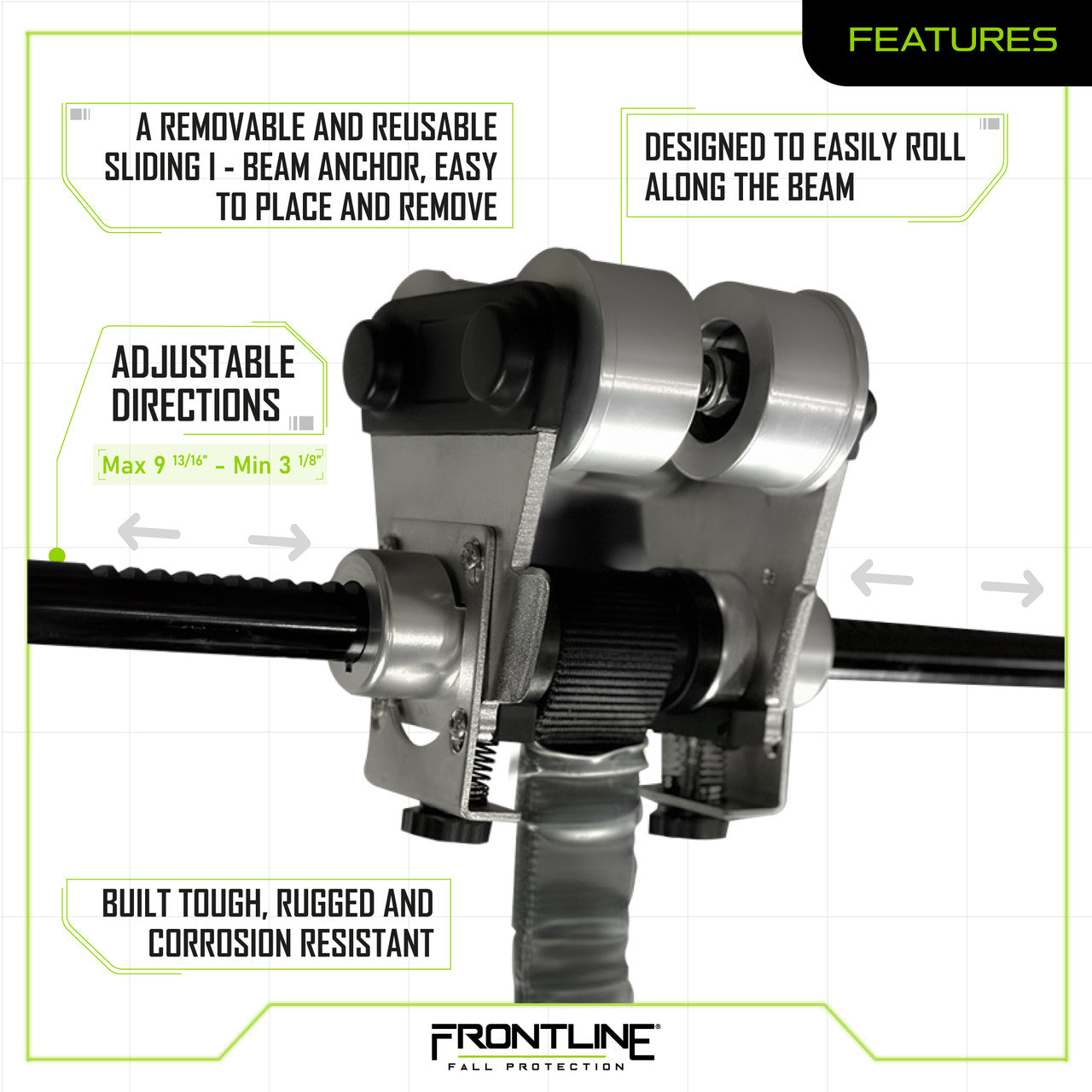

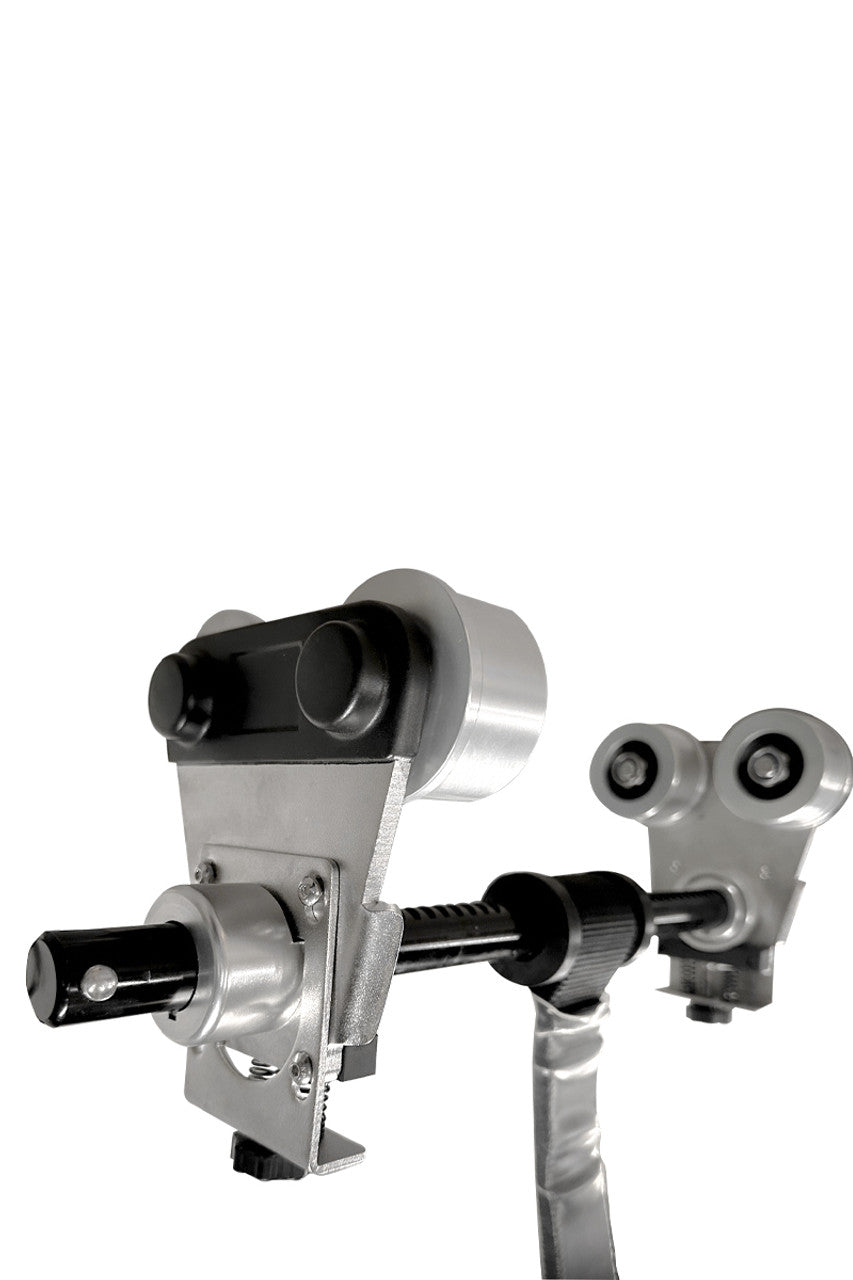

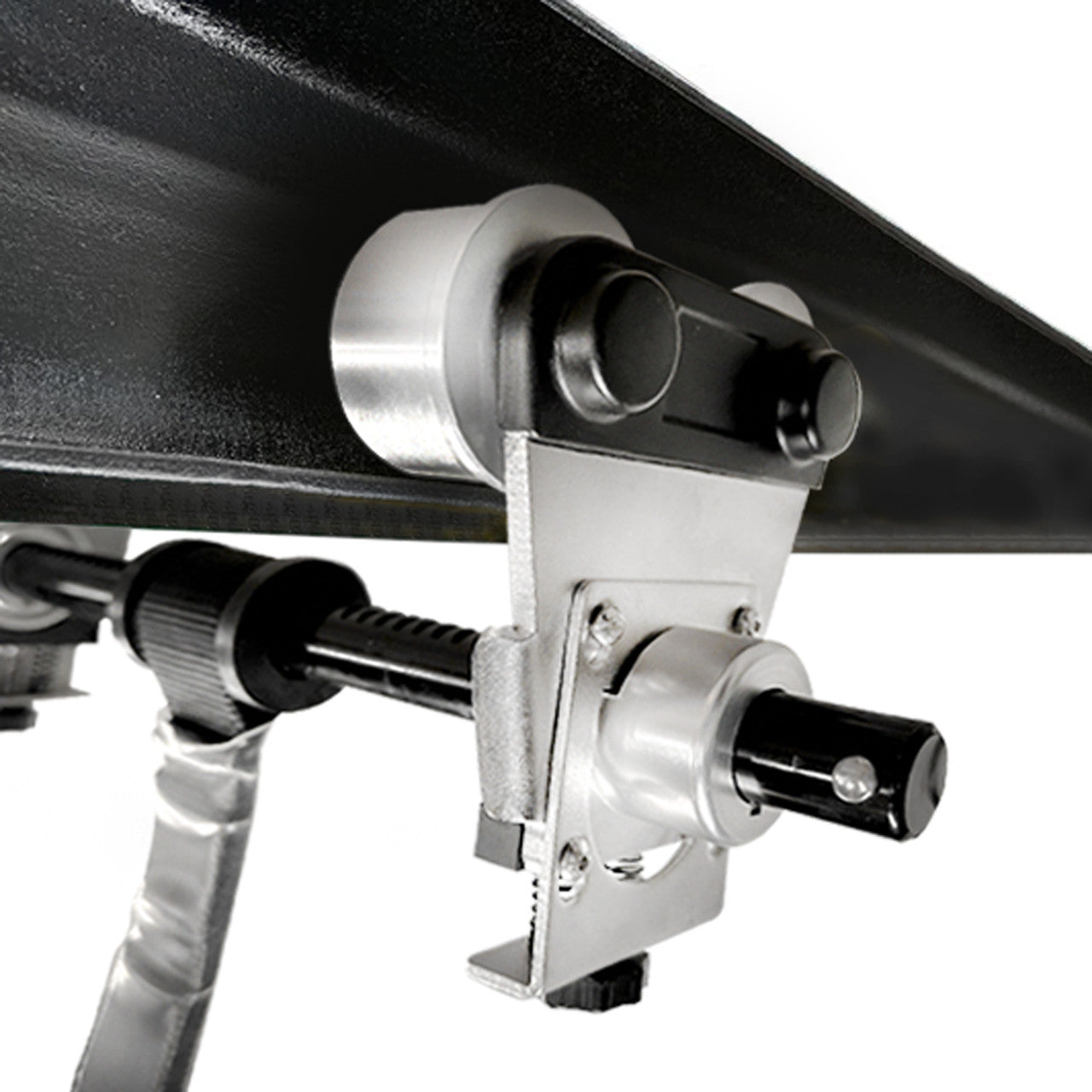

The Frontline ST10HTK Beam Trolley Anchor offers unmatched trailing mobility with its high-speed aluminum roller system, designed to follow the user along the I-beam for optimal safety and productivity. Lightweight and durable, this reusable anchor installs easily and adjusts to fit I-beam flanges from 3" to 10" wide.

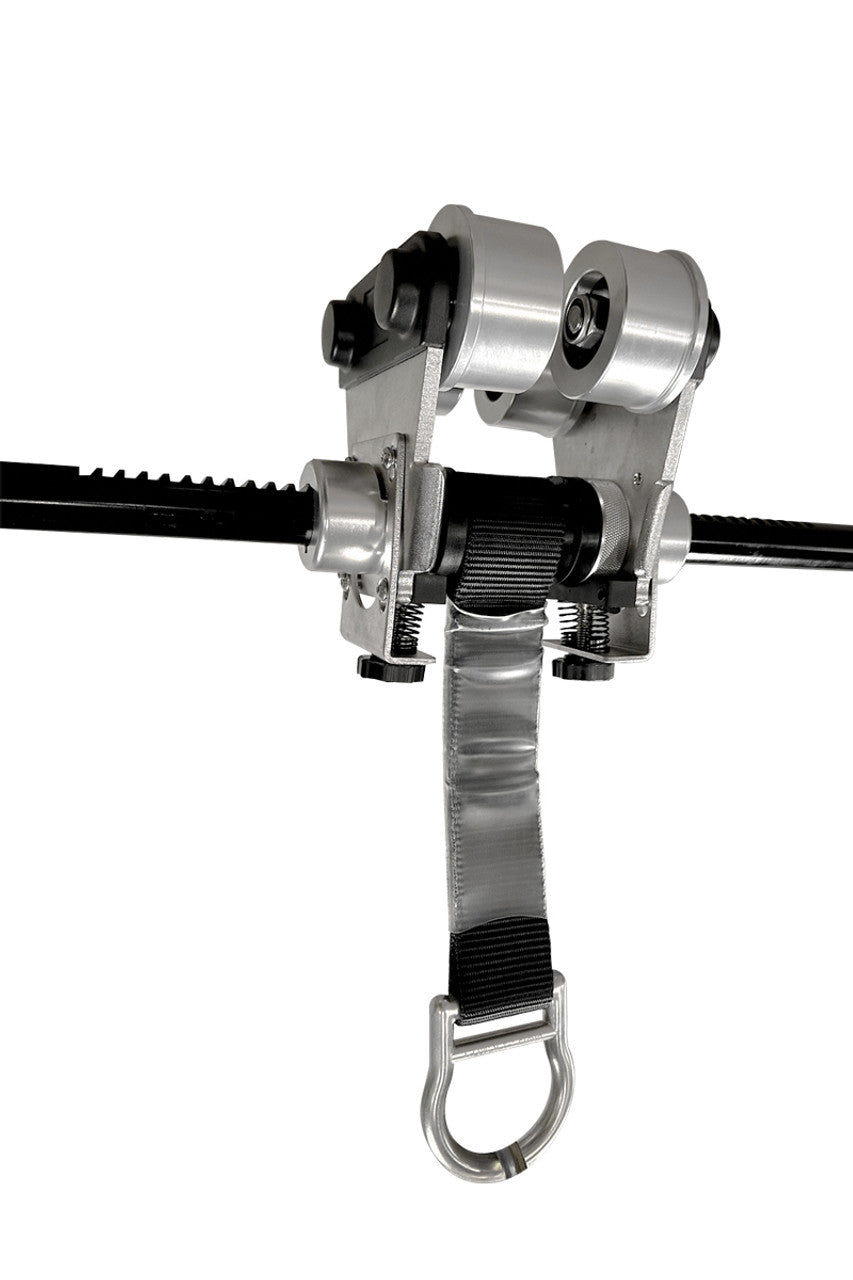

Featuring a 360° swiveling and 180° pivoting D-ring, this anchor minimizes the risk of side loading or disengagement while enabling smooth, unrestricted movement. Its corrosion-resistant aluminum body and rugged components make it ideal for repeated use in demanding environments.
  • Static tensile strength: 5,000 lbf / 22 kN
  • Max user capacity: 310 lbs
  • Product weight: 9.2 lbs

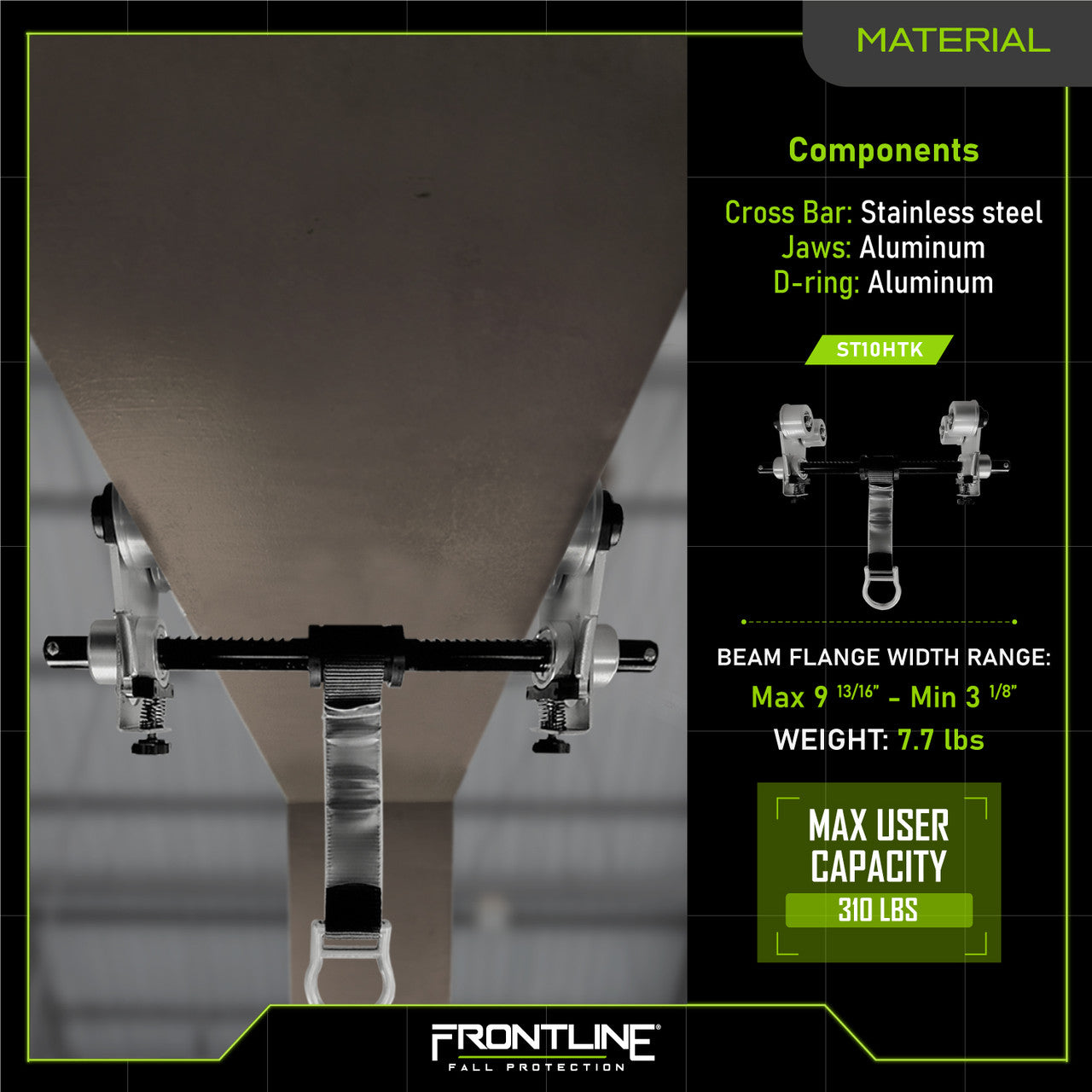

  • Fits I-beam flange widths: 3" to 10"
  • Fits flange thickness: up to 1"

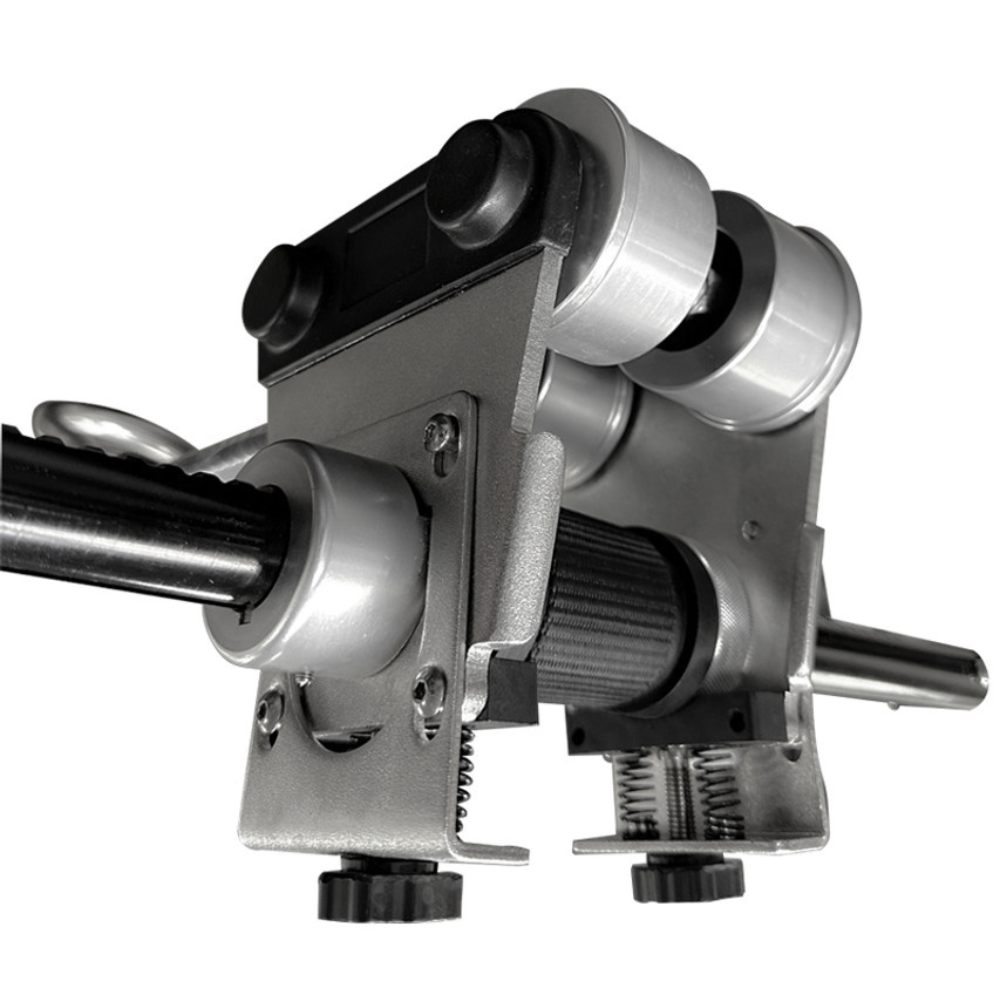

  • Aluminum cross bar for lightweight strength

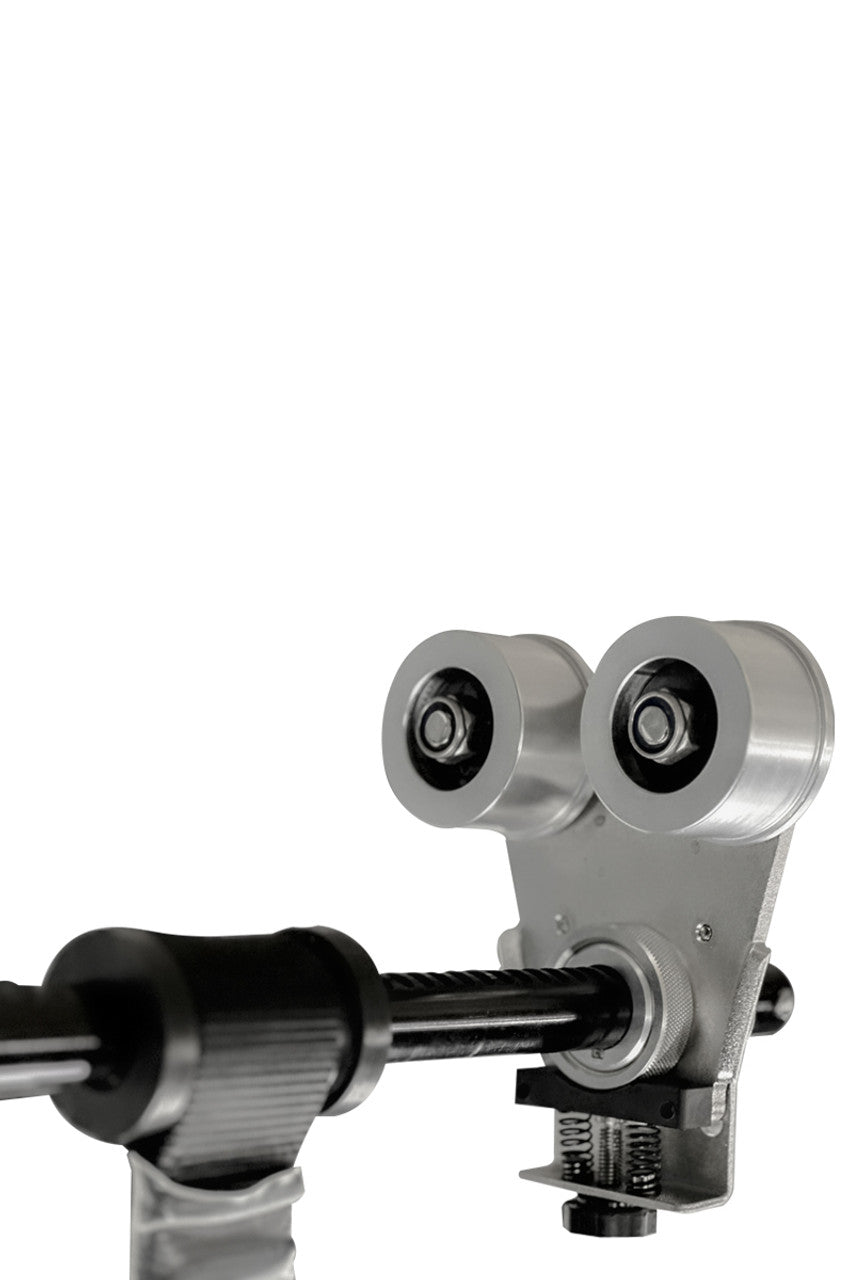

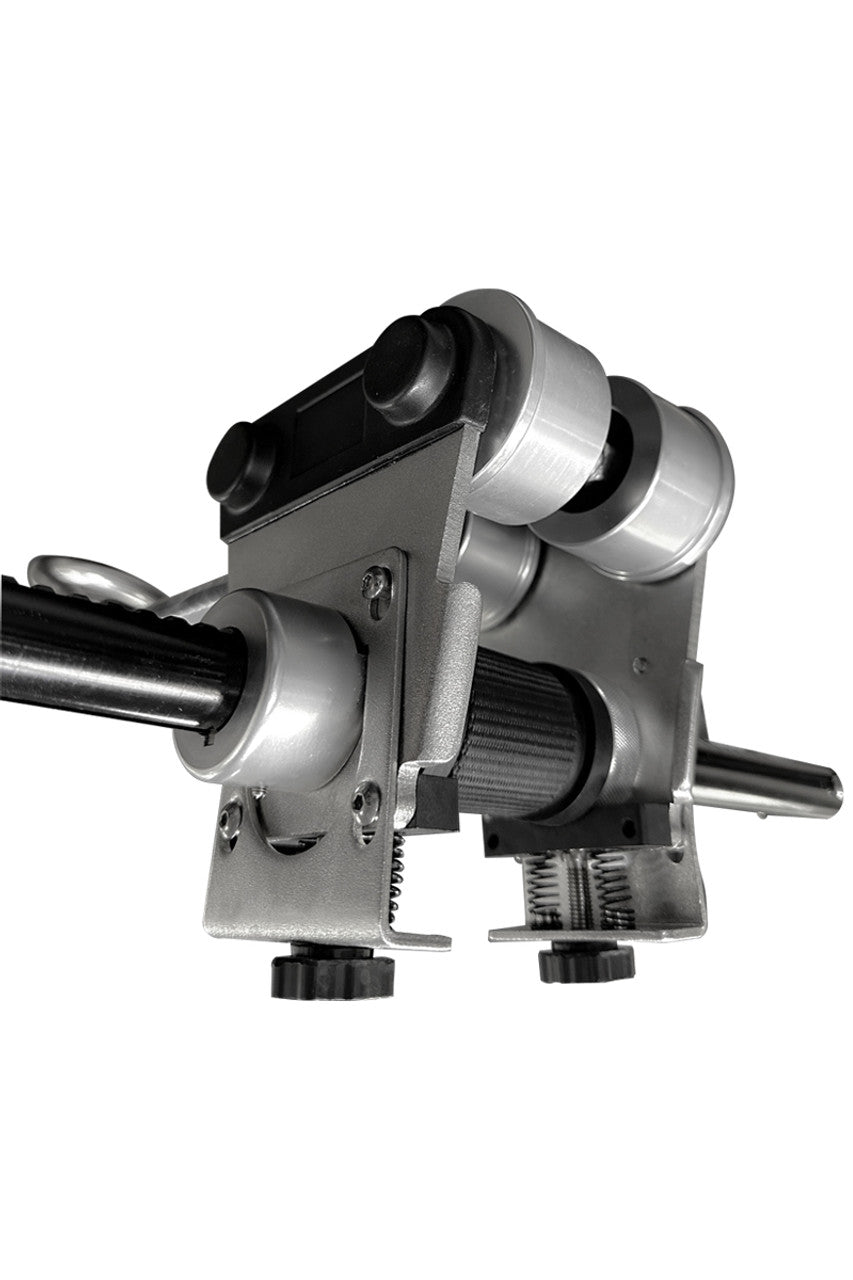

  • Aluminum rollers for smooth, trailing motion
  • Polyester webbing with stainless steel spring and hardware
  • Zinc-plated swivel with 360° rotation and 180° pivot
  • Quick, tool-free installation and removal

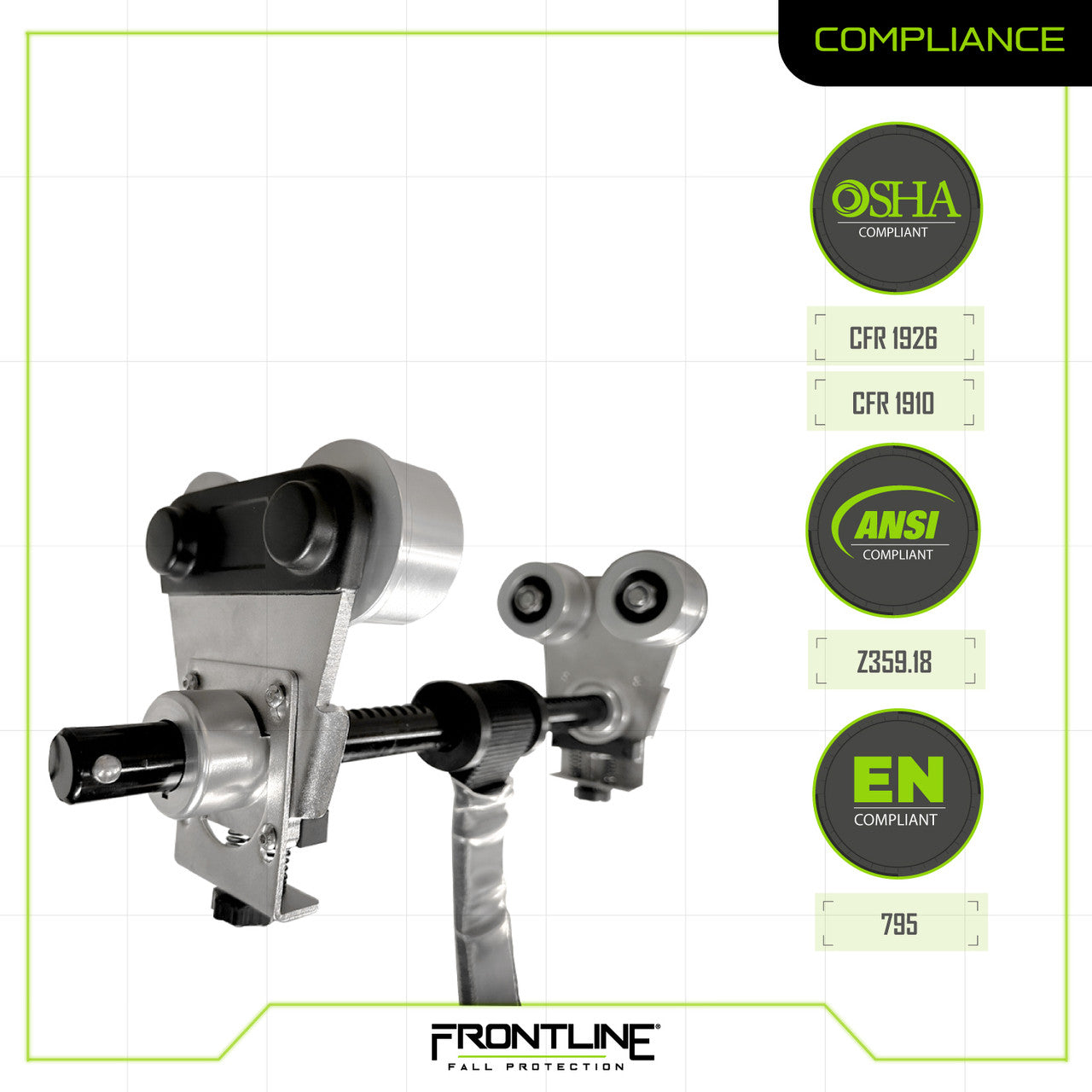

  • Meets or exceeds ANSI Z359.18, OSHA 1910.140, OSHA 1926.502, EN 795:2012
