Adjustable Lifting Beam - 10ft - 5 Ton - Model 17 - Caldwell

SKU: 17-5-10
$3,567.35
Estimated Lead Time:1 to 2 Weeks

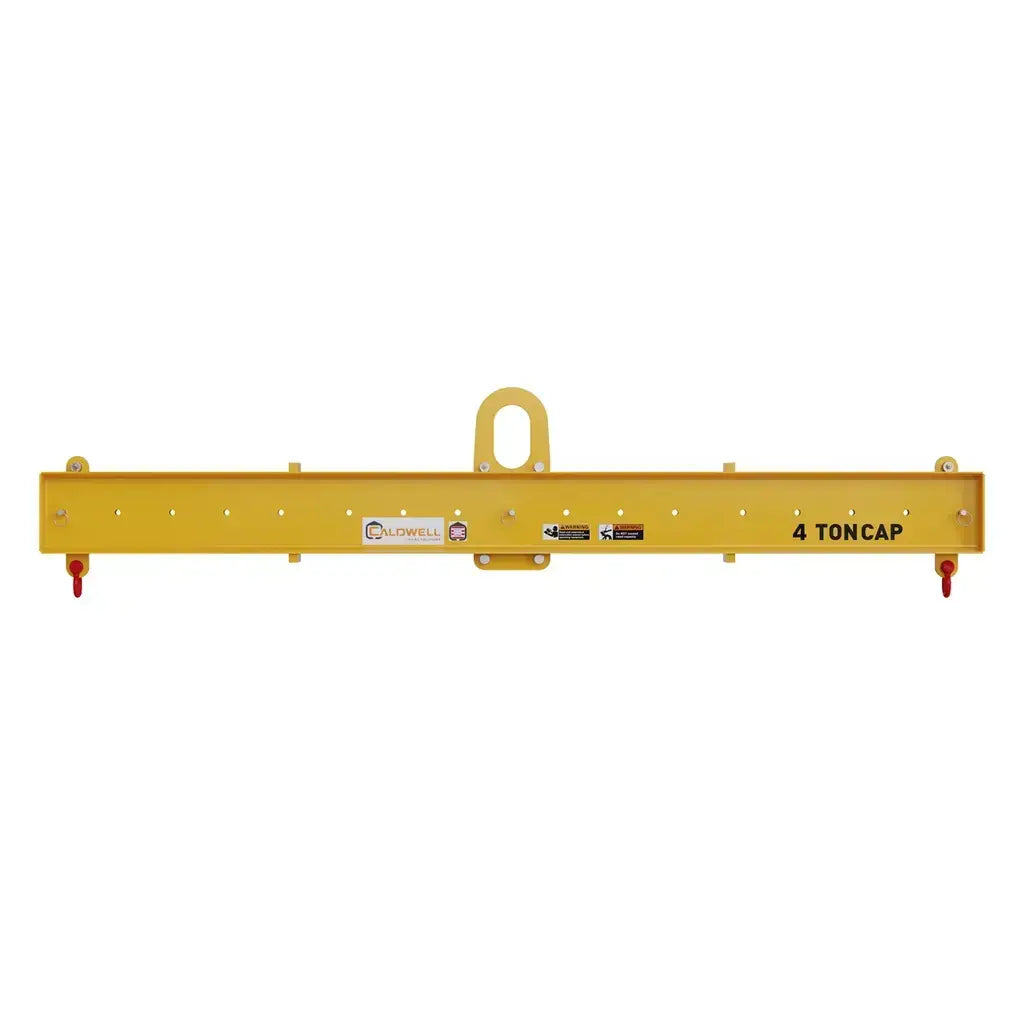

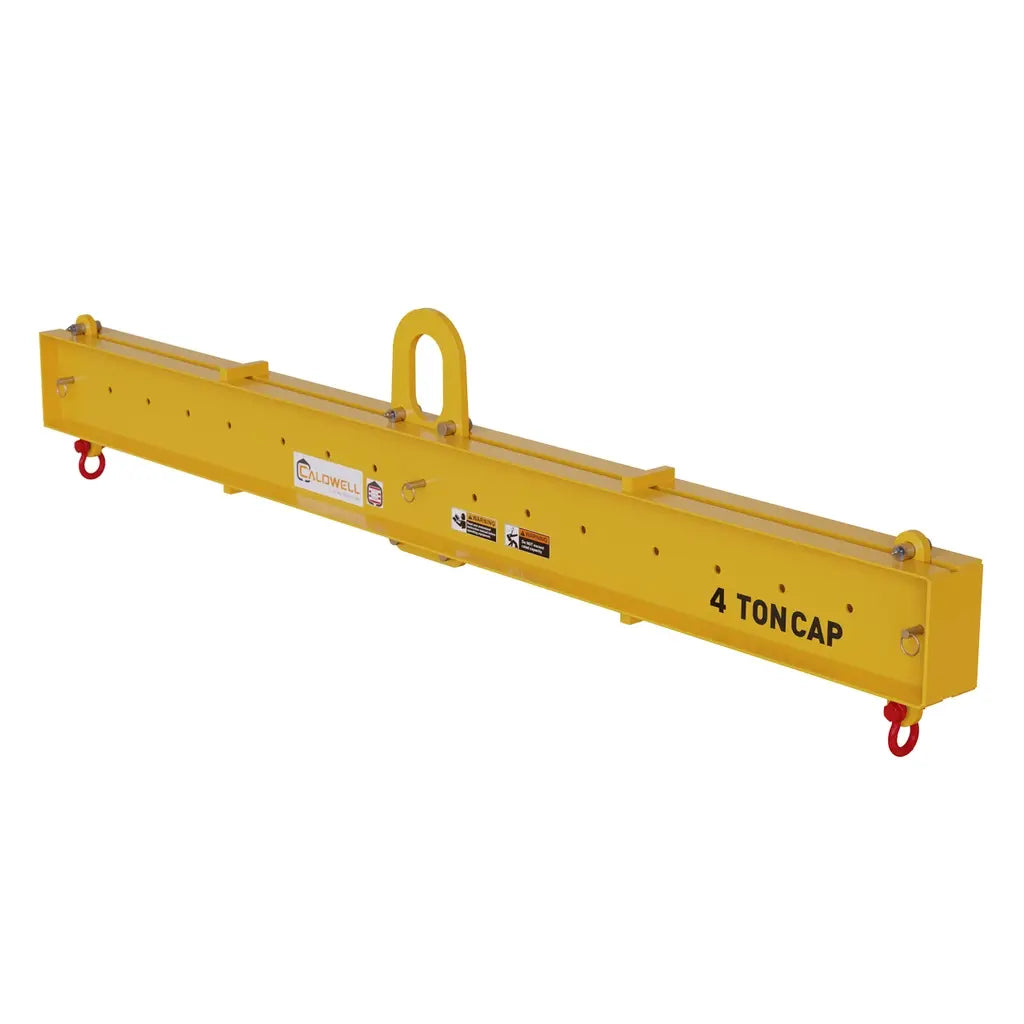

Model 17 Adjustable Lifting Beam features an adjustable bail and lifting points in 6" increments to handle standard and unbalanced loads. Get the set-up you need with a few quick motions

Made in the USA
  • 10000 lbs Capacity
  • 22.4" of Headroom
  • Minimum Spread - 60"
  • Maximum Spread - 120"
  • Bail Adjustment - 36"
  • Bail adjusts horizontally for lifting unbalanced loads
  • Provides clearance in low headroom applications
  • Spread adjusts in 6" increments along lifting beam
  • Shackles included
  • Complies with ASME standards

Spec Sheet (PDF)
