8142 FT-Iron® 3D Standard Non-Belted Harness – FallTech

SKU: 8142XS
$247.50
Size
Estimated Lead Time:3 to 5 days

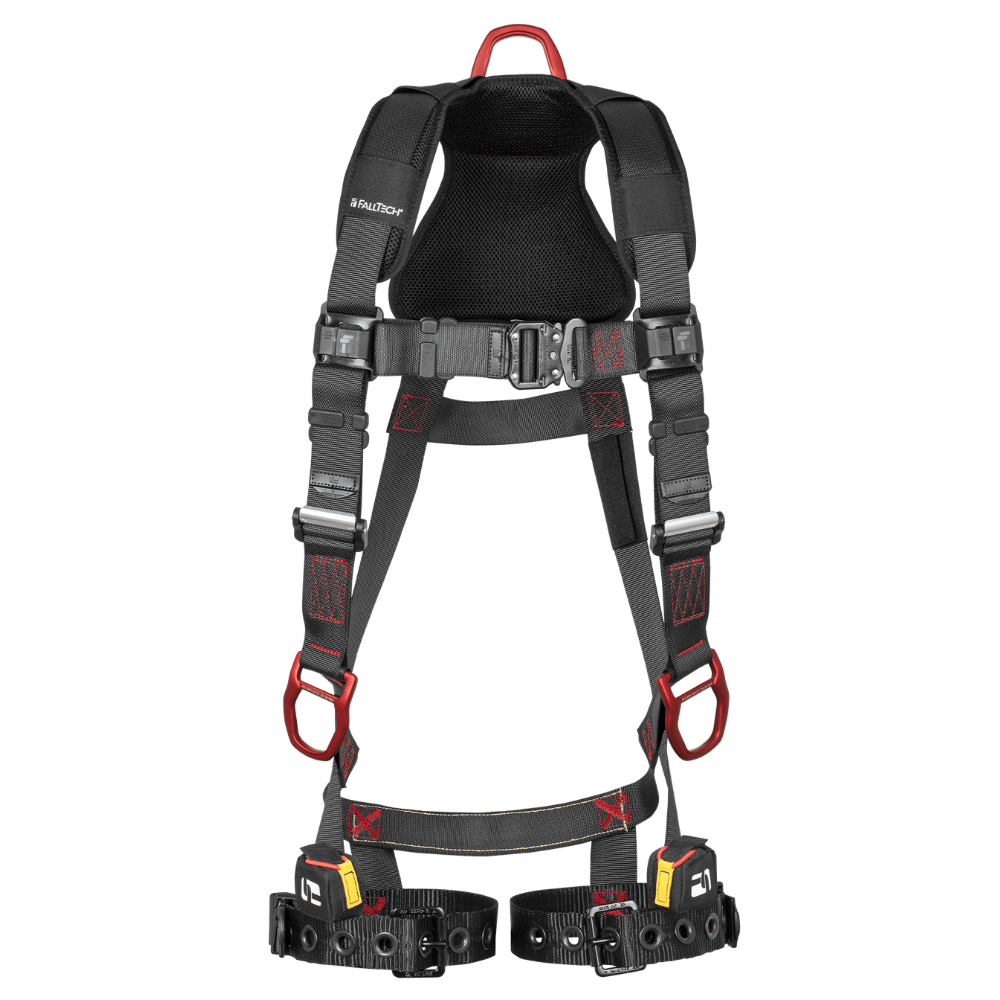

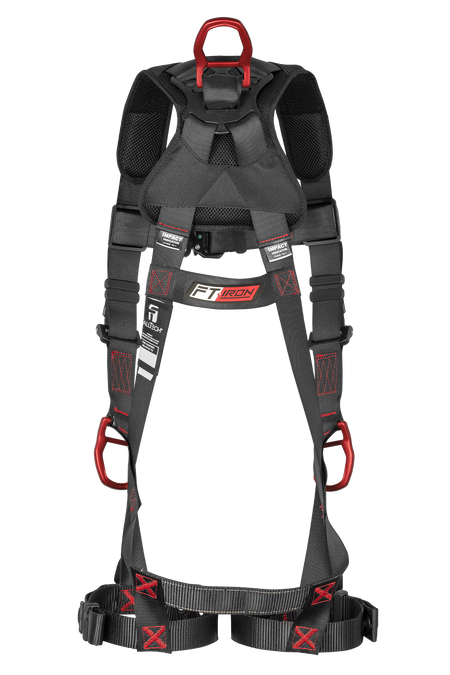

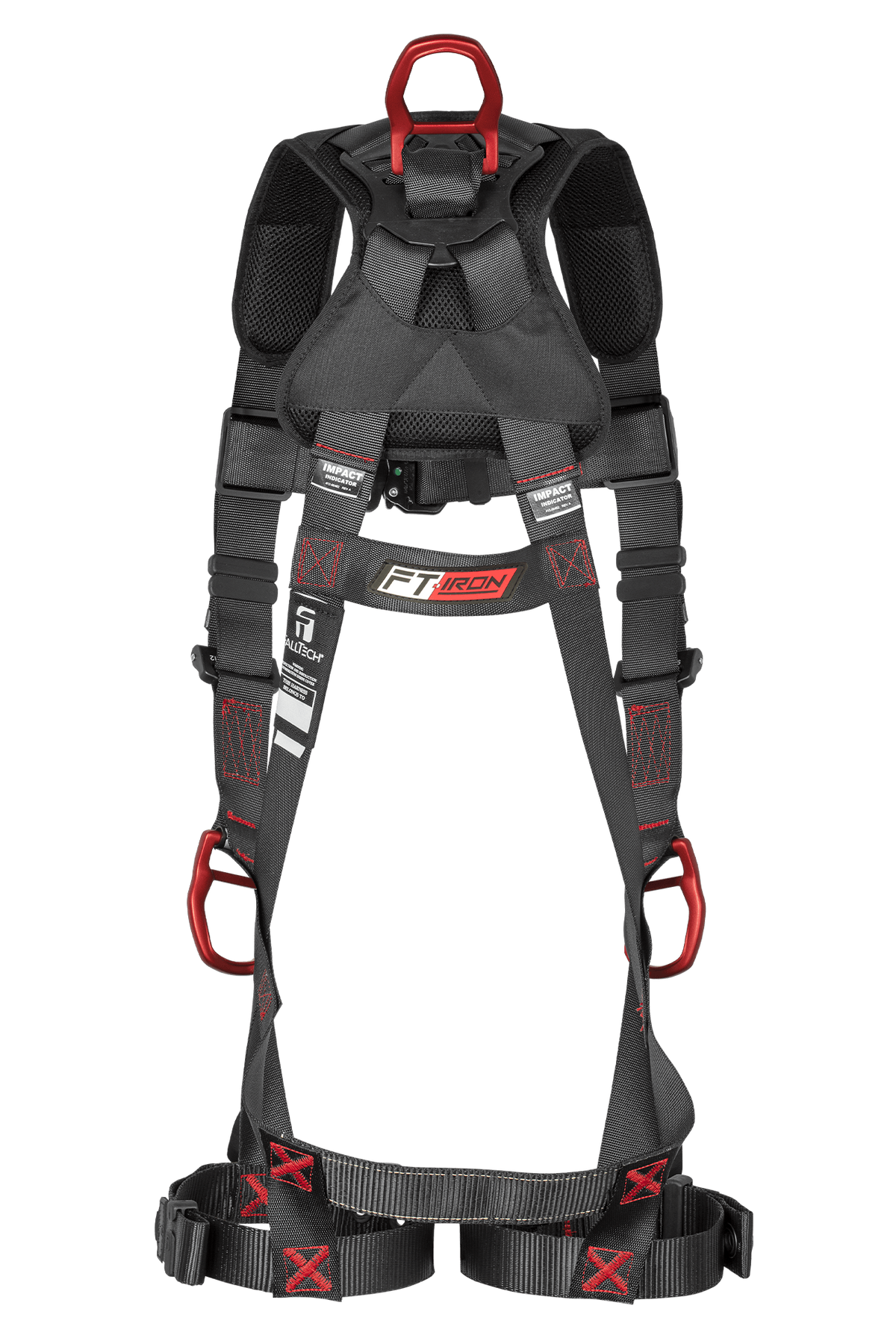

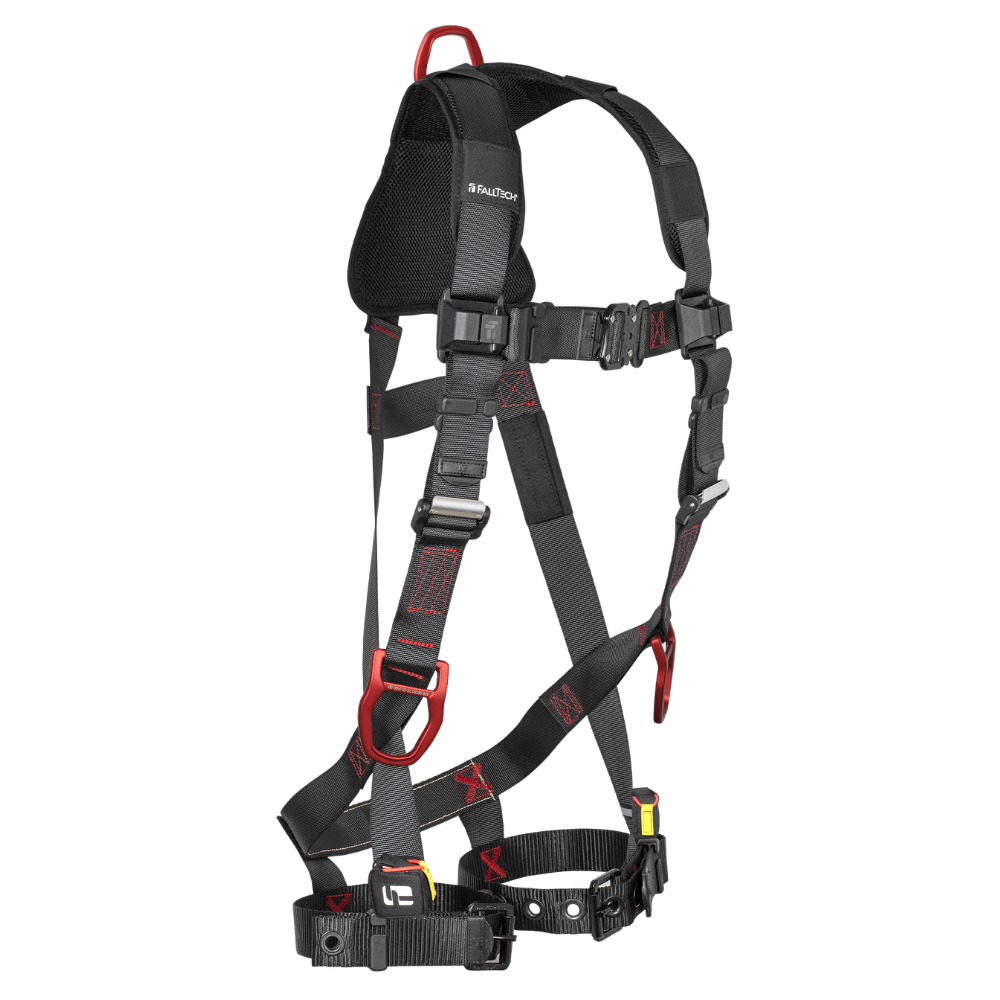

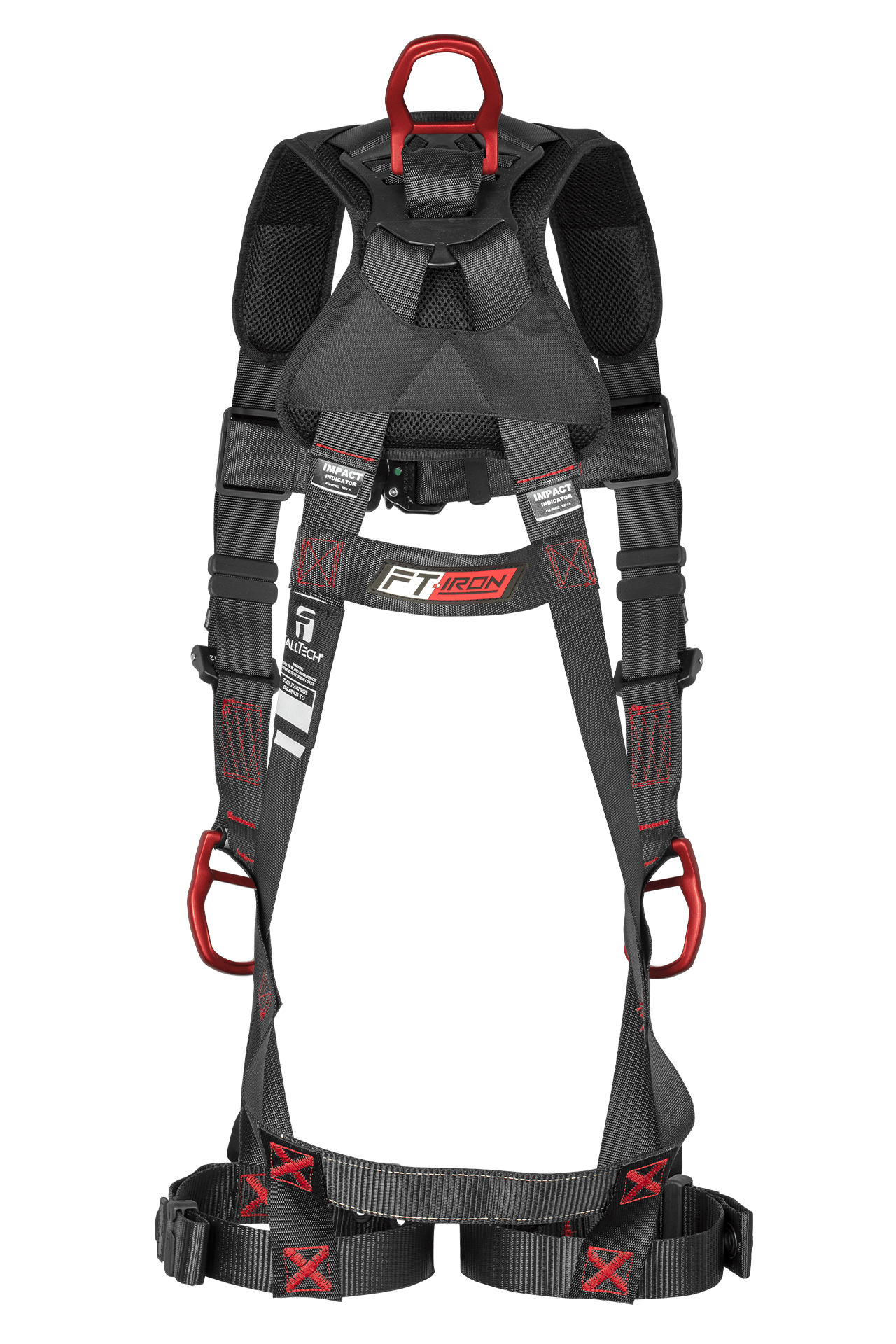

The FallTech 8142 FT-Iron® 3D Standard Non-Belted Harness delivers enhanced comfort, mobility, and durability for industrial and construction applications. It features three aluminum D-rings, a reinforced sub-pelvic strap with a wear pad for extended service life, and Comfort Legs® lateral leg strap construction for improved movement and reduced fatigue.

The harness includes a tri-layer padded shoulder yoke for breathable comfort, an ArrowGrip® dorsal D-ring plate to prevent slippage, and a quick-connect chest buckle with a visual lock indicator. A redesigned SRL connection point ensures fast attachment of single or twin SRLs, while adjustable trauma relief straps enhance post-fall safety. Fully compliant with ANSI, OSHA, and CSA standards.
  • Product Code: 8142
  • Webbing: Polyester; 5,000 lb minimum static strength
  • D-Rings: Aluminum alloy; 5,000 lb minimum static strength
  • Buckles and Adjusters: Aluminum alloy and plated alloy steel; 3,372 lb minimum static strength
  • Static Strength: 3,600 lb minimum
  • ANSI User Capacity: 130 to 310 lb maximum
  • OSHA User Capacity: 130 to 425 lb maximum
  • Compliance: ANSI Z359.11-2021, CSA Z259.10-2018, OSHA 1926.502 and 1910.140
  • Weight: 4 lb
