Caldwell

Pipe Hook – 8 ton - Model PH – Caldwell

SKU: PH-4
$330.00
Estimated Lead Time:

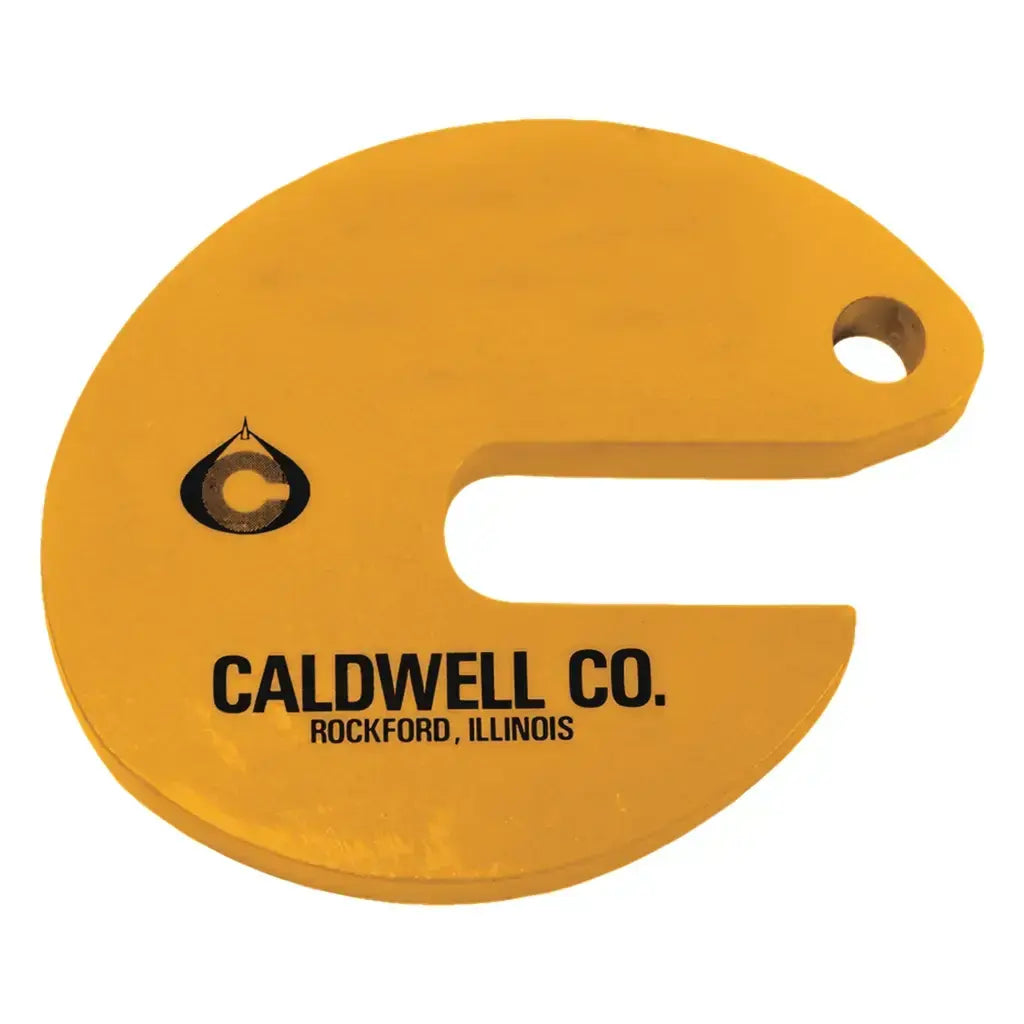

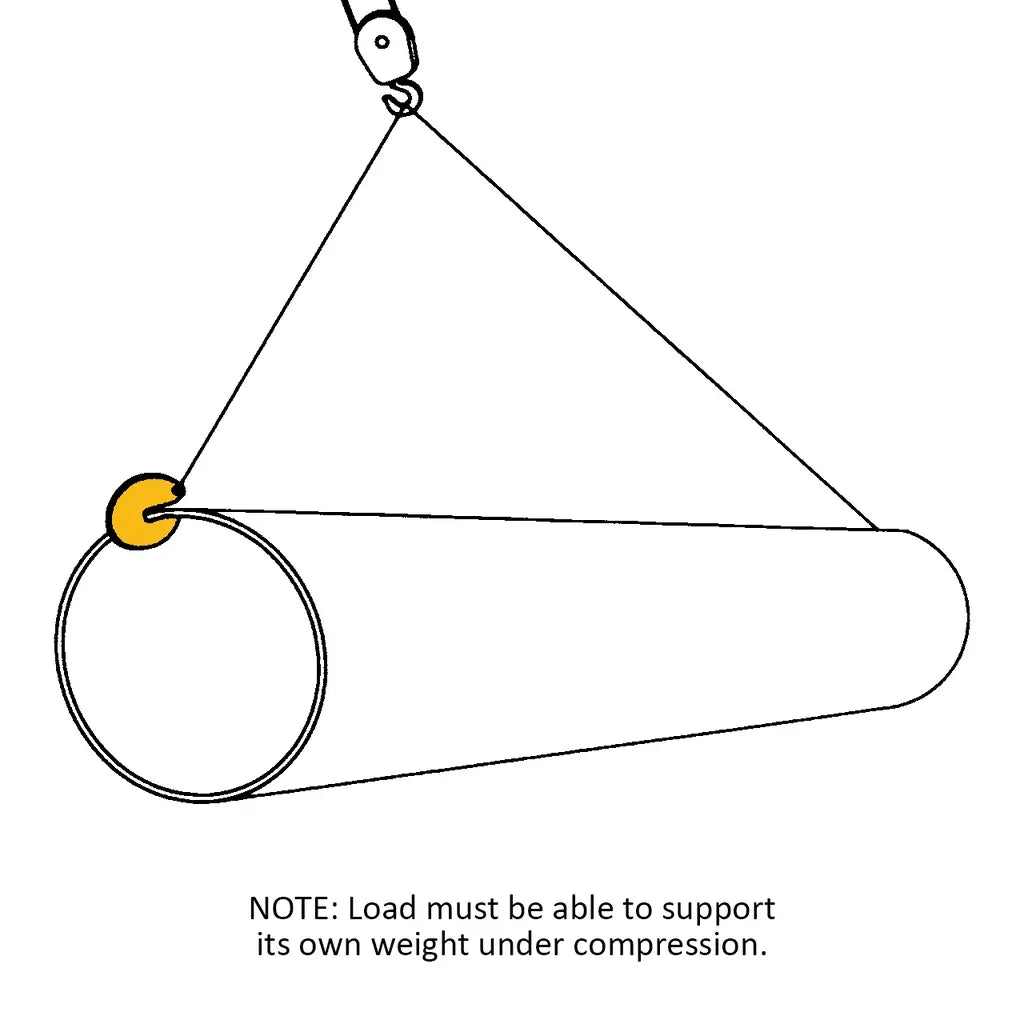

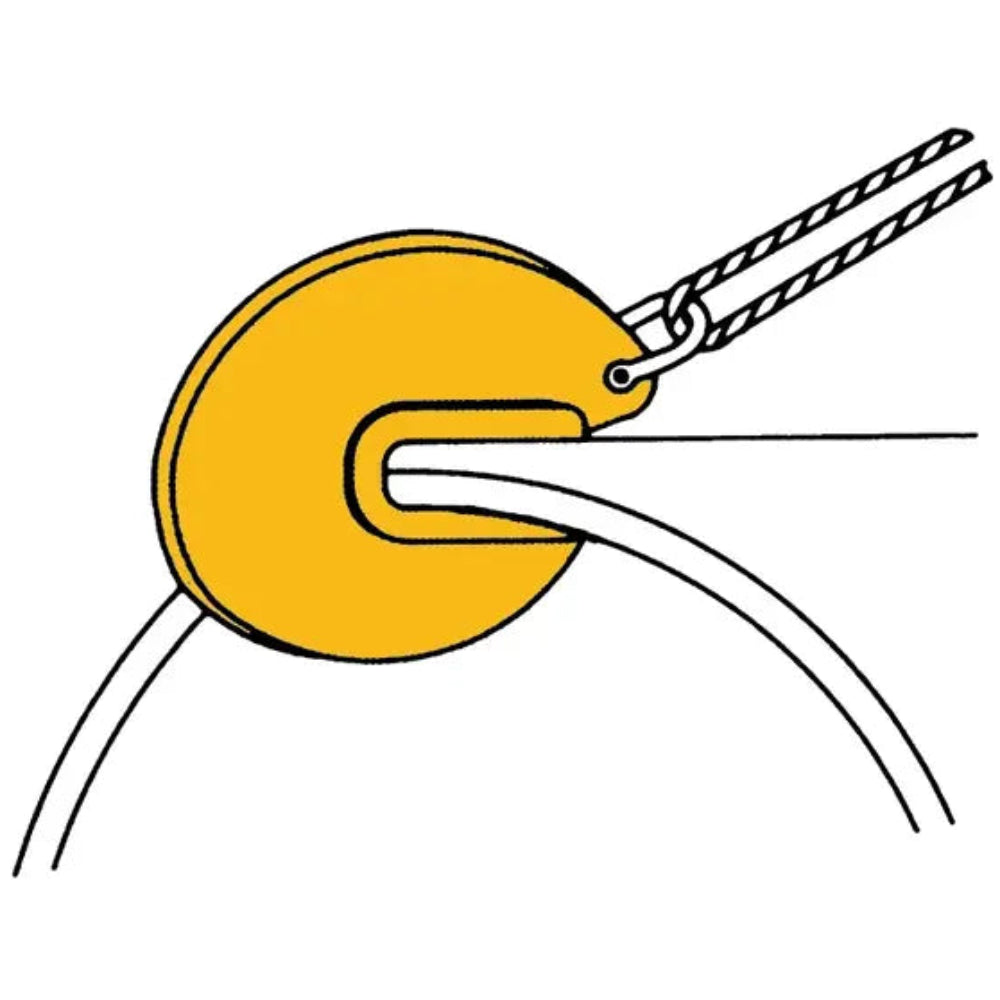

The Caldwell Model PH Pipe Hook delivers a simple, efficient way to lift and carry steel or cast iron pipe. Just attach a shackle to the lifting point, slide the “mouth” over the end of the pipe, and you’re ready to lift. Ruggedly built and compliant with ASME standards, the PH-4 is designed for heavy-duty applications and must be used in pairs to ensure stability and safety during lifting.
  • Model Number: PH-4
  • Capacity: 8 tons
  • Bolt Type Anchor Shackle Capacity: 6.5 tons
  • Weight: 23 lbs
  • Width: 7.75 in
  • Shackle Pin Diameter: 1 in
  • Sling Diameter: 1 in
  • Depth: 3.86 in
  • Hole Diameter: 1.06 in
  • Max Height: 7.79 in
  • Max Opening: 1.5 in

Spec Sheet (PDF)
