8" Single-D Permanent Roof Anchor for Wood – 7434S – FallTech

SKU: 7434S
$30.00
Estimated Lead Time:1 to 2 Days

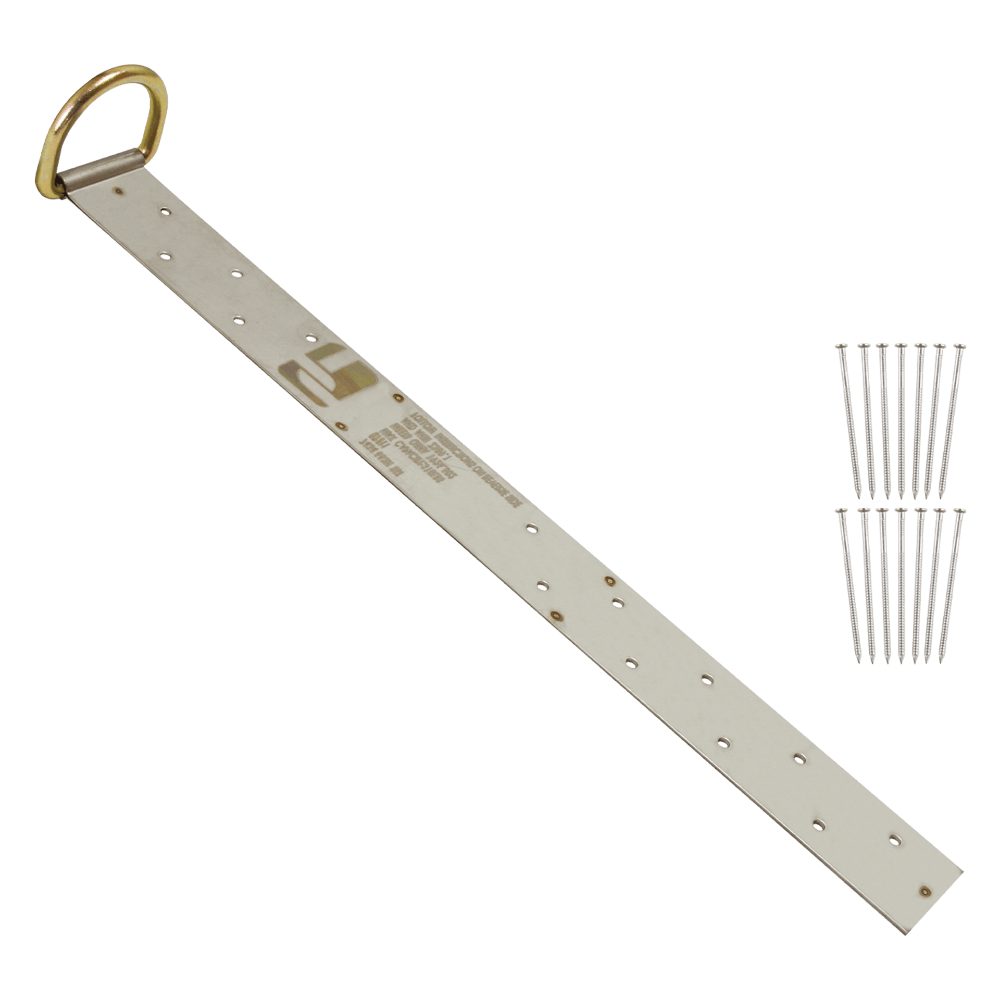

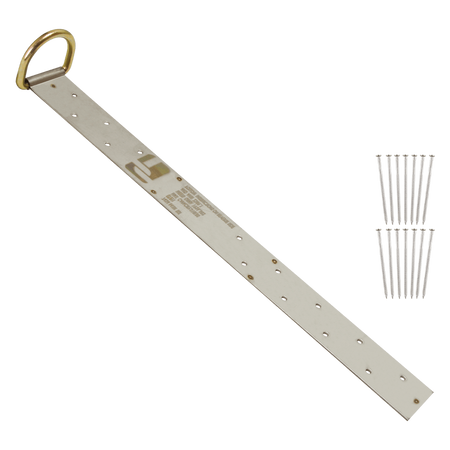

The FallTech 7434S Permanent Roof Anchor is designed for secure under-roofing installation on wood structures, whether at the ridge or field locations. It features an 8-inch stainless steel nailing plate paired with a durable plated alloy steel D-ring rated to 5,000 pounds. The anchor includes 16D stainless steel nails for proper installation and is engineered for long-term use in residential or commercial roofing environments.
This anchor meets OSHA 1926.502 and 1910.66 requirements and supports users within both ANSI and OSHA capacity ranges.
  • Product Code: 7434S
  • Nailing Plate Material: Stainless steel
  • D-Ring: Plated alloy steel; 5,000 lb min static strength
  • Plate Size: 8"
  • User Capacity (ANSI): 130–310 lb
  • User Capacity (OSHA): 130–425 lb
  • Static Strength: 5,000 lb min
  • Compliance: OSHA 1926.502 & 1910.66
  • Weight: 0.92 lbs each

User Manual (PDF)
