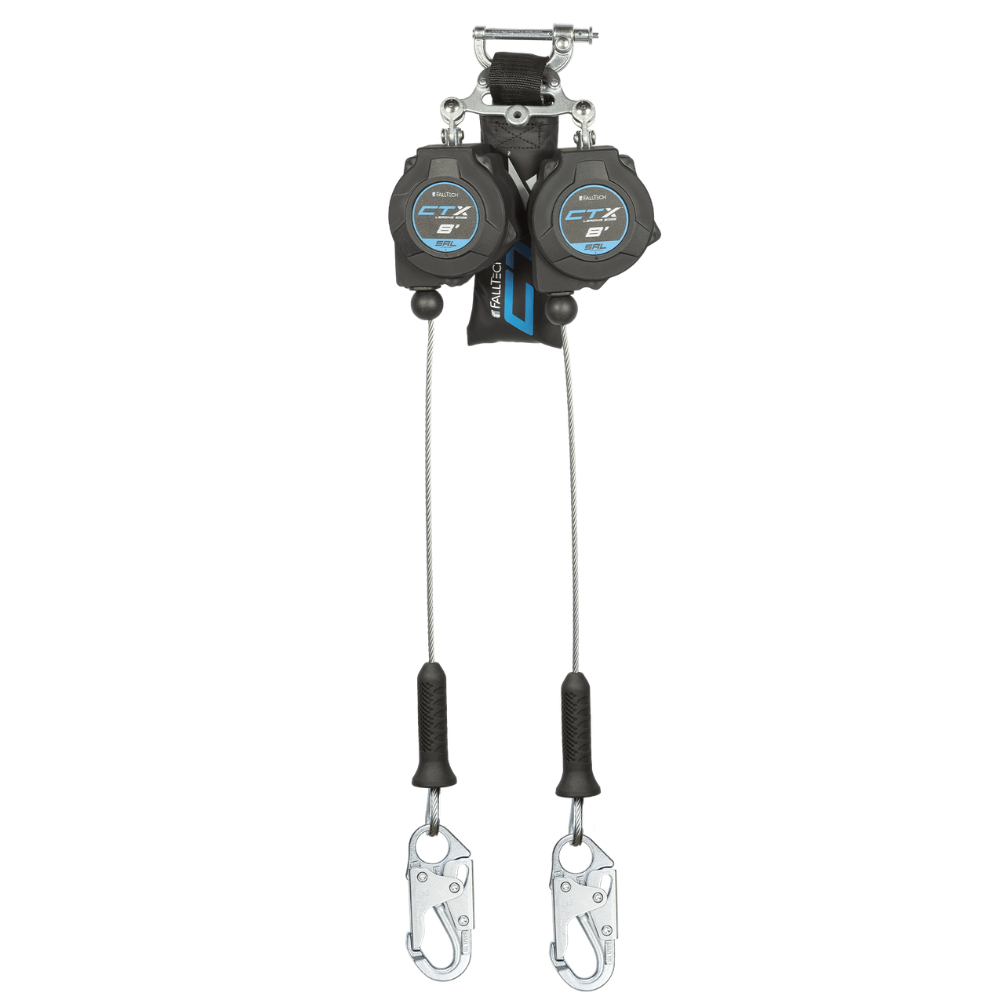

8' CTX™ Cable Class 2 Leading Edge Personal SRL-P with Steel Snap Hooks – 83208TP1 – FallTech

SKU: 83208TP1
$445.60
Estimated Lead Time:1 to 2 days

The FallTech 83208TP1 CTX™ Class 2 Leading Edge Twin-Leg Personal SRL-P is designed to reduce worker fatigue while maximizing mobility and productivity. Its ergonomic configuration positions the retractable units higher on the back, improving comfort during extended use and enhancing overall maneuverability on the job.

The energy absorber cover provides quick, essential reference information with integrated fall clearance charts and tables for safe planning. The optimized internal mechanism minimizes nuisance lockups, allowing smoother lifeline movement during normal work activity. This model includes plated alloy steel snap hooks as lifeline connectors, paired with an aluminum dorsal connector for secure anchorage compatibility.

Rated for leading edge hazards on steel and precast concrete surfaces, and suitable for below D-ring tie-off up to 5 feet, the CTX™ series complies with ANSI Z359.14-2021 Class 2 SRL-P standards.
  • Product Code: 83208TP1
  • SRL Type: Twin-leg Personal SRL-P, 8 ft
  • Lifeline Material: 3/16" galvanized steel cable; 3,600 lb min static strength
  • Energy Absorber: Polyester tear-away
  • Anchorage Connector: Plated alloy steel snap hooks; 5,000 lb min static strength with 3,600 lb gate strength
  • Dorsal Connector: Aluminum alloy; 3,600 lb min
  • Static Strength: 3,600 lb min
  • ANSI SRL Class/Type: Class 2 SRL-P
  • Avg Arrest Force: 1,350 lb max
  • Max Arrest Force: 1,800 lb
  • Max Arrest Distance: 42 in
  • ANSI User Capacity: 130 to 310 lb
  • OSHA User Capacity: 130 to 310 lb
  • Compliance: ANSI Z359.14-2021, OSHA 1926.502, OSHA 1910.66, CSA Z259.2.2-2017
  • Weight: 7.5 lb

Product Brochure (PDF)
User Manual (PDF)
