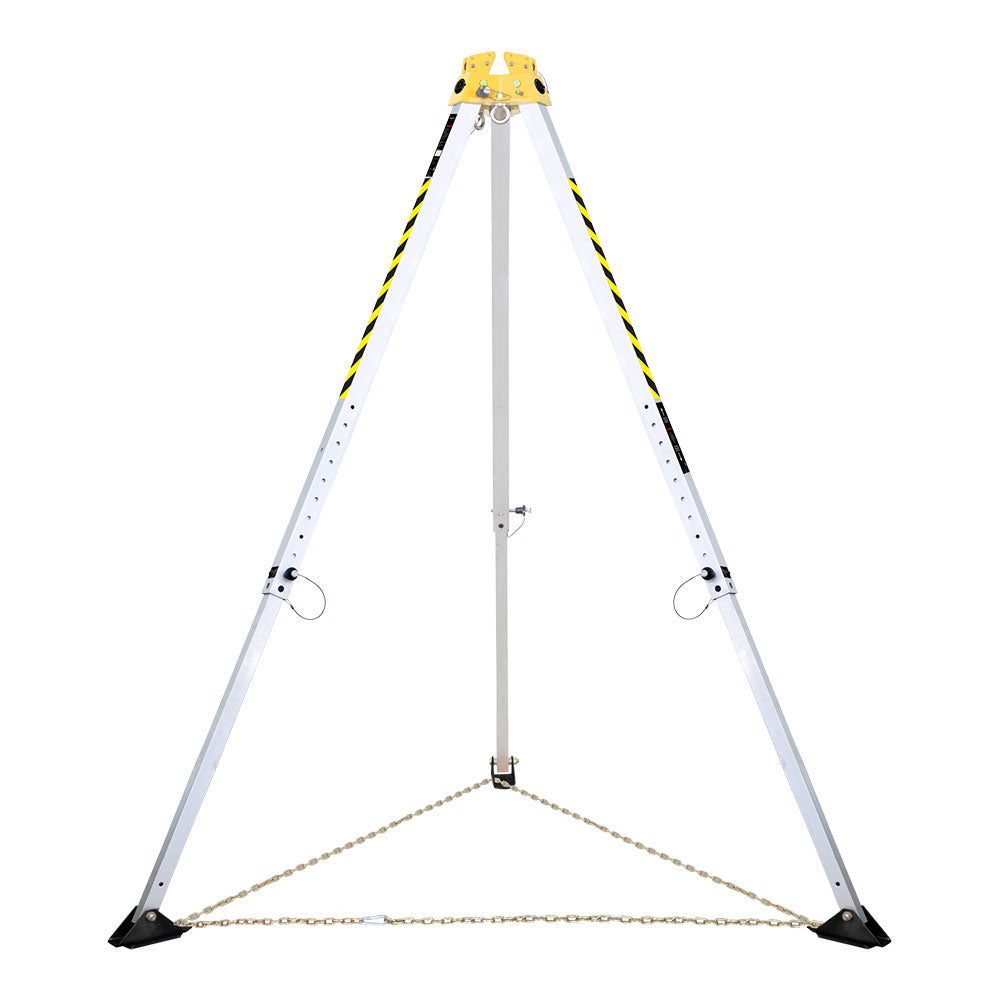

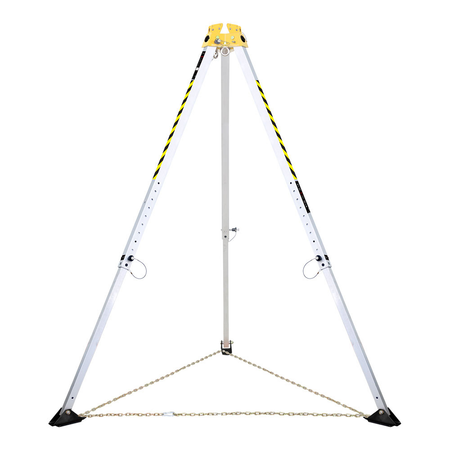

Confined Space Tripod

SKU: CS717
Regular price $759.00

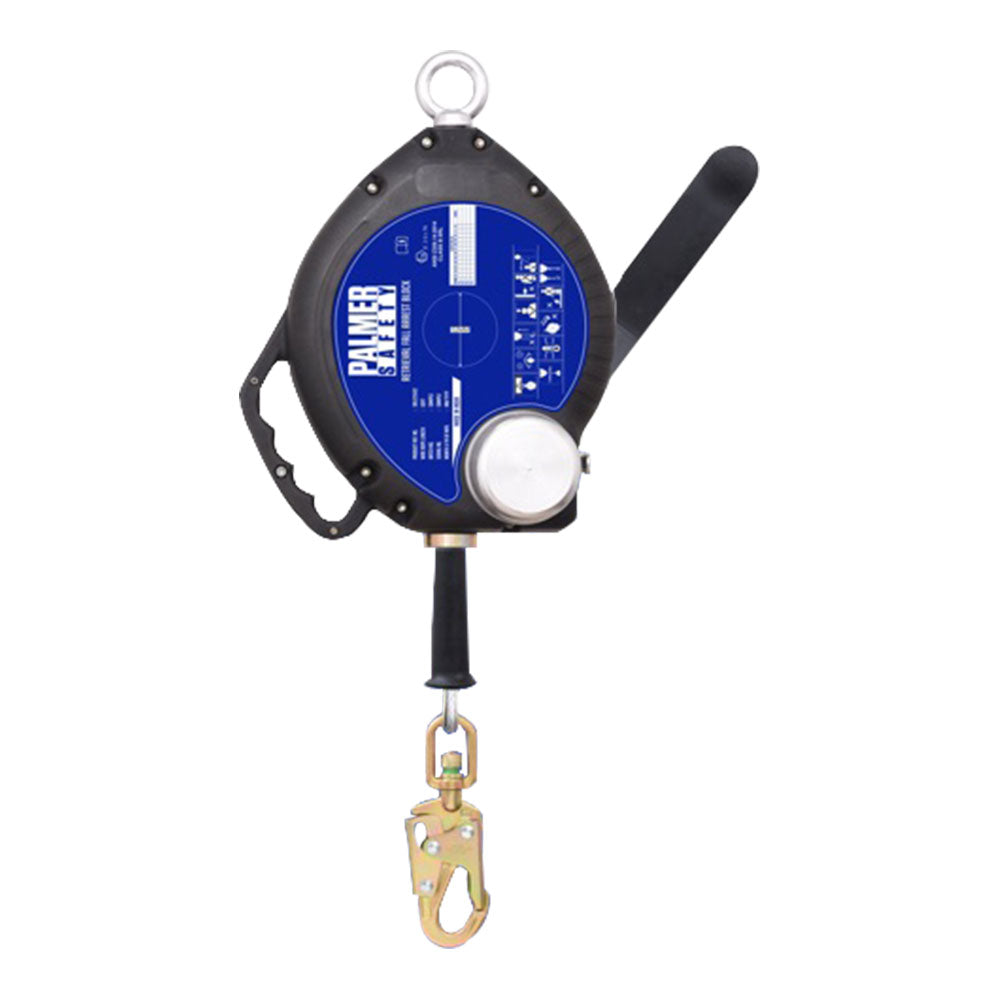

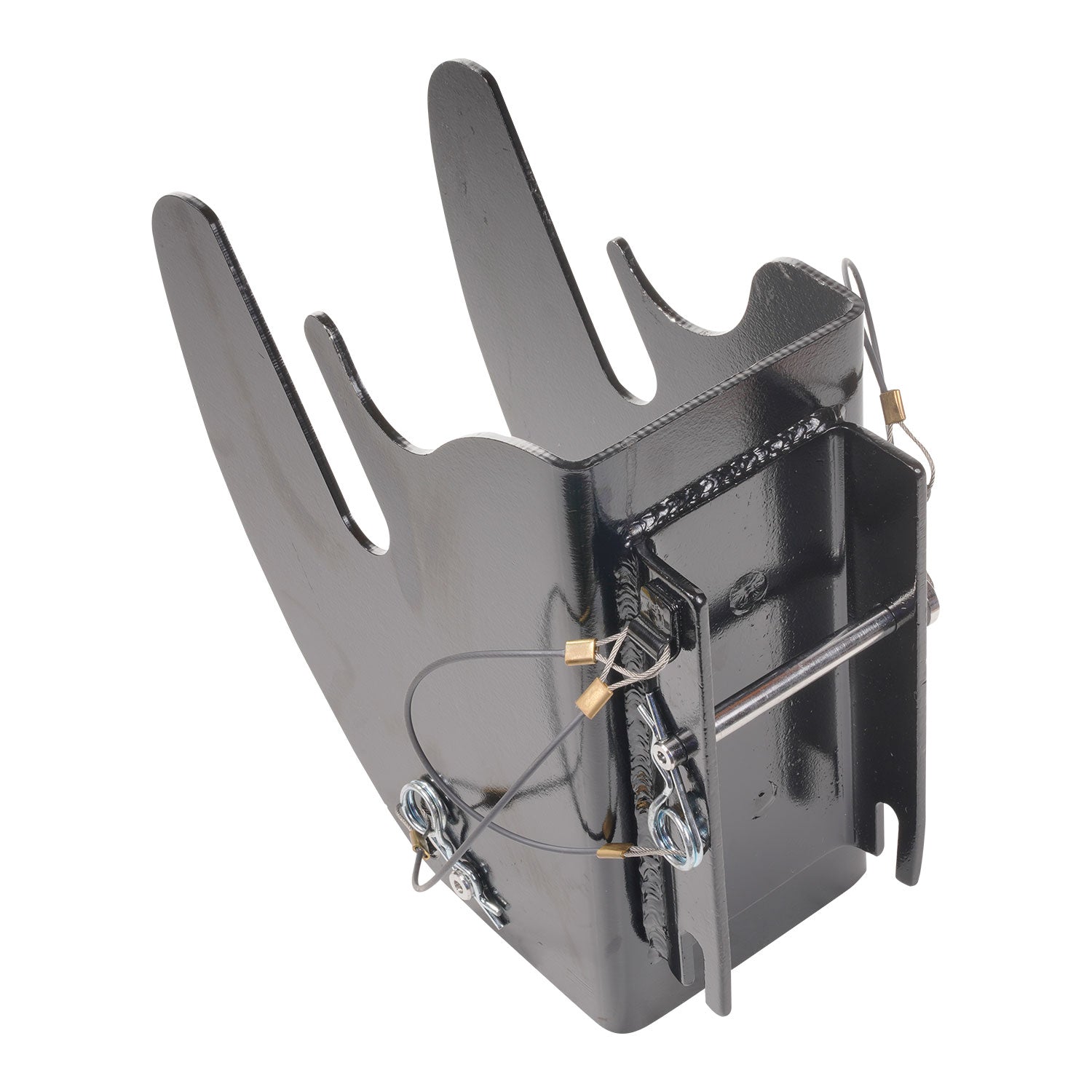

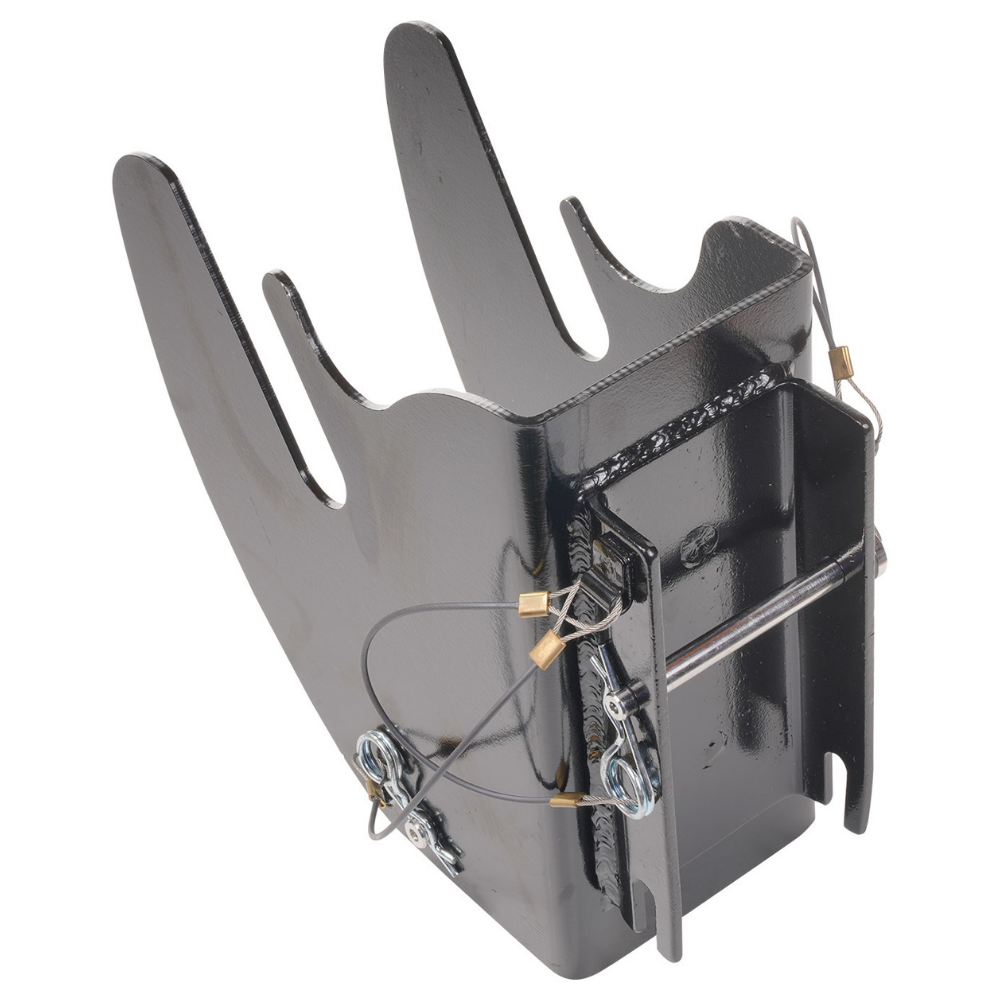

3-Way SRL (60ft) & Mounting Bracket

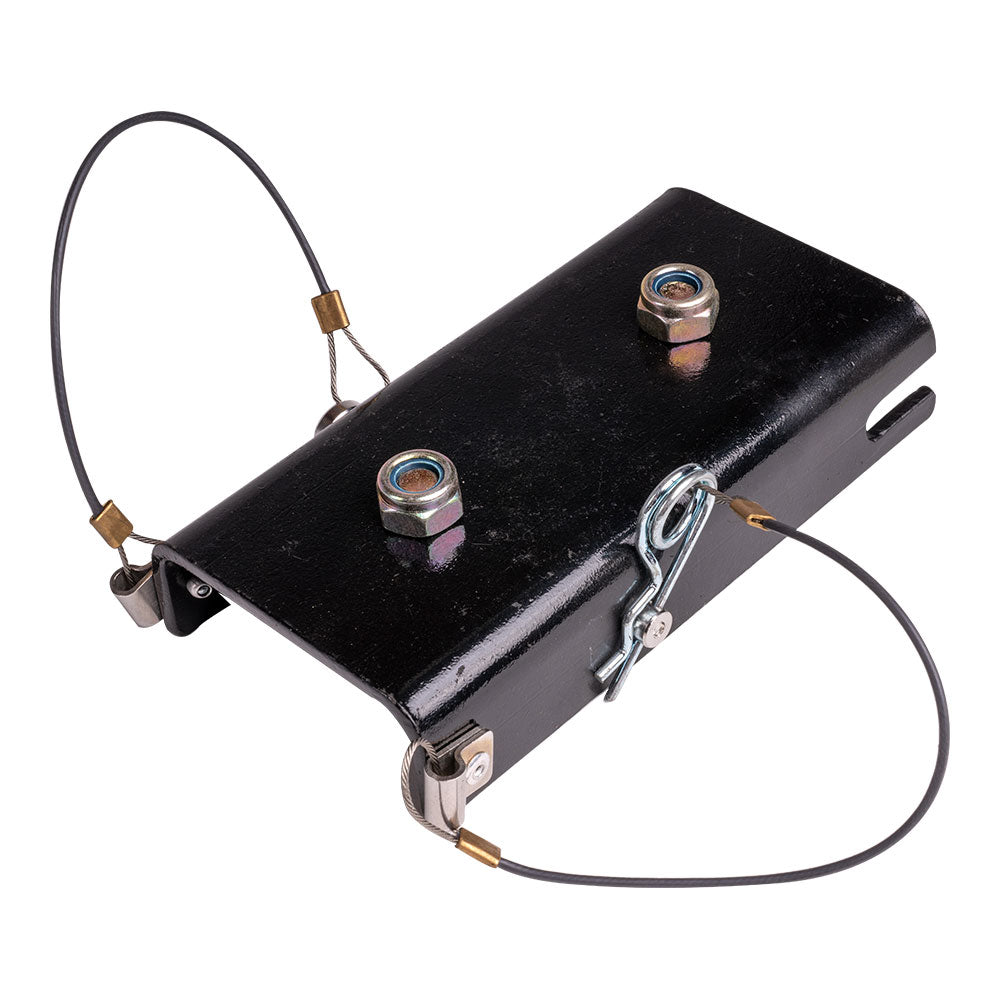

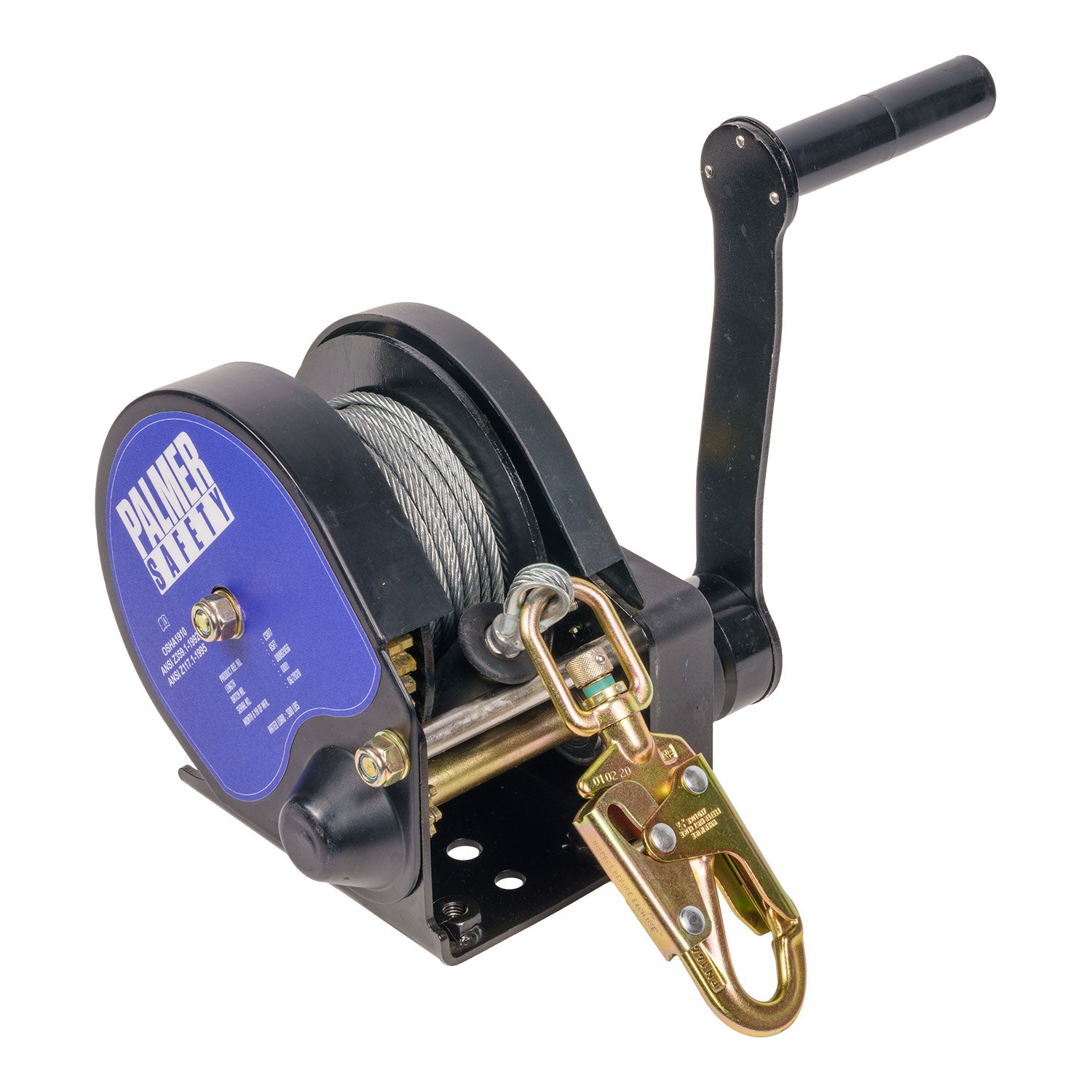

Winch & Mounting Bracket
Estimated Lead Time:
Confined Tripod to be used with a winch and/or 3-way SRL for personnel access, retrieval, and fall protection in confined spaces.
  • Adjustable height from 4’4” (1.32 m) to 7’ (2.13 m) from ground level.
  • At the minimum height, the distance between legs (foot point): 3’2” (0.96 m) & footprint diameter of 3.97’ (1.21 m)
  • At maximum height, distance between legs (foot point): 5’8” (1.72 m) & foot print diameter of 6.56’ (6.56 ft.)
  • Adjustment Achieved by sliding telescopic legs (inner & outer).
  • Locking pins attached by SS cables
  • Securely connected two eye bolts to be used for connection to personal protective equipment
  • Two pulley systems were provided to pass the wire rope of winch mounted on one leg and retrieval block on the other leg simultaneously

Spec Sheet (pdf)

Manual (pdf)
