750 Lb. Steel DC Powered Portable Hydraulic Drum Dumper – 36" Dump Height – HDD-36-7-P-DC – Vestil

SKU: HDD-36-7-P-DC
$4,518.11
Estimated Lead Time:6-8 Weeks

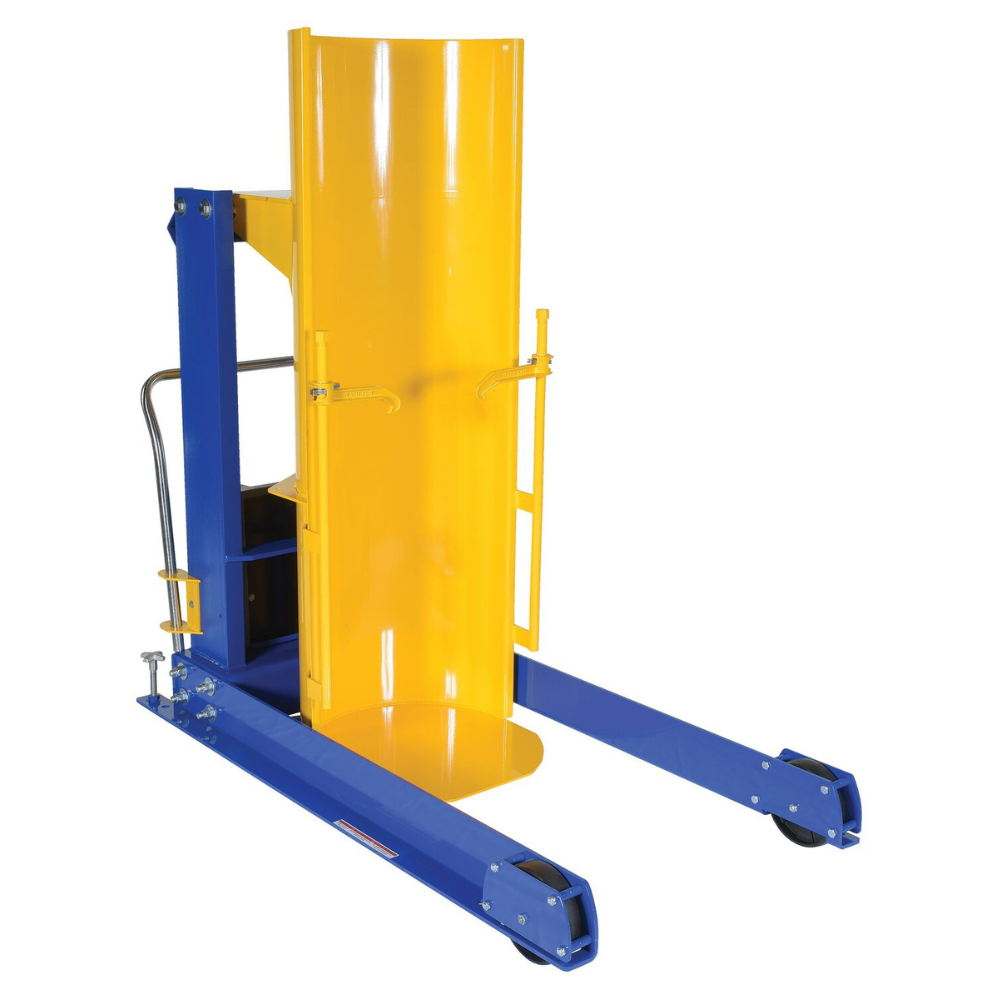

The Vestil Steel DC Powered Portable Hydraulic Drum Dumper provides an efficient and reliable solution for dumping heavy plastic, steel, and fiber drums. Built with a solid steel chute and rugged steel frame, this portable dumper is equipped with casters and floor lock screws for easy mobility and stability.

Powered by a 12V lead acid battery, it features adjustable vertical drum restraints, an upper travel limit switch, and an emergency brass safety velocity fuse in the cylinder. Drum rotation can be stopped at any point for full operator control.
  • Model Number: HDD-36-7-P-DC
  • Capacity: 750 lbs
  • Dump Height: 36 in
  • Overall Lowered Height: 63.75 in
  • Overall Raised Height: 96 in
  • Drum Compatibility: 30 & 55 gallon – steel, plastic, and fiber
  • Drum Diameter Range: 16.5 in – 23.5 in
  • Drum Height Range: 27.5 in – 39.5 in
  • Drum Rotation: 135°
  • Dump Angle: 45°
  • Handheld Control: 2-function, 18–90 in coil cord
  • Battery: 12V lead acid, 41 lbs
  • Casters: (2) 8 in × 2 in rigid, (2) 6 in × 2 in swivel – glass filled nylon
  • Assembled Dimensions: 61.5 in D × 36 in W × 63.75 in H, 699 lbs
  • Package Dimensions: 64 in D × 41 in W × 65 in H, 782 lbs
  • Material: Steel

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 1 Year Limited – Parts
