Home » 7054FD Arc Flash Nylon 2D Climbing Harness – FallTech
Falltech

7054FD Arc Flash Nylon 2D Climbing Harness – FallTech

SKU: 7054FDXS
$542.00
Size
Estimated Lead Time:1 to 2 Days

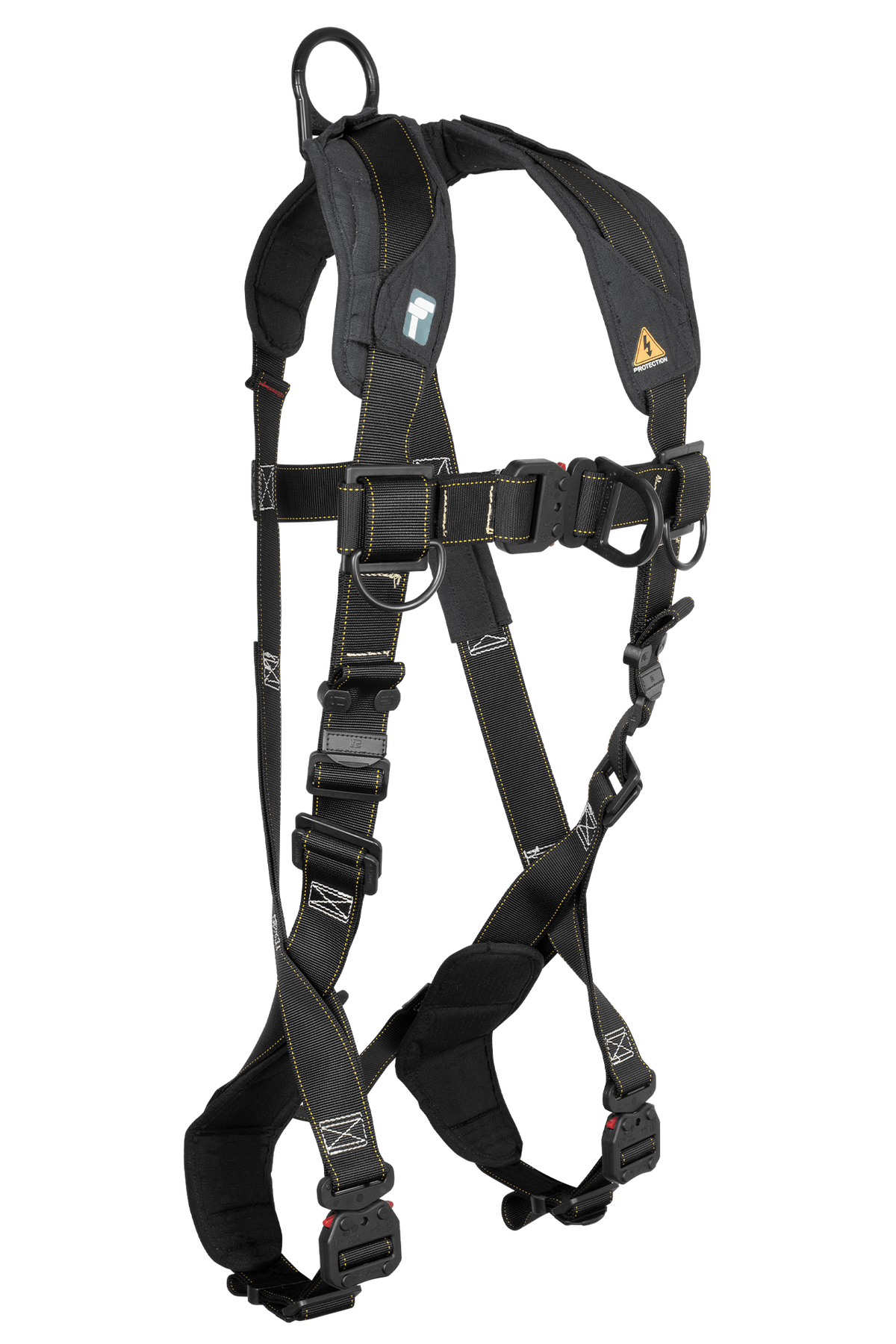

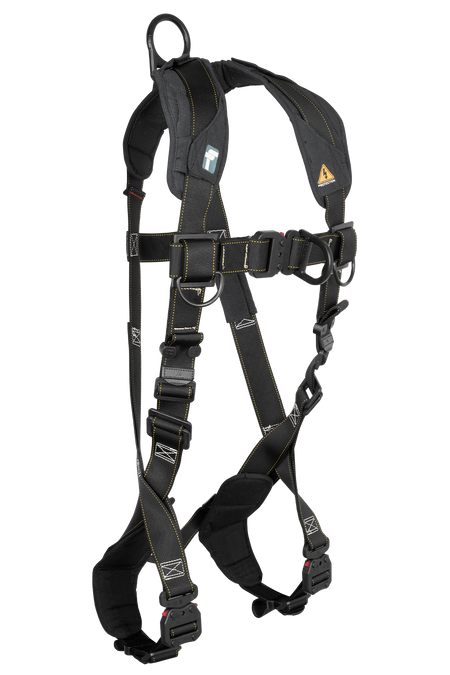

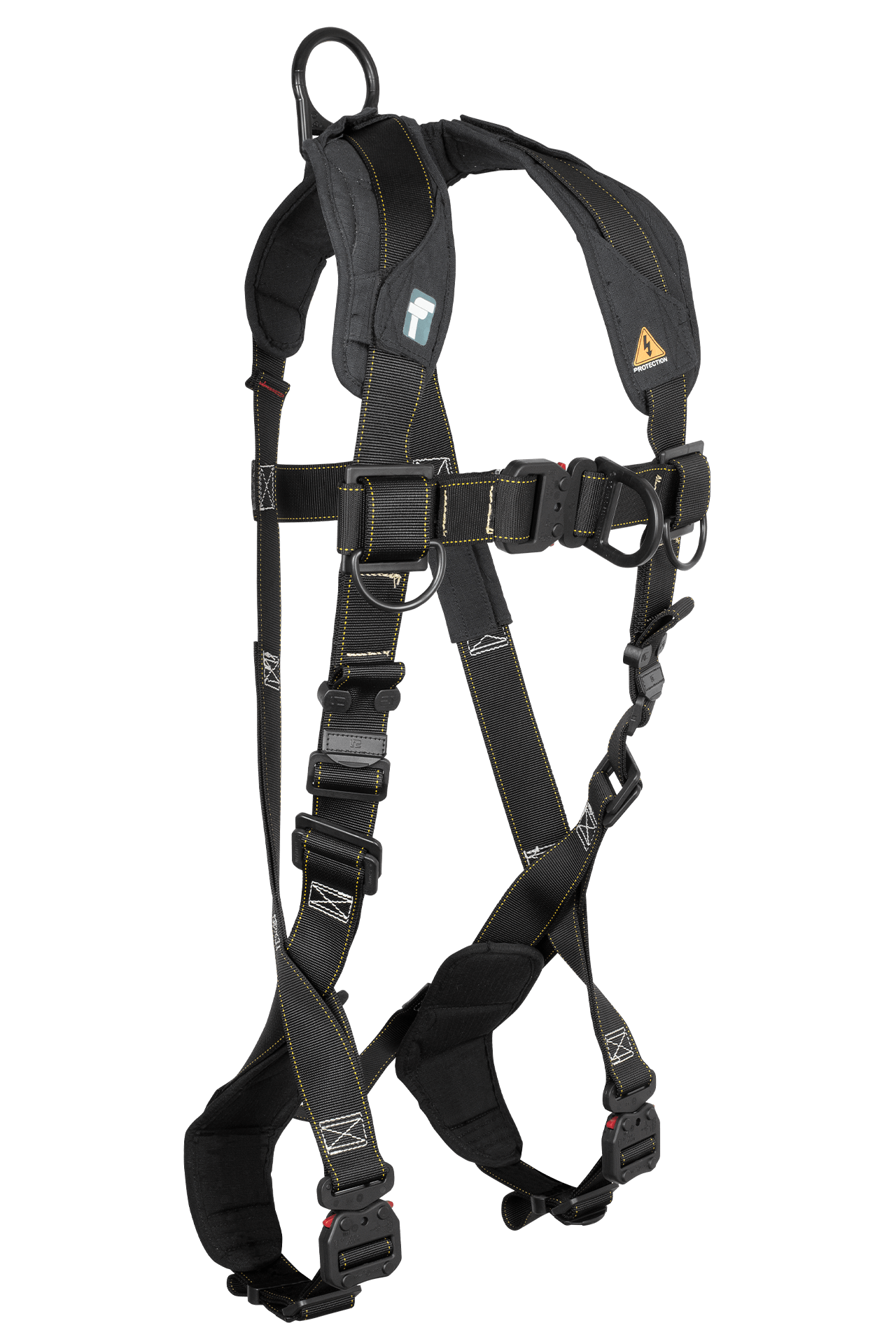

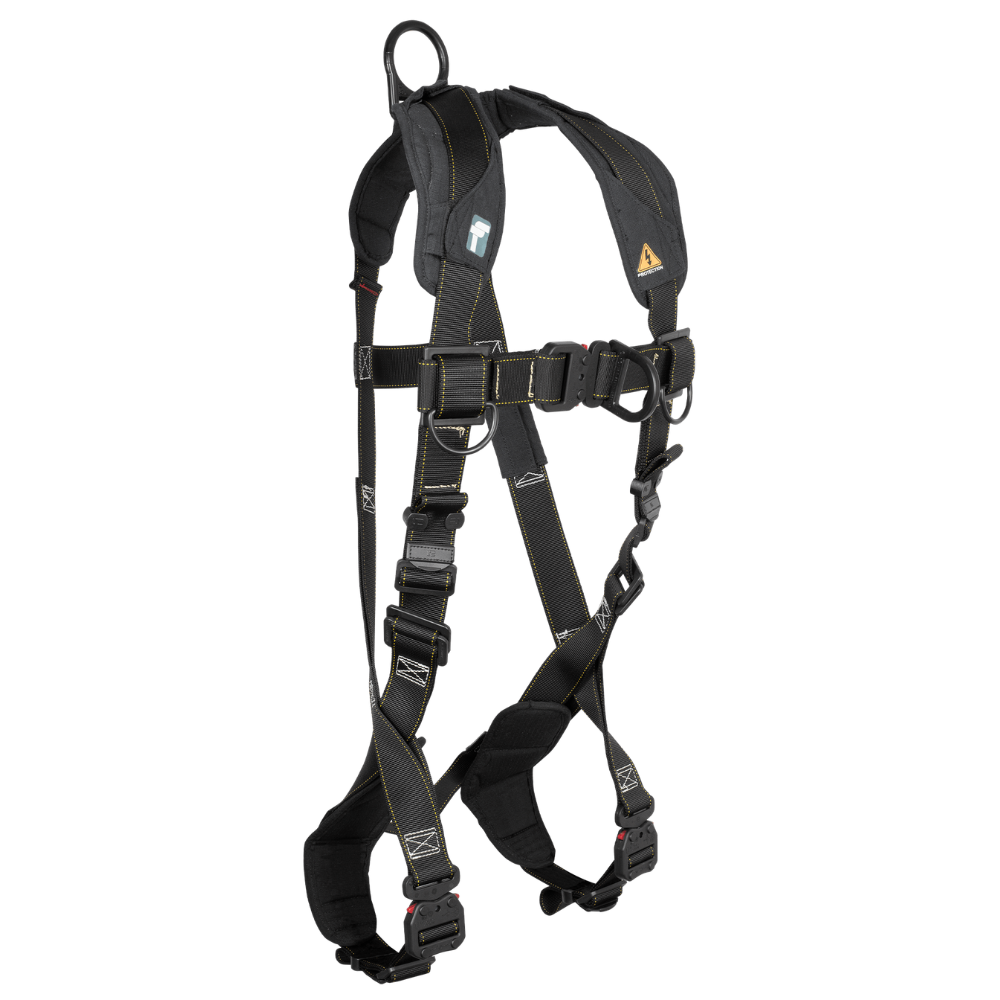

The FallTech 7054FD Arc Flash Nylon 2D Climbing Harness provides comfort, protection, and durability for electrical and arc flash applications. It features a wishbone-shaped shoulder yoke that reduces neck irritation and improves all-day comfort. The dielectric overmolded alloy steel dorsal and sternal D-rings deliver electrical insulation and strength, while quick-connect chest, leg, belt, and torso buckles allow fast, secure adjustment with visual engagement indicators.

Constructed with nylon webbing for economical arc flash resistance, the harness includes ripstop and quilted Nomex shoulder and leg pads for added flame protection. It also features paired lanyard parking keepers and a Nomex label cover for enhanced safety and durability. The design meets ASTM F887, ANSI Z359.11-2014, OSHA 1926.502, and OSHA 1910.66 standards.
  • Product Code: 7054FD
  • Webbing: Nylon; 5,000 lb minimum static strength
  • D-Rings: Overmolded alloy steel; 5,000 lb minimum static strength
  • Buckles and Adjusters: Overmolded alloy steel; 3,372 lb minimum static strength
  • Static Strength: 3,600 lb minimum
  • ANSI User Capacity: 130 to 310 lb maximum
  • OSHA User Capacity: 130 to 425 lb maximum
  • Compliance: ASTM F887, ANSI Z359.11-2014, OSHA 1926.502 and 1910.66

User Manual (PDF)
