70403D FT-Weld 3D Standard Harness – FallTech

SKU: 70403DXS
$596.25
Size
Estimated Lead Time:1 to 2 Days

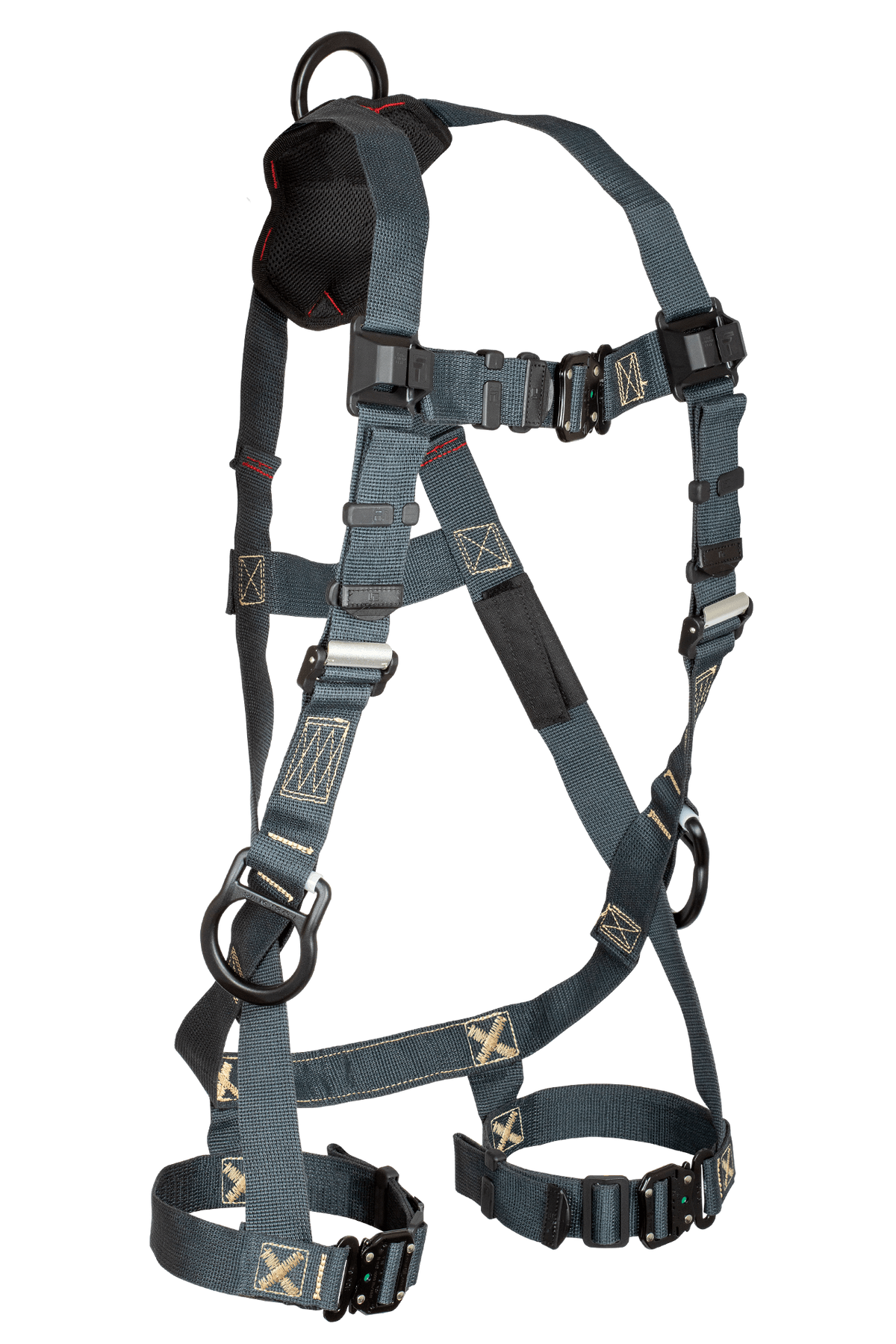

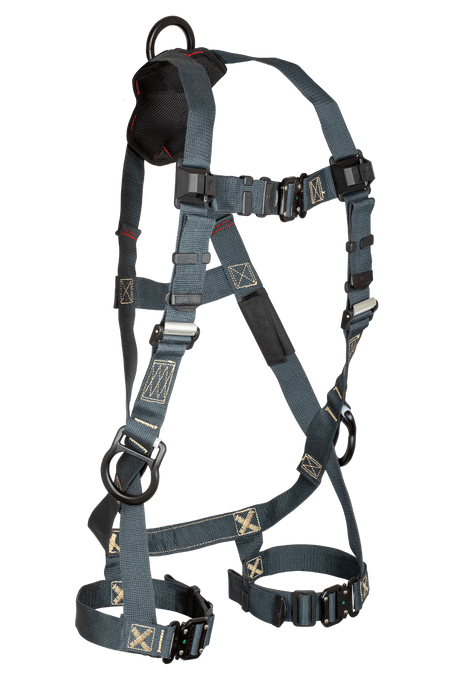

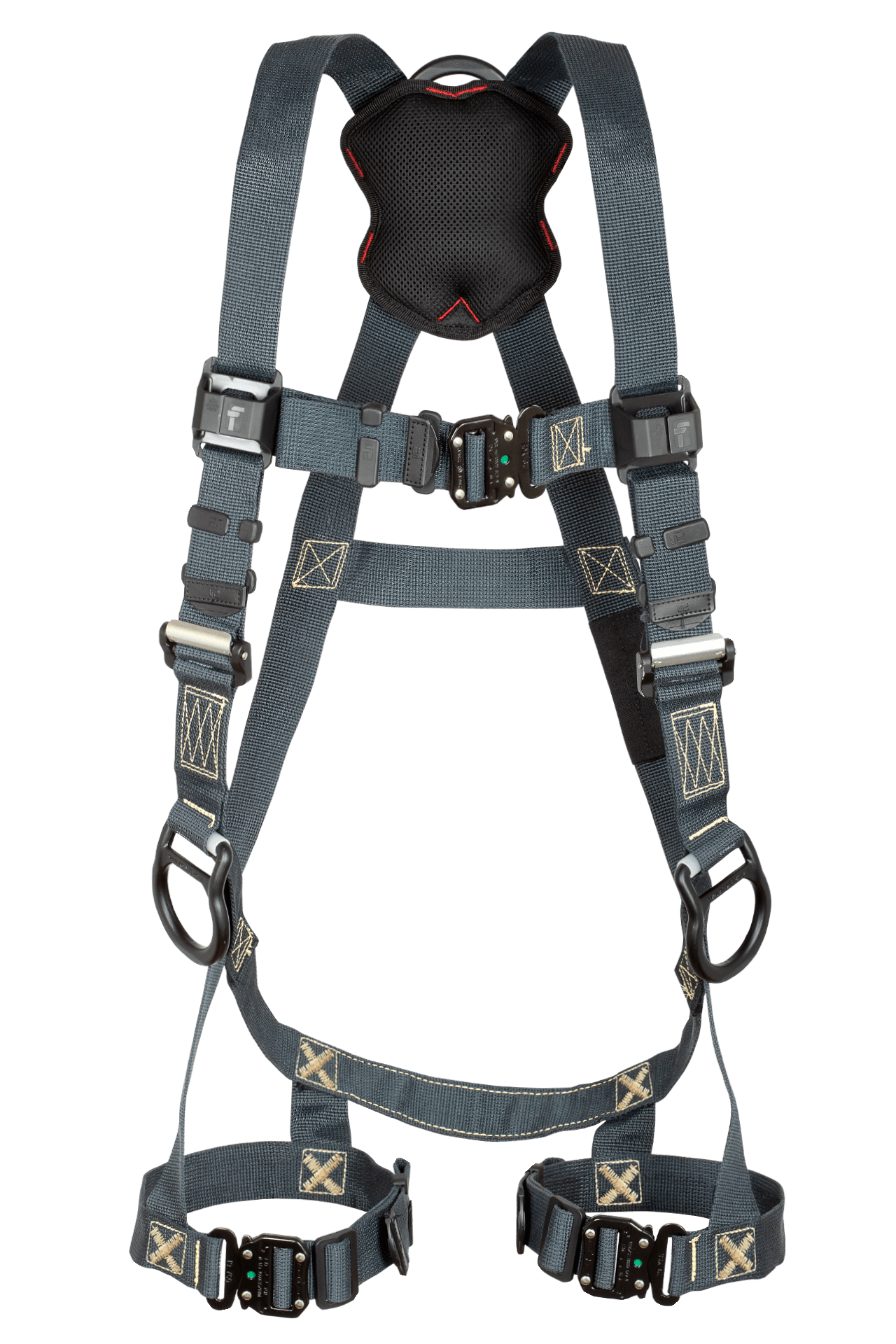

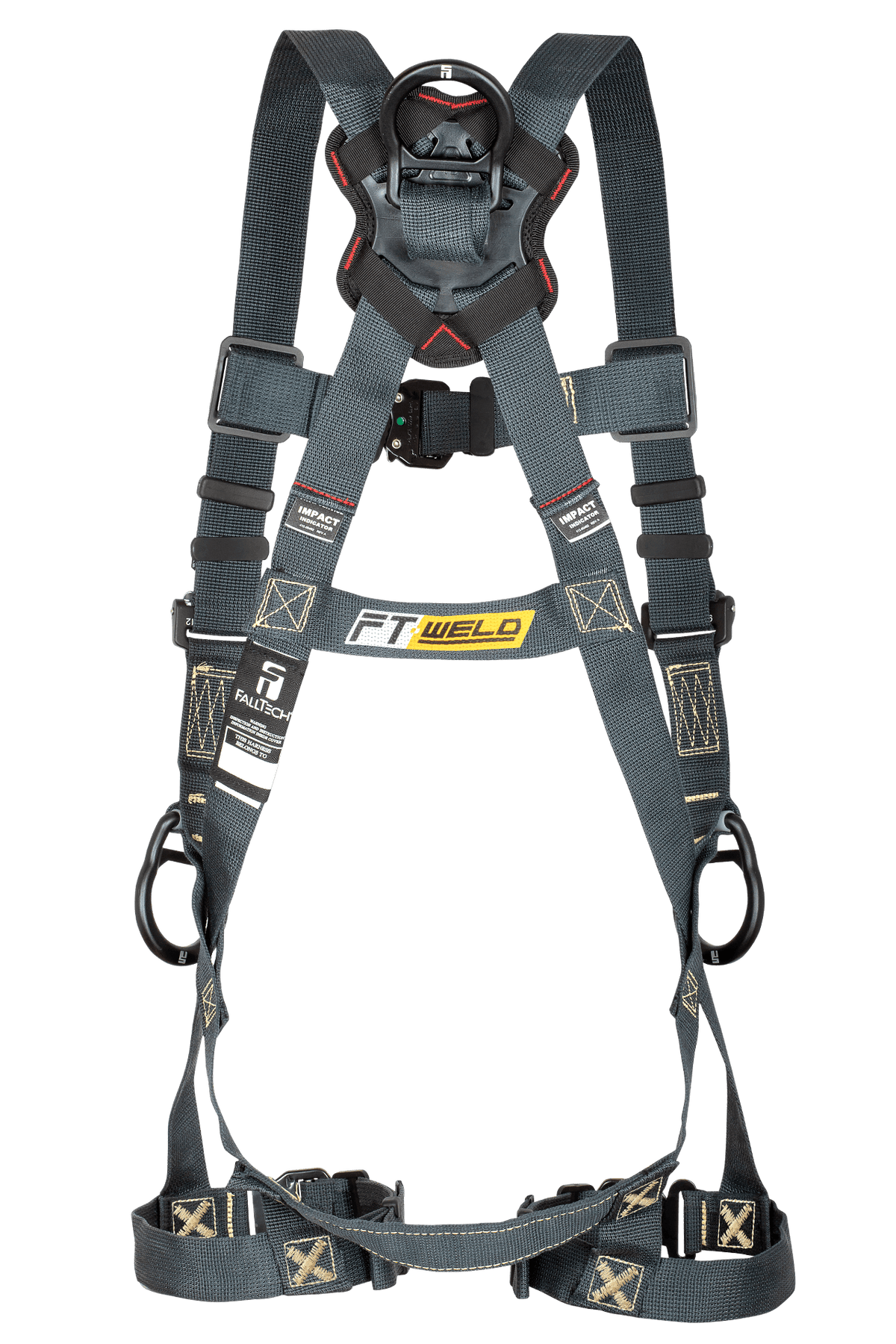

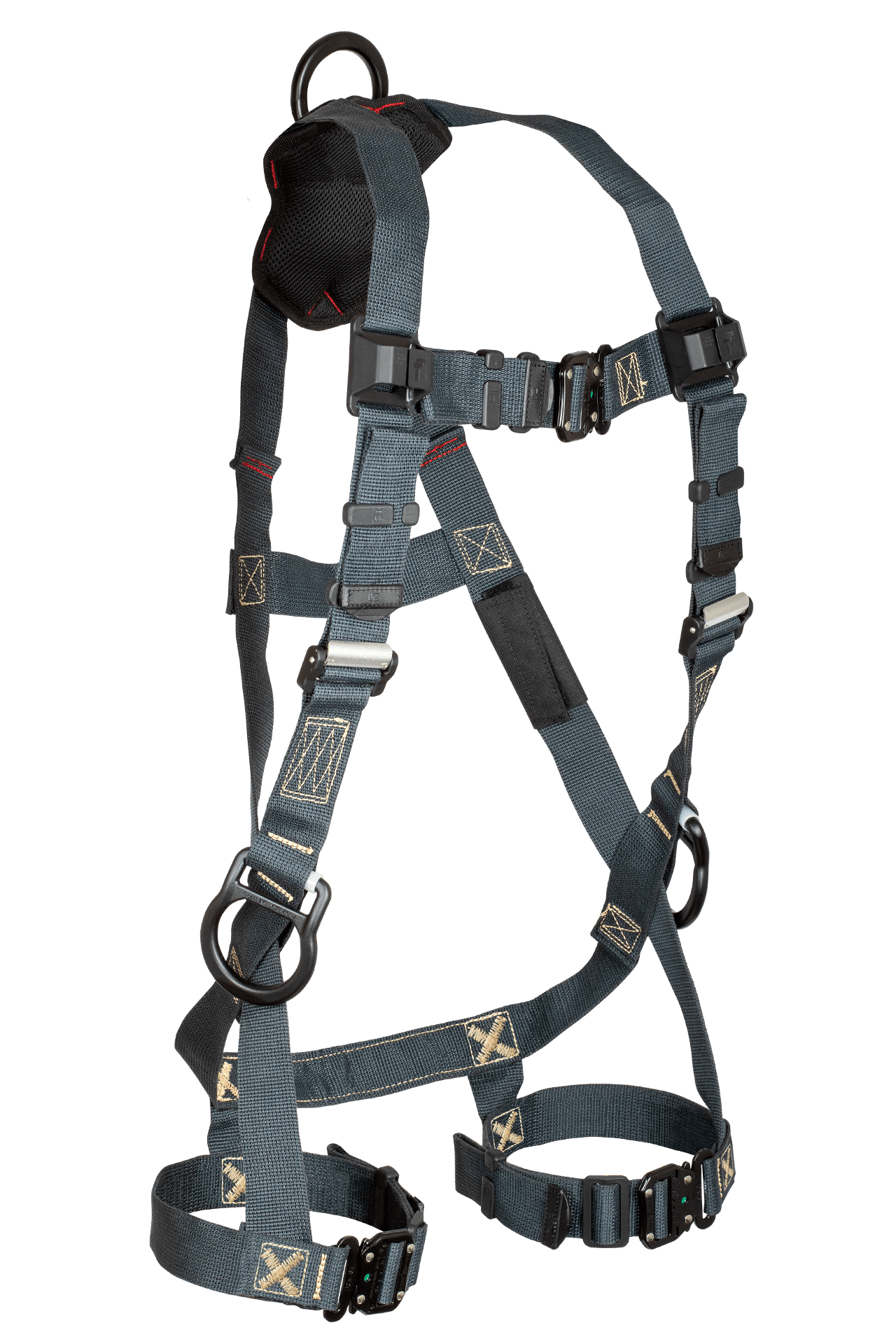

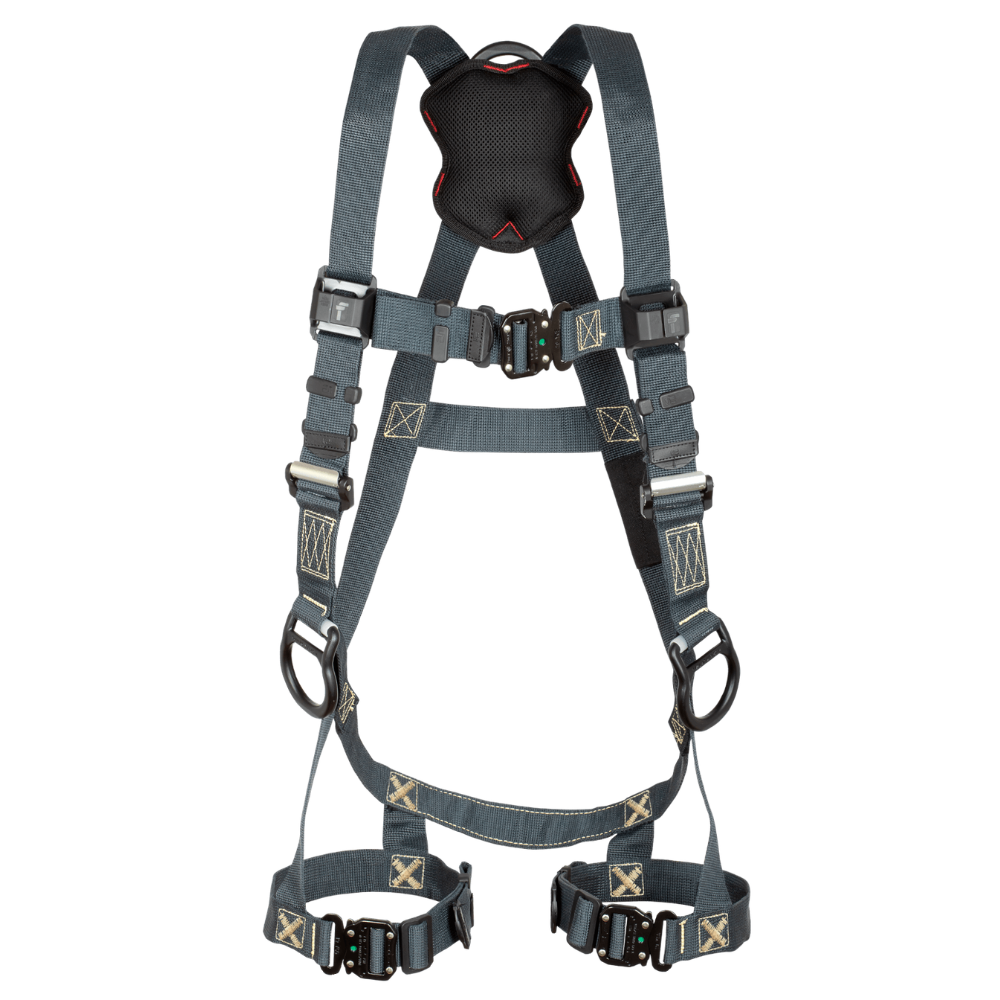

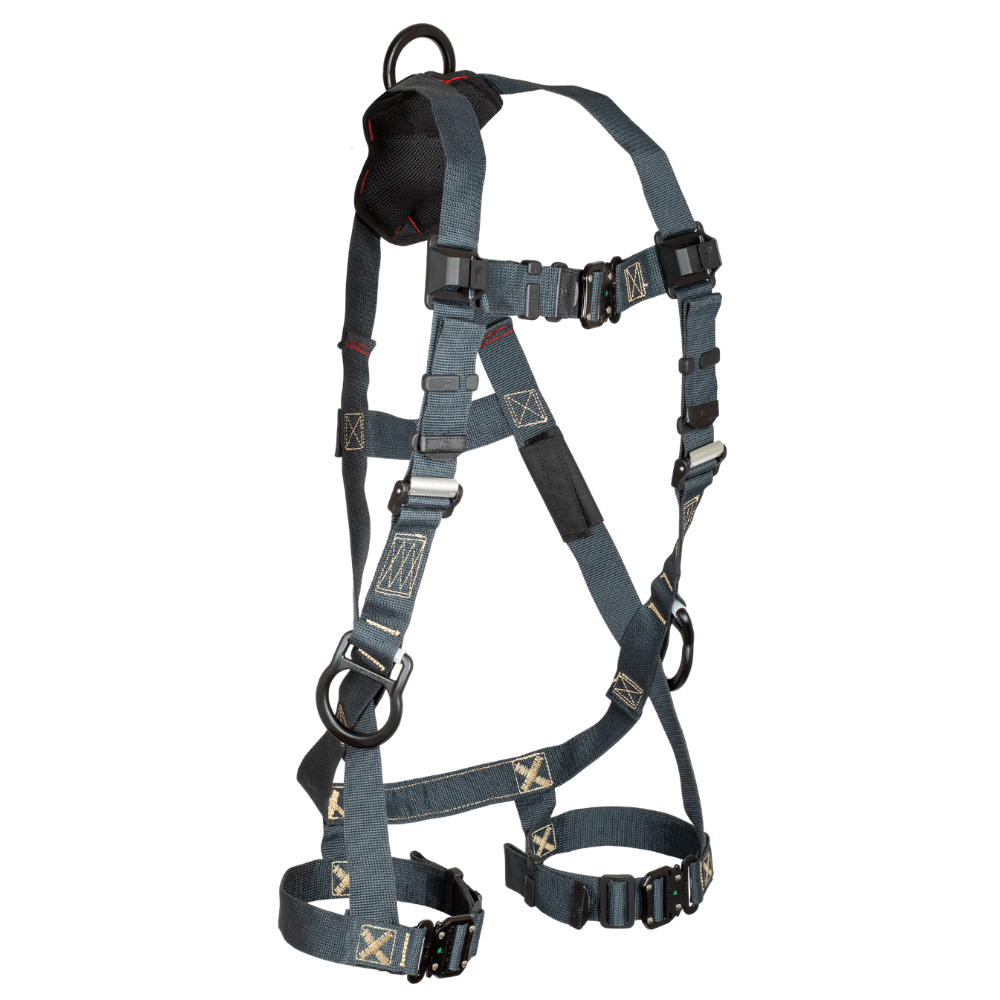

The FallTech 70403D FT-Weld 3D Standard Harness provides superior protection and comfort for hot-work and welding applications. It is made with all-Kevlar webbing that offers the highest level of burn and spatter resistance while maintaining flexibility and durability. The ergonomic lateral leg strap design improves comfort and mobility, eliminating the need to disconnect leg straps when not in use. The minimalistic back pad and ArrowGrip dorsal D-ring plate minimize slippage and ensure consistent comfort throughout the day.

This harness includes aluminum dorsal and hip D-rings, quick-connect chest and leg buckles with visual indicators for positive connection, and an updated SRL connection point that allows fast, secure attachment of single or twin SRLs. The durable lanyard keeper design enhances versatility and maintains ANSI compliance. Patent Pending. The FT-Weld harness meets ANSI Z359.11-2014, OSHA 1926.502, and OSHA 1910.140 standards.
  • Product Code: 70403D
  • Webbing: Kevlar; 5,000 lb minimum static strength
  • D-Rings: Aluminum alloy; 5,000 lb minimum static strength
  • Buckles and Adjusters: Aluminum alloy and plated alloy steel; 3,372 lb minimum static strength
  • Static Strength: 3,600 lb minimum
  • ANSI User Capacity: 130 to 310 lb maximum
  • OSHA User Capacity: 130 to 425 lb maximum
  • Compliance: ANSI Z359.11-2014, OSHA 1926.502 and 1910.140
  • Weight: 3.5 lbs
