7040 FT-Weld 1D Standard Harness – FallTech

SKU: 7040XS
$511.20
Size
Estimated Lead Time:1 to 2 Days

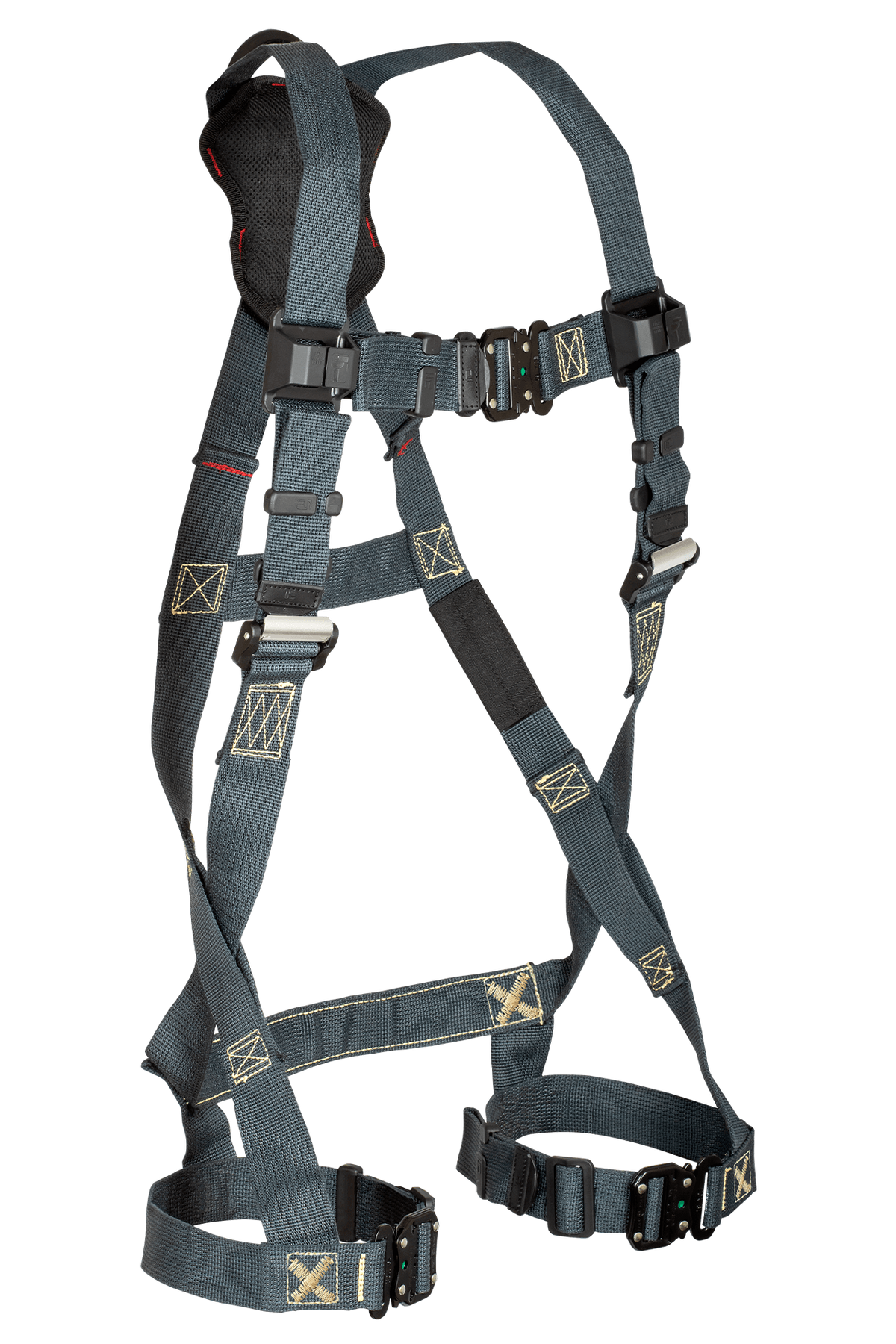

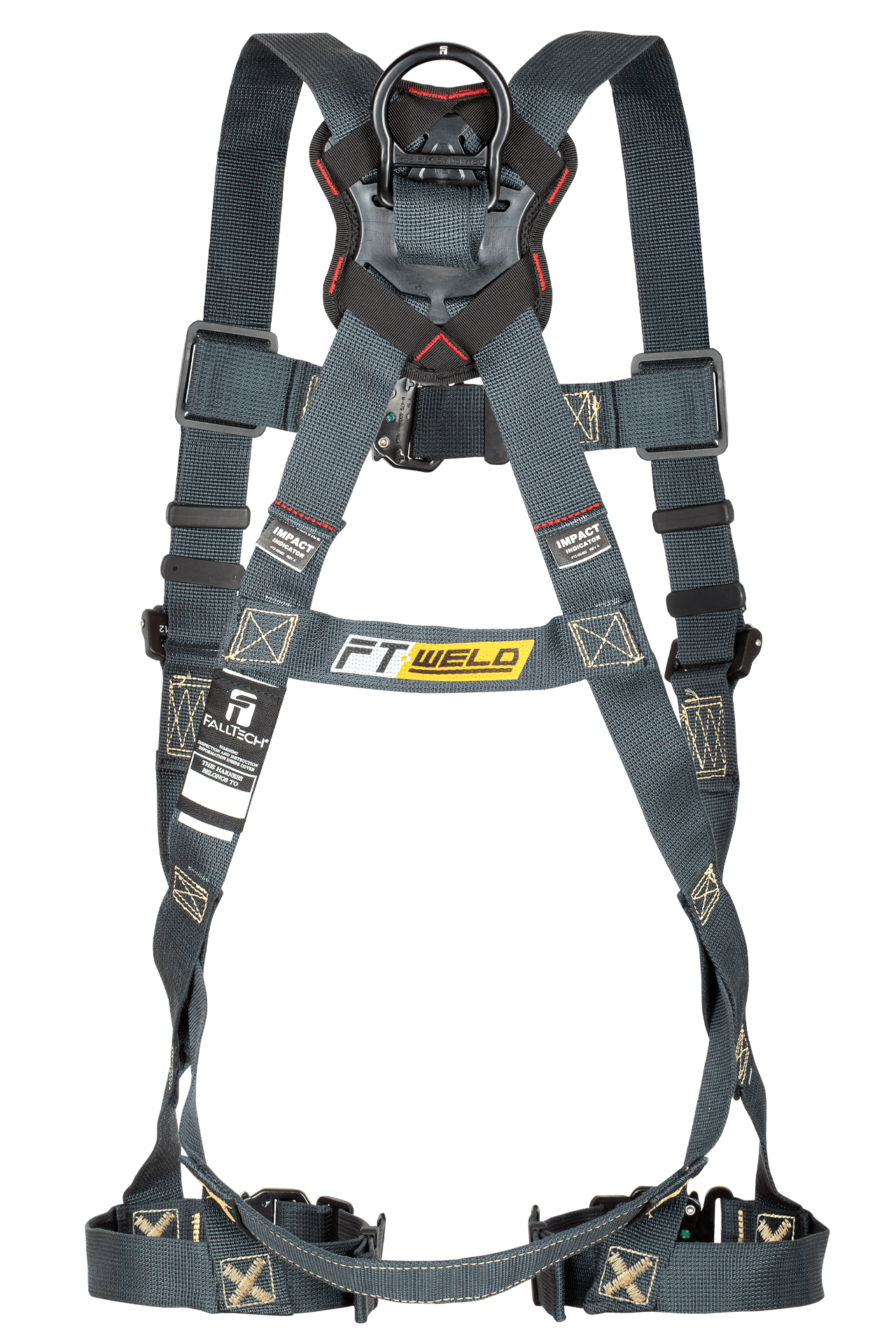

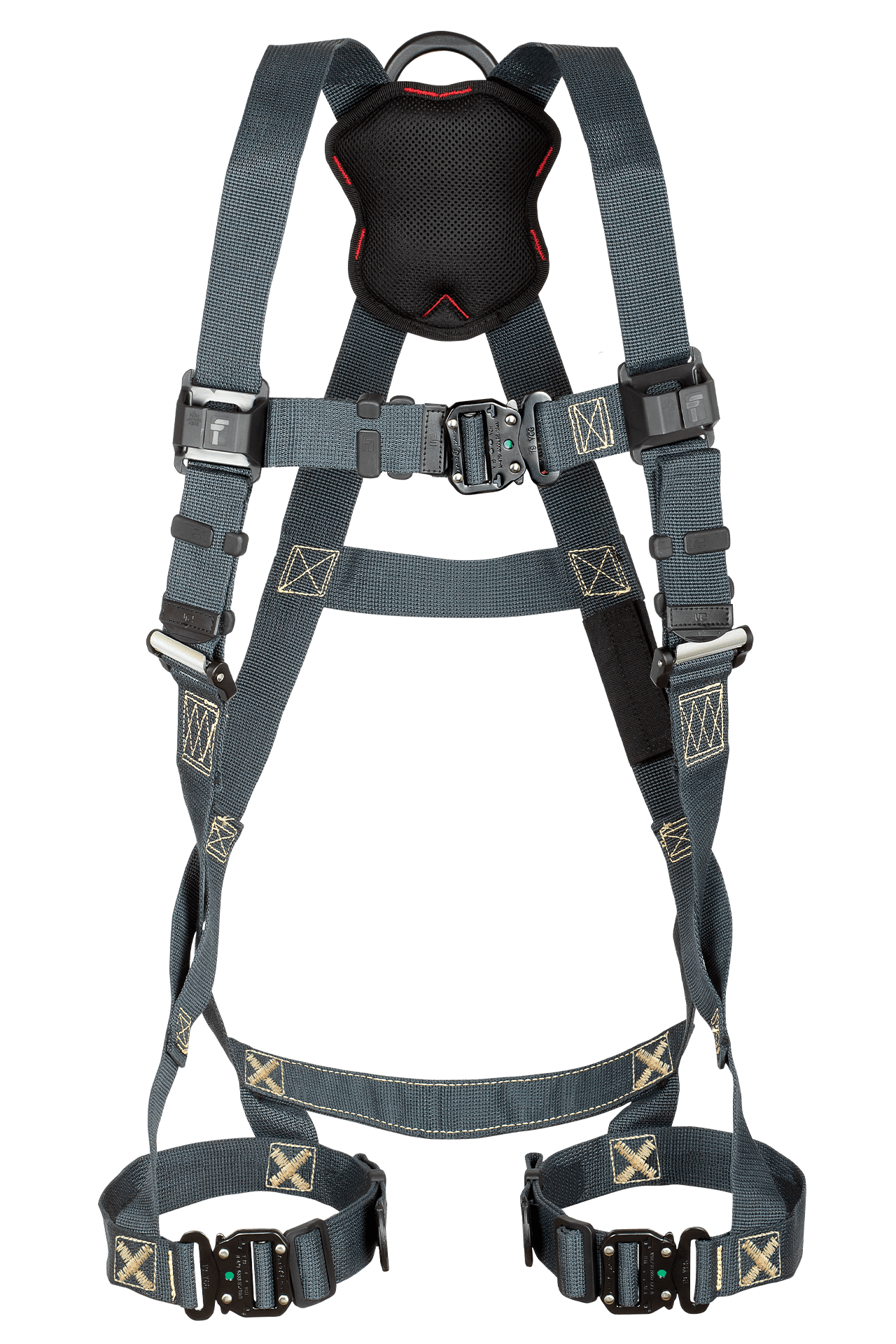

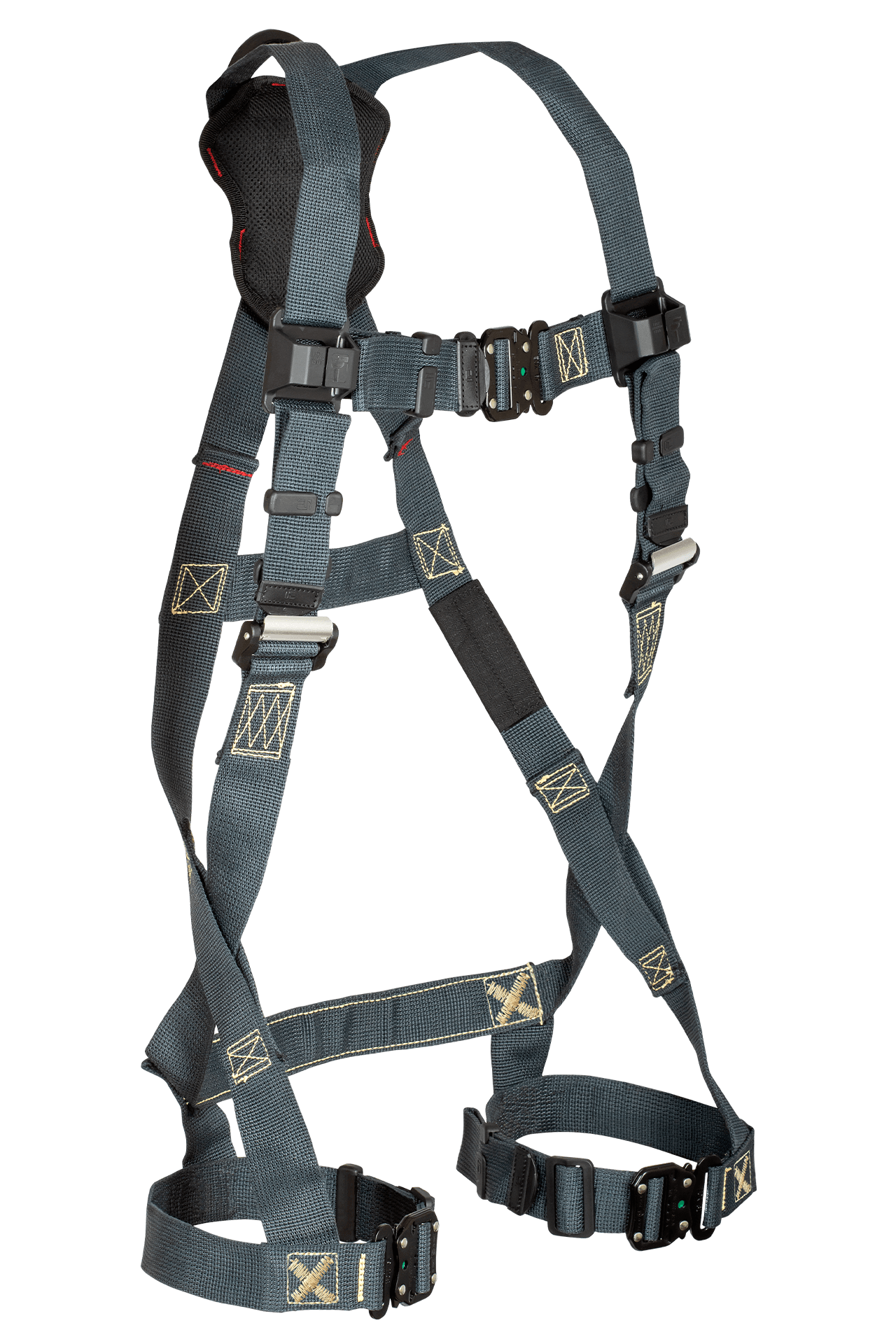

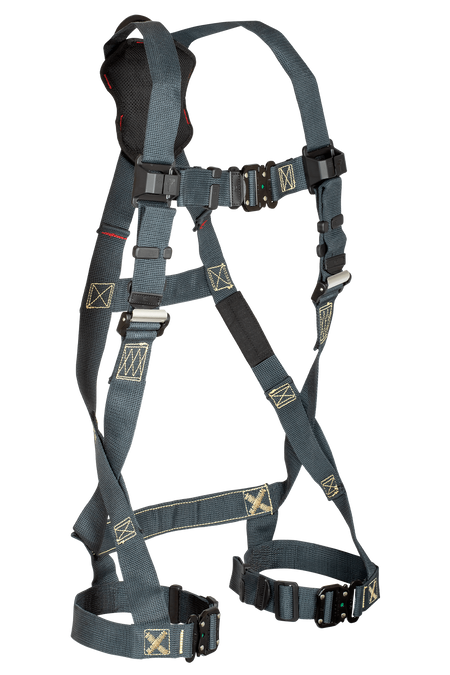

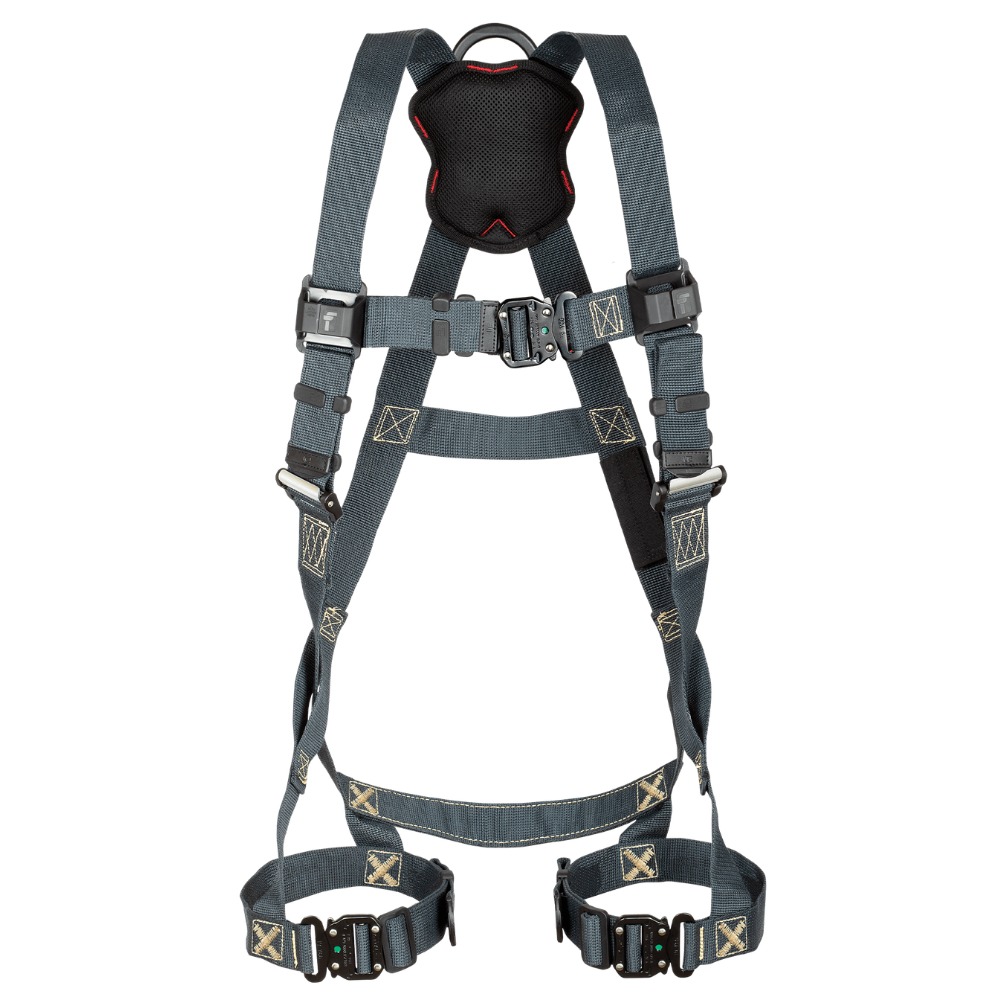

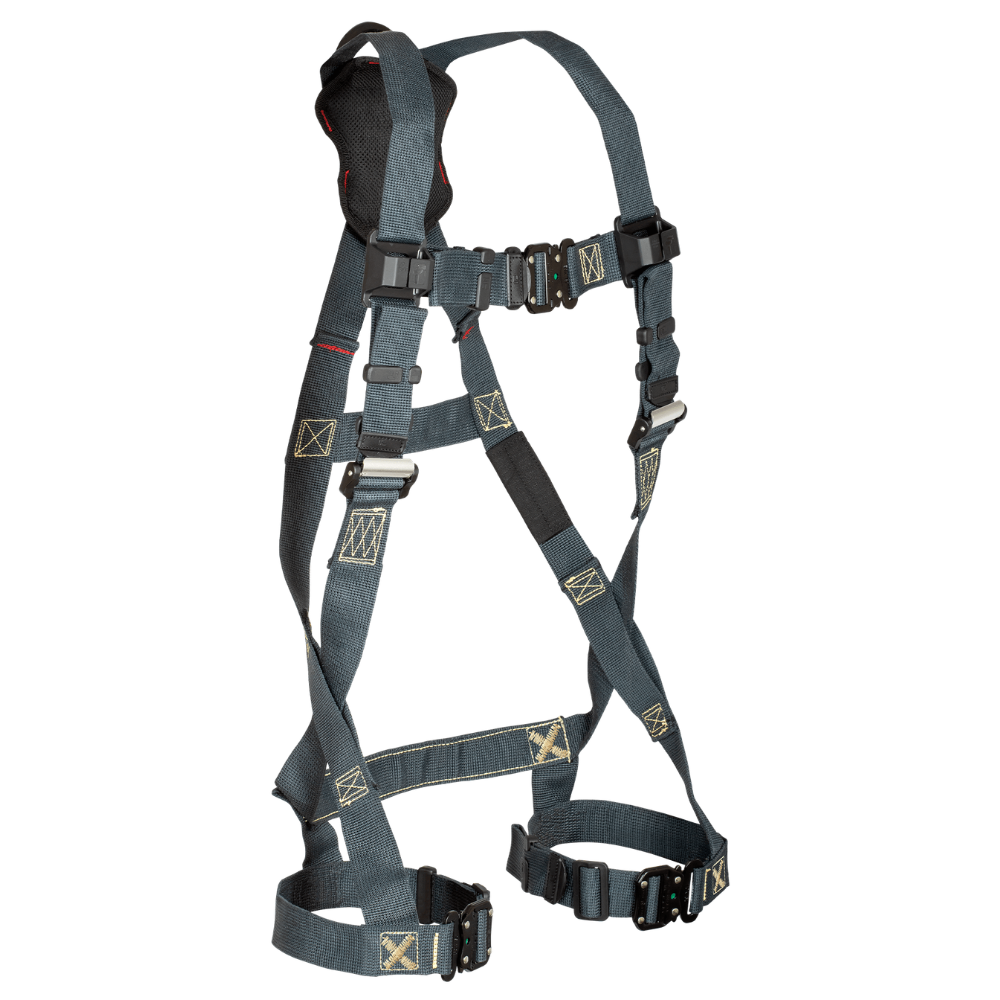

The FallTech 7040 FT-Weld 1D Standard Harness is designed specifically for hot-work and welding applications, providing maximum burn and spatter resistance with all-Kevlar webbing construction. It features new ergonomic lateral leg straps that enhance comfort and mobility without the need to disconnect when not in use. The minimalistic back pad and ArrowGrip dorsal D-ring plate reduce slippage and ensure consistent comfort throughout the workday.

This harness includes quick-connect chest and leg buckles with visual indicators for positive connection, as well as an updated SRL connection point for fast, hassle-free attachment of single or twin SRLs. The durable lanyard keeper design maintains ANSI compliance and allows greater versatility in use. The FT-Weld harness complies with ANSI Z359.11-2014, OSHA 1926.502, and OSHA 1910.140 standards.
  • Product Code: 7040
  • Webbing: Kevlar; 5,000 lb minimum static strength
  • D-Rings: Aluminum alloy; 5,000 lb minimum static strength
  • Buckles and Adjusters: Aluminum alloy and plated alloy steel; 3,372 lb minimum static strength
  • Static Strength: 3,600 lb minimum
  • ANSI User Capacity: 130 to 310 lb maximum
  • OSHA User Capacity: 130 to 425 lb maximum
  • Compliance: ANSI Z359.11-2014, OSHA 1926.502 and 1910.140
  • Weight: 3.3 lbs
