600 lb Steel Manual Low Profile Hydraulic Drum Truck – LPDT – Vestil

SKU: LPDT
$1,030.01
Estimated Lead Time:1-3 Days

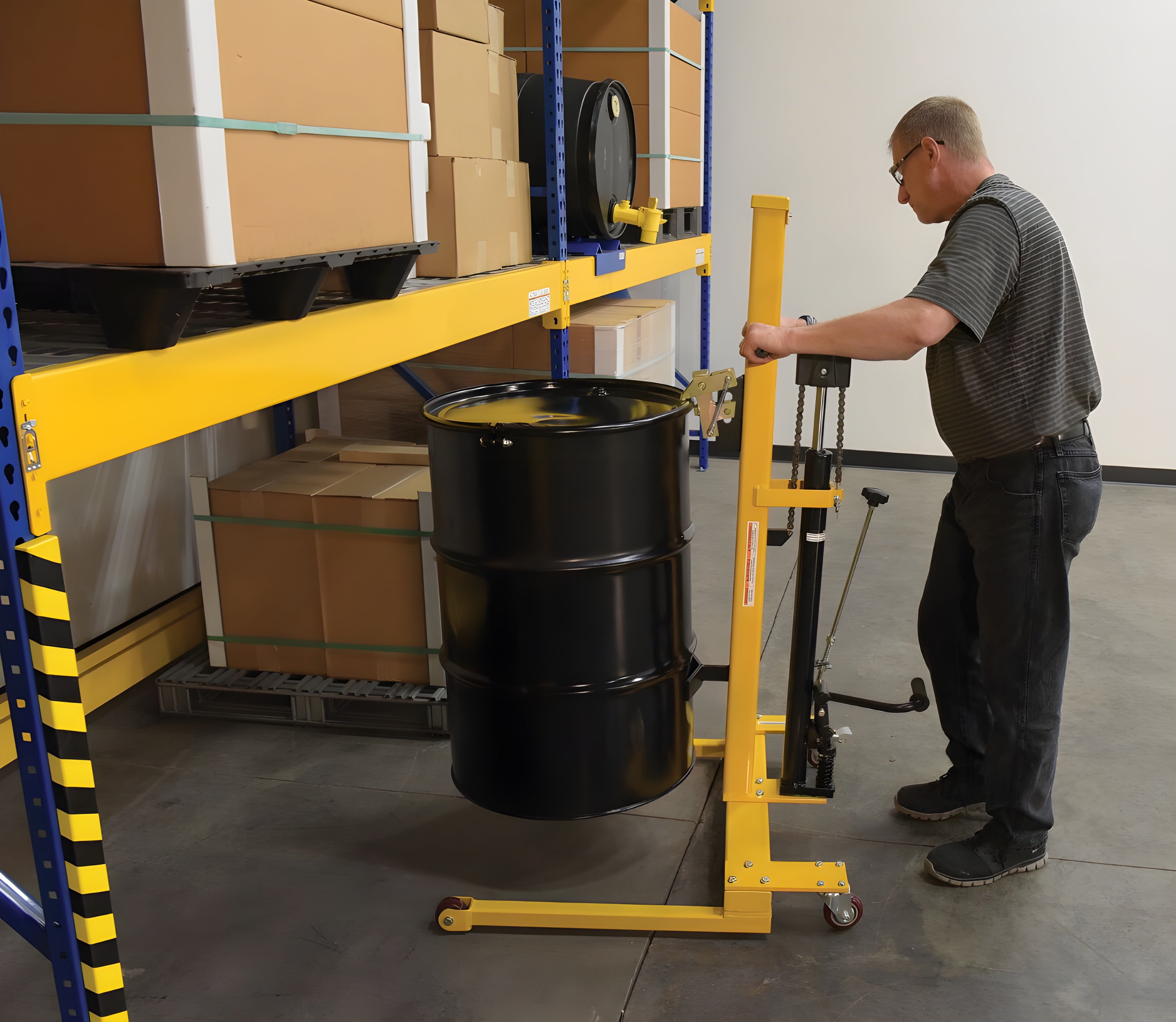

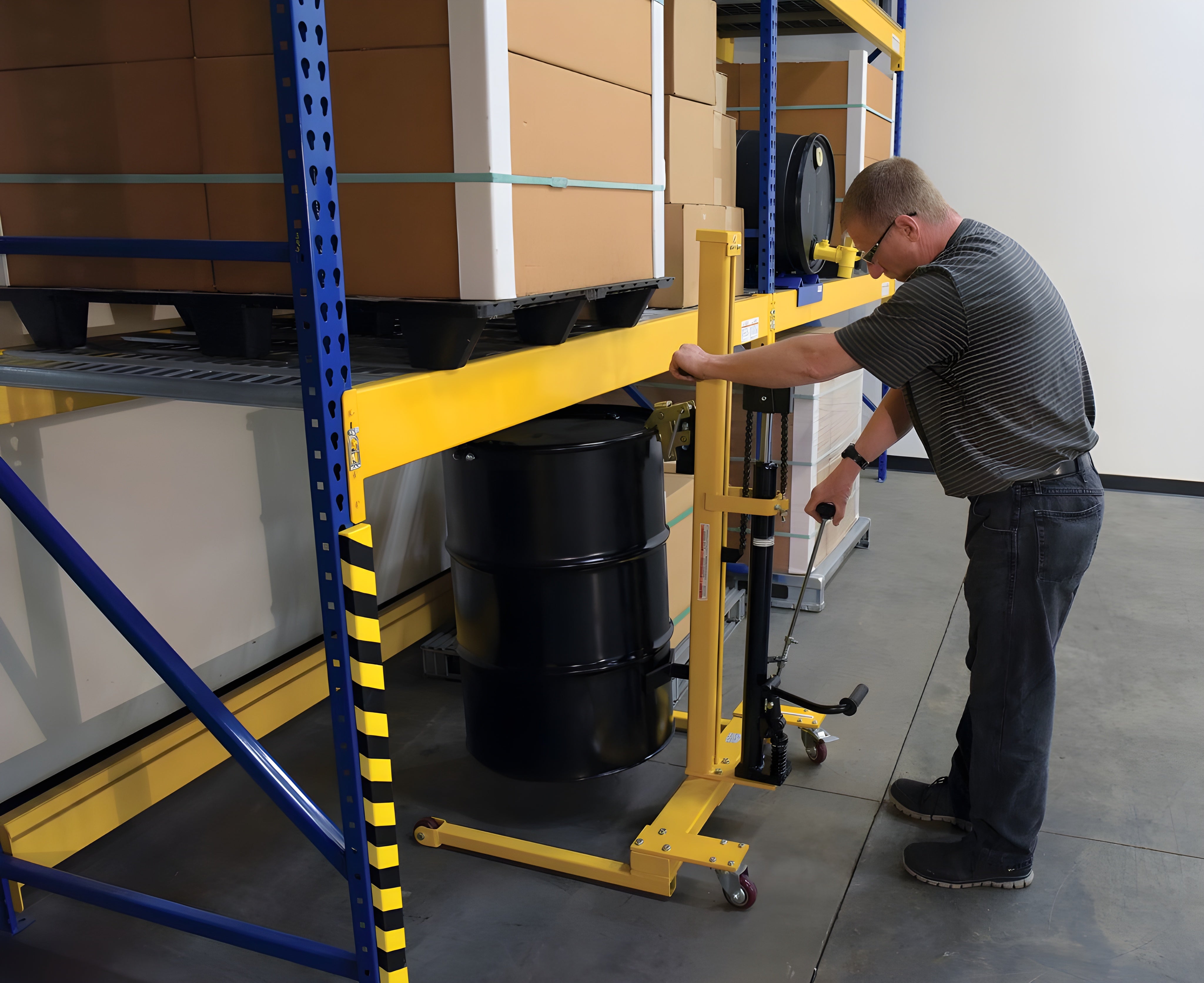

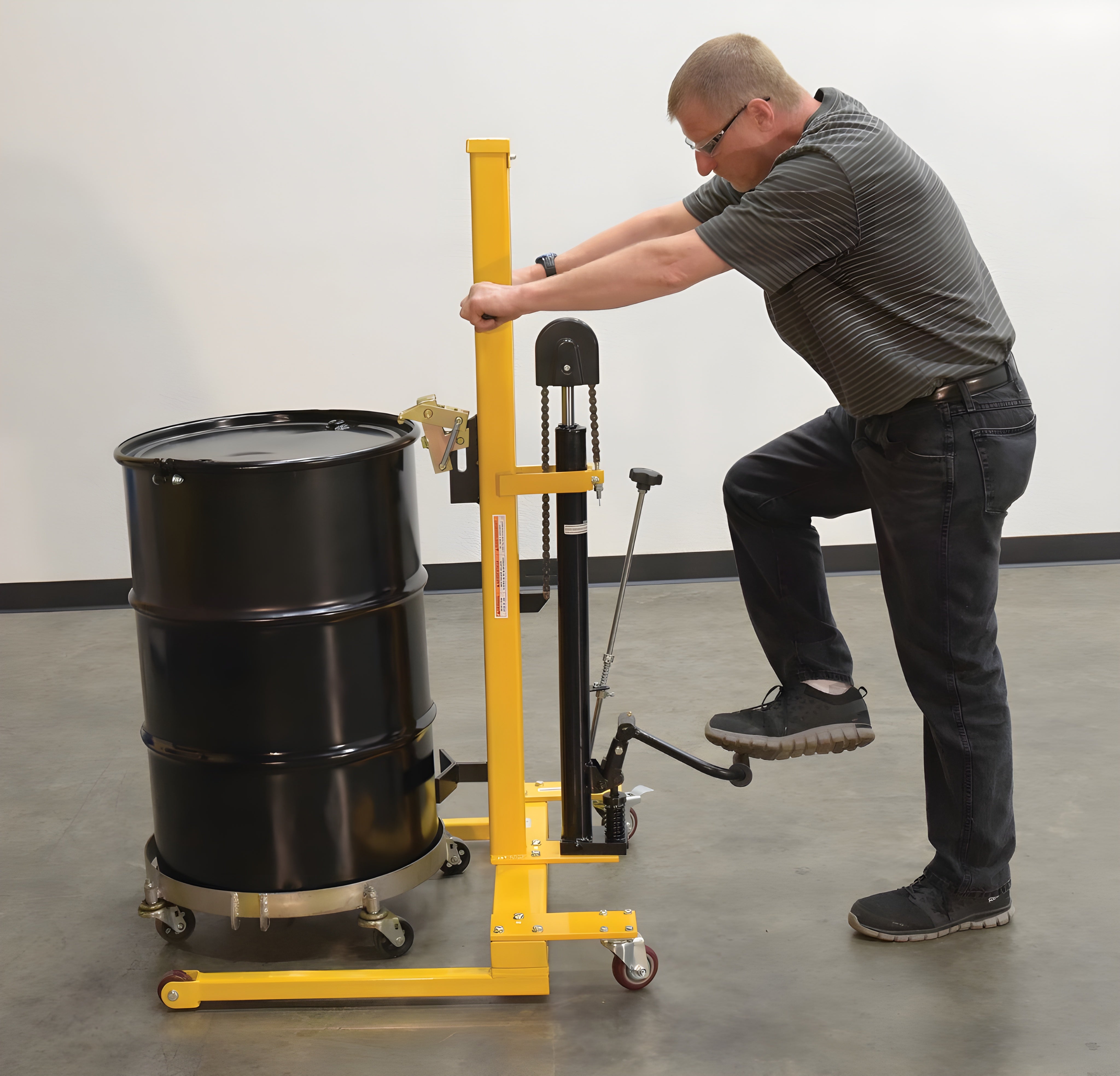

The Vestil Manual Low Profile Hydraulic Drum Truck provides a safe and efficient solution for loading, unloading, transporting, and positioning steel drums when a fork truck is not available. A single operator can securely engage drums with the spring-loaded rim clamp and elevate them using the foot-operated hydraulic pump.

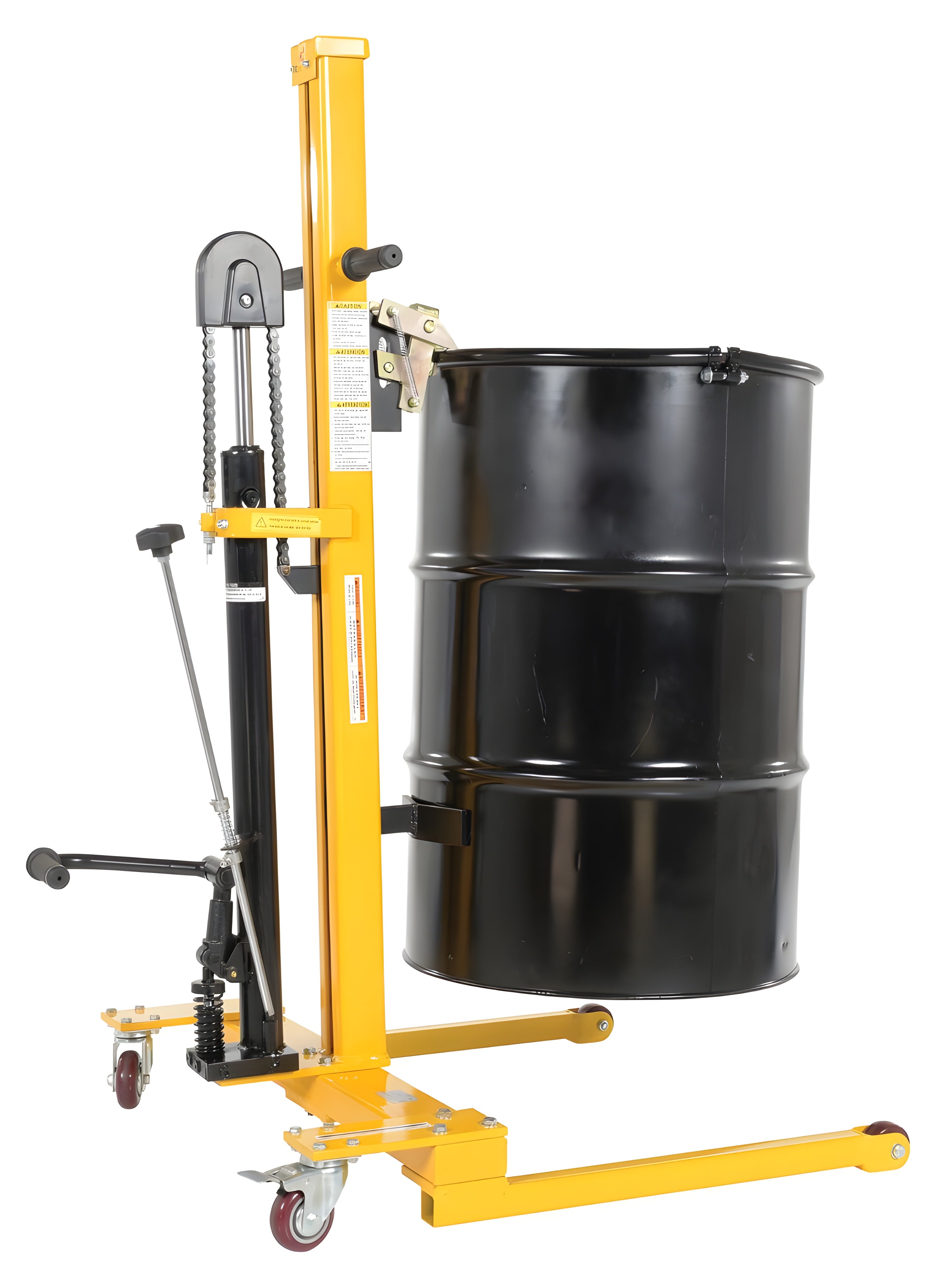

This unit accepts standard 55-gallon drums and is designed for easy assembly/disassembly, making it convenient for use in multiple work areas and for storage when not in use.
  • Model Number: LPDT
  • Capacity: 600 lbs
  • Compatible Drum Size: 55 gallon
  • Compatible Drum Material: Steel
  • Material: Steel

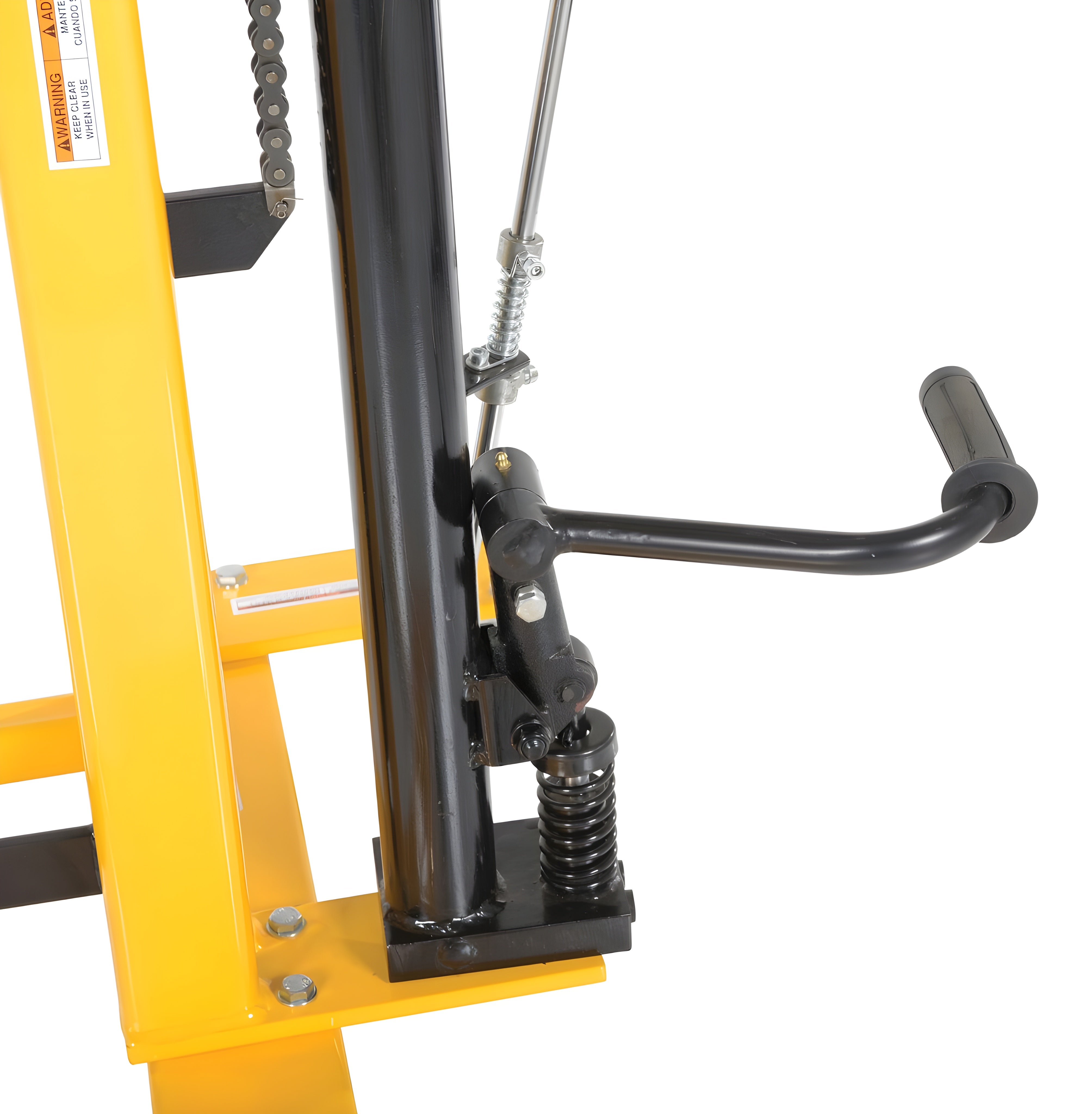

  • Lift Mechanism: Manual foot-operated hydraulic pump

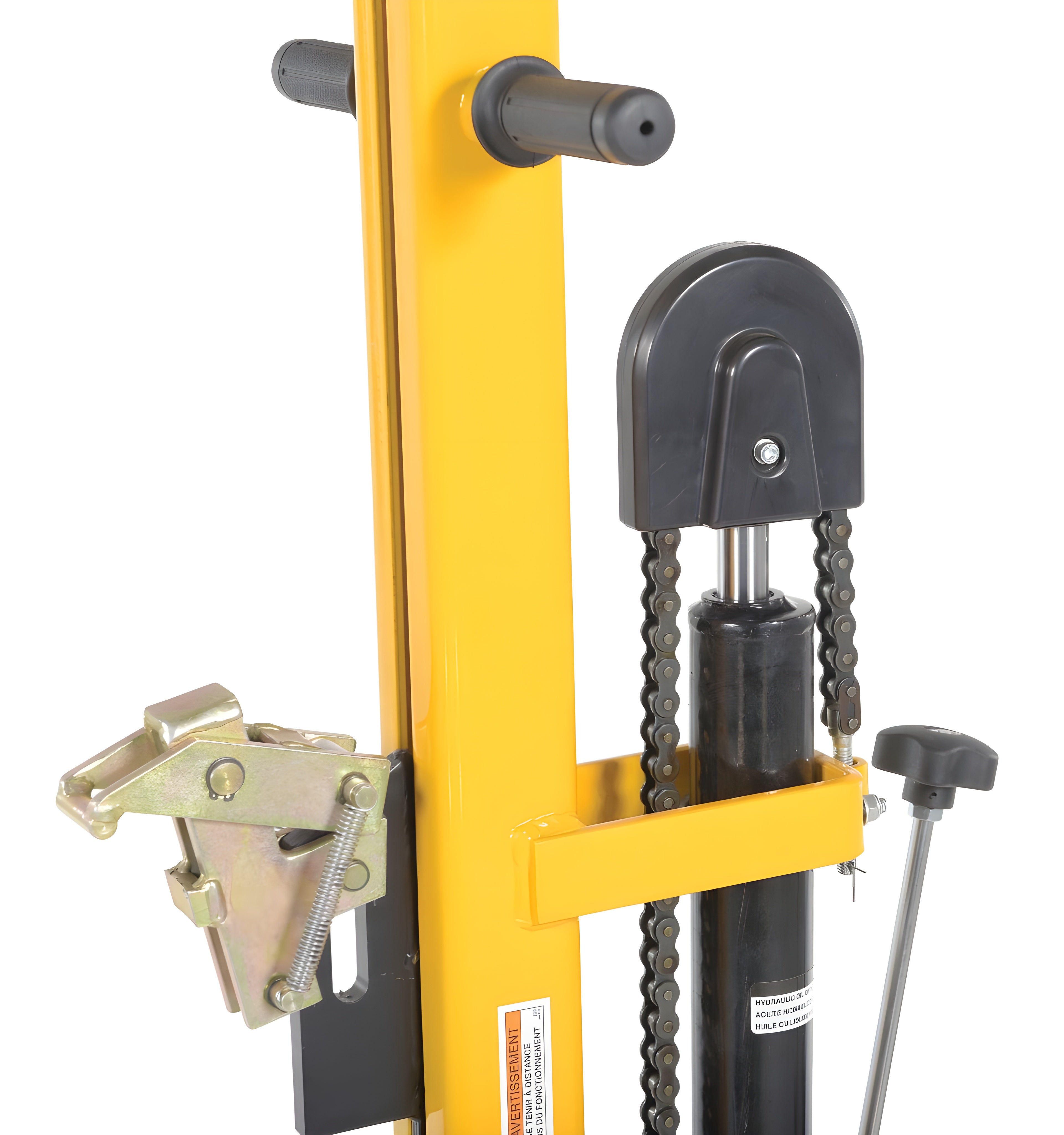

  • Clamp: Spring-loaded rim clamp
  • Maximum Rim Clamp Height: 60 in
  • Maximum Lift Height: 64.57 in
  • Lowered Height: 32.875 in
  • Outrigger Width: 2.25 in
  • Overall Outrigger Width: 37.625 in
  • Wheel Type: Polyurethane (4 wheels: 2 rigid, 2 swivel with brakes)
  • Front Wheel Diameter: 2.5 in
  • Front Wheel Width: 1.5 in
  • Rear Wheel Diameter: 3.1875 in
  • Rear Wheel Width: 1.25 in
  • Assembled Dimensions: 37 in L × 34 in W × 60 in H, 150 lbs
  • Package Dimensions: 48 in L × 40 in W × 66 in H, 185 lbs

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 30 Days Limited – Parts
