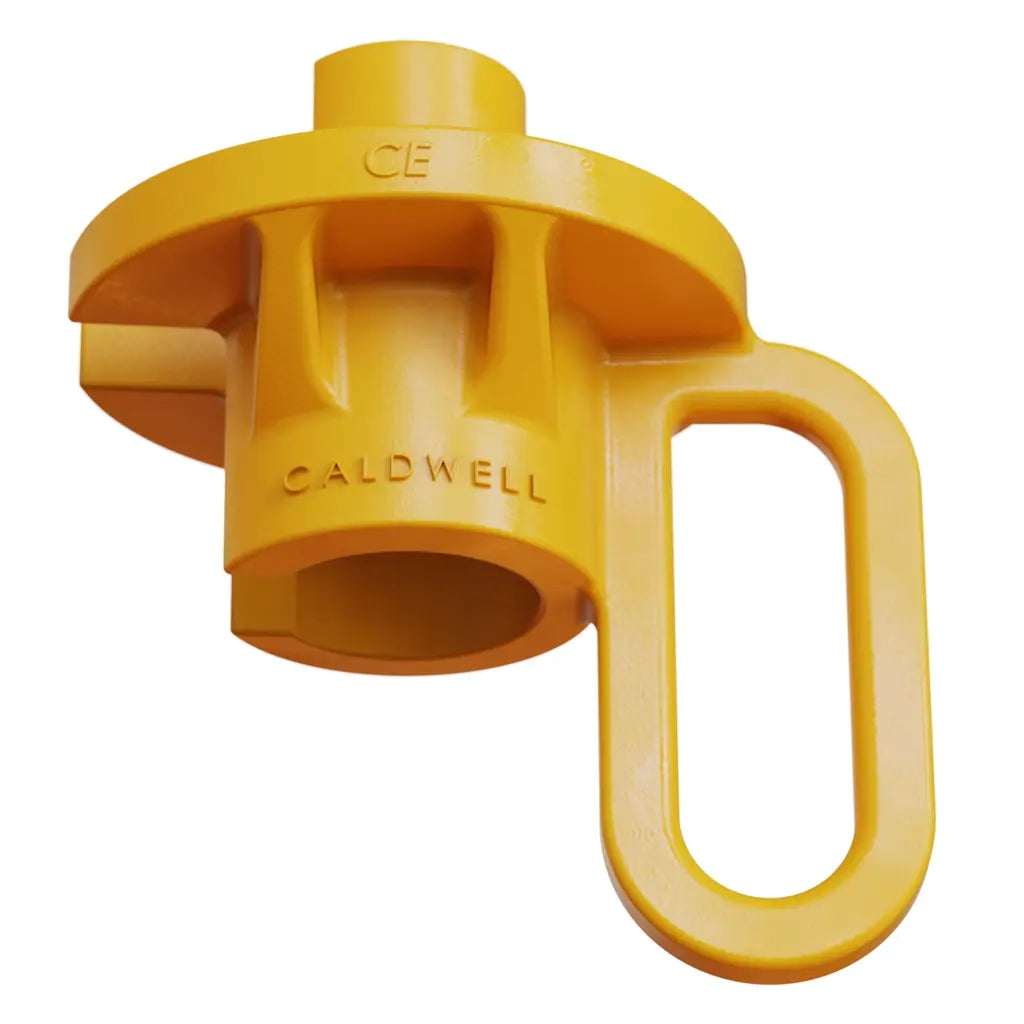

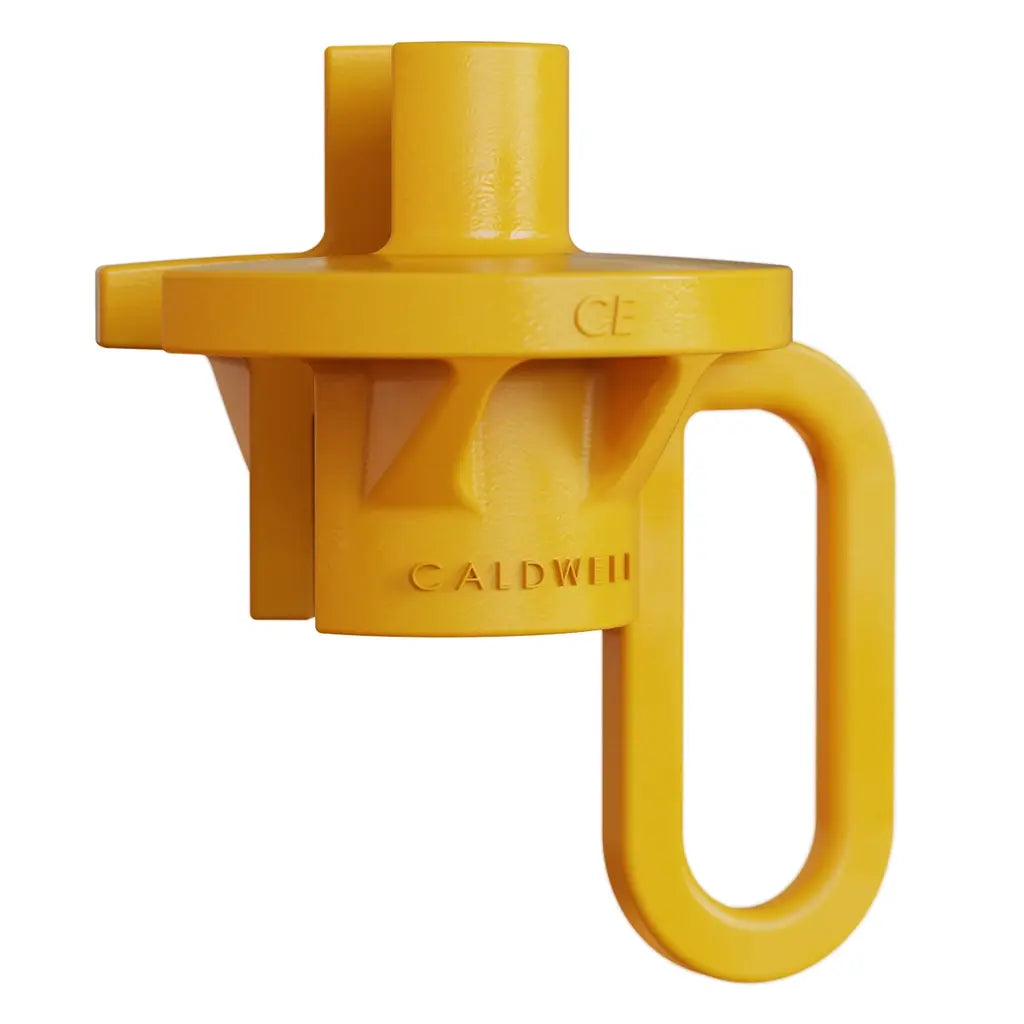

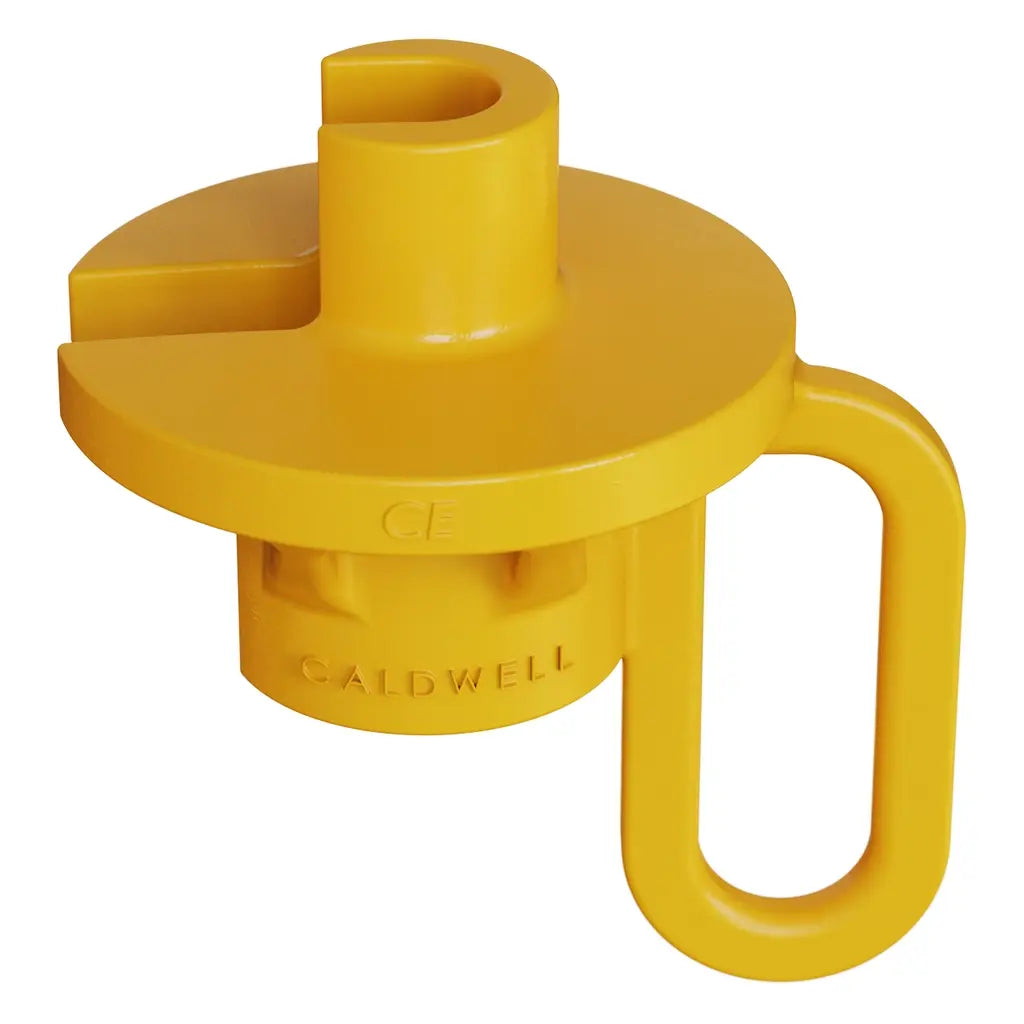

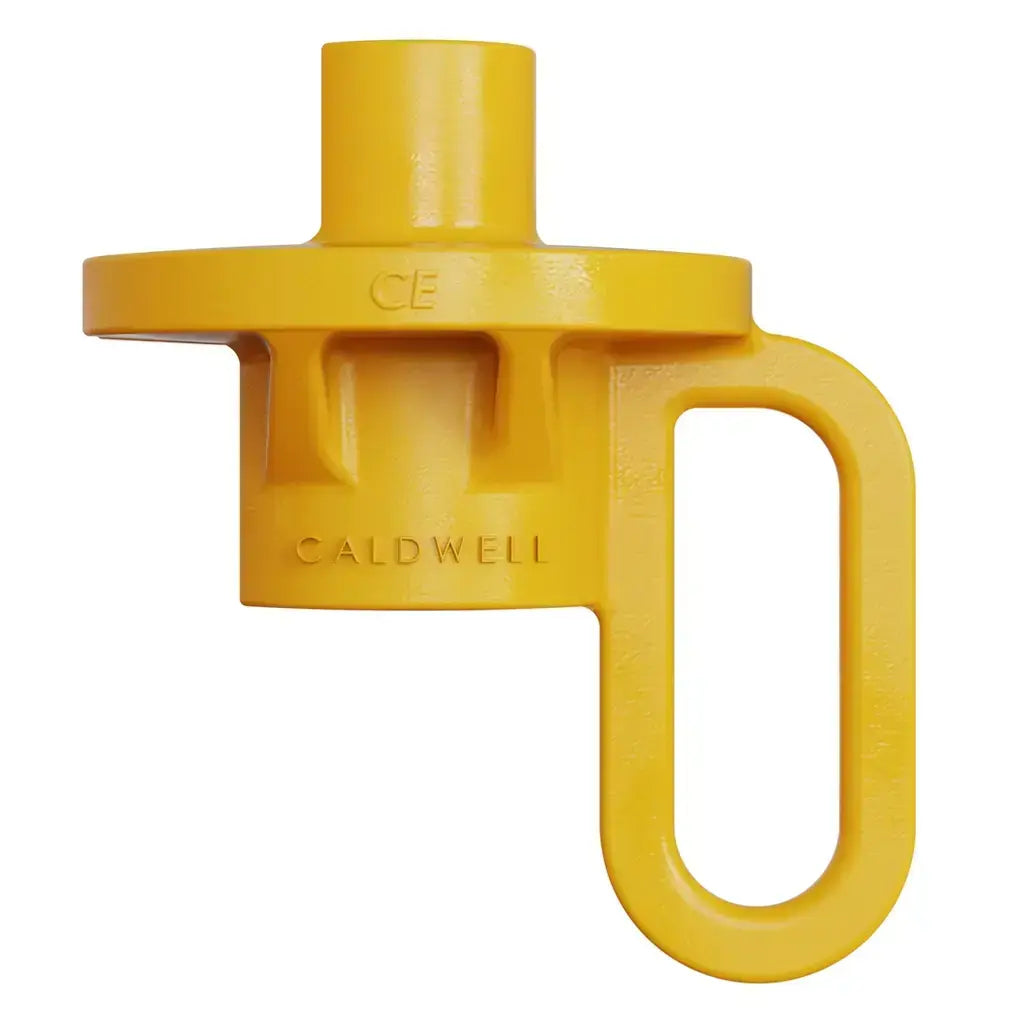

Tea Cup Pipe Carrier – 3/4" Cable Size – 6.6 ton - Model PC – Caldwell

SKU: 65-11
Regular price $239.06
Estimated Lead Time:

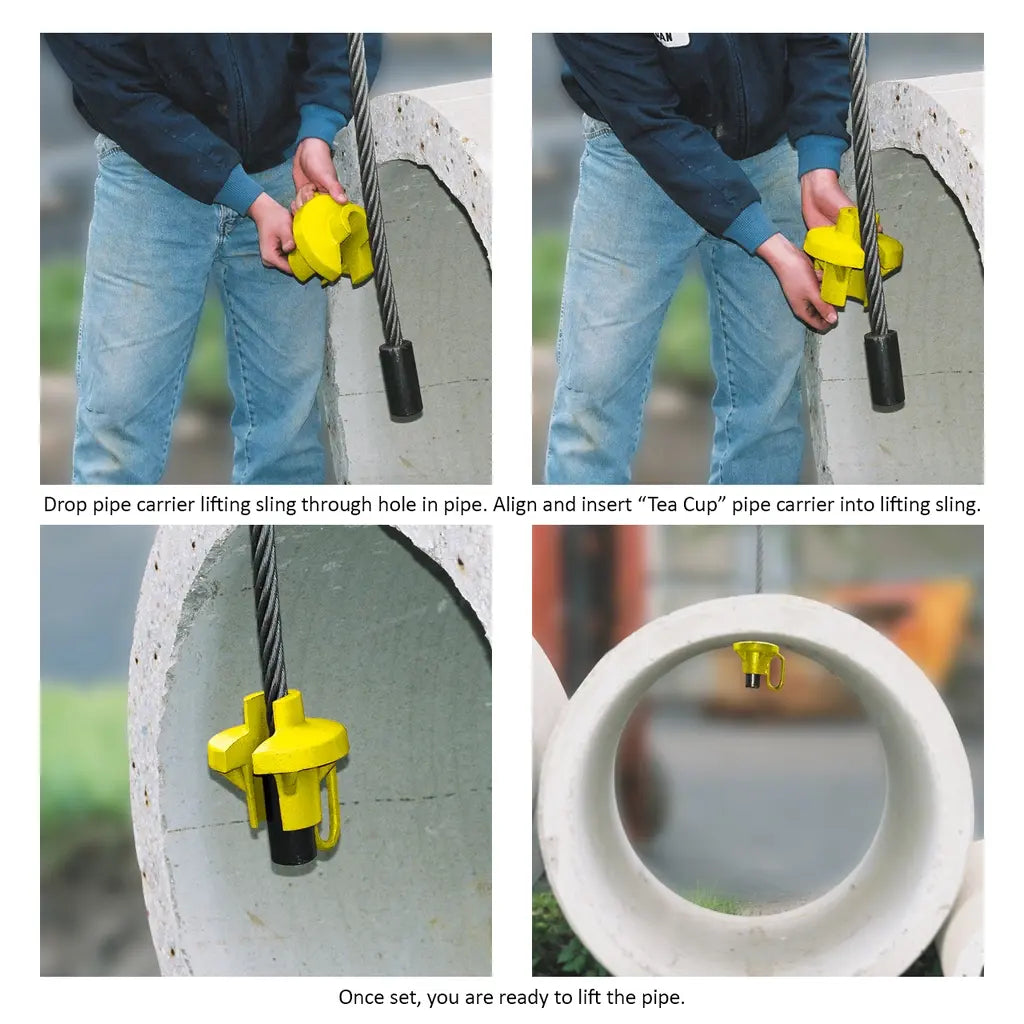

The Caldwell Model PC "Tea Cup" Pipe Carrier is an efficient, heavy-duty tool for handling concrete water and sewer pipes. Designed to save time and money on the job site, it offers a simple yet highly effective lifting solution for vertical pipe handling. The PC-3/4 is the smallest in the Tea Cup series, designed to handle 3/4" cable. An optional Spoon Handle (Model SH-34) allows the Tea Cup to be guided into small-diameter pipes with greater precision. An optional Tea Cup Lifting Sling is also available—simply drop the sling through the pipe, align, and insert the Tea Cup, and you’re ready to lift. This model complies with ASME standards and is intended for vertical lifting only.

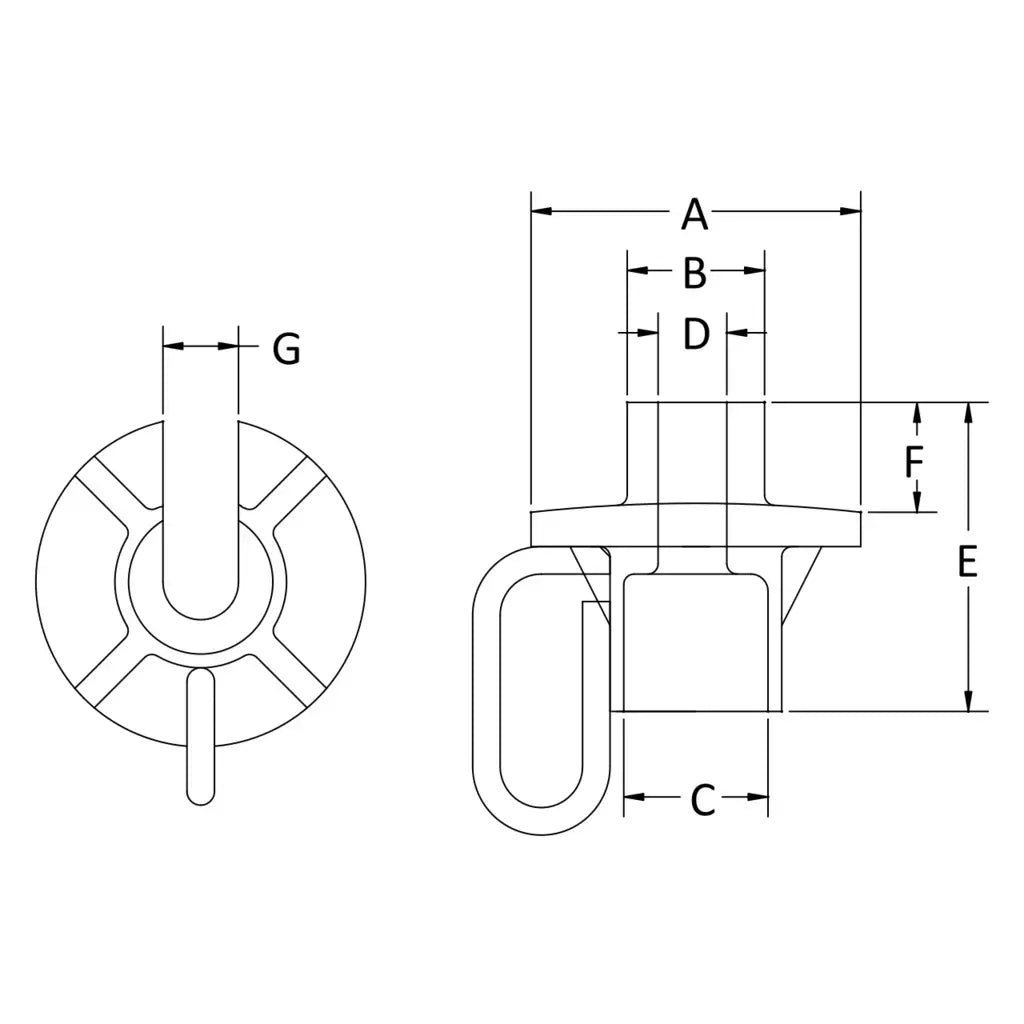

  • Model Number: PC-3/4
  • Capacity: 6.6 tons
  • Wire Rope Diameter: 1.13 in
  • Height: 4.75 in
  • Weight: 9 lbs
  • Max Diameter: 5.56 in
  • Flange Height: 1.75 in
  • Sleeve Diameter: 2 in
  • Wire Rope Cavity: 2.13 in
  • Wire Rope Opening: 1.13 in
