Confined Space Davit System, 12"–29" Offset, 5-Piece – 6050228W – FallTech

SKU: 6050228W
$6,001.60
Estimated Lead Time:3 to 5 Days

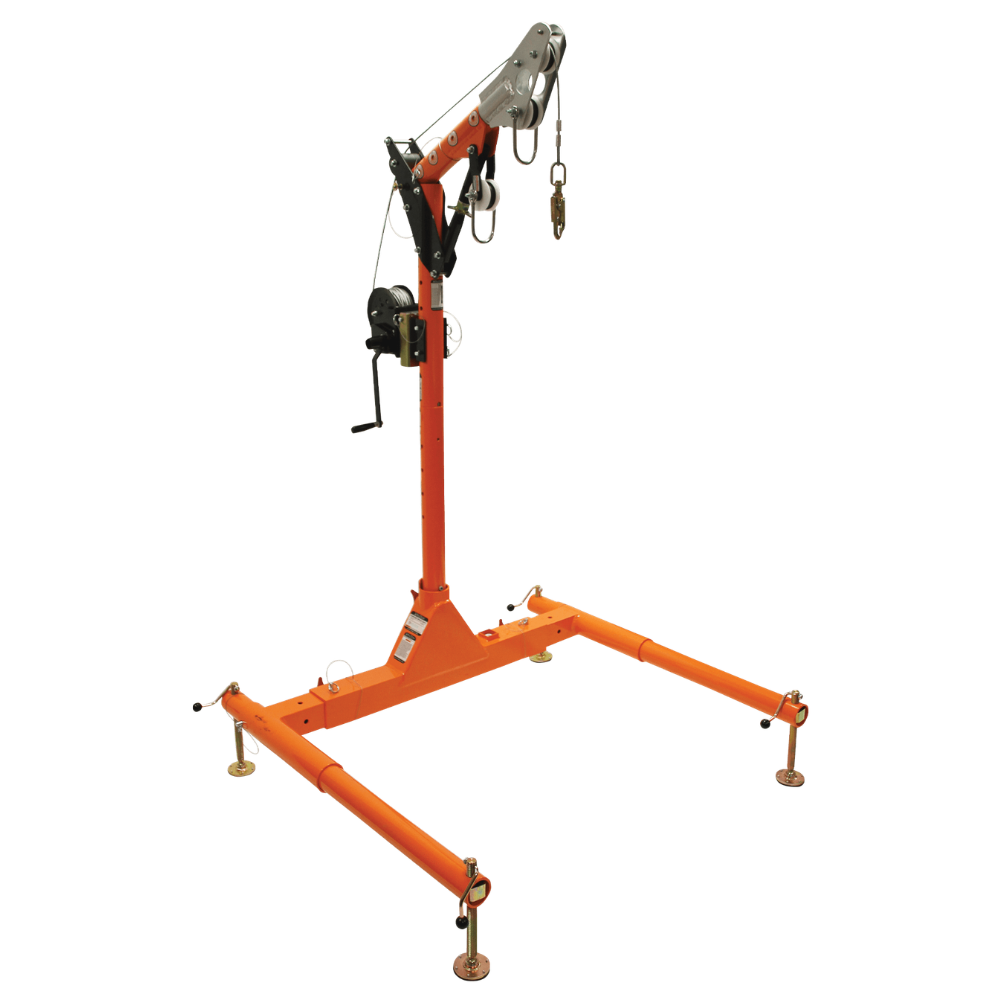

The FallTech 6050228W 5-Piece Confined Space Davit System provides a versatile and durable solution for safe entry, retrieval, and rescue operations. The adjustable davit arm offers a 12" to 29" offset reach to properly center lifelines over access points, while the base adjusts from 38" to 65" to fit a wide variety of openings. The system includes a 33" lower mast extension, device receiver bracket, and a 60' galvanized cable personnel winch.

Built from powder-coated aluminum and alloy steel, the davit delivers long service life and dependable performance. A secondary 5,000 lb anchor point, dual pulleys on the davit arm, integral base level, and tool-free height adjustment enhance ease of use. The system meets OSHA 1926.502 and 1910.66 requirements, and the winch complies with ANSI Z359.4-2013.
  • Product Code: 6050228W
  • Davit Arm Offset Range: 12 in to 29 in
  • Base Width Range: 38 in to 65 in
  • Material: Powder-coated 6061 aluminum and plated steel
  • Winch: 60 ft galvanized steel personnel winch
  • Rescue Static Strength: 5,000 lb min
  • Entry/Egress Static Strength: 1,800 lb min
  • Rescue User Capacity: 2 users, 310 lb max each
  • Entry/Egress User Capacity: 1 user, 310 lb max
  • Compliance: OSHA 1926.502 and 1910.66; ANSI Z359.4-2013
  • Weight: 155 lbs
