5k Steel Anchor with Weld-on Puck - STWD5K ALPHA Swivel - Frontline

SKU: STWD5K
Regular price $82.99
Estimated Lead Time:

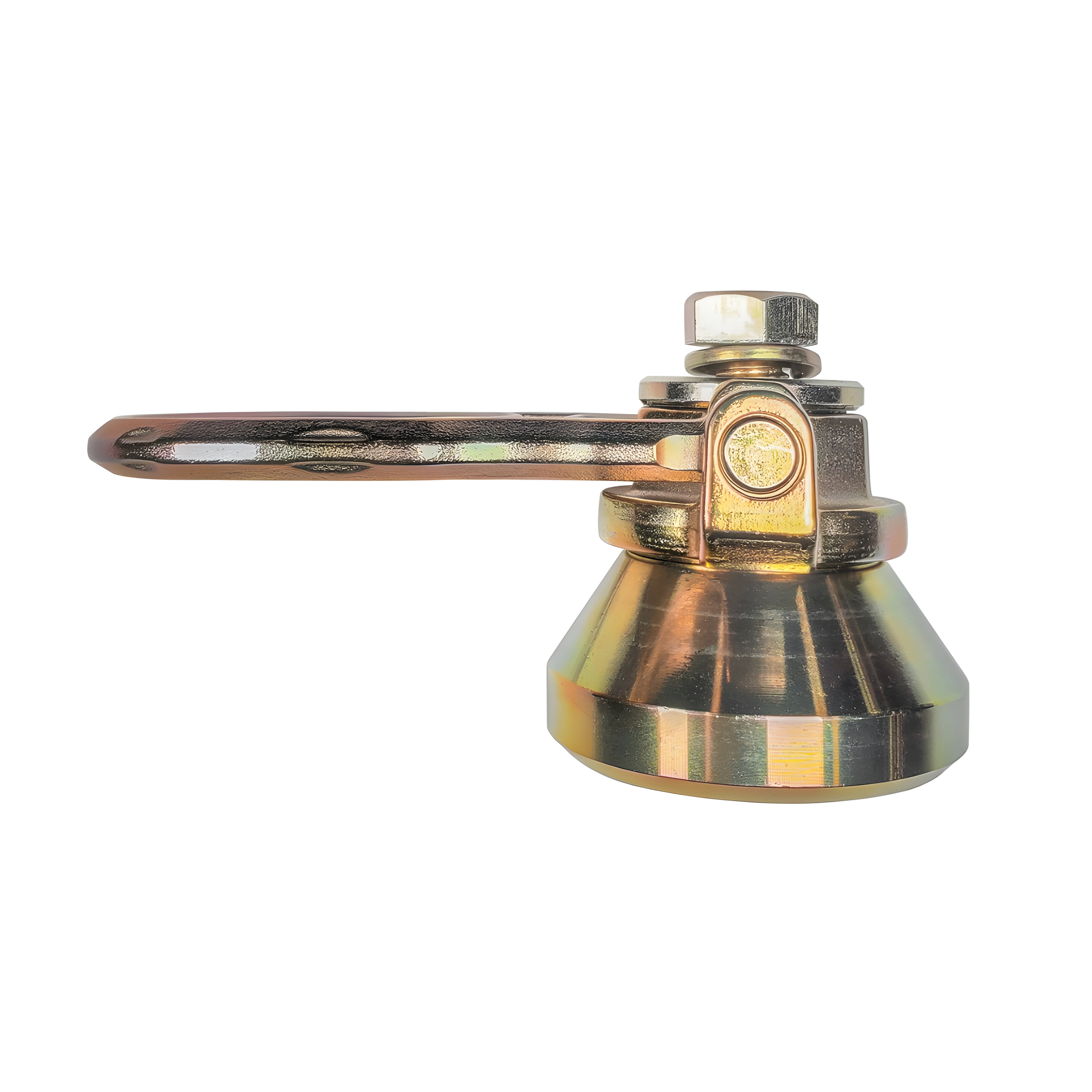

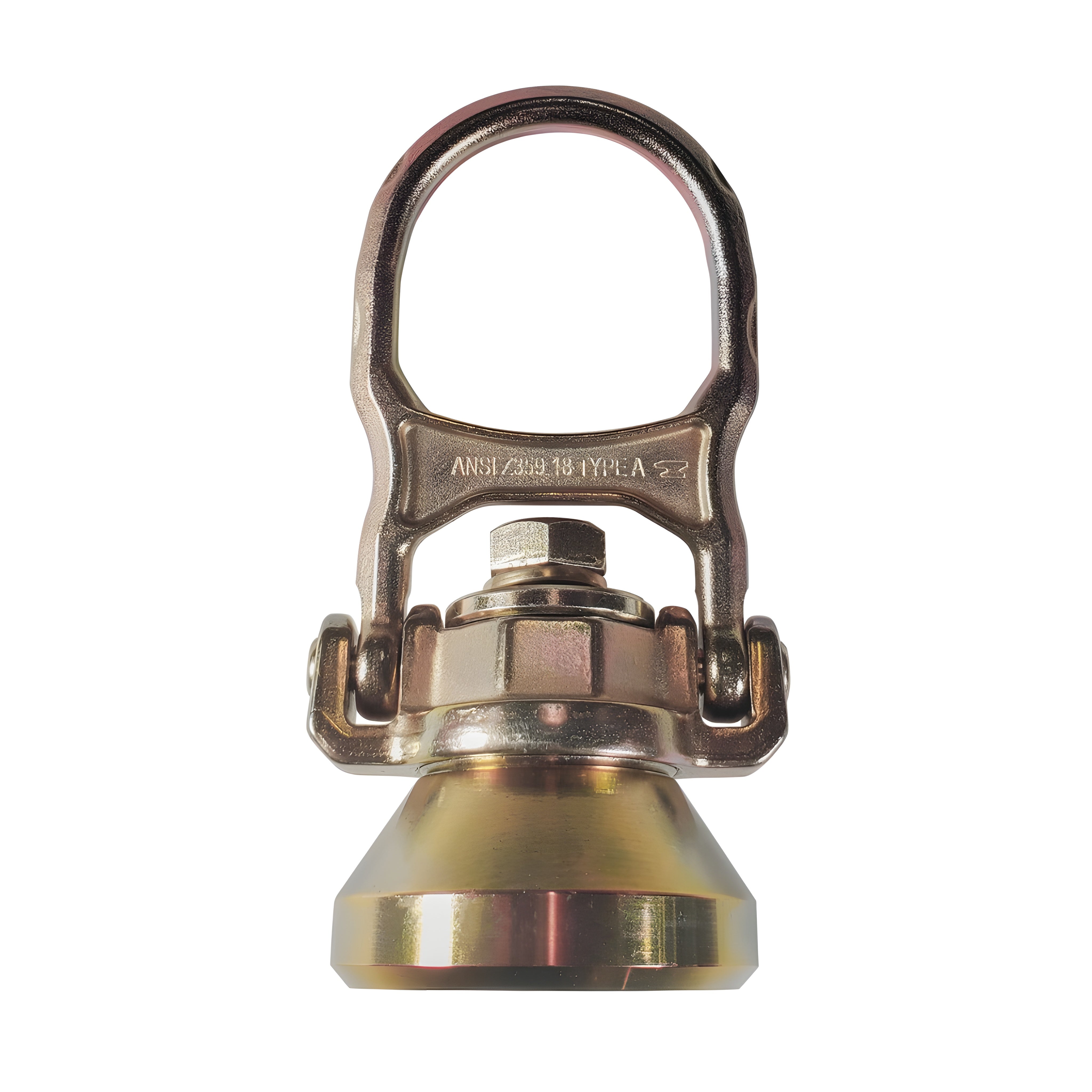

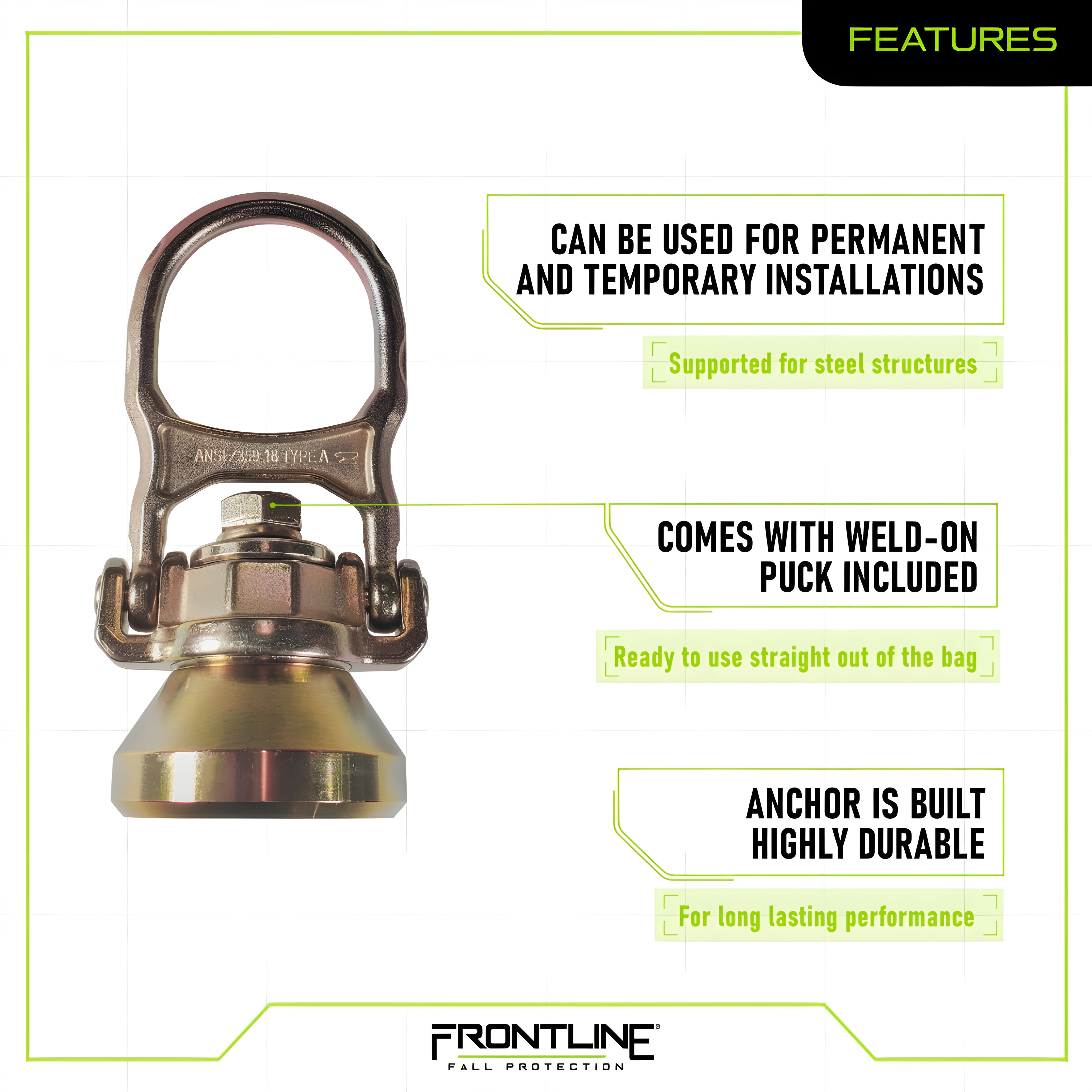

The Frontline STWD5K ALPHA Swivel Anchor is a compact, highly durable solution for steel substrate anchorage, designed for both permanent and temporary installations. Featuring a 360° swiveling D-ring that pivots 180°, this anchor offers superior mobility and minimizes the risk of side loading or accidental disengagement.

Constructed from galvanized zinc with yellow passivation for enhanced corrosion resistance, the ALPHA anchor performs reliably in both indoor and outdoor environments. It is ideal for single-user anchoring or as part of a temporary horizontal lifeline system. The reusable design includes a weld-on mounting puck that can be replaced for use on different work areas, providing long-lasting versatility and safety on the job.

  • Static tensile strength: 5,000 lbs
  • User maximum capacity: 310 lbs
  • Product weight: 1.2 lbs

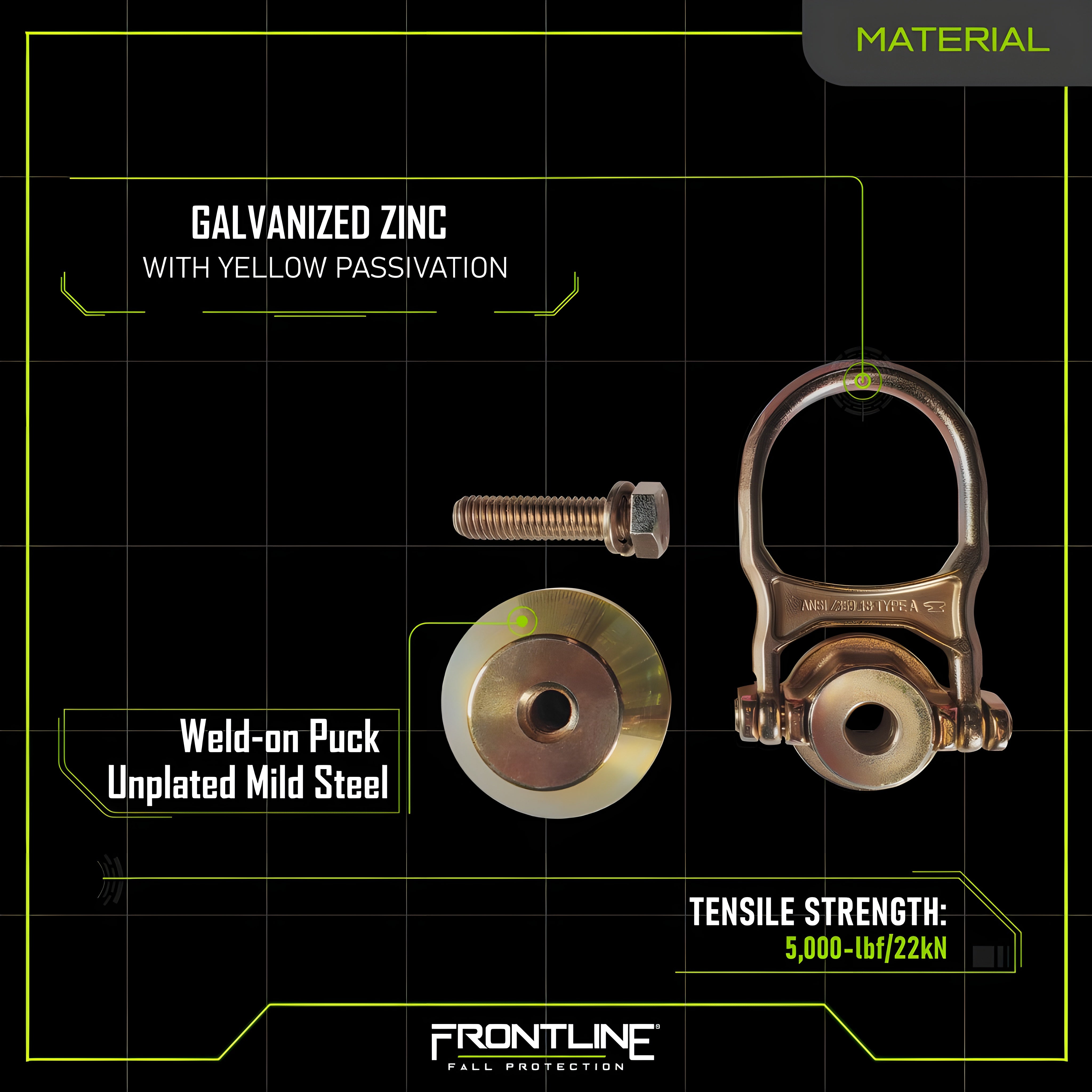

  • Galvanized zinc with yellow passivation for corrosion resistance

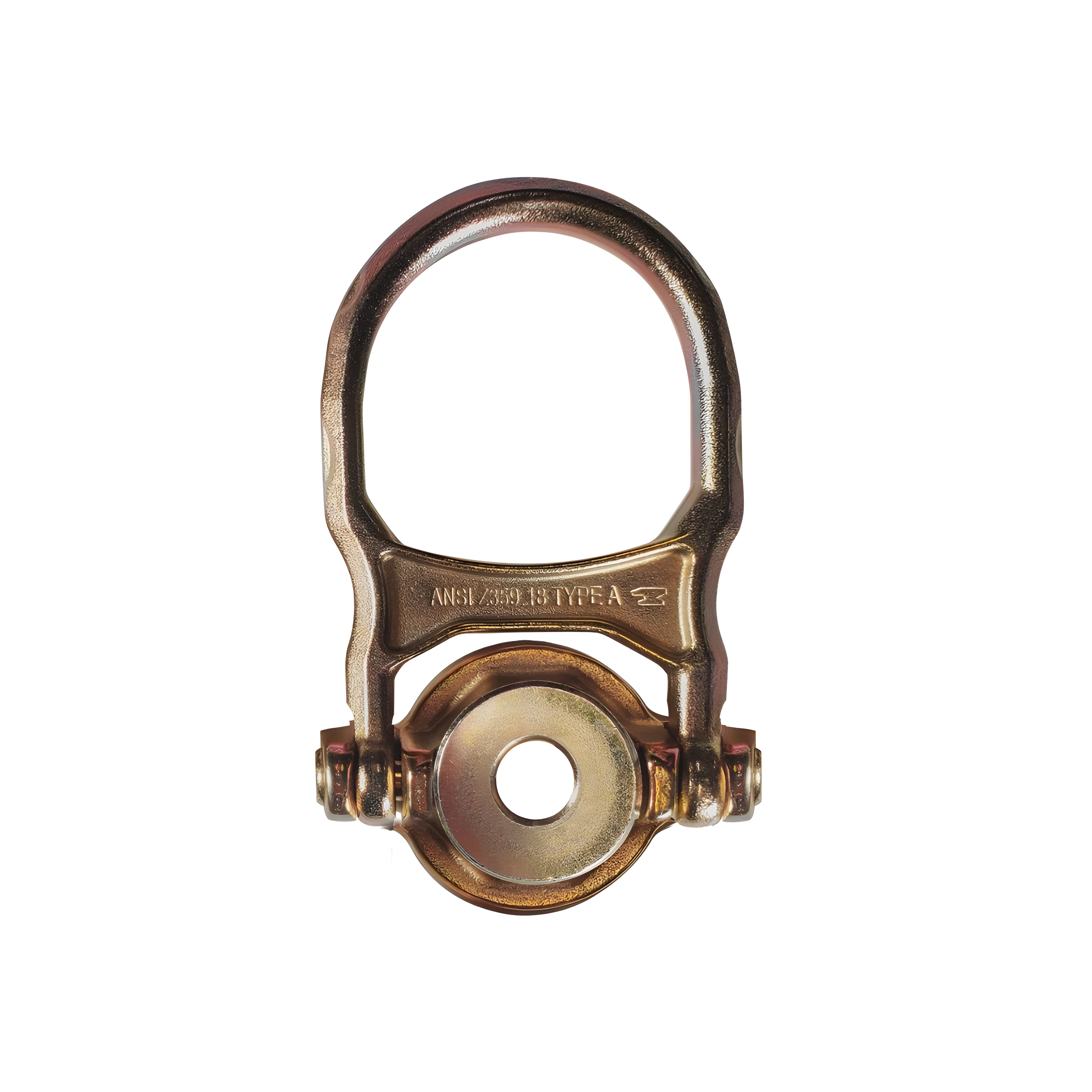

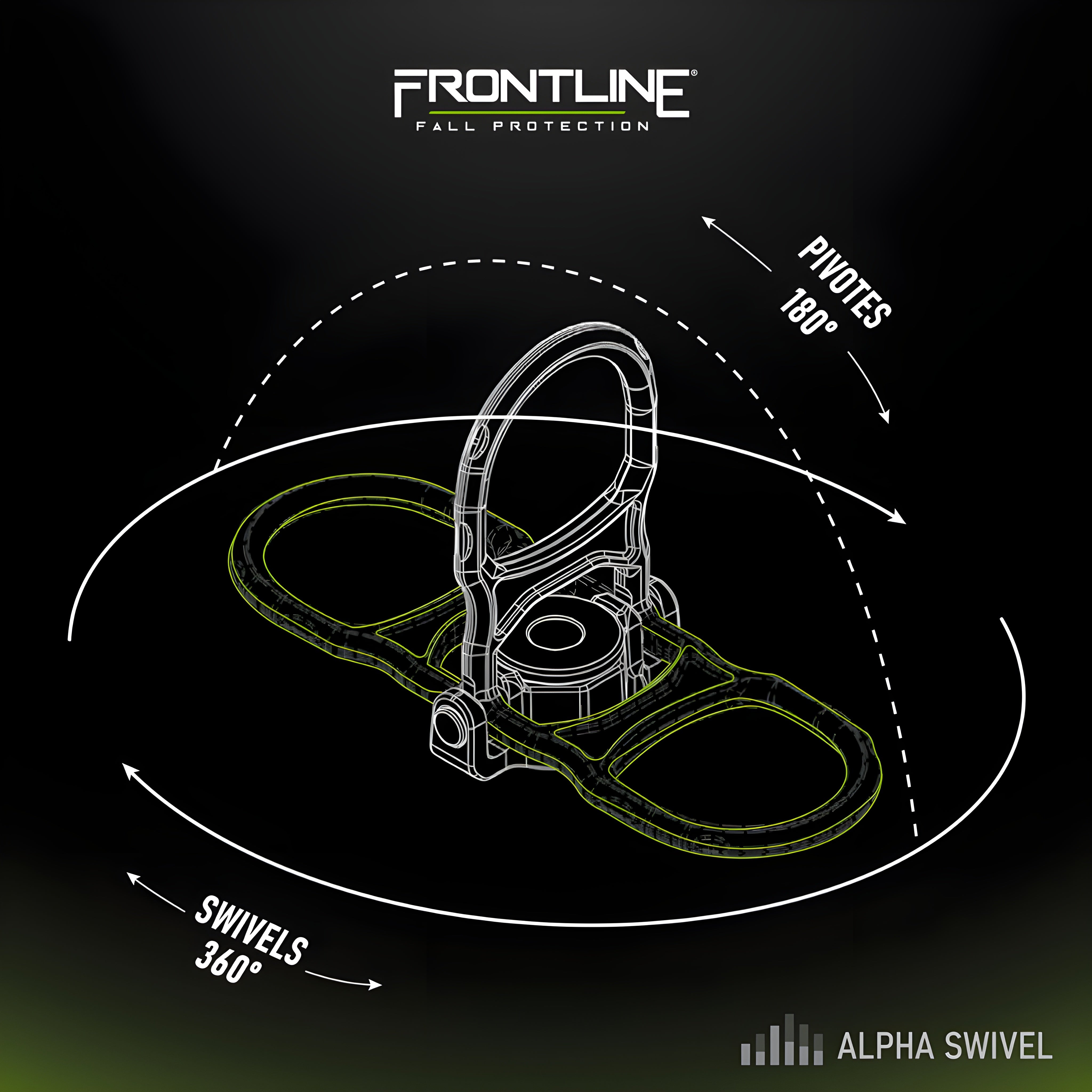

  • 360° rotating D-ring with 180° pivot for enhanced mobility

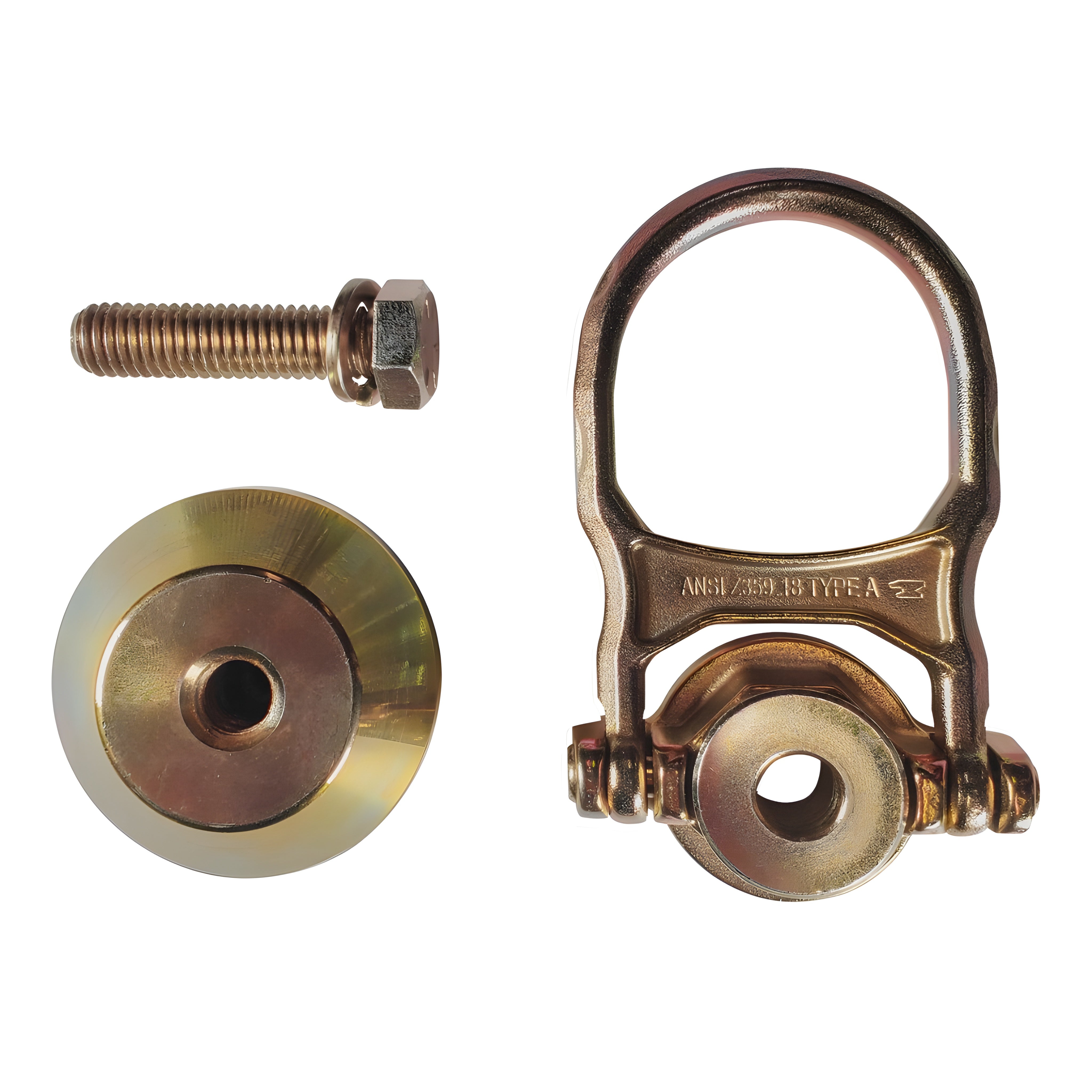

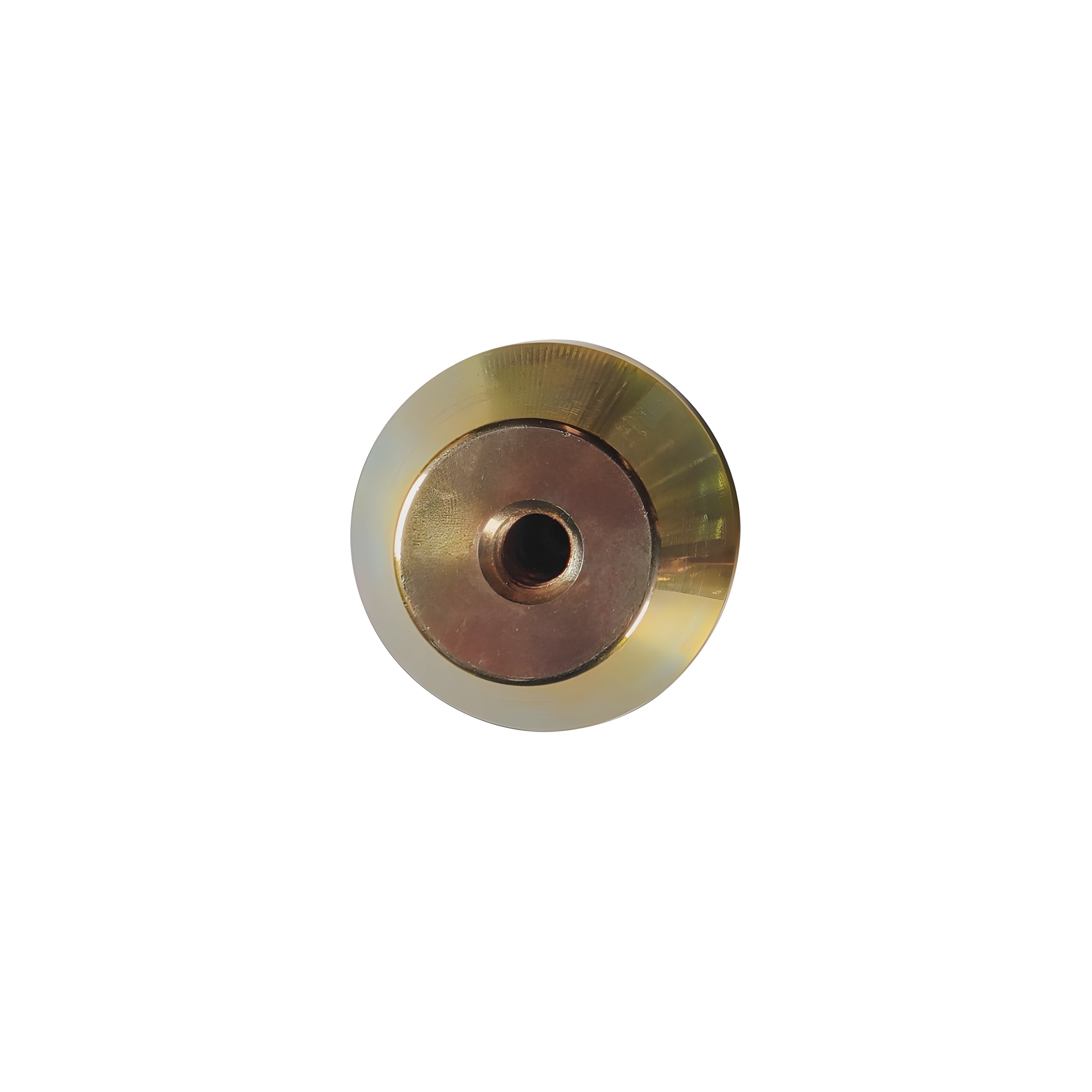

  • Reusable design with replaceable weld-on puck
  • Suitable for vertical, horizontal, or overhead applications
  • Includes bolt for ready-to-use installation

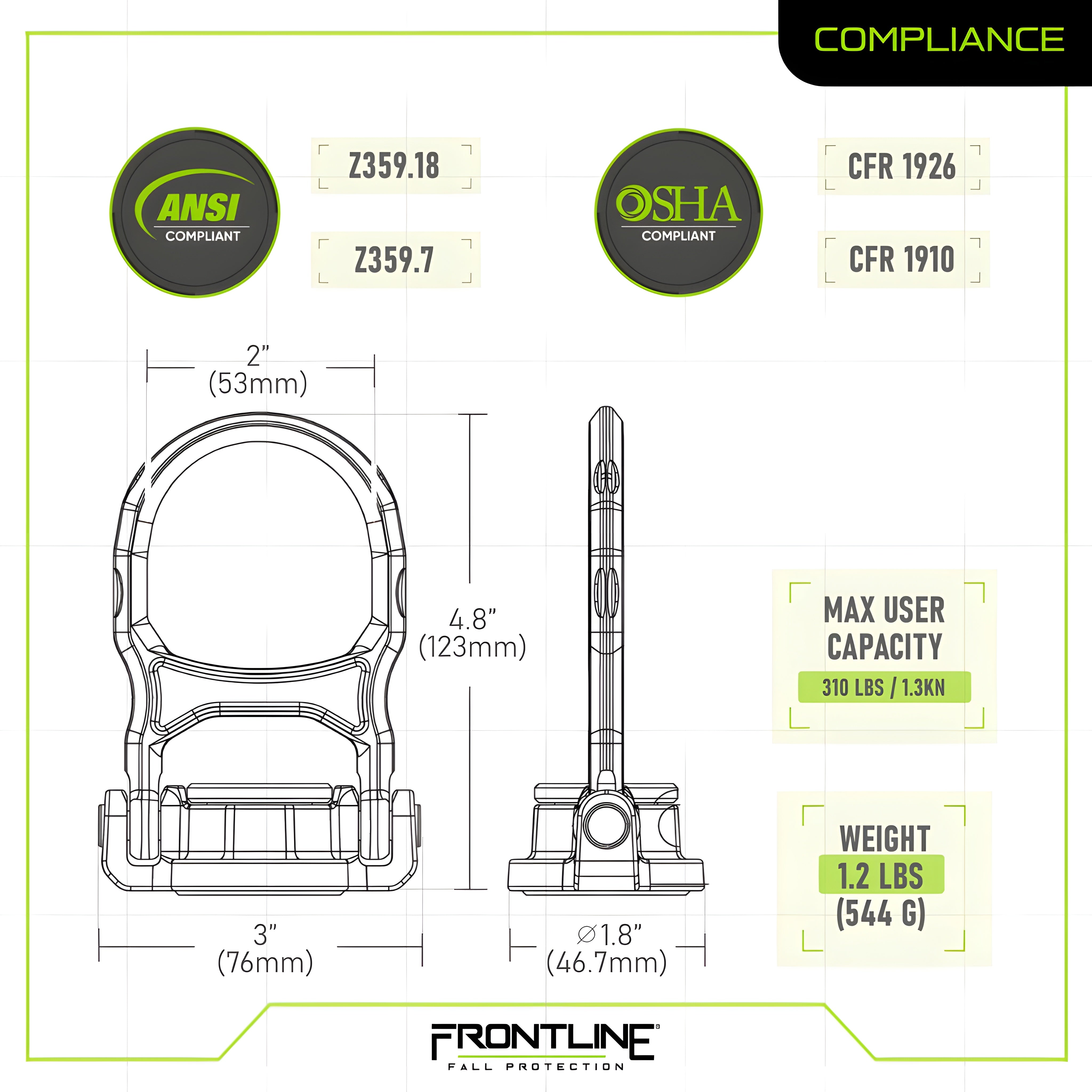

  • Meets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1910, OSHA 1926 standards
