MEGA Swivel 5K Concrete Anchor with 360° Swivel - COM345K - Frontline

SKU: COM345K
$81.99
Estimated Lead Time:1 to 2 Days

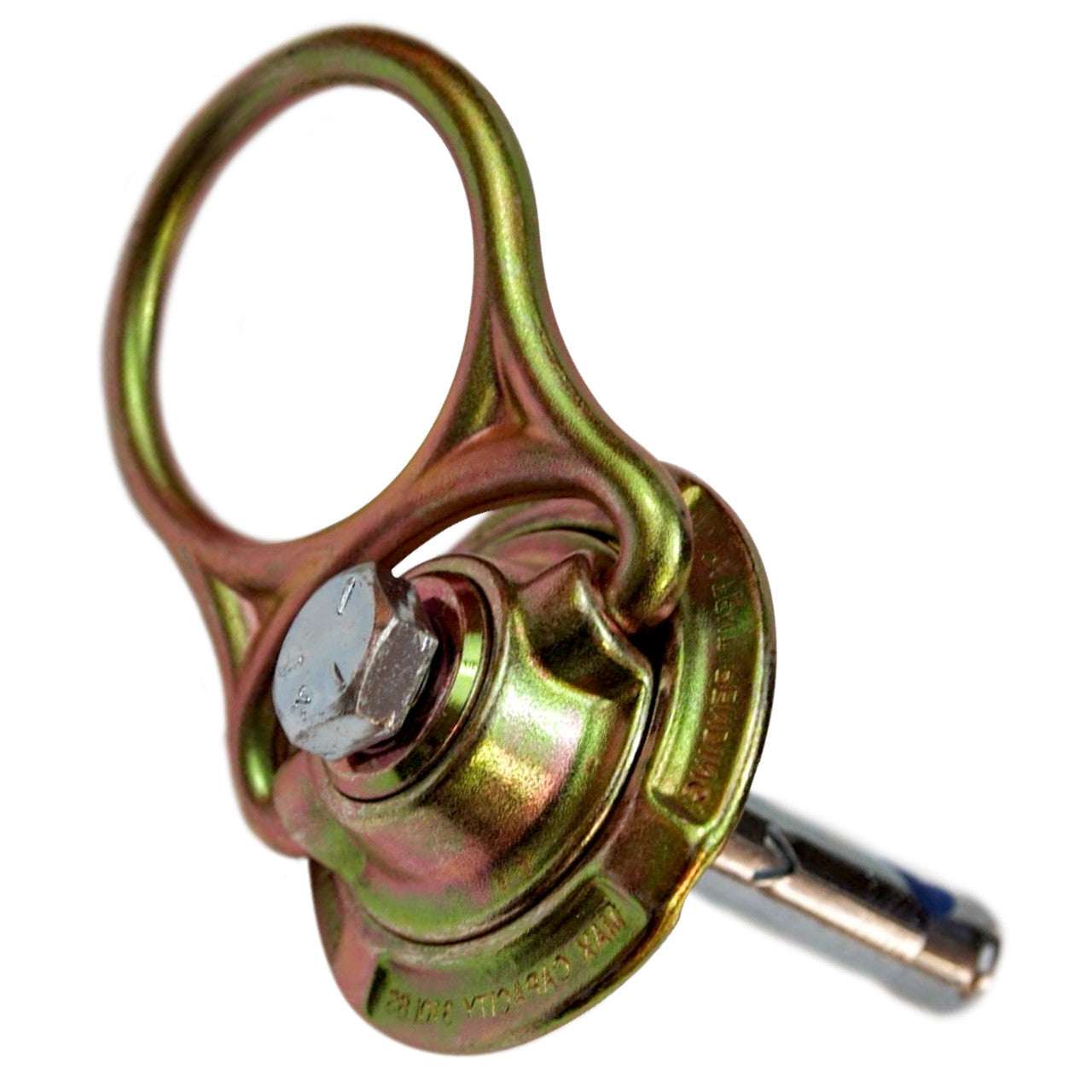

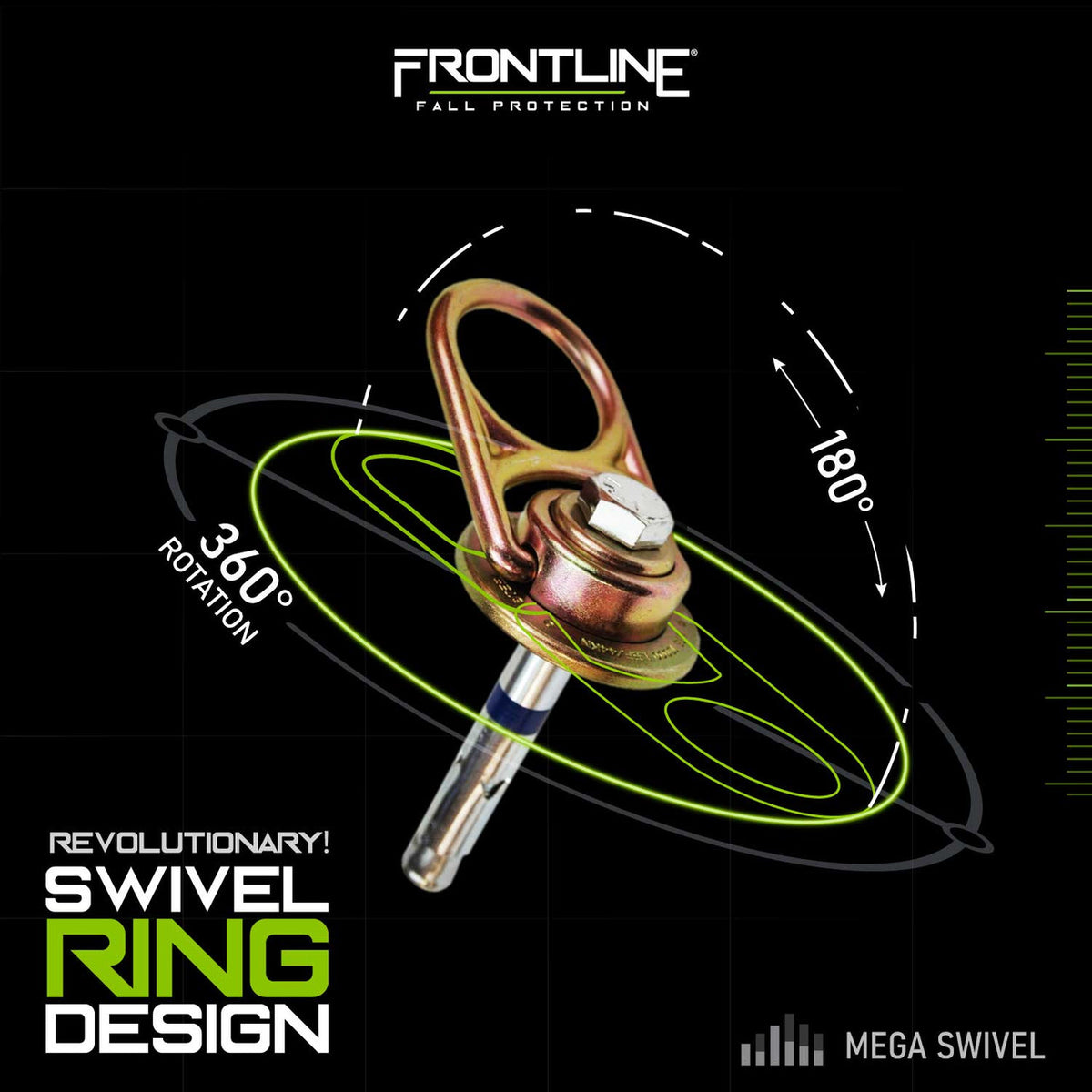

The Frontline COM345K MEGA Swivel Concrete Anchor is a heavy-duty, reusable anchorage solution designed for use in concrete applications. With a 360° rotating and 180° pivoting D-ring, this anchor minimizes side loading and enhances user mobility, making it ideal for fall protection, rescue, hoisting, and tie-back scenarios.

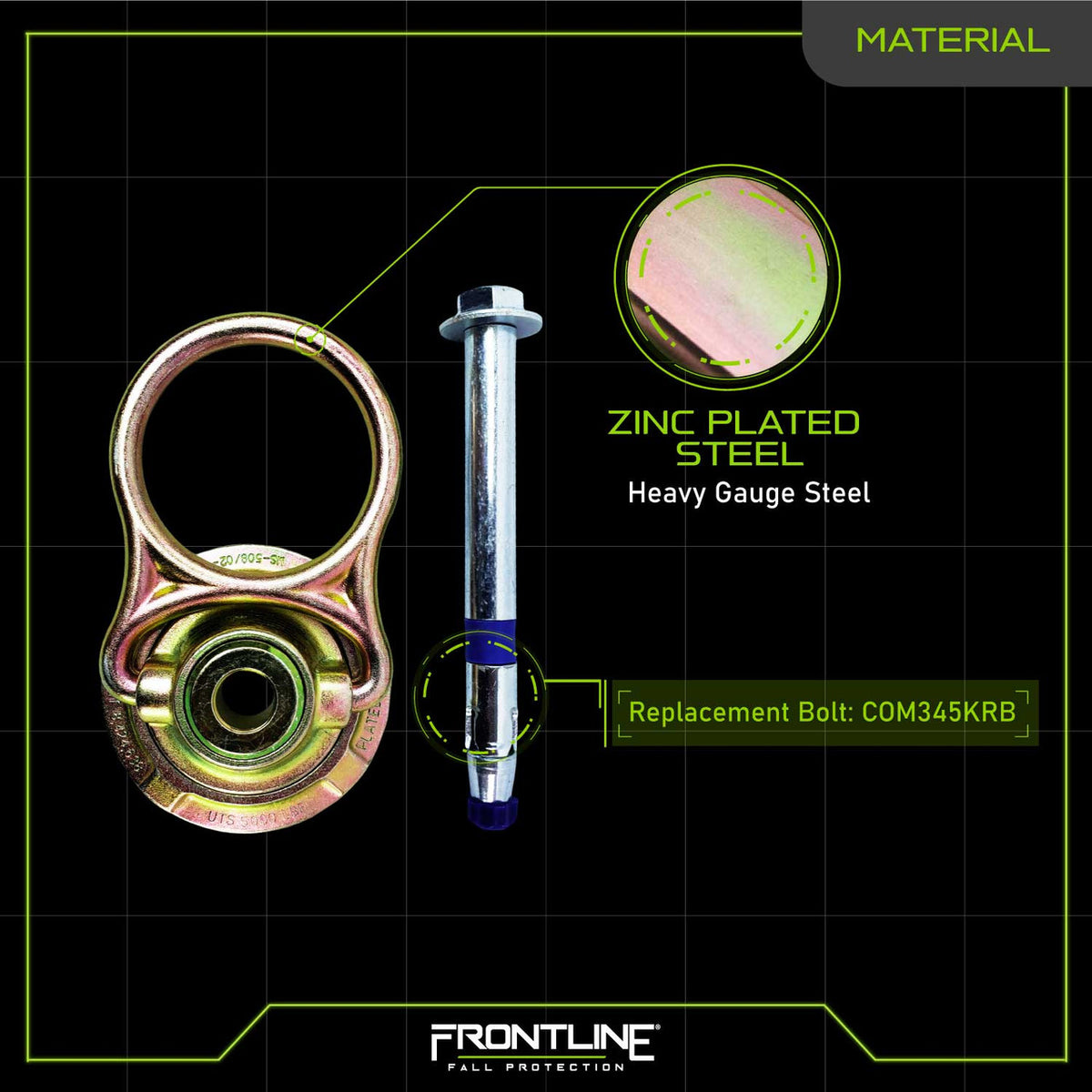

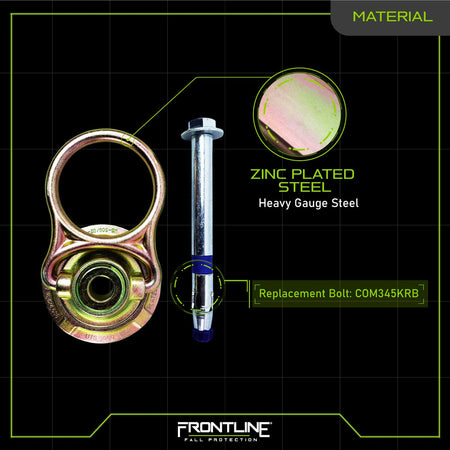

Built from zinc-plated steel, the anchor features a heat-treated alloy construction, reinforced bridge, and locking caps for superior strength and durability. Its patent-pending key-lock design secures the D-ring within the swivel housing, preventing distortion under heavy loads. The included bolt makes it jobsite-ready out of the bag, and a replacement bolt (COM345KRB) is available for reuse at new locations.

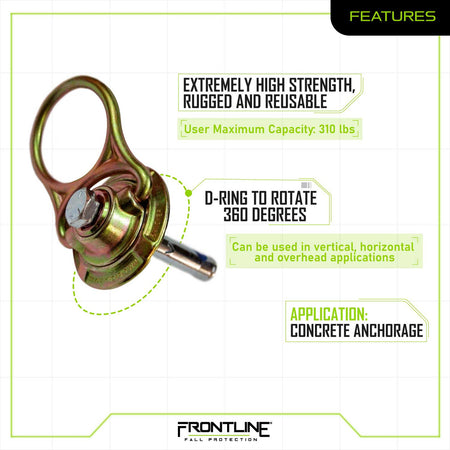

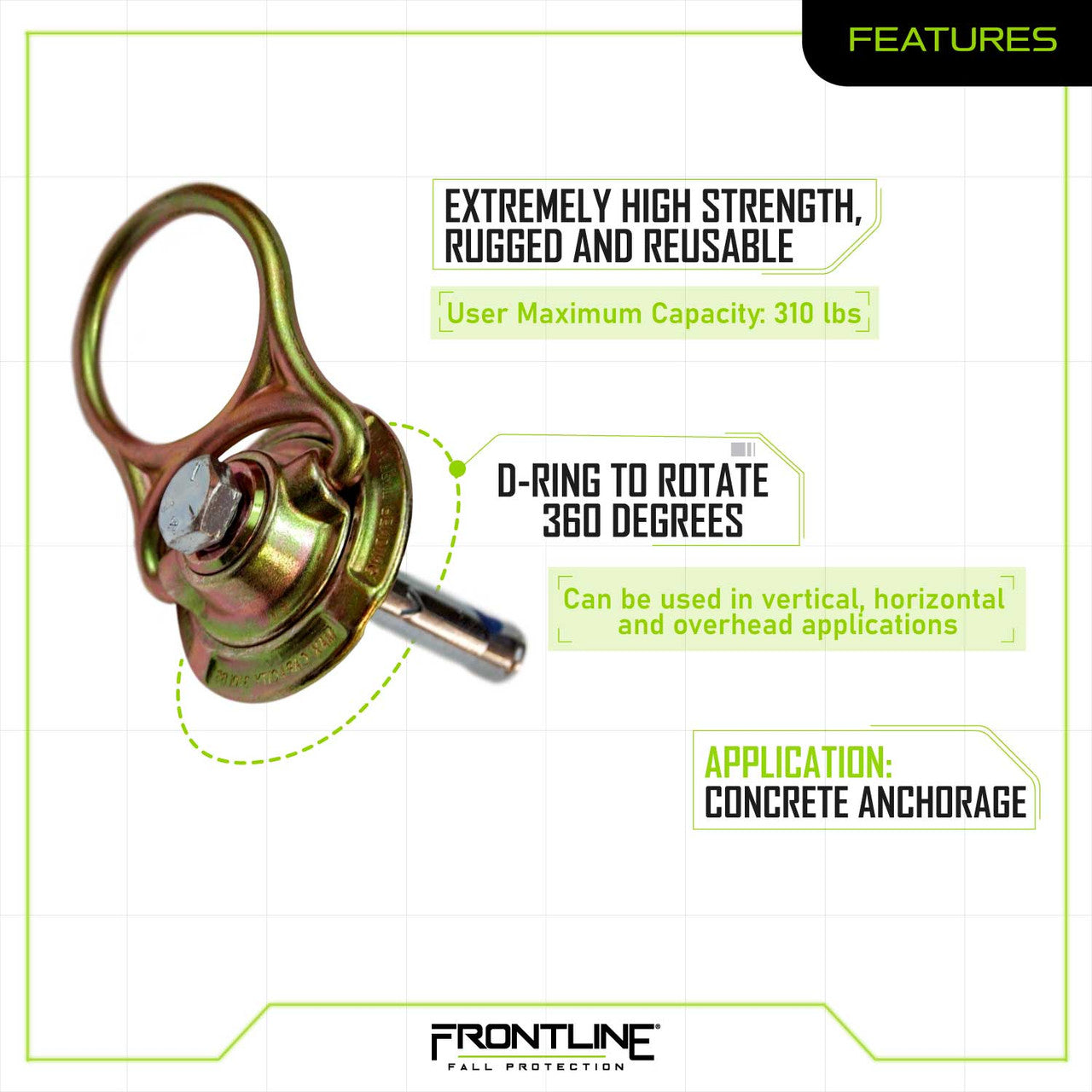

  • Zinc-plated concrete anchor with 360° rotation and 180° pivot
  • Heat-treated alloy steel with reinforced bridge and locking caps
  • Key-lock D-ring secures position during heavy loads
  • Suitable for fall arrest, rescue, hoisting, and tie-back

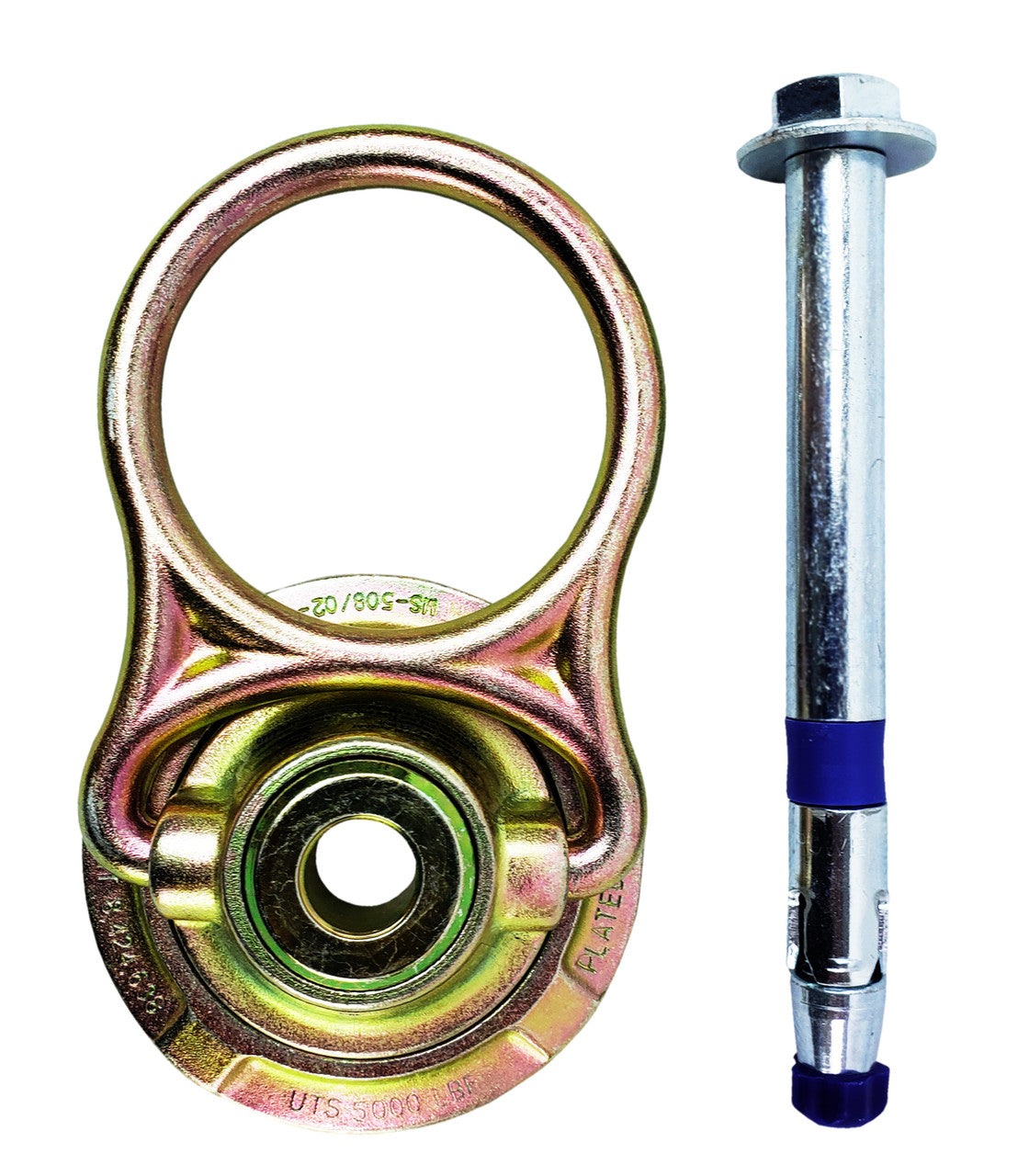

  • Reusable design with replaceable bolt (COM345KRB)
  • Supports permanent or temporary installations

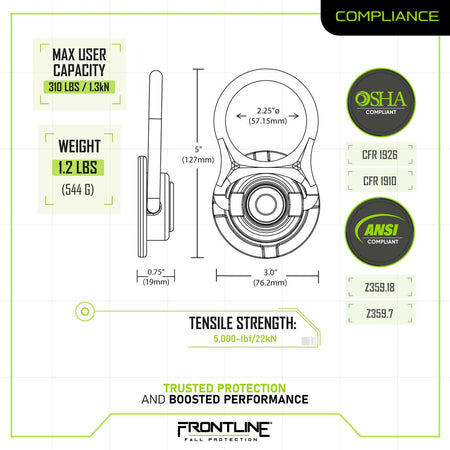

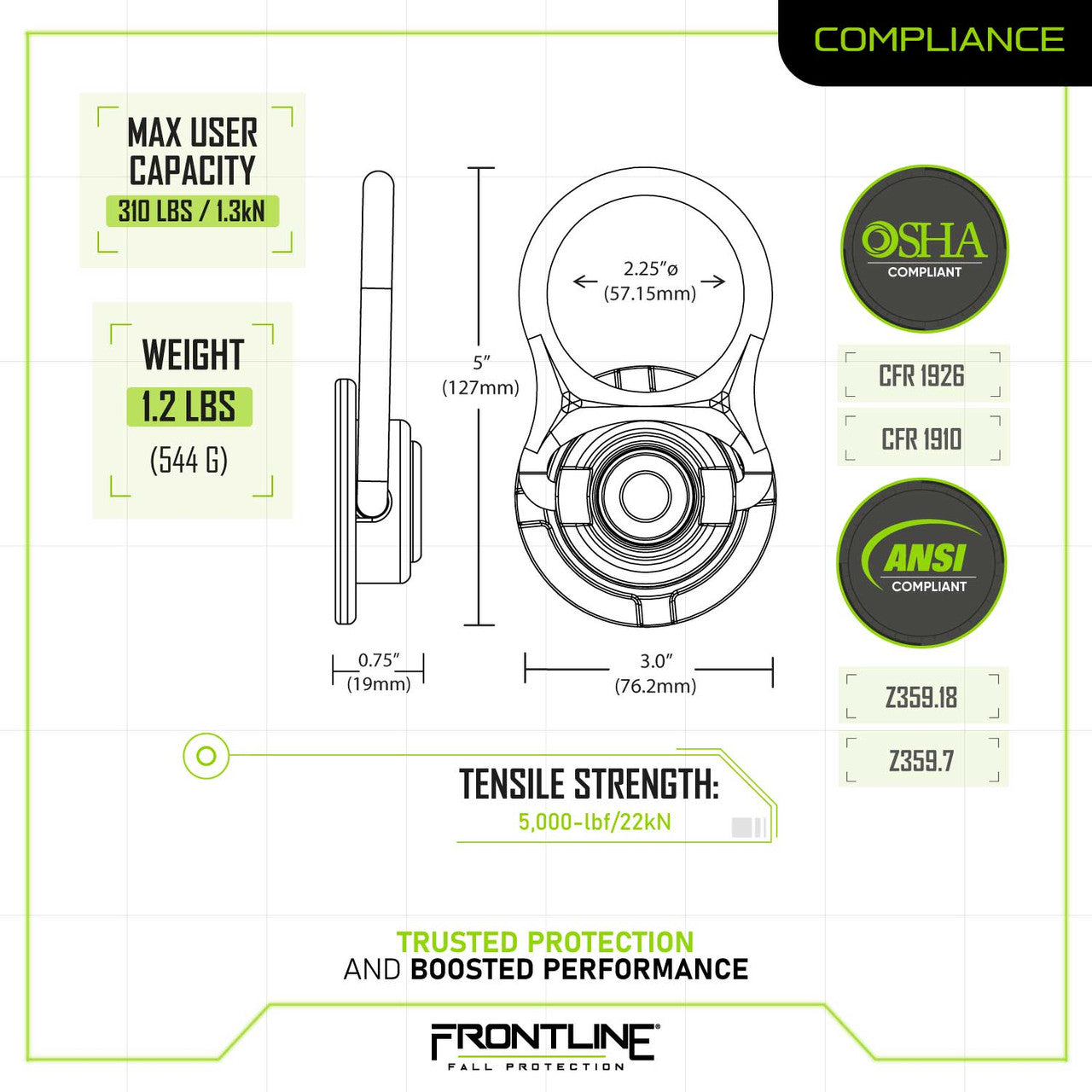

  • Static tensile strength: 5,000 lbf / 22 kN
  • User capacity: 310 lbs
  • Product weight: 1.2 lbs
  • Application: Vertical, horizontal, or overhead concrete anchorage
  • Meets ANSI Z359.18, ANSI Z359.7
  • Complies with OSHA 1910.140 and OSHA 1926.503
  • Certified to EN 795:2012
