5 ton Push Trolley - Spark Resistant - OZ Lifting

SKU: OZSR5PBT
$2,625.65
Estimated Lead Time:3 to 5 Days

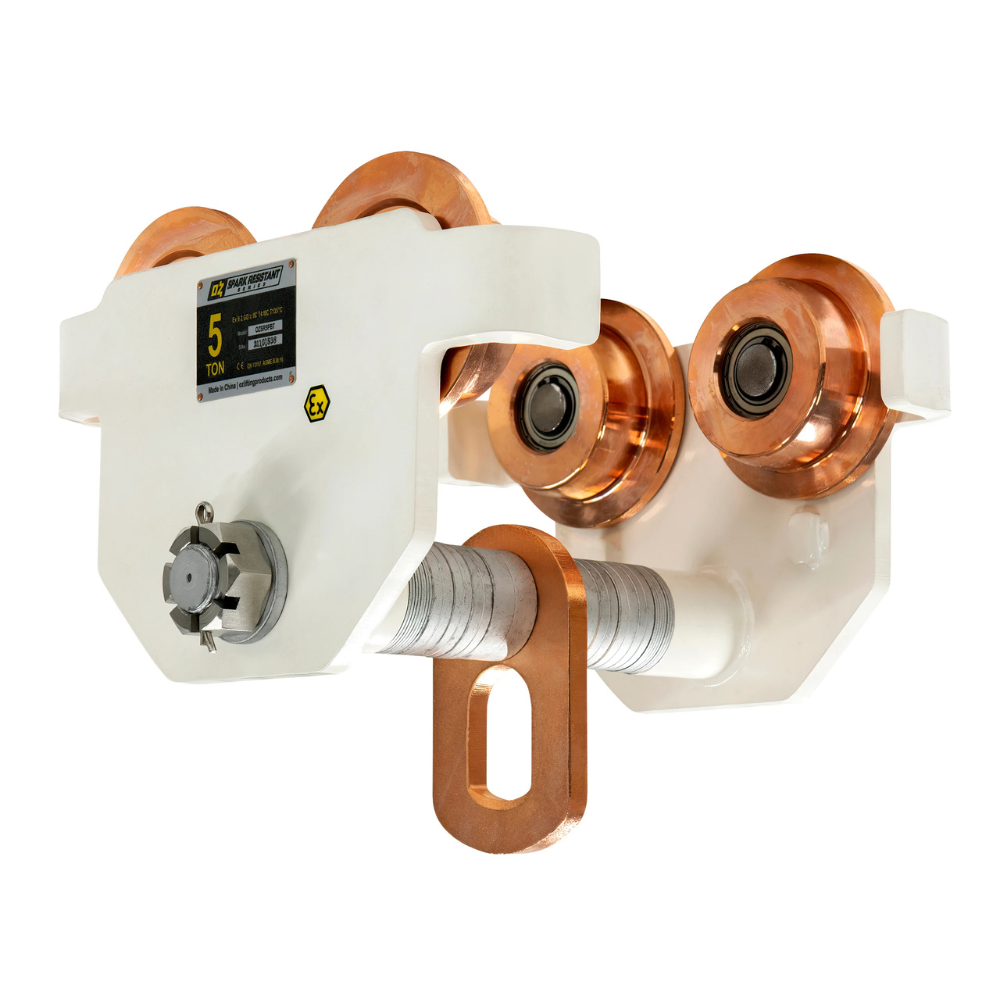

The Spark Resistant Push Beam Trolley (5T) is designed for heavy-duty applications in explosive environments. Complying with the EU’s explosion-proof standard ATEX94/9/EC and the Machinery Directive 2006/42/EC, this trolley achieves an explosion-proof rating of EX II2 GD c IIIC T135°C. With a robust 5-ton capacity, it is suited for Zone 1 & 2 (gas) and Zone 21 & 22 (dust) hazardous zones. Its durable construction ensures safe and efficient material handling in high-risk industrial areas.
  • Capacity: 10000 lbs.
  • Flange Widths up to 12"
  • 7.72" Headroom
  • 4.52' Min. Beam Radius
  • Anti-spark coating
  • Copper-plated wheels and bail
  • Copper-riveted ID tags
  • Fits to most I-, S-, and W-Beams
  • Precision ball bearing trolley wheels
  • Anti-drop plate ensures safe load handling
  • Individual serial number and test certificate

Data Sheet (pdf)
