Pipe Pick – 5 ton - Model CPP – Caldwell

SKU: CPP-5
$1,365.00
Estimated Lead Time:

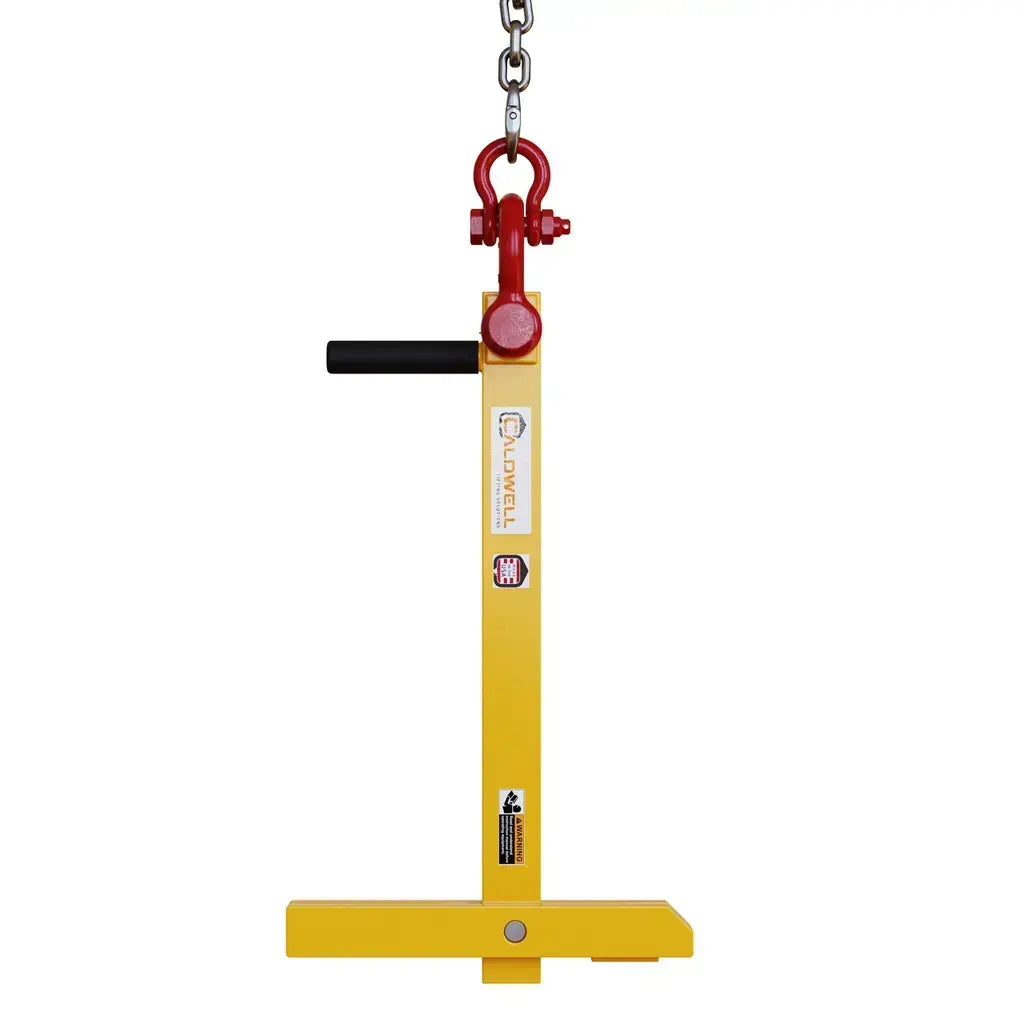

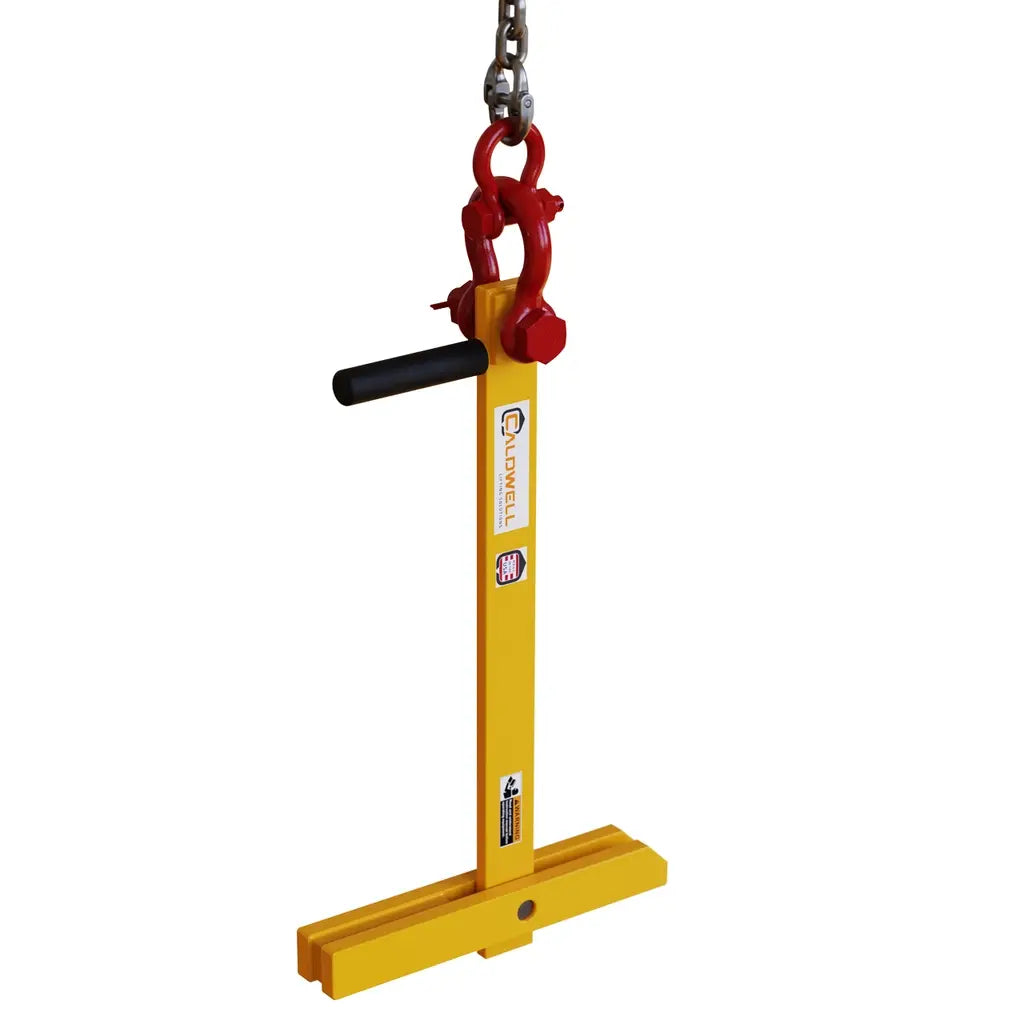

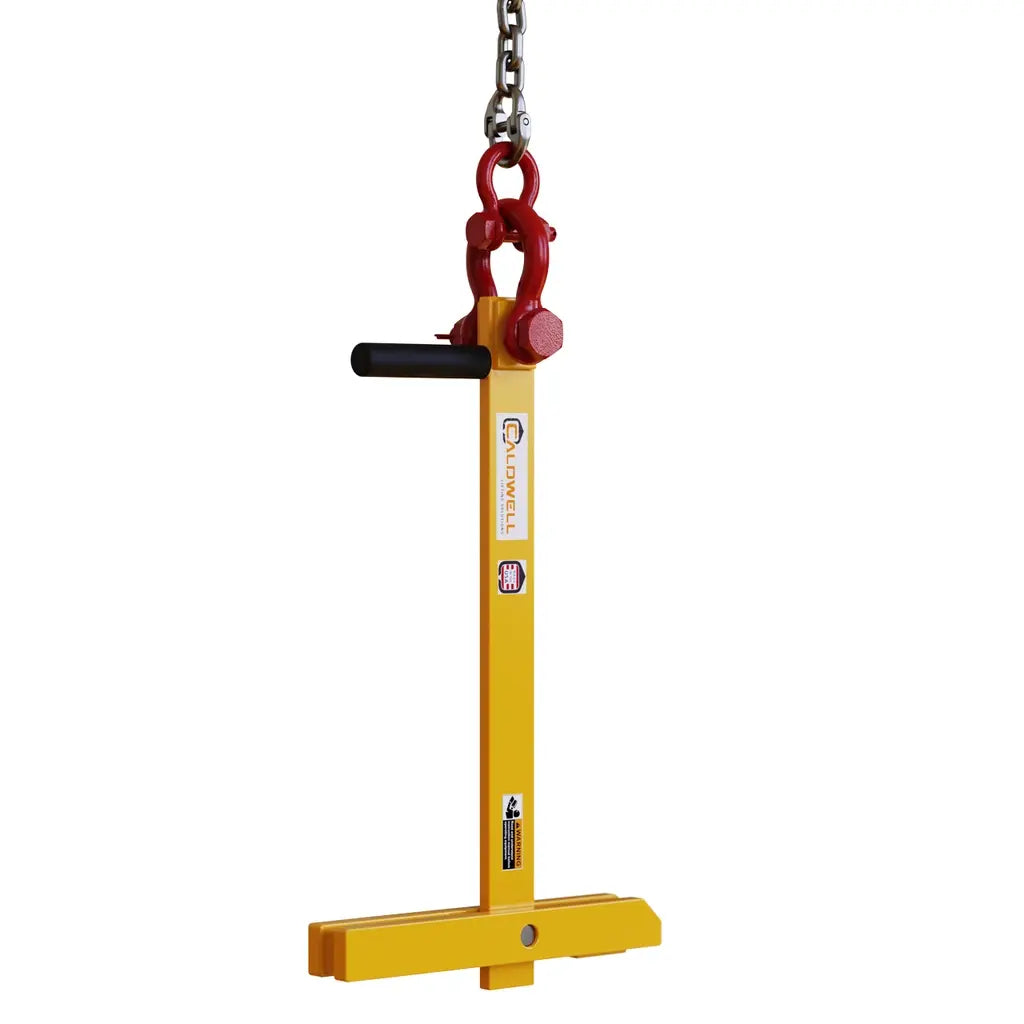

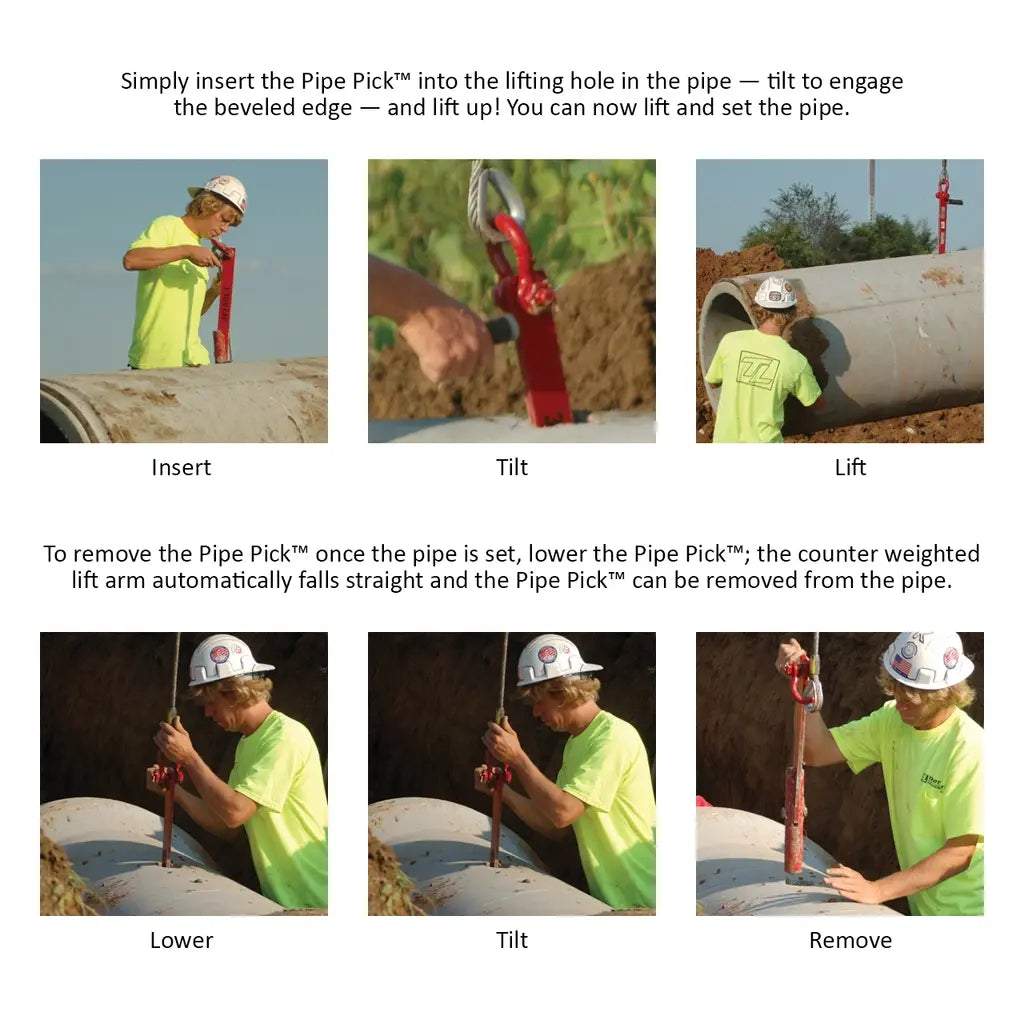

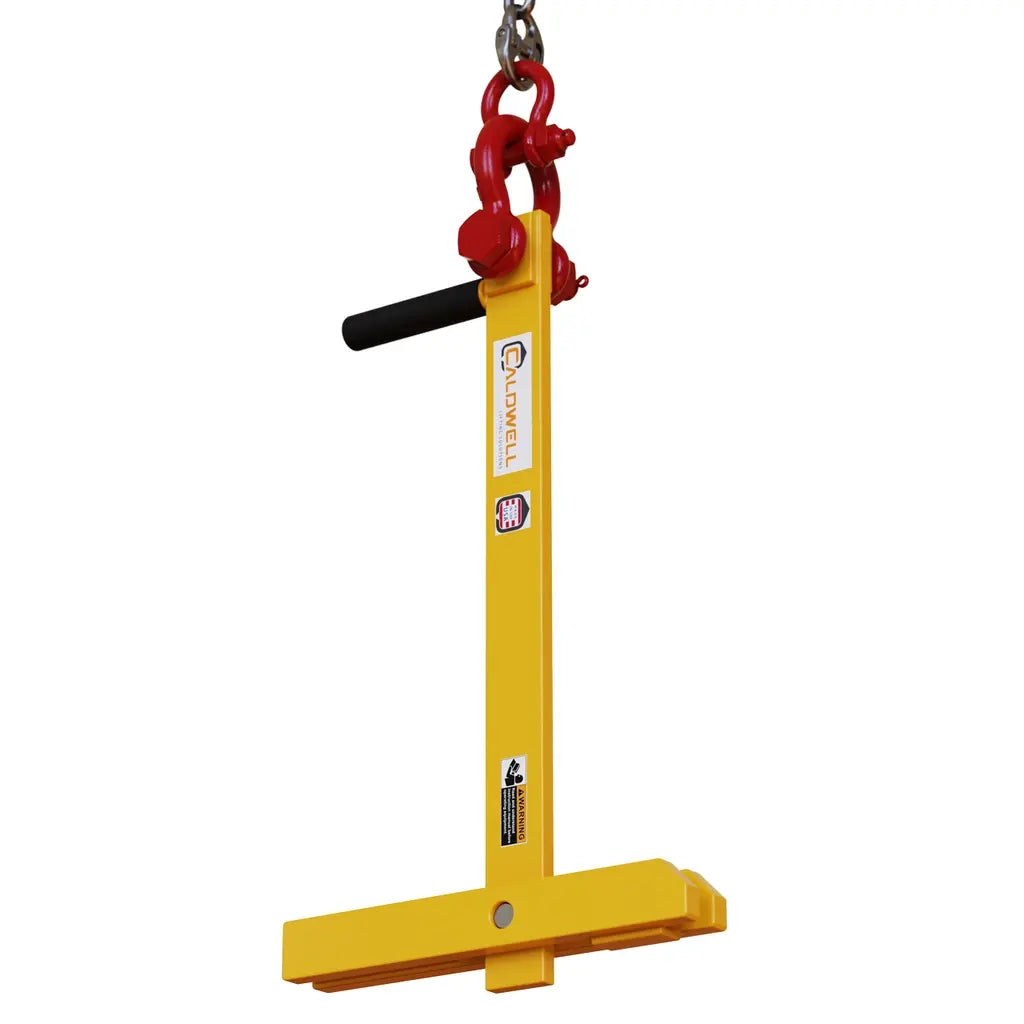

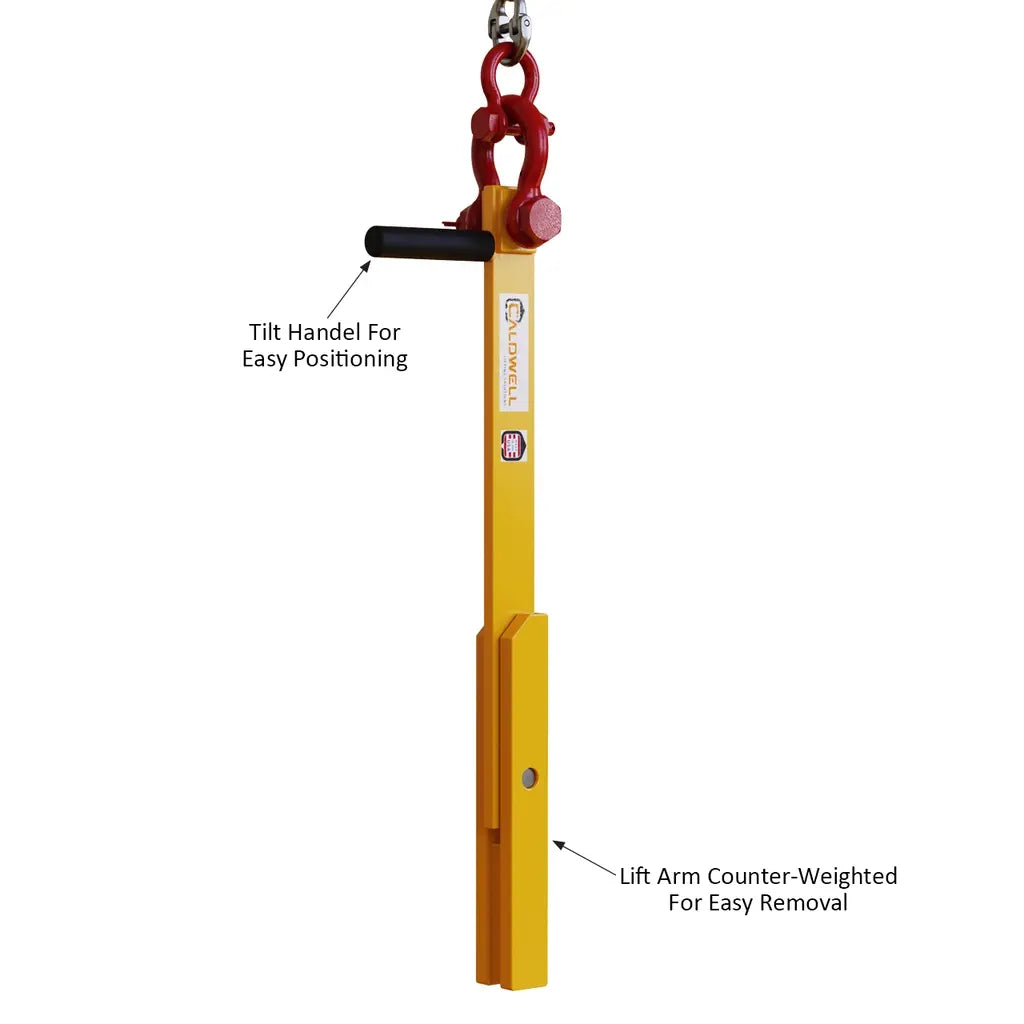

The Caldwell Model CPP Pipe Pick™ is a patented lifting device designed to handle precast concrete pipe quickly, safely, and efficiently. By keeping workers above the pipe at all times, the CPP eliminates the need to reach inside the load, reducing risk while improving productivity on the job site. Built for vertical lifting applications, the Model CPP-5 delivers rugged performance in a lightweight, easy-to-use design. Its simple operation makes it a clean, effective tool for safe and reliable pipe handling. Need a custom configuration? Call us to build a pipe pick tailored to your exact lifting needs.

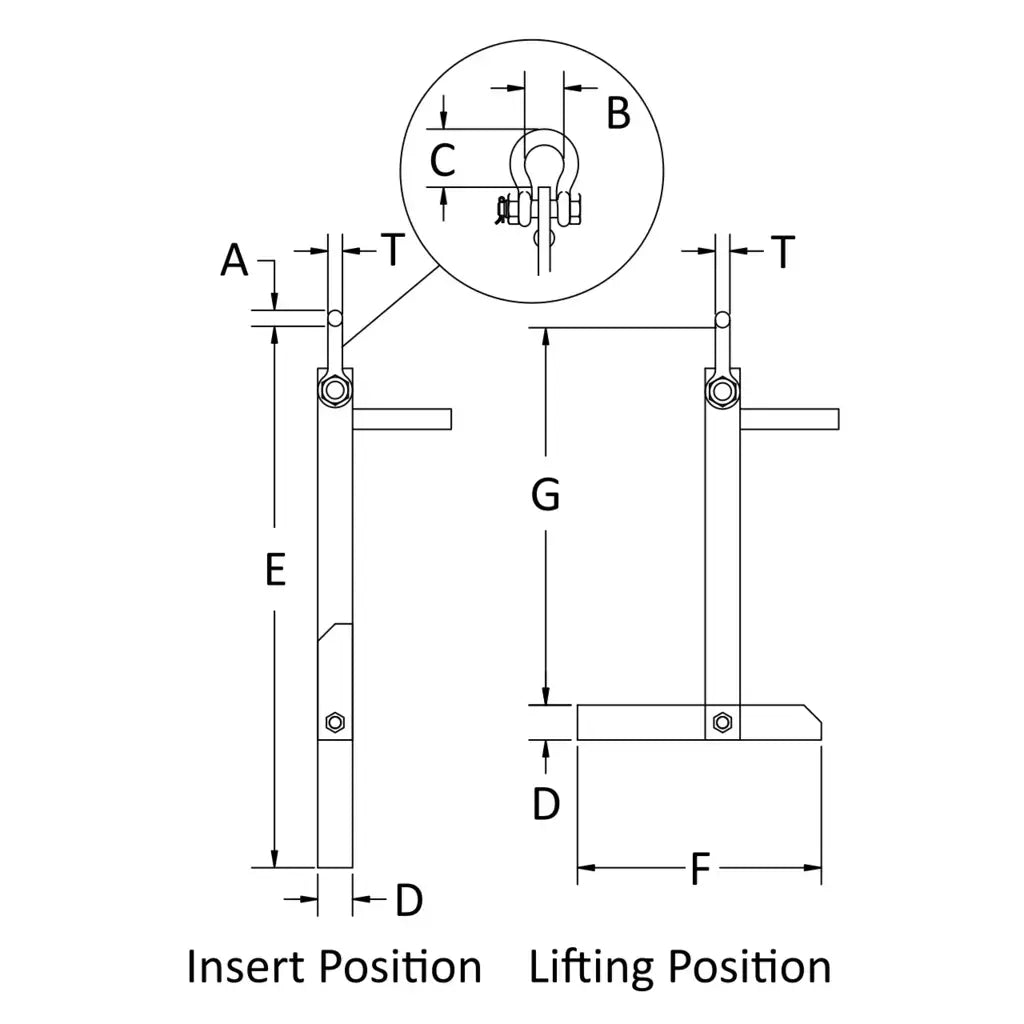

  • Model Number: CPP-5
  • Capacity: 5 tons
  • Lift Arm Height: 2.25 in
  • Lift Arm Length: 13 in
  • Min Hole Diameter: 3.25 in
  • Weight: 38 lbs
  • Shackle Size: 1 in
  • Min Pipe Inner Diameter: 16 in
  • Overall Height: 43.5 in
  • Shackle Opening Height: 3 in
  • Shackle Opening Width: 2.75 in
  • Headroom to Top of Load: 36 in
  • Shackle Thickness: 1 in

Spec Sheet (PDF)
