Adjustable Spreader Beam – 8' to 14' Spread – 5 Ton - Model 32 – Caldwell

SKU: 34-3223
$2,712.00
Estimated Lead Time:

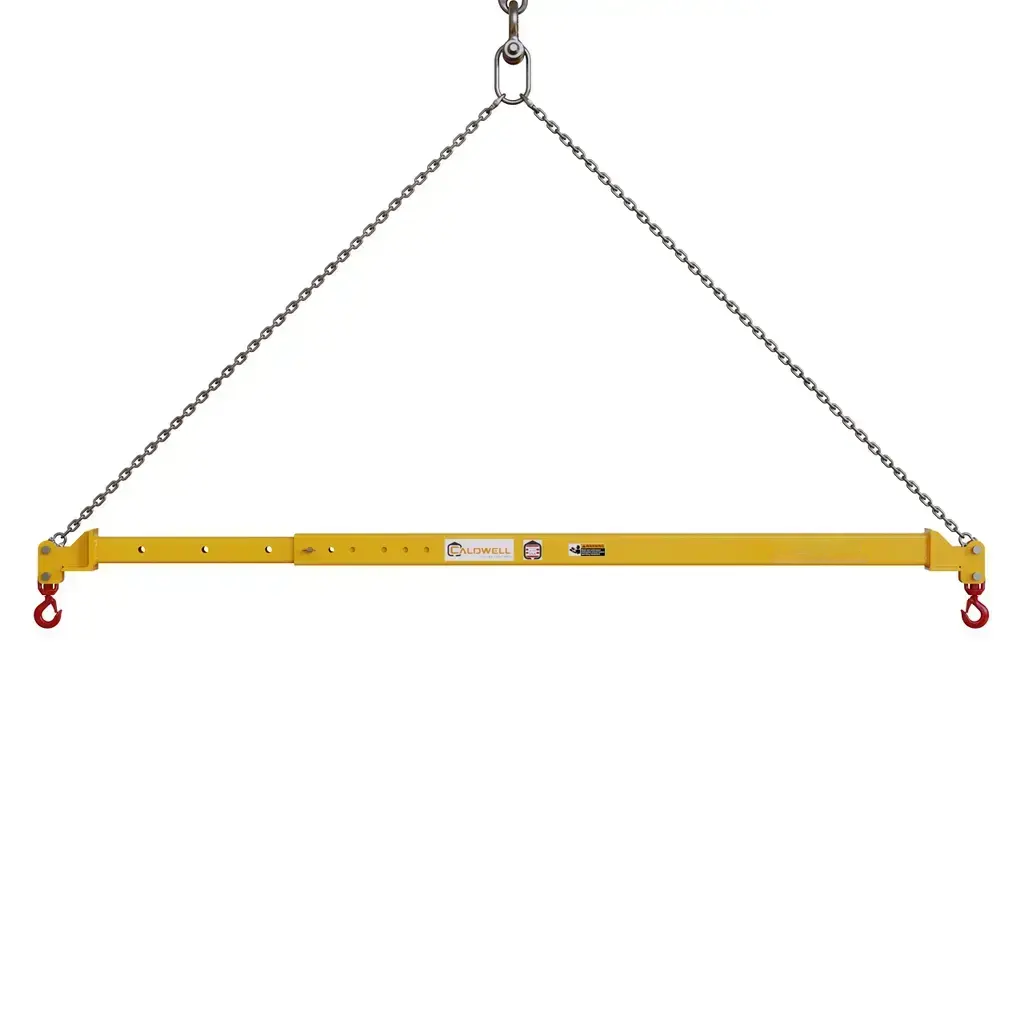

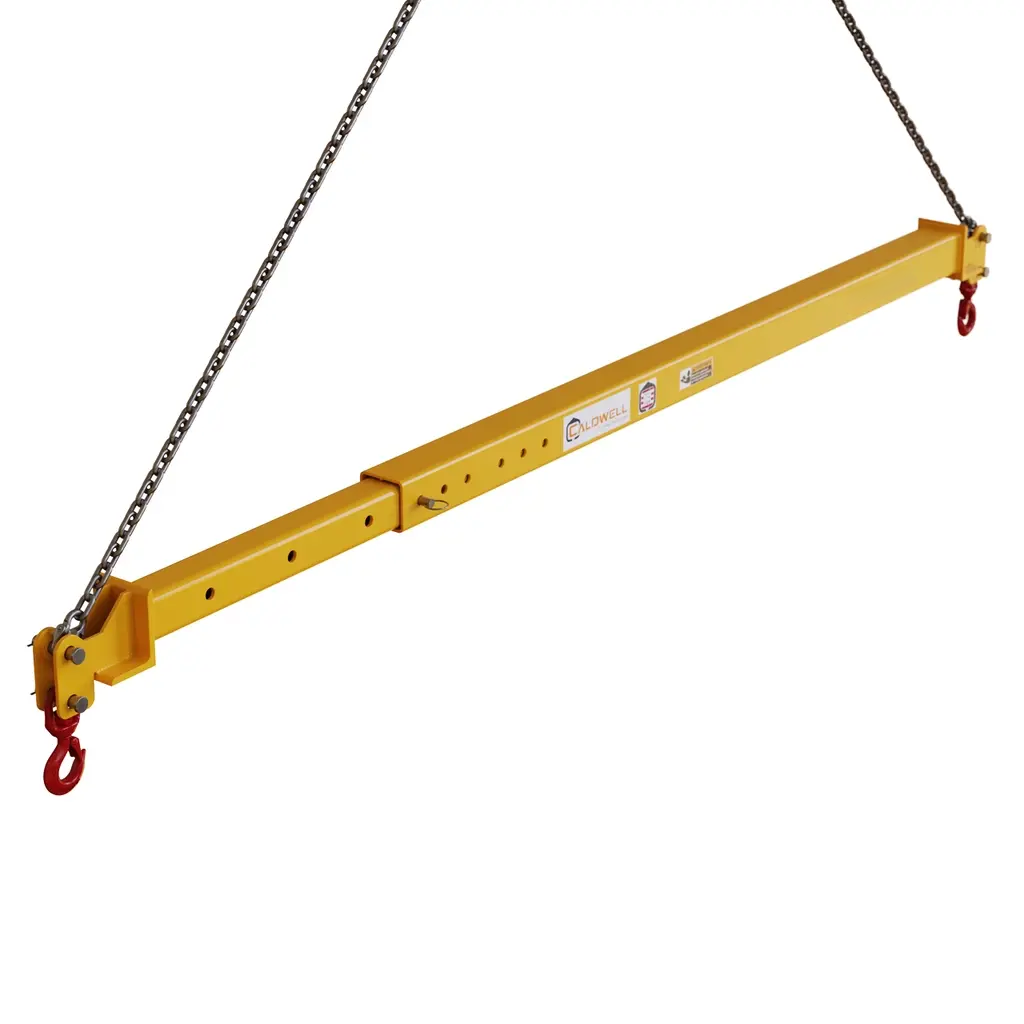

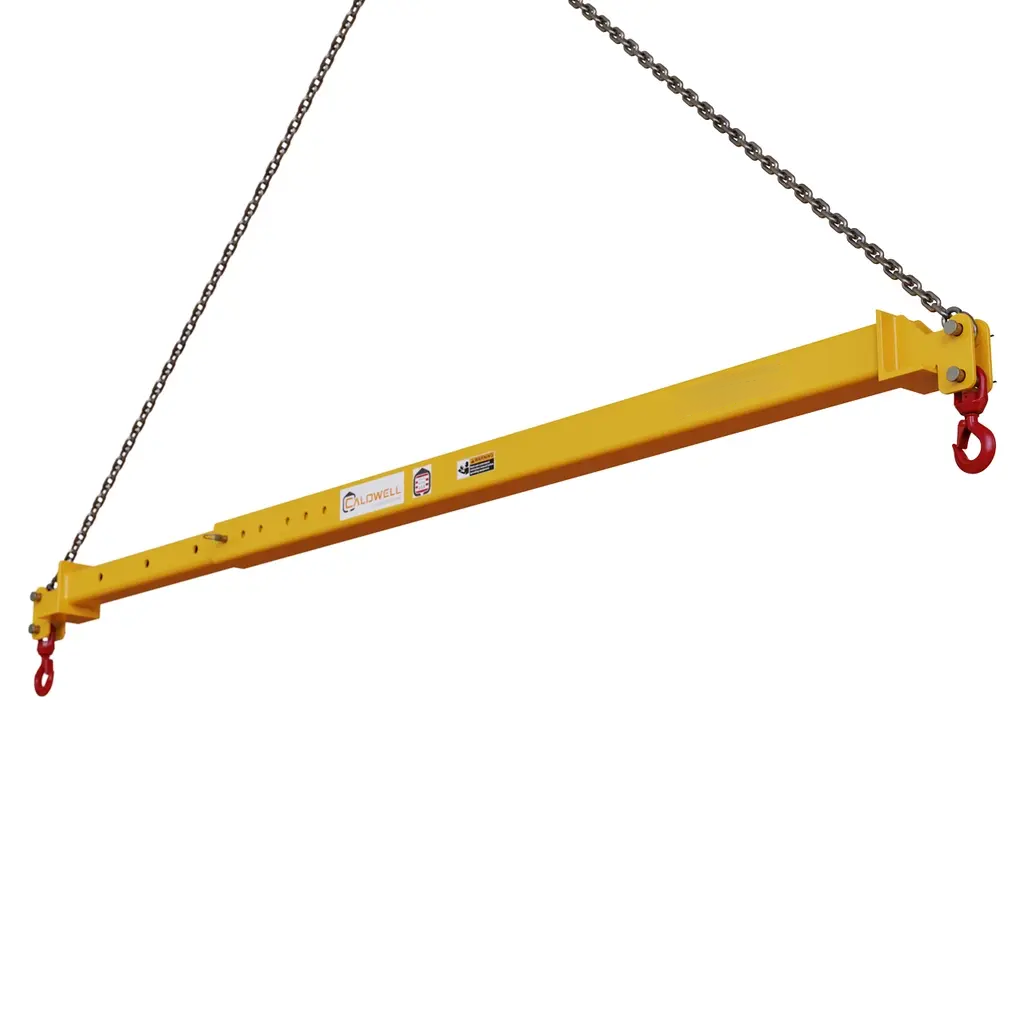

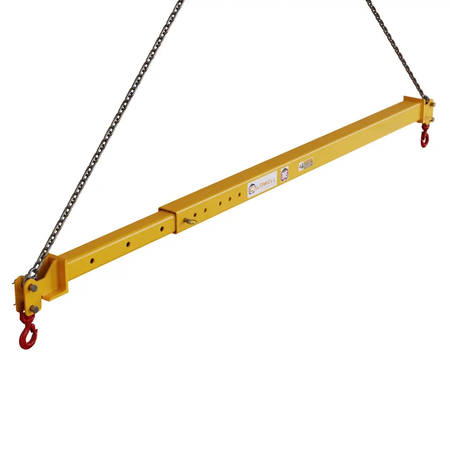

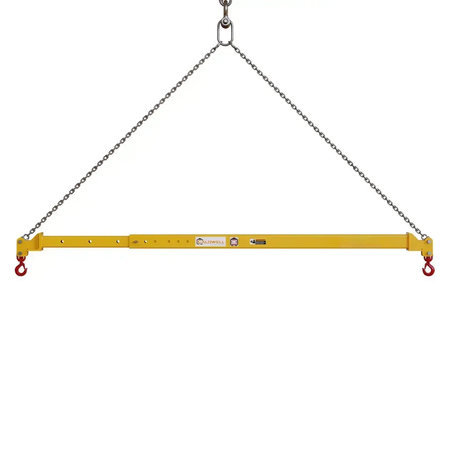

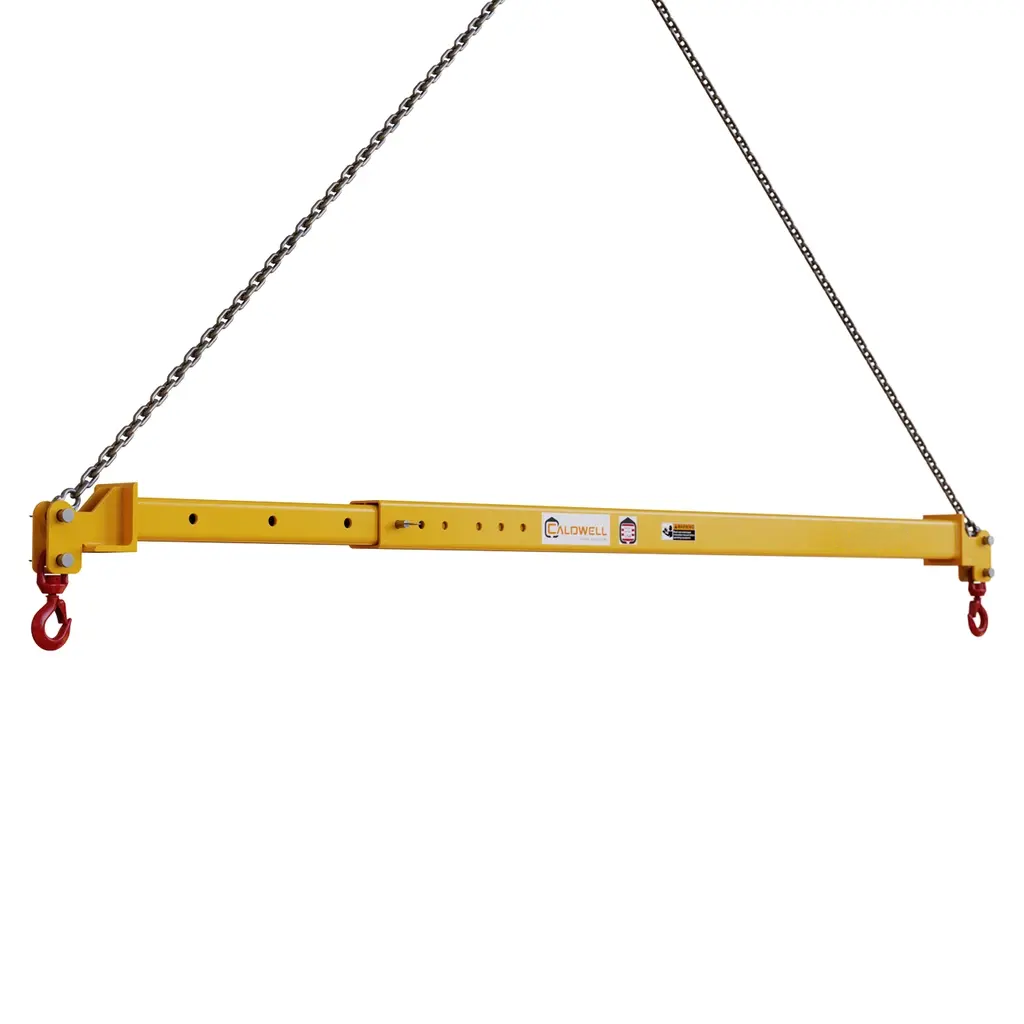

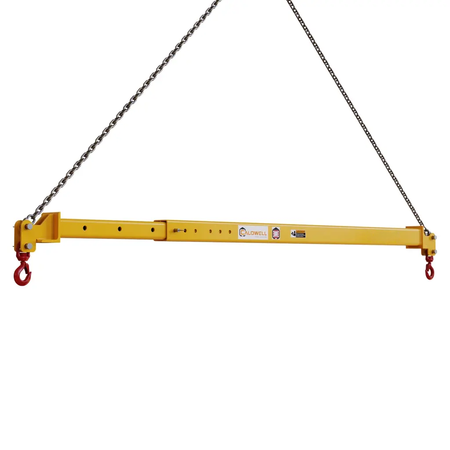

The Caldwell Model 32 Adjustable Spreader Beam with swivel hooks is designed for applications where headroom is not limited and added stability is required.

*Available with Chain or Wire Rope Rigging Upon Request*

Made in the USA

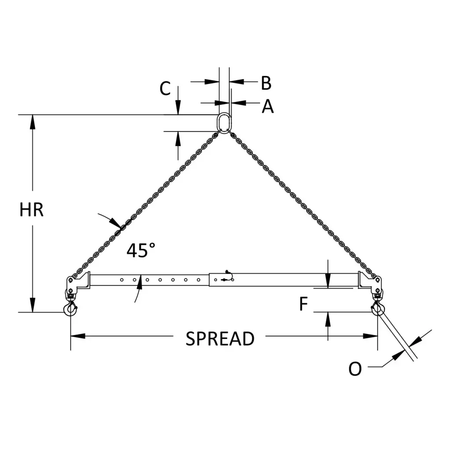

  • 10000 lbs Capacity

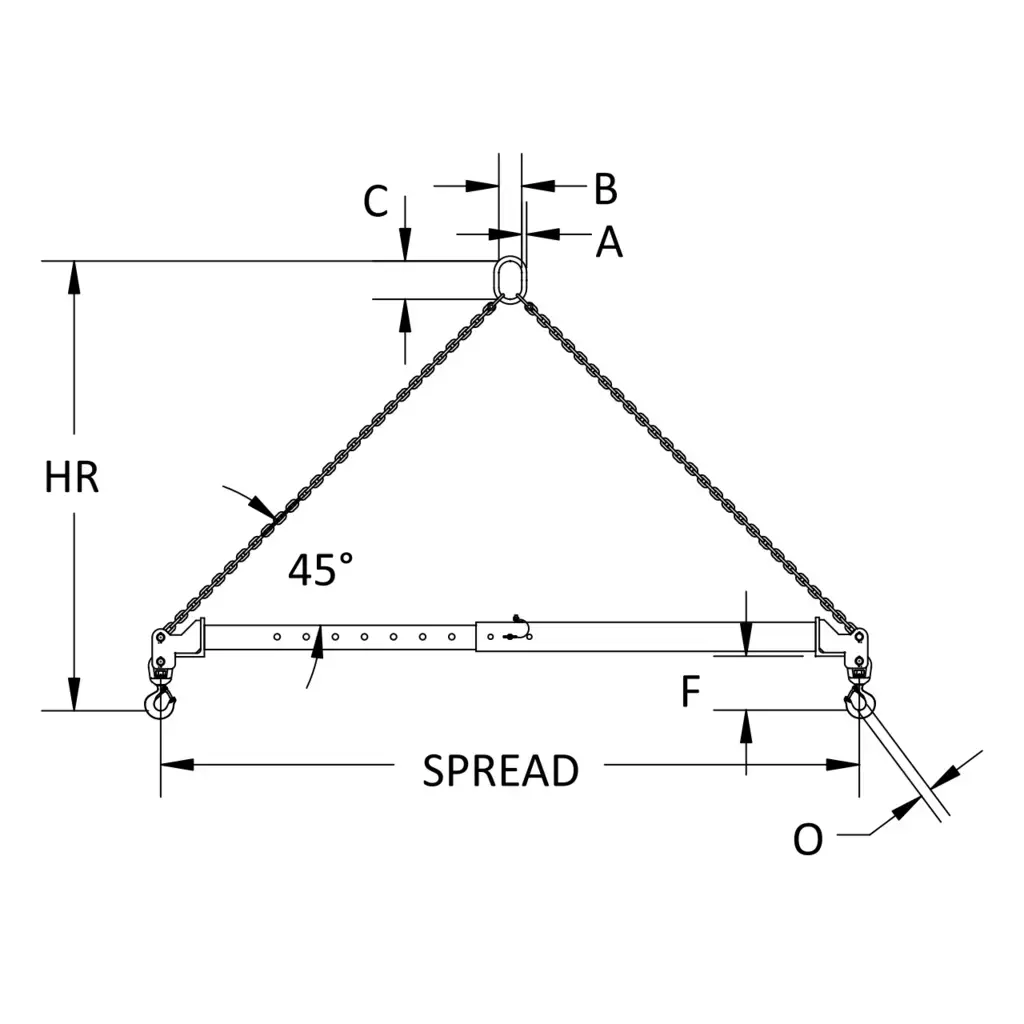

  • Bail Oblong Diameter: 1 in
  • Bail Opening Width: 5.38 in
  • Bail Opening Height: 7.09 in
  • Headroom Max: 126 in
  • Headroom Min: 102 in
  • Hook Clearance: 8.4 in
  • Hook Opening With Latch: 1.41 in
  • Max Spread: 14 ft
  • Min Spread: 8 ft
  • Complies with ASME standards

Spec Sheet (PDF)
