5' Bolt-On Ladder Stanchion Anchor with Adjustable Offset - 6160500 - FallTech

SKU: 6160500
$515.99
Estimated Lead Time:1 to 2 Days

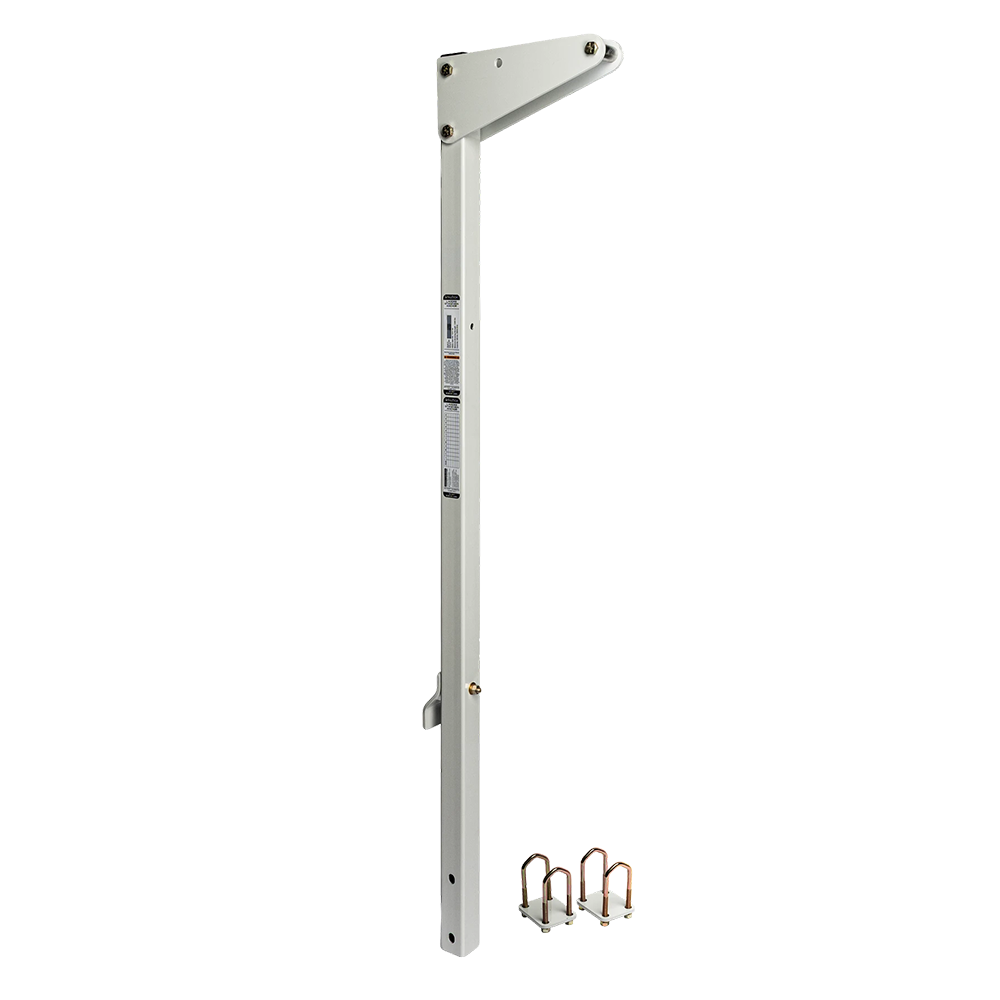

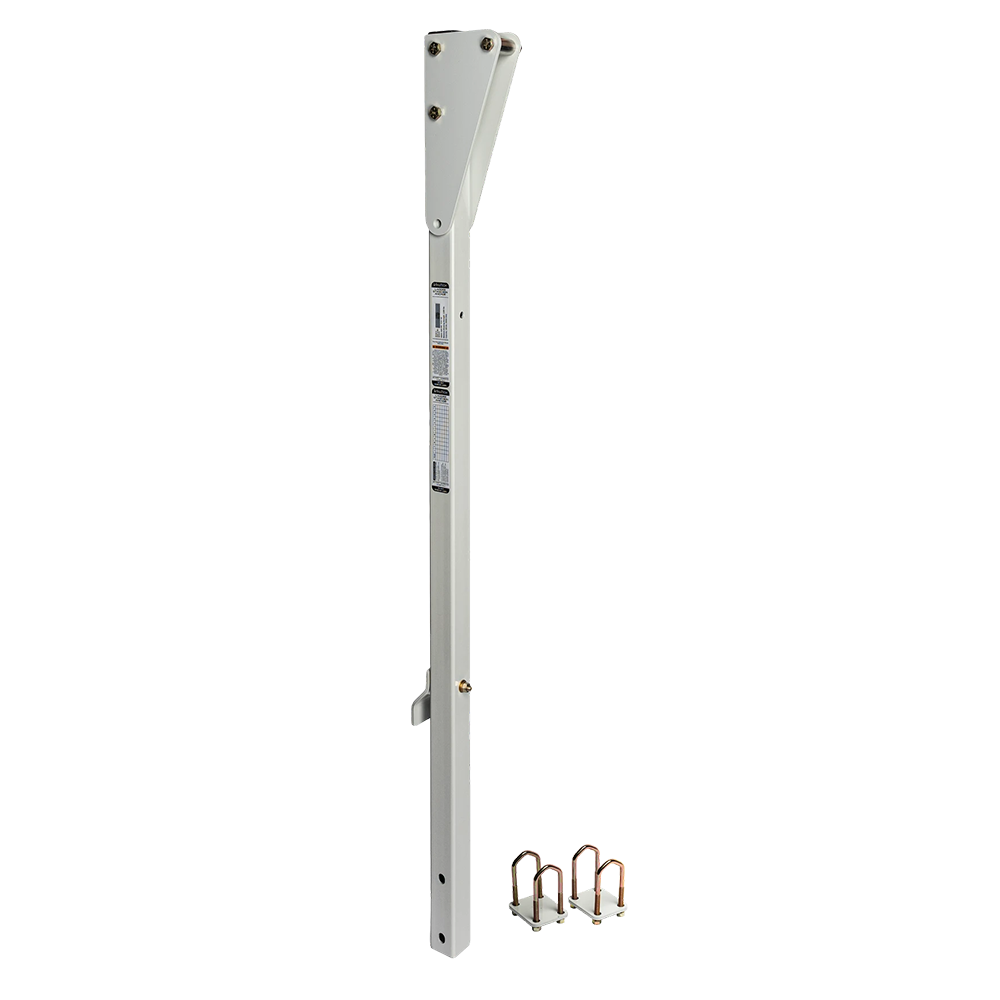

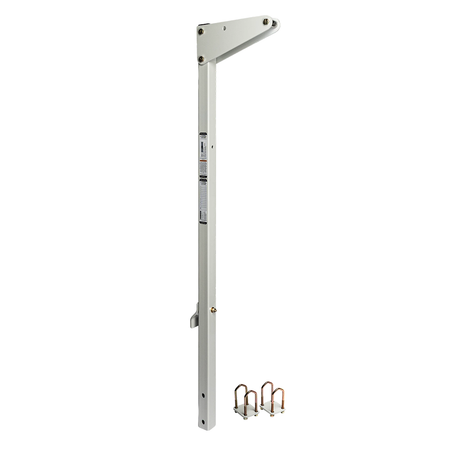

The FallTech 5' Bolt-On Ladder Stanchion Anchor provides overhead anchorage for personal fall arrest applications on fixed ladders extending above the walking-working surface. Its adjustable bracket offers a 5" offset for front D-ring connections or a 12" offset for dorsal D-ring connections. The 5" configuration provides additional clearance for caged ladders, confined spaces, and other areas with limited room.

Constructed from galvanized and powder-coated steel, the anchor features a durable post, bracket, and mounting hardware designed for permanent installation. Included fasteners accommodate a variety of fixed ladders, with mounting options centered on the ladder or offset to either side for improved access at the top. Optional rung reinforcements are available for hollow-rung ladders requiring additional support.

The 5' post can be extended to a 10' overall assembly using the separately sold 6161000 modular extension. Designed for single-user fall arrest applications with an overhead self-retracting lifeline, the anchor meets OSHA 1926.502 and 1910.140 requirements.
  • Manufacturer: FallTech
  • Product Code: 6160500
  • Product Type: Bolt-On Ladder Stanchion Anchor
  • Post Height: 5'
  • Adjustable Offset: 5" or 12"
  • Front D-Ring Connection: 5" Offset
  • Dorsal D-Ring Connection: 12" Offset
  • Extended Assembly Height: 10' With Optional 6161000 Extension
  • Post Material: Galvanized and Powder-Coated Steel
  • Anchor Bracket Material: Galvanized and Powder-Coated Steel
  • Mounting Hardware Material: Galvanized and Powder-Coated Steel
  • Installation Type: Permanent Bolt-On Installation
  • Mounting Positions: Centered or Offset to Either Side, Front or Rear of Ladder Rungs
  • Mounting Hardware: Included
  • Minimum Static Strength: 3,600 lbs
  • ANSI User Capacity: One User Up to 310 lbs
  • OSHA User Capacity: One User Up to 425 lbs
  • Minimum Service Temperature: -40°F (-40°C)
  • Compatible Ladder Rung Diameter: 1/2" to 1-1/4"
  • Required Ladder Rungs: Minimum 3
  • Required Ladder Rung Spacing: 12" ± 2"
  • Minimum Ladder Rung Strength: 1,200 lbs Per Rung
  • Optional Accessories: 6161000 Modular Extension and Hollow-Rung Reinforcements
  • Application: Single-User Personal Fall Arrest With Overhead Self-Retracting Lifeline
  • OSHA Compliance: 1926.502 and 1910.140
