Reel Lifter – 5 1/2 ton - Model RL – Caldwell

SKU: RL-5.5
$1,344.38
Estimated Lead Time:

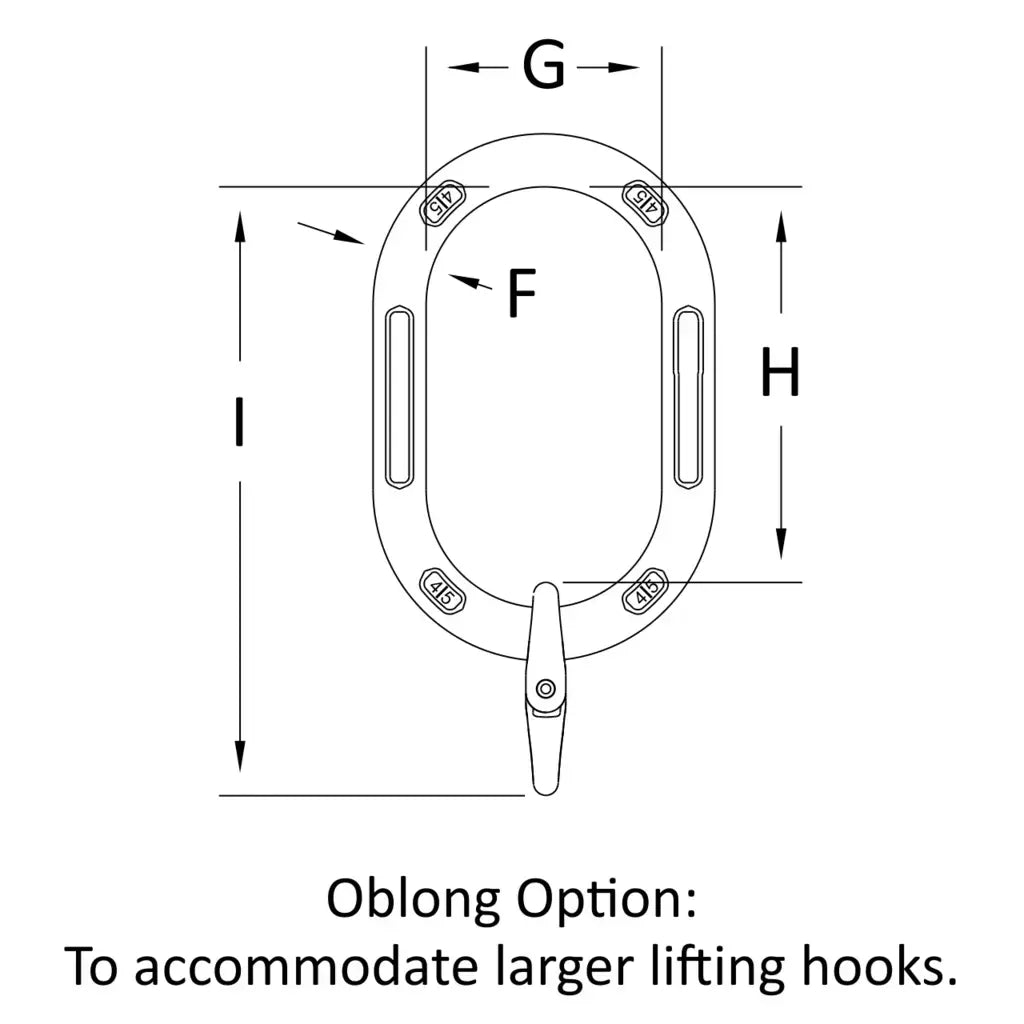

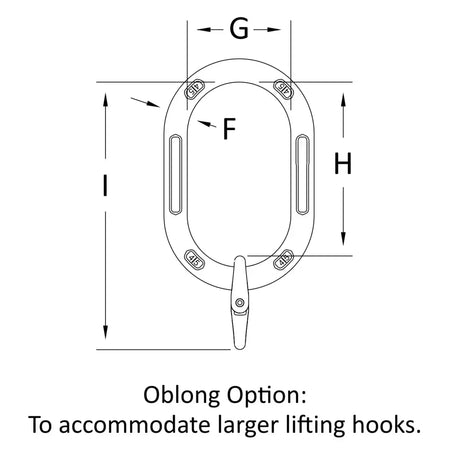

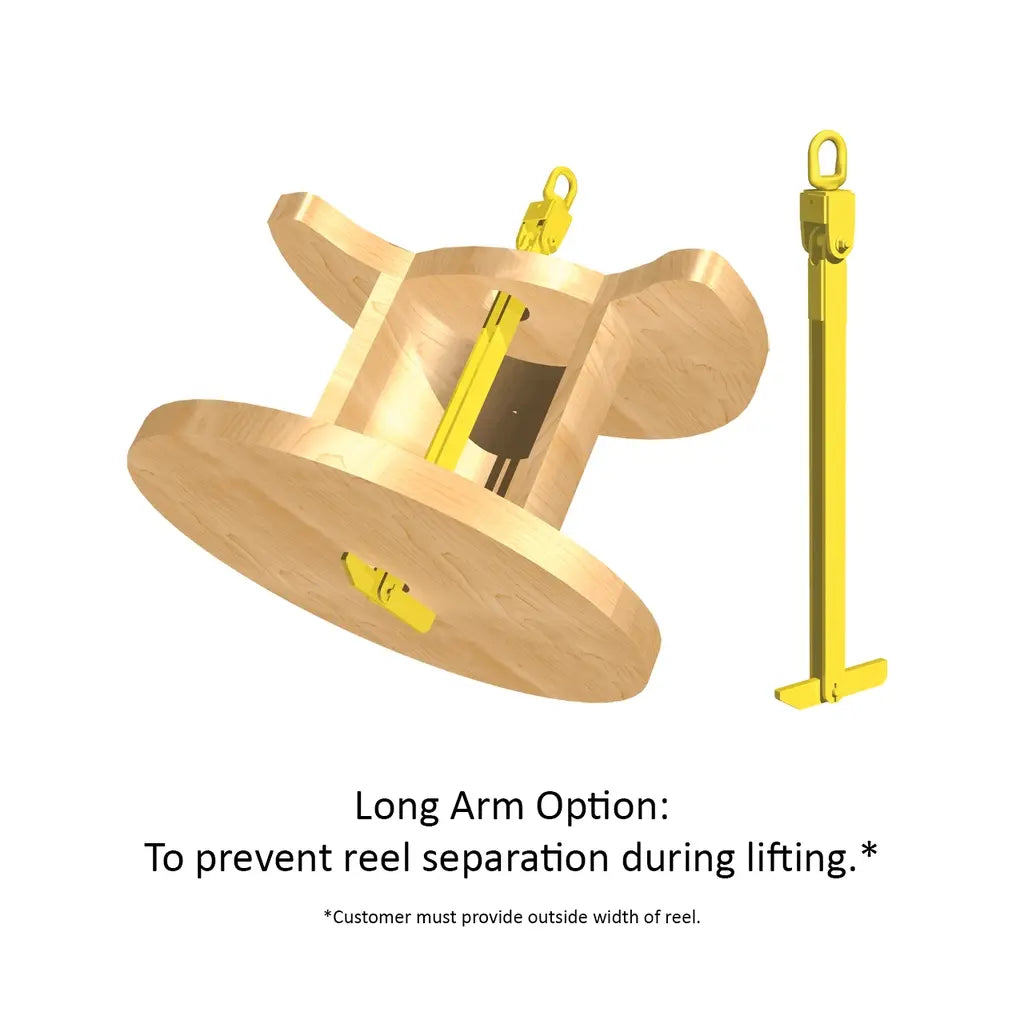

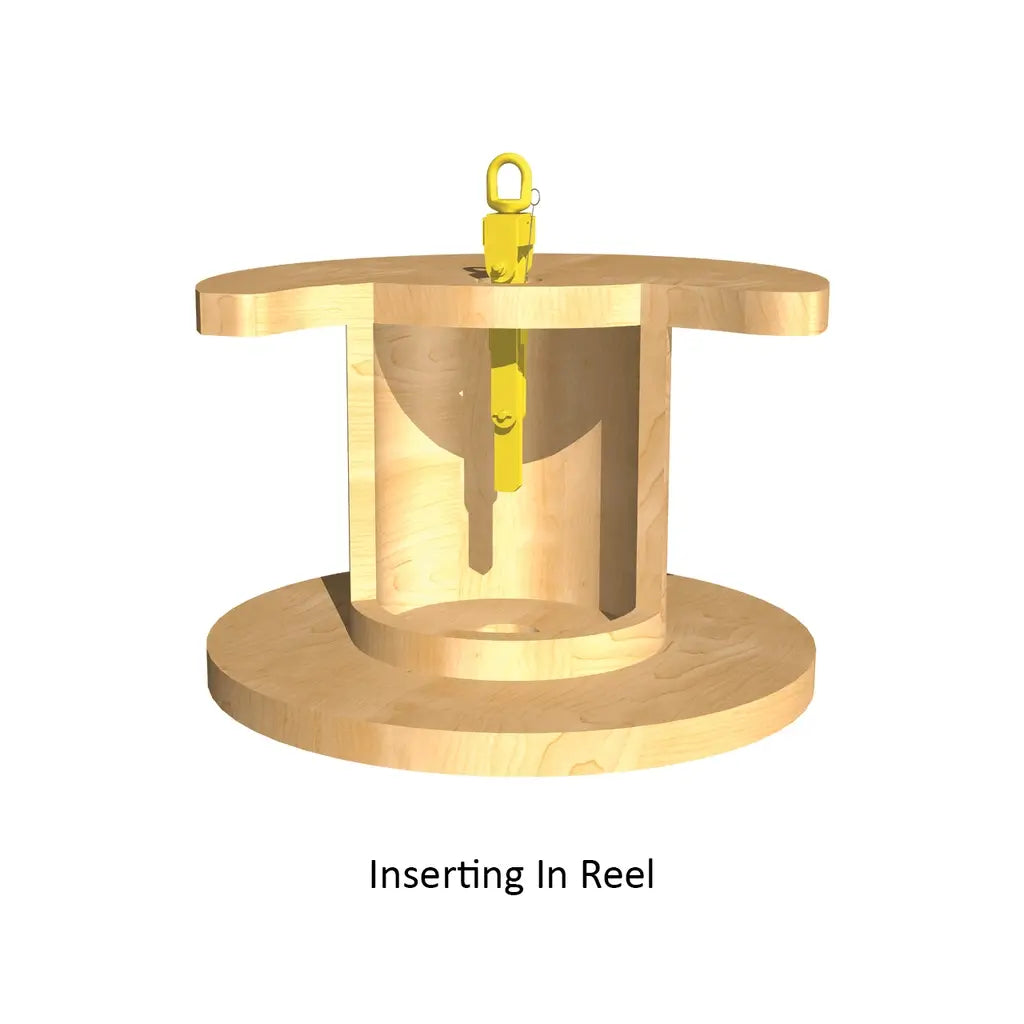

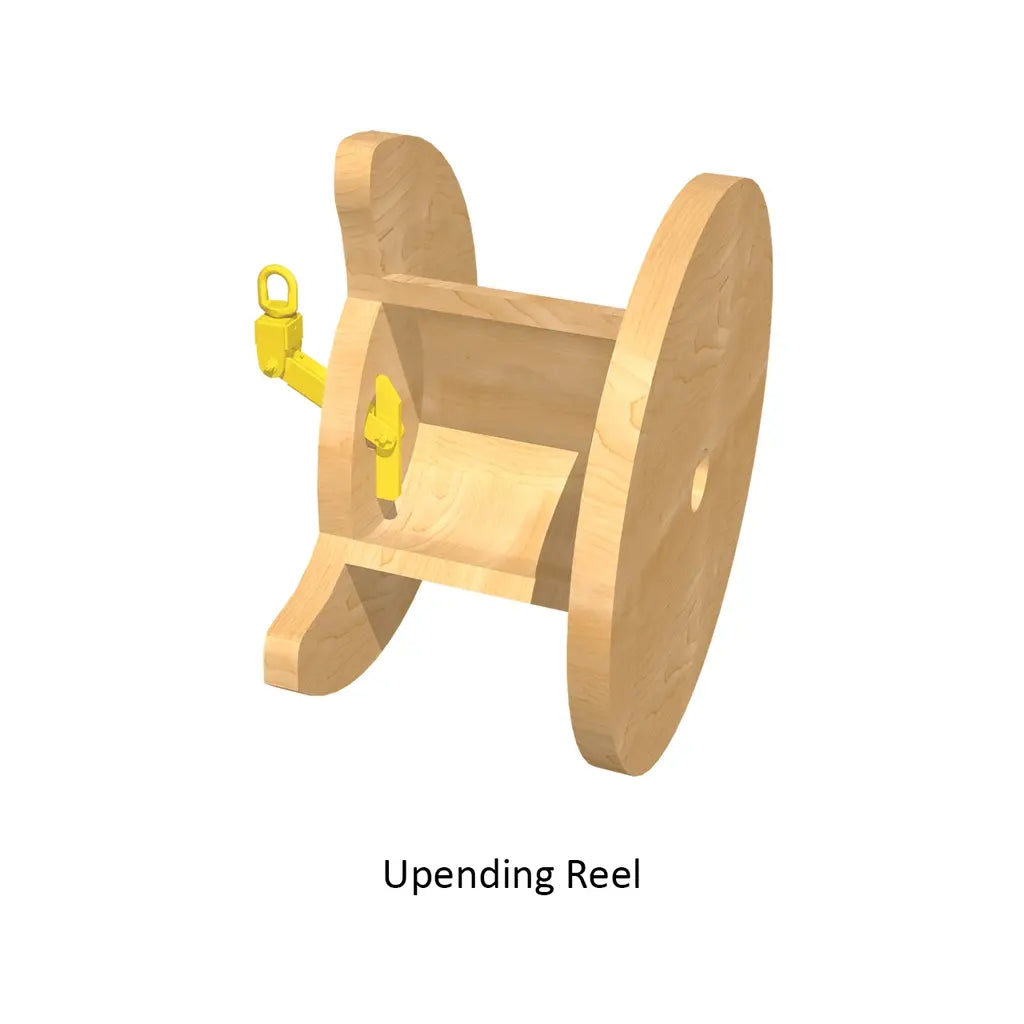

The Caldwell Model RL Reel Lifter is the heavy-duty solution utility contractors need for lifting, upending, and dispensing reels of wire or cable. Built for rugged use, it allows smooth rotation for cable unrolling thanks to its integrated bearing system. Featuring a single crane attachment point for both lifting and upending, the RL streamlines operations. Optional features include an oblong for large crane hooks and a special long arm for lifting and upending from the outer flange. The counterweighted bottom arm makes insertion into the reel quick and easy, while the pull lanyard pivots the arm into lifting position.
  • Model Number: RL-5.5
  • Capacity: 5.5 tons
  • Max Arbor Hole: 6 in
  • Min Arbor Hole: 4 in
  • Max Flange Thickness: 5 in
  • Bail Opening Width: 2.5 in
  • Bail Opening Height: 3.5 in
  • Bail Thickness: 1 in
  • Headroom: 22.19 in
  • Weight: 25 lbs
  • Min Drum Inner Diameter: 16 in
  • Pivot Arm Length: 14 in

Spec Sheet (PDF)
