Beam Flange Clamp – 5.5 ton - Model BFC – Caldwell

SKU: 67-030-C
$607.50
Estimated Lead Time:

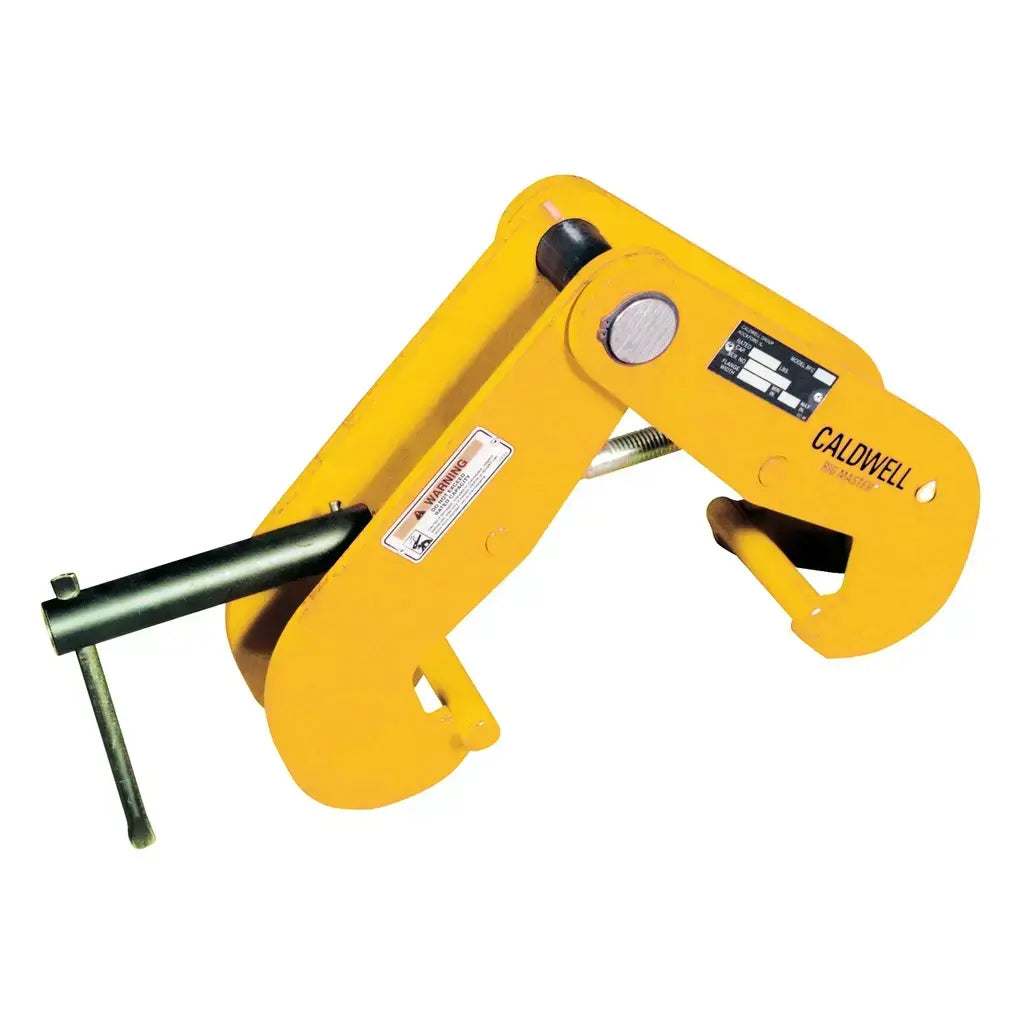

The Caldwell Model BFC Beam Flange Clamp is a rugged and versatile solution for vertical lifting applications. With rated capacities available up to 10 metric tons, the BFC is proof tested with certificate and engineered for durability, portability, and ease of use. The clamp’s dual screw spindle design (left- and right-hand threads) allows for rapid clamping and unclamping, while a lock nut ensures secure positioning. Its adjustable jaw opening adapts to a wide range of beam types and flange widths. A built-in suspension pin minimizes headroom, and the powder-coated finish provides long-lasting protection. For oversized hoist hooks, an optional large bail is available. Fully compliant with ASME B30.20 and BTH-1 standards. Need a custom configuration? Call us to build a clamp tailored to your exact lifting needs.
  • Model Number: BFC-5-C
  • Capacity: 5.5 tons
  • Max Flange Thickness: 1 in
  • Headroom Max: 7.5 in
  • Headroom Min: 4.5 in
  • Weight: 19 lbs
  • D Min: 12 in
  • D Max: 6 in
  • E Max: 19.75 in
  • F: 4.25 in
  • G: 11 in
  • H Diameter: 1.25 in
  • J: 2.38 in
  • Option LB A: 1
  • Option LB C: 2.5
  • Option LB B: 2.5
  • Option LB T: 1
