Leveling Pipe Lifter – 4 1/2 ton - Model CPL – Caldwell

SKU: CPL-4.5
$5,857.50
Estimated Lead Time:

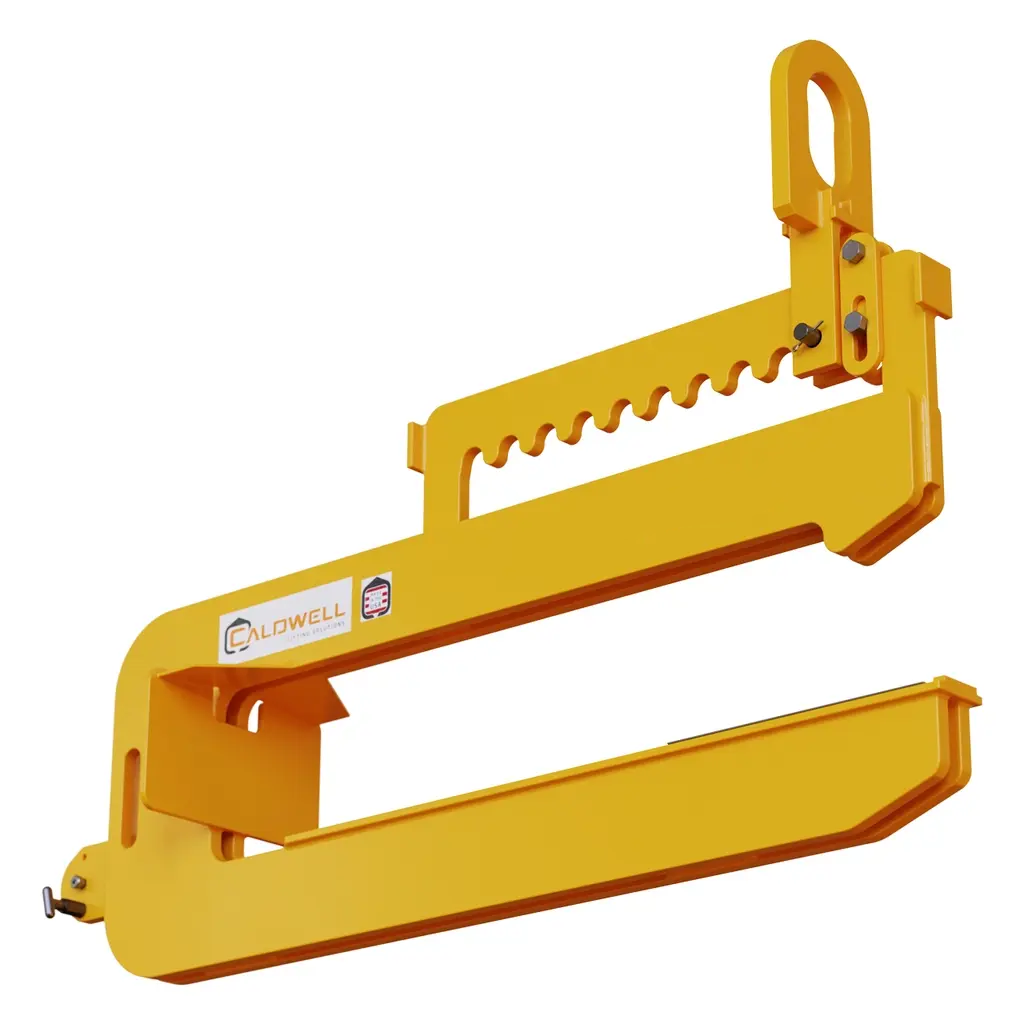

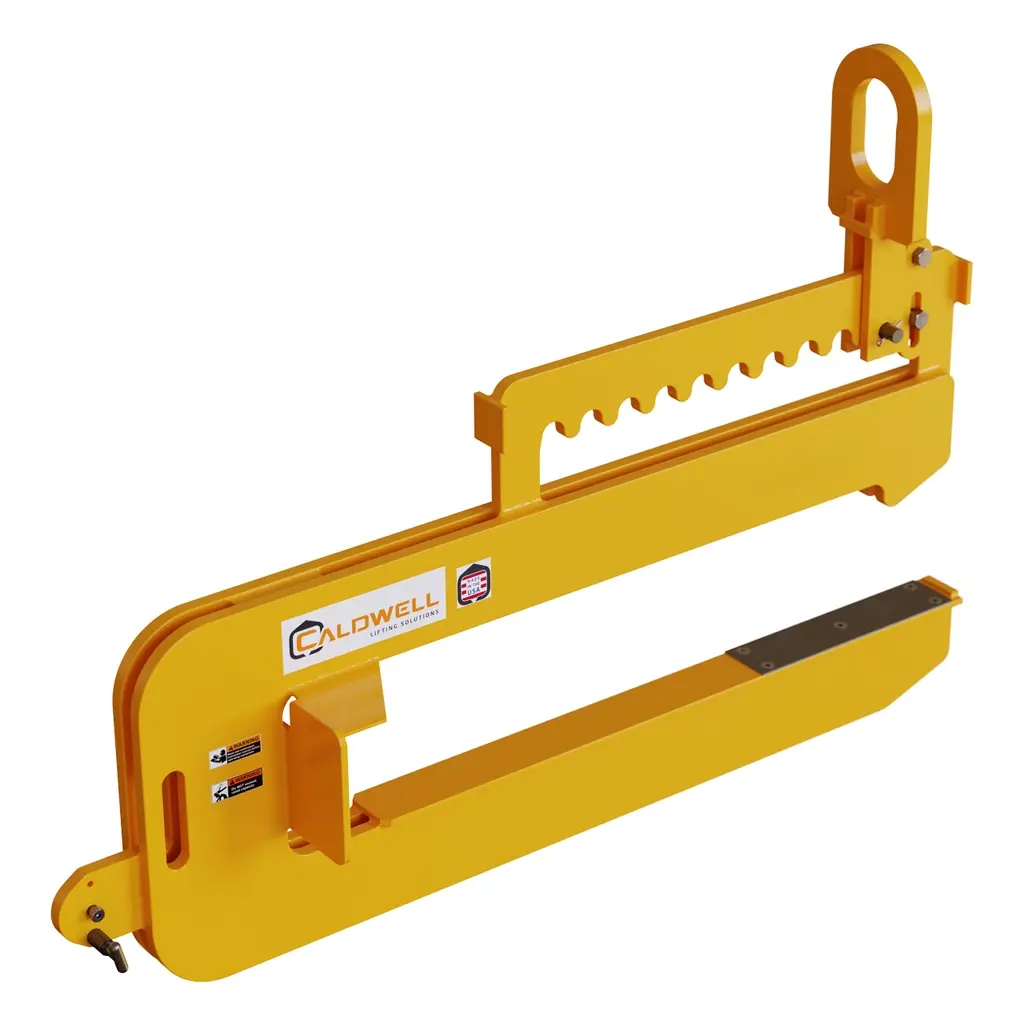

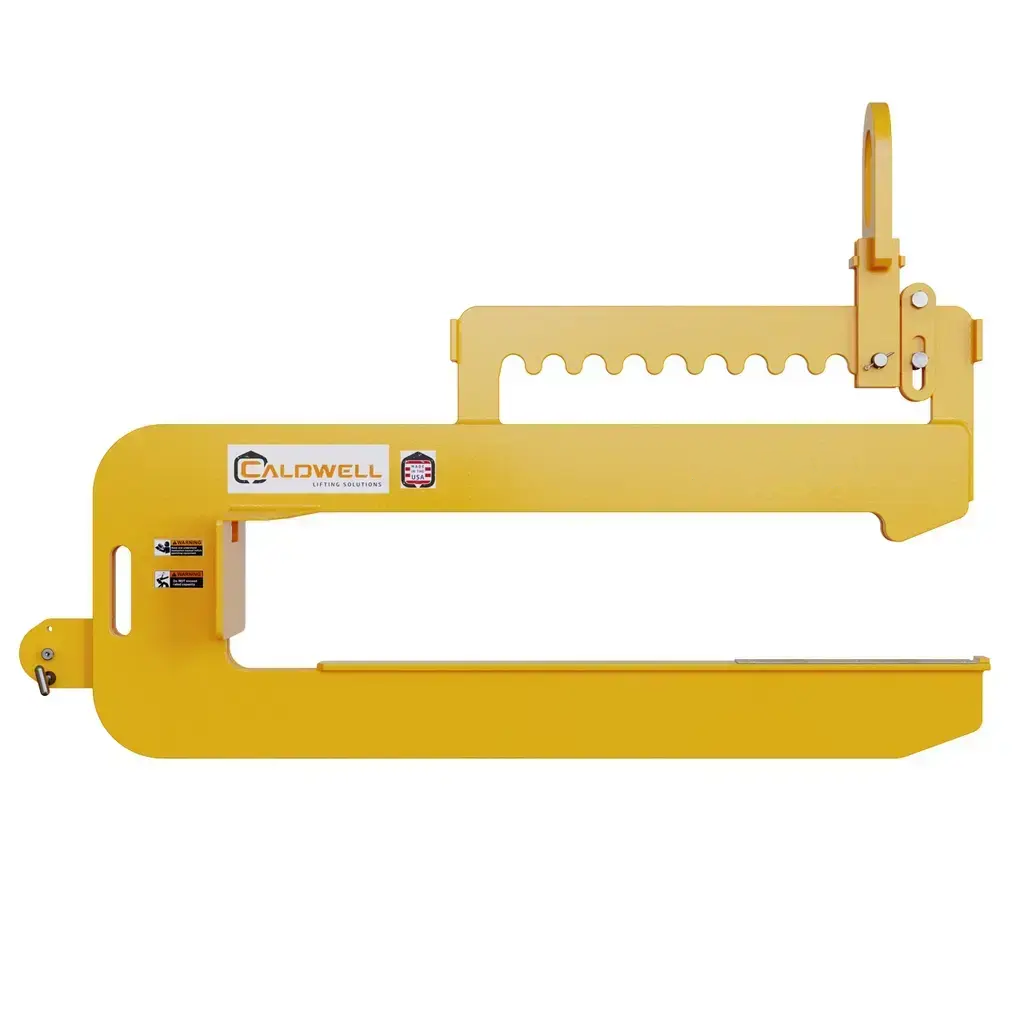

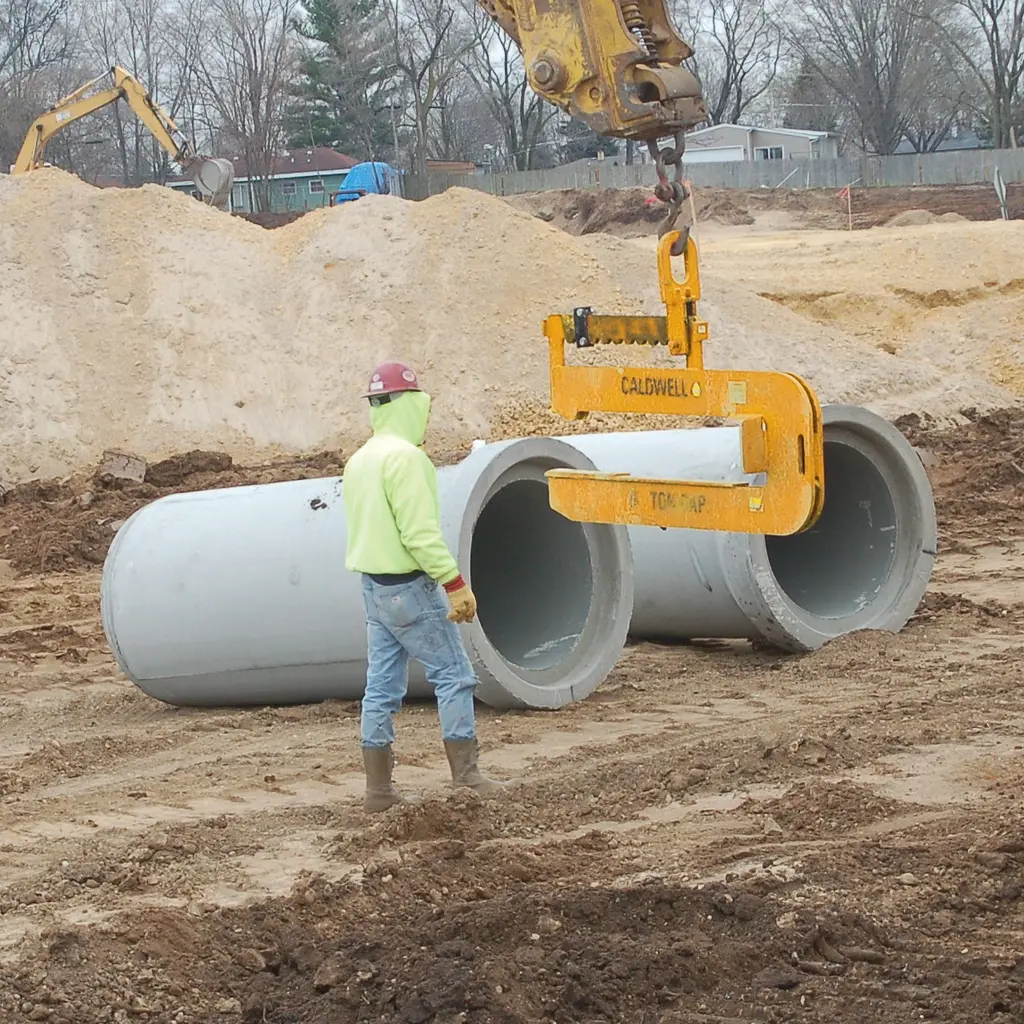

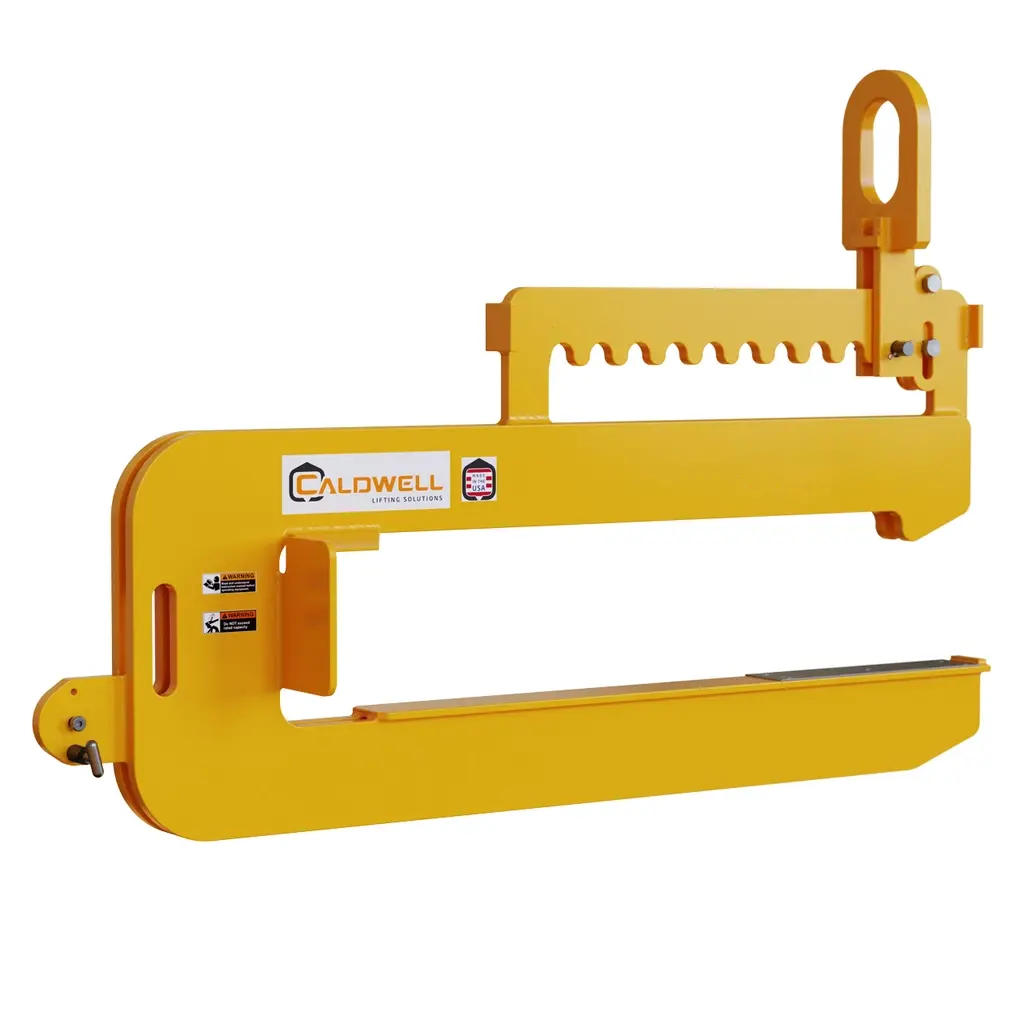

The Caldwell Model CPL Leveling Pipe Lifter is engineered to place and position concrete pipe up to 8 feet in length in a single operation. Its stand-up leveling bail adjusts easily for varying pipe lengths, while the adjustable bail stop makes repetitive lifts simple and consistent. Equipped with a pipe stop for driving pipe into position, the CPL also features a built-in laser target holder that allows the operator to set and laser position simultaneously. A positioning handle improves control during use. Built to comply with ASME standards, this lifter provides safe, efficient, and reliable performance for demanding pipe-handling applications. Need a custom configuration? Call us to build a pipe lifter tailored to your exact lifting needs.

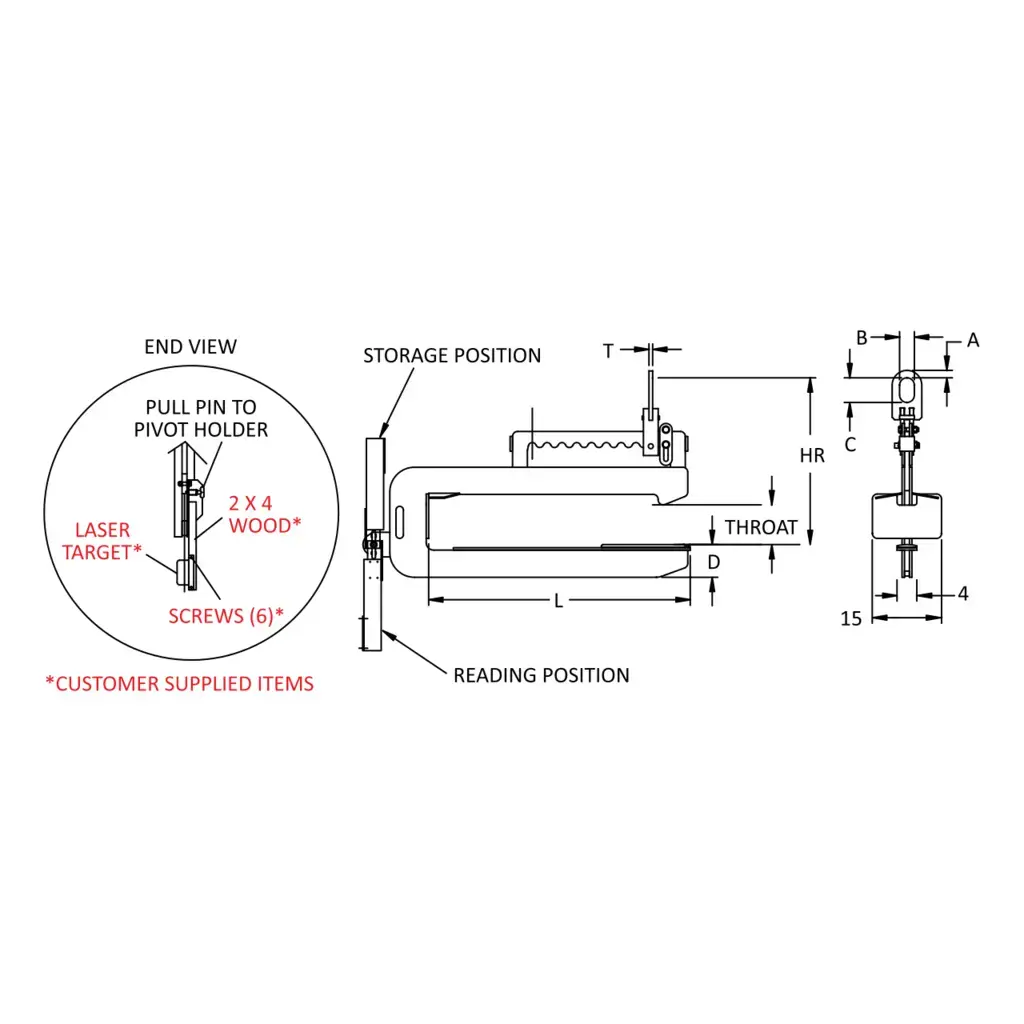

  • Model Number: CPL-4.5
  • Capacity: 4.5 tons
  • Arm Length: 54 in
  • Arm Width: 7.44 in
  • Bail Depth: 2 in
  • Bail Opening Width: 4 in
  • Bail Opening Height: 7 in
  • Bail Thickness: 1.25 in
  • Headroom: 37.31 in
  • Throat Opening: 8 in
  • Weight: 700 lbs
  • Pipe Outer Diameter: 10 in
