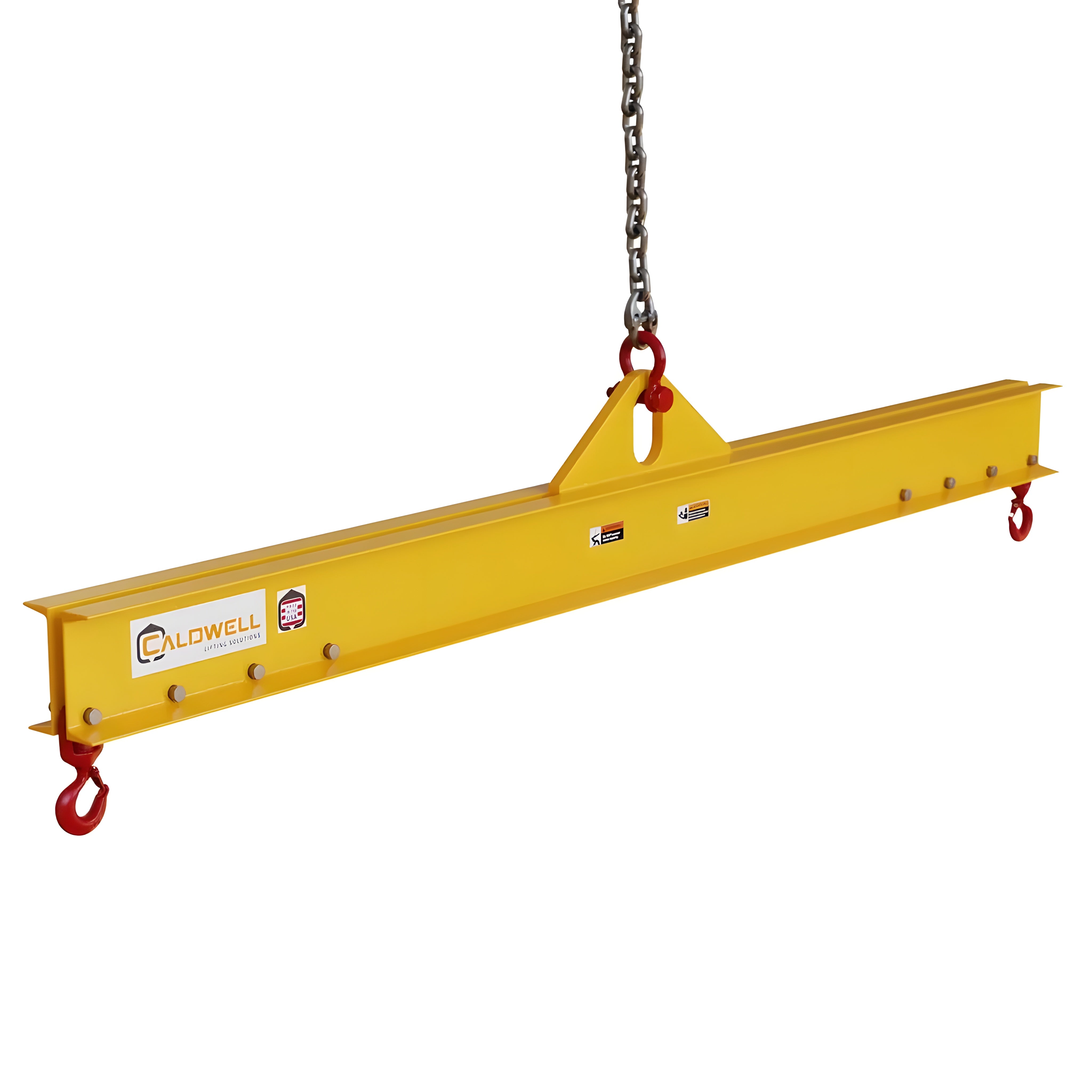

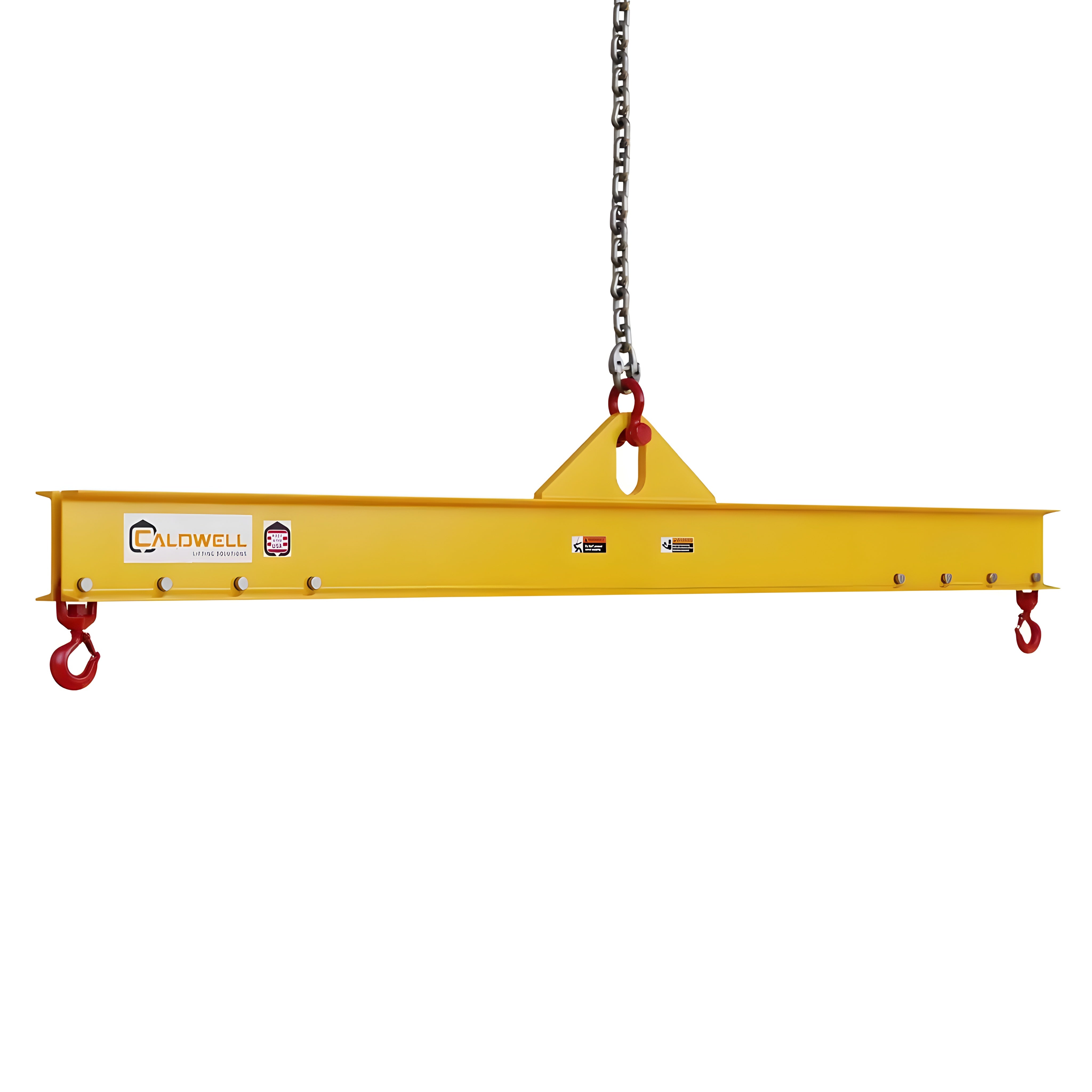

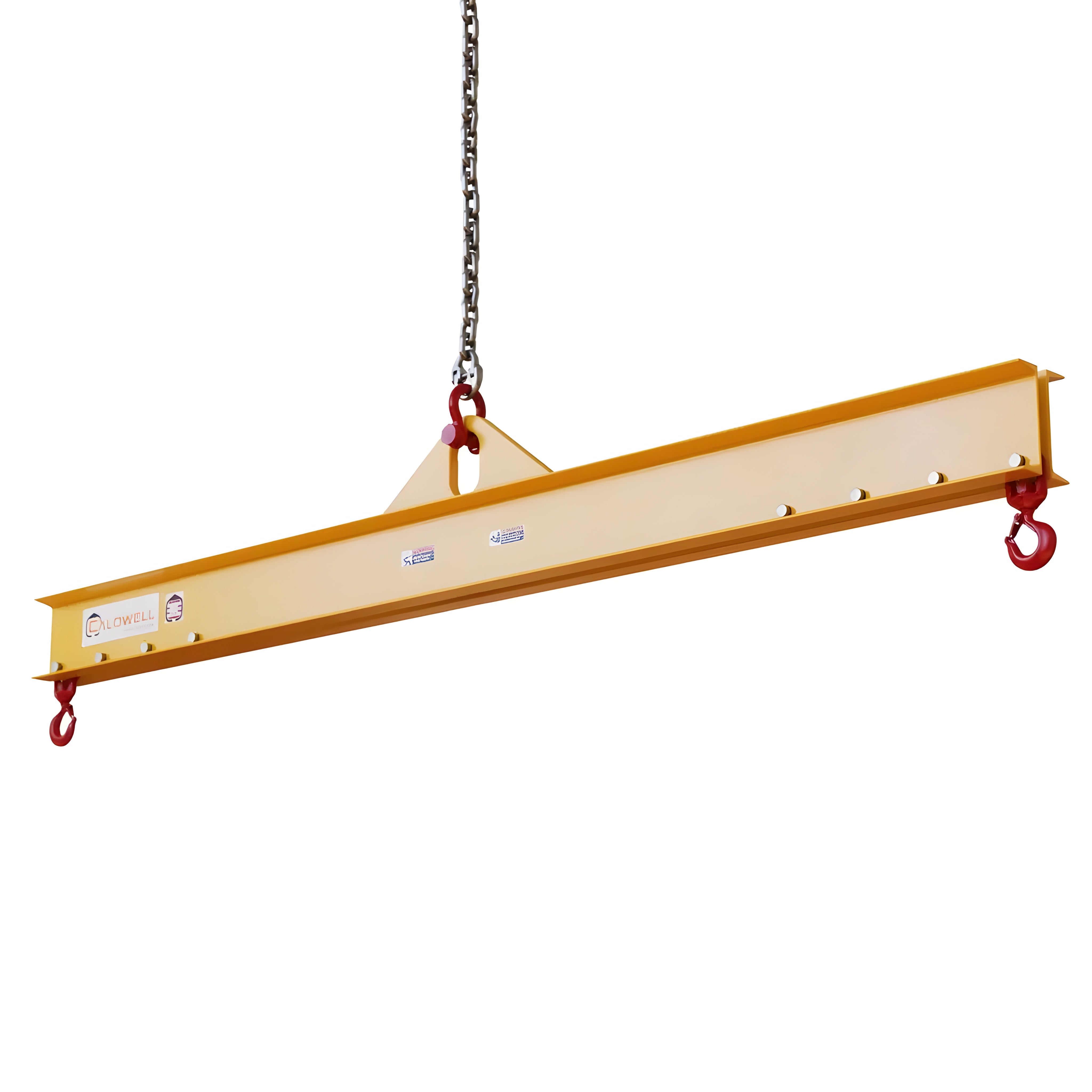

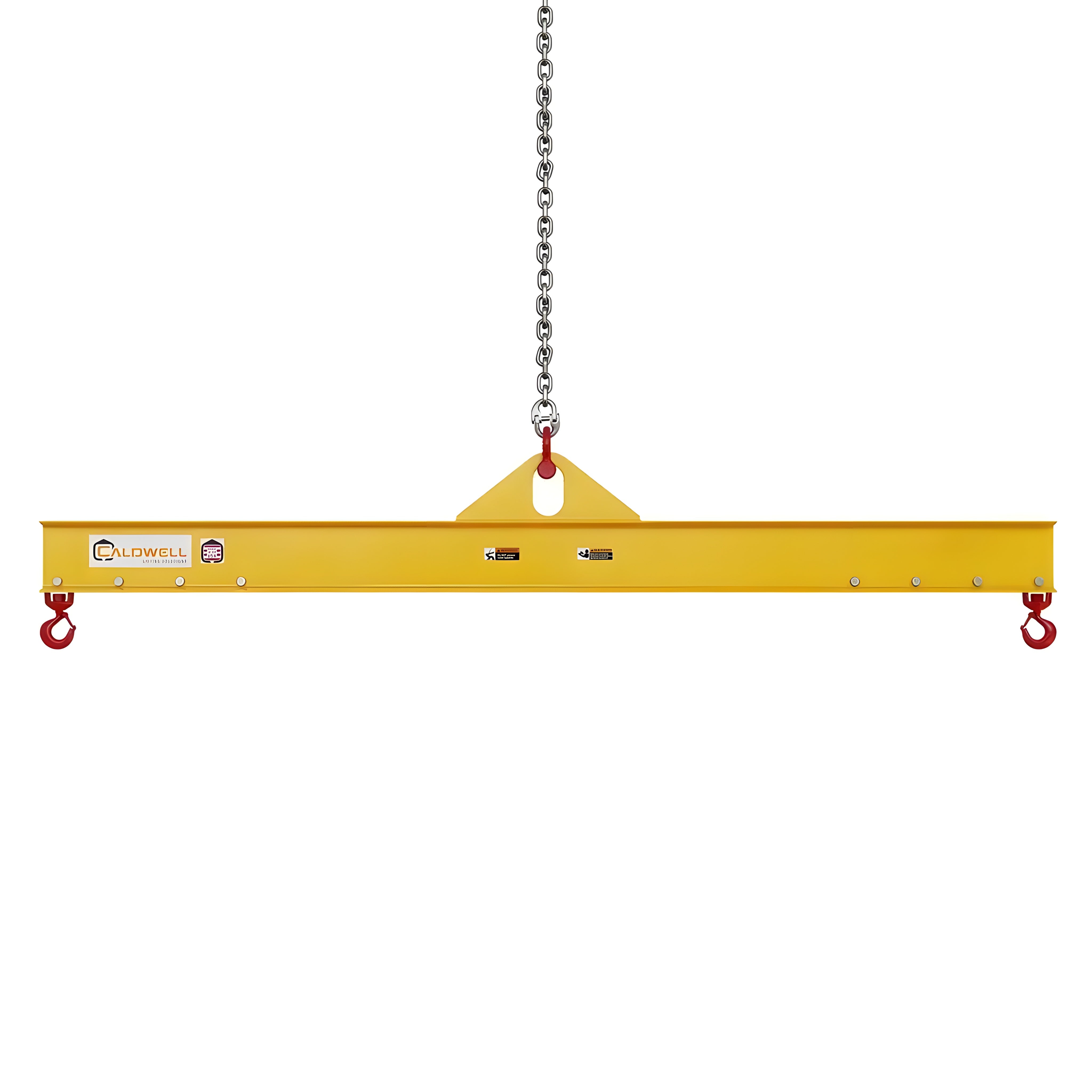

Low-Headroom Multiple-Spread Lifting Beam – 4ft - 2 Ton - Model 20 – Caldwell

SKU: 34-200302
$1,446.00
Estimated Lead Time:

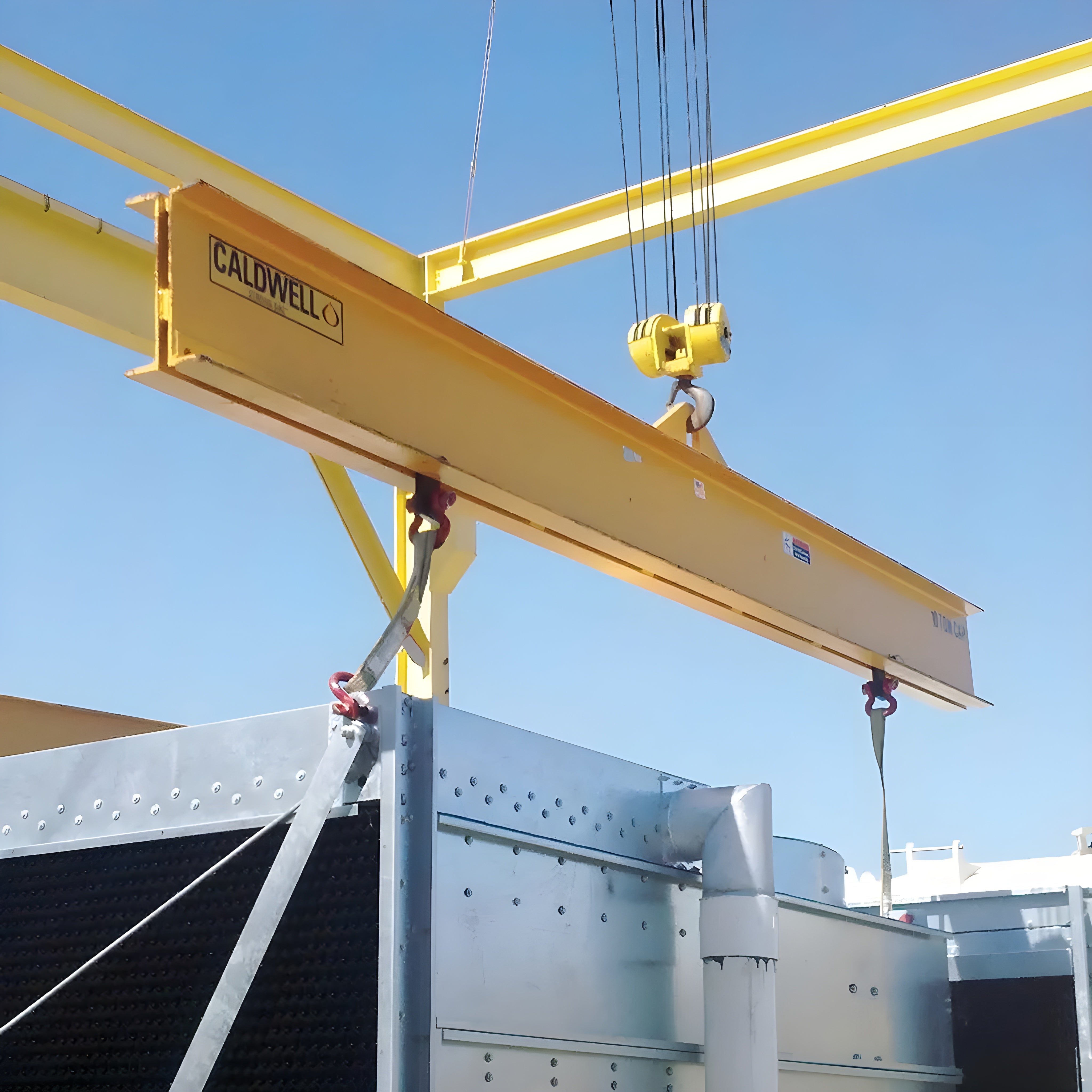

Versatility is the name of the game with the Model 20 Low-Headroom Multiple-Spread Lifting Beam. Used across the country in manufacturing and industrial applications, it's a favorite on construction sites, too.

Made in the USA

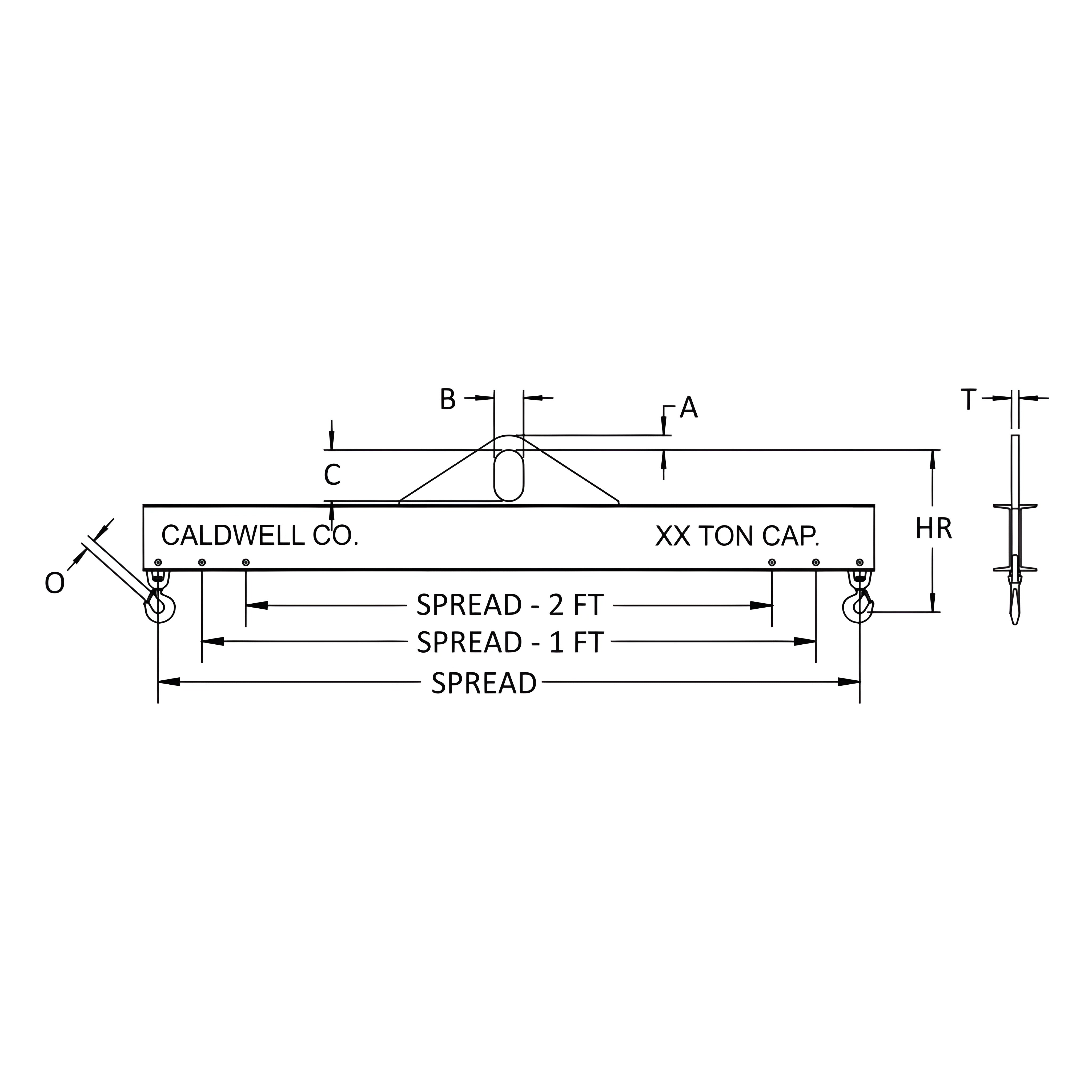

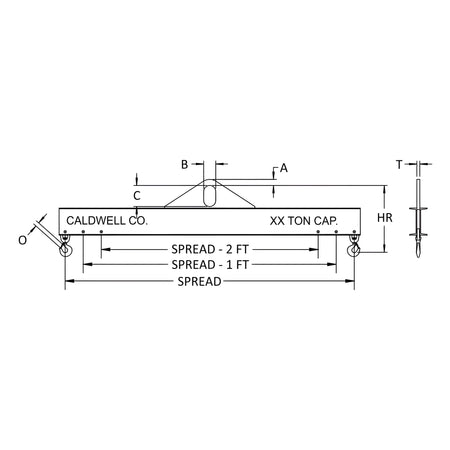

  • Model Number: 20-2-4
  • Capacity: 2 Ton
  • Max Spread: 48"
  • Headroom: 13.75"
  • Bail Depth: 0.88"
  • Bail Opening Width: 3"
  • Bail Opening Height: 5"
  • Bail Thickness: 0.75"
  • Hook Opening With Latch: 0.88"
  • Weight: 65 lbs
  • I-Beam Construction With Two Lifting Spreads
  • Swivel Hooks With Hook Latches Included
  • Custom Options: Extra Holes, Additional Hooks, Shackle Lugs, Pin-Type Bail
  • Complies With ASME Standard.
