30' 4-Person Temporary Rope HLL System – 772030 – FallTech

SKU: 772030
$875.60
Estimated Lead Time:3 to 5 days

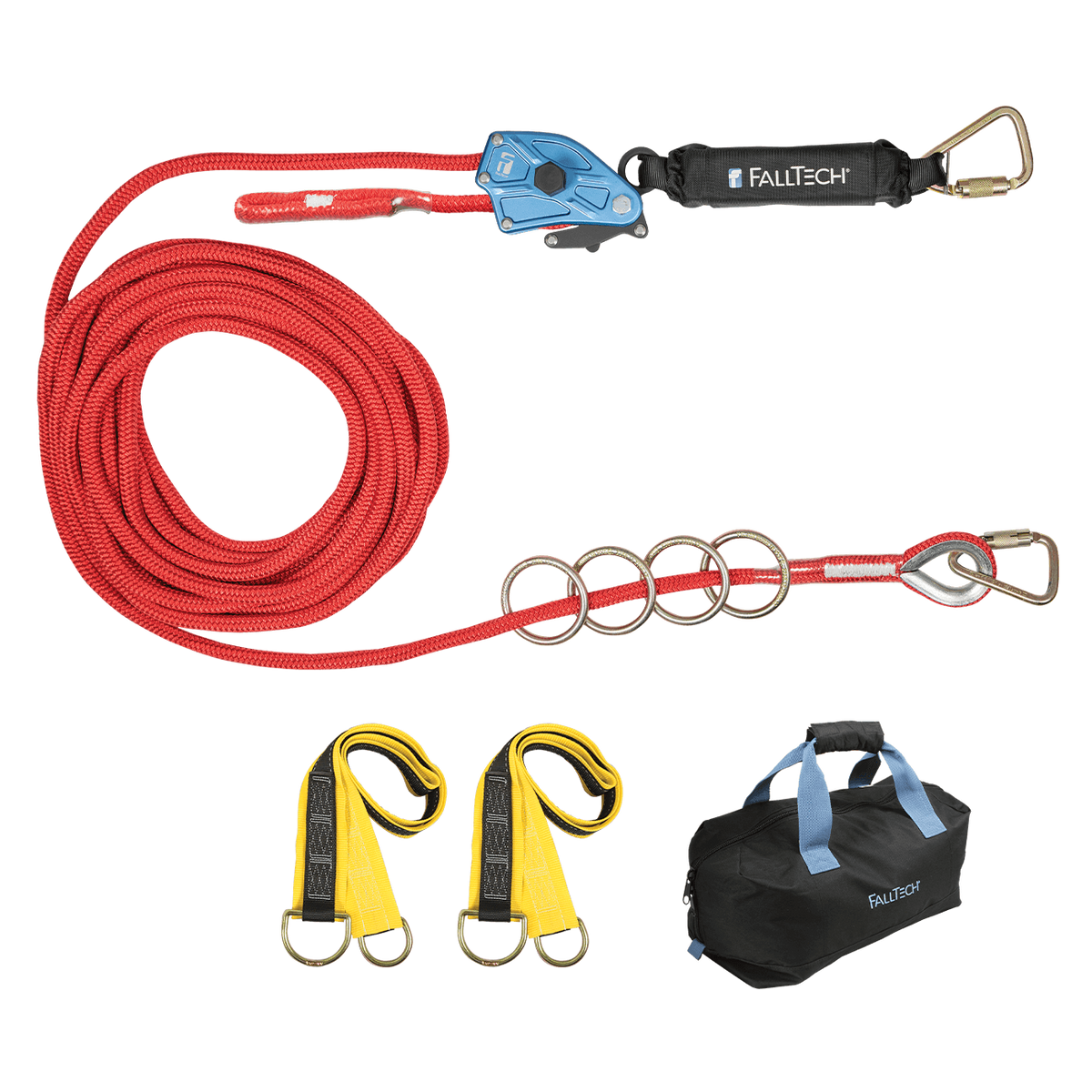

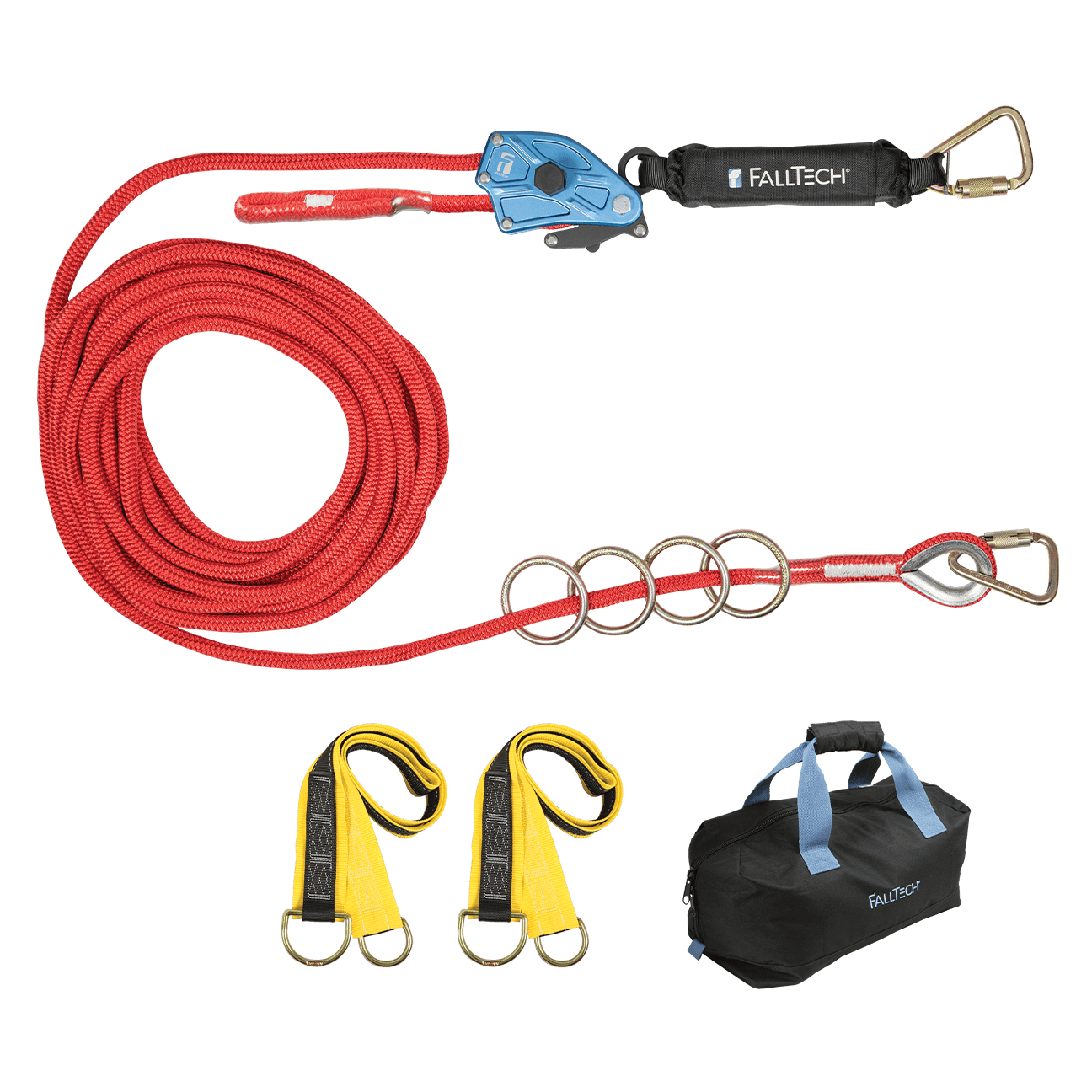

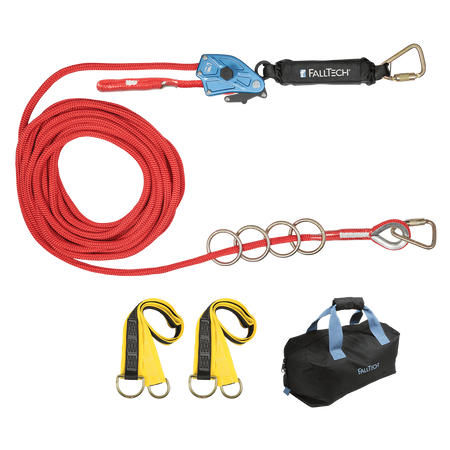

The FallTech 30' Temporary Rope Horizontal Lifeline System is designed to provide reliable fall protection for up to four users in temporary worksite applications. It features a high-strength 5/8" double-braid polyester rope lifeline with a steel thimble and stitched end termination for durability and secure anchoring.

The system includes an exclusive line tensioner assembly with an integral energy absorber and anchorage-end carabiner to help manage loads during a fall. Additional components include four connecting rings, two heavy-duty pass-through anchor straps, and an extra thimble-end carabiner. An 18" gear bag is provided for convenient storage and transport. The system meets OSHA 1926.502 regulations.
  • Product Code: 772030
  • Product Type: Temporary Rope Horizontal Lifeline System
  • Lifeline Length: 30 ft
  • Rope: 5/8" double-braid polyester rope; 6,000 lb minimum static strength
  • Connecting Rings: Plated alloy steel; 5,000 lb minimum static strength
  • Carabiners: Plated alloy steel; 5,000 lb minimum static strength, 3,600 lb gate strength
  • Sling Anchors: Polyester webbing with plated alloy steel D-rings; 5,000 lb minimum static strength
  • Energy Absorber: Polyester tear-away
  • Tensioner: Aluminum alloy and stainless steel; 6,000 lb minimum static strength
  • User Capacity: Up to 4 users; 130 lb to 310 lb per user
  • System Strength: 6,000 lb minimum static strength
  • Compliance: OSHA 1926.502

Product Brochure (PDF)
User Manual (PDF)
