5 ton Screw Lock Clamp - Omnidirectional - WF Series - Elephant Lifting

SKU: WF-5
$1,180.80
Estimated Lead Time:3 to 5 Days

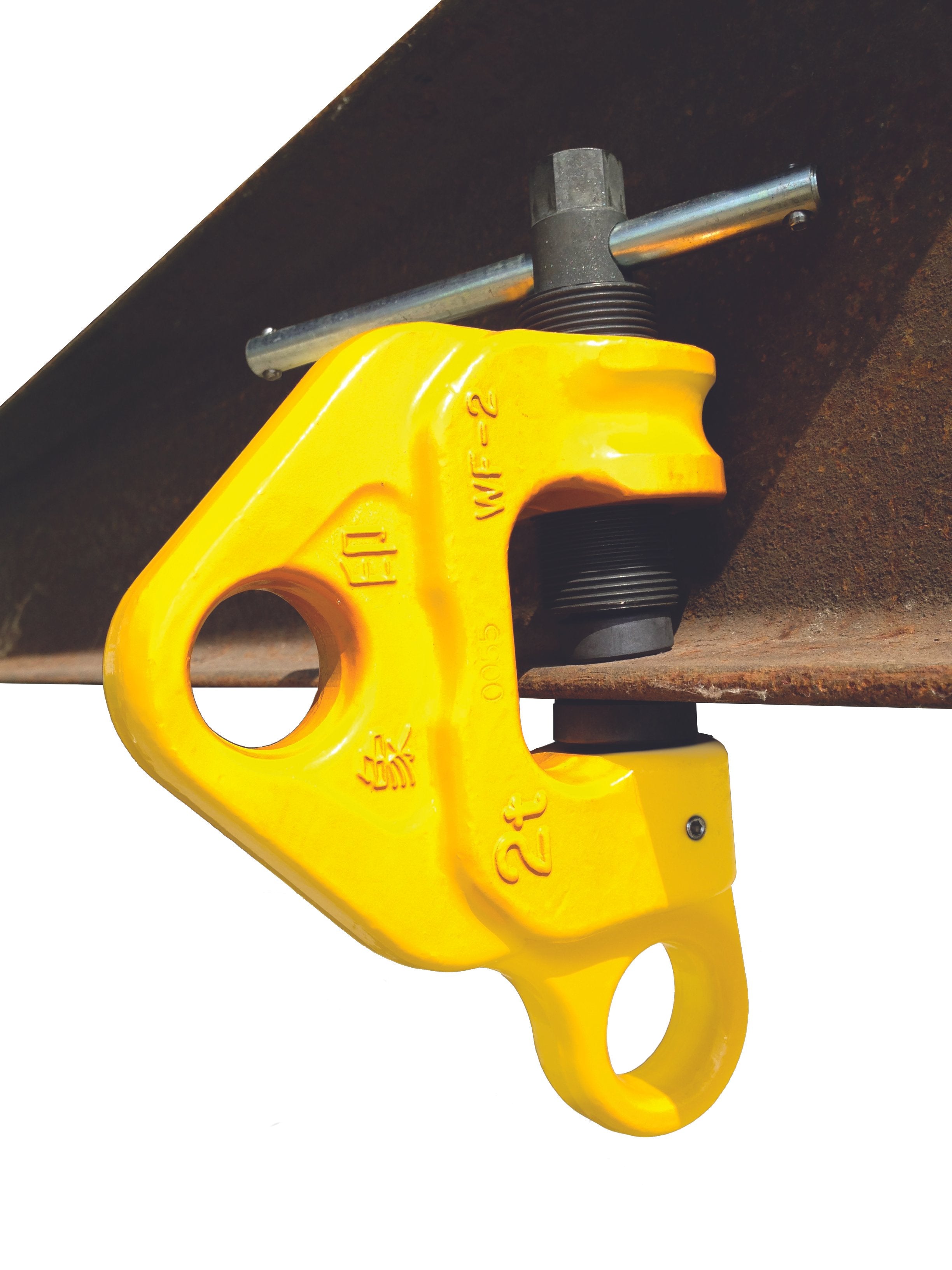

The Elephant WF Clamp is one of the world’s lightest screw clamps: Main body, cam, and screw are made of special alloy steel which is manufactured using our original heat-treatment process. They are compact and superior in strength.
    • 5 metric ton Rated Capacity
    • 0.35" to 2.08" Jaw Opening
    • The round double cam lock design allows for a stronger clamping capacity and safe operation.  The turning of the round double cams engages the clamp load.  Both cams contact the internal spherical surface assuring safe operation, free from slipping.
    • Two lifting holes allow for omnidirectional, vertical, and horizontal lifts.
    • The clamp can be used to hoist inclined loads such as I-beams. Do not place on a beam taper that exceeds 10°.
    • The fine screw threading creates a vibration-resistant clamp.
    • Round cam and screw are corrosion resistant with the main –body of the clamp having a baked finish.
    • Lifting & Transporting: General steel products such as H beams, I beams, steel plate, channel, and angle iron.  Various structures also include steel braces and pillars.
    • Suspension: Clamps can be used for suspending manual chain hoists, electric chain hoists, etc…
    • Dragging: The clamps can be used for pulling bottom steel boards and other objects along the ground.
