Pipe Pick – 3 ton - Model CPP – Caldwell

SKU: CPP-3
Regular price $1,029.38
Estimated Lead Time:

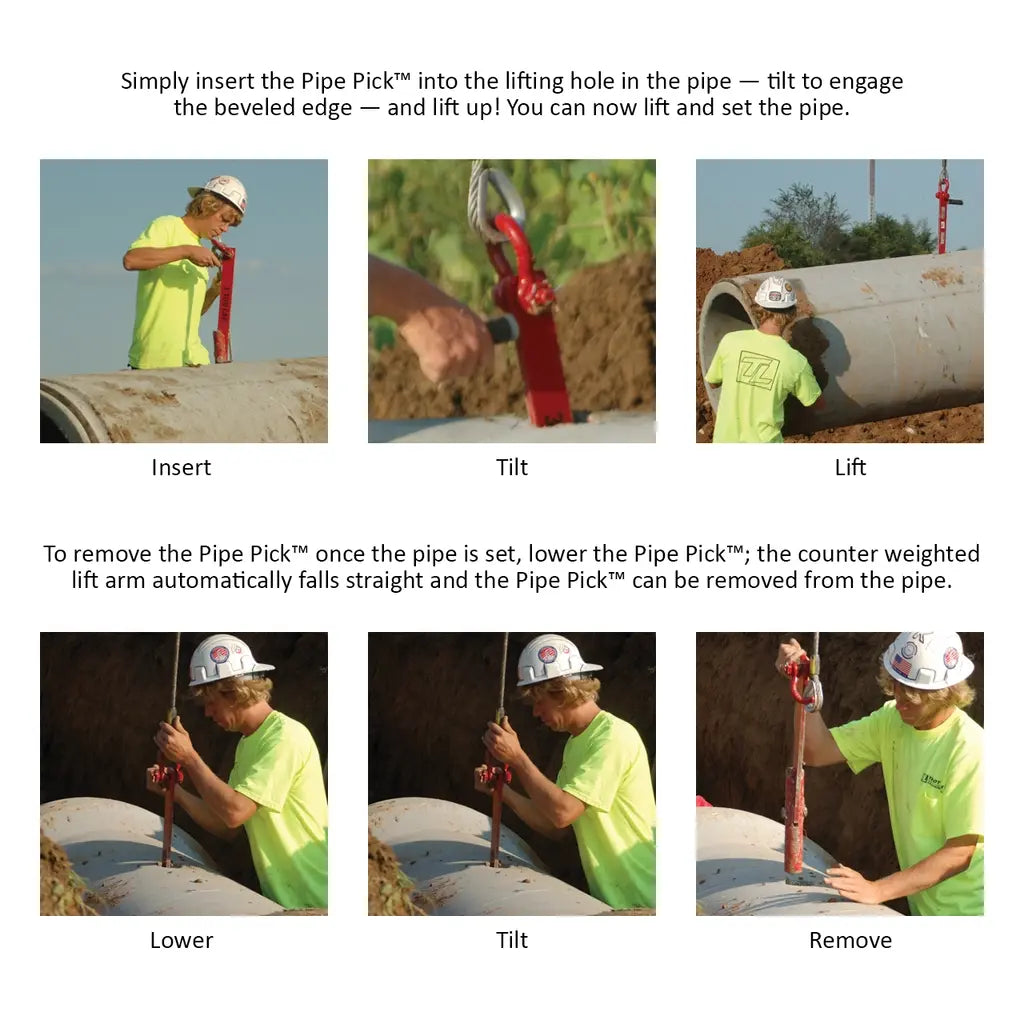

The Caldwell Model CPP Pipe Pick™ is a patented lifting solution engineered for safe, fast, and efficient handling of precast concrete pipe. By eliminating the need for workers to reach inside the pipe, the CPP design ensures that operators remain above the load at all times, significantly improving job site safety. Ideal for vertical lifting applications, the Model CPP-3 combines lightweight construction with heavy-duty performance. Built for simplicity and reliability, it’s a clean, effective tool that makes concrete pipe placement safer and more efficient. Need a custom configuration? Call us to build a pipe pick tailored to your exact lifting needs.

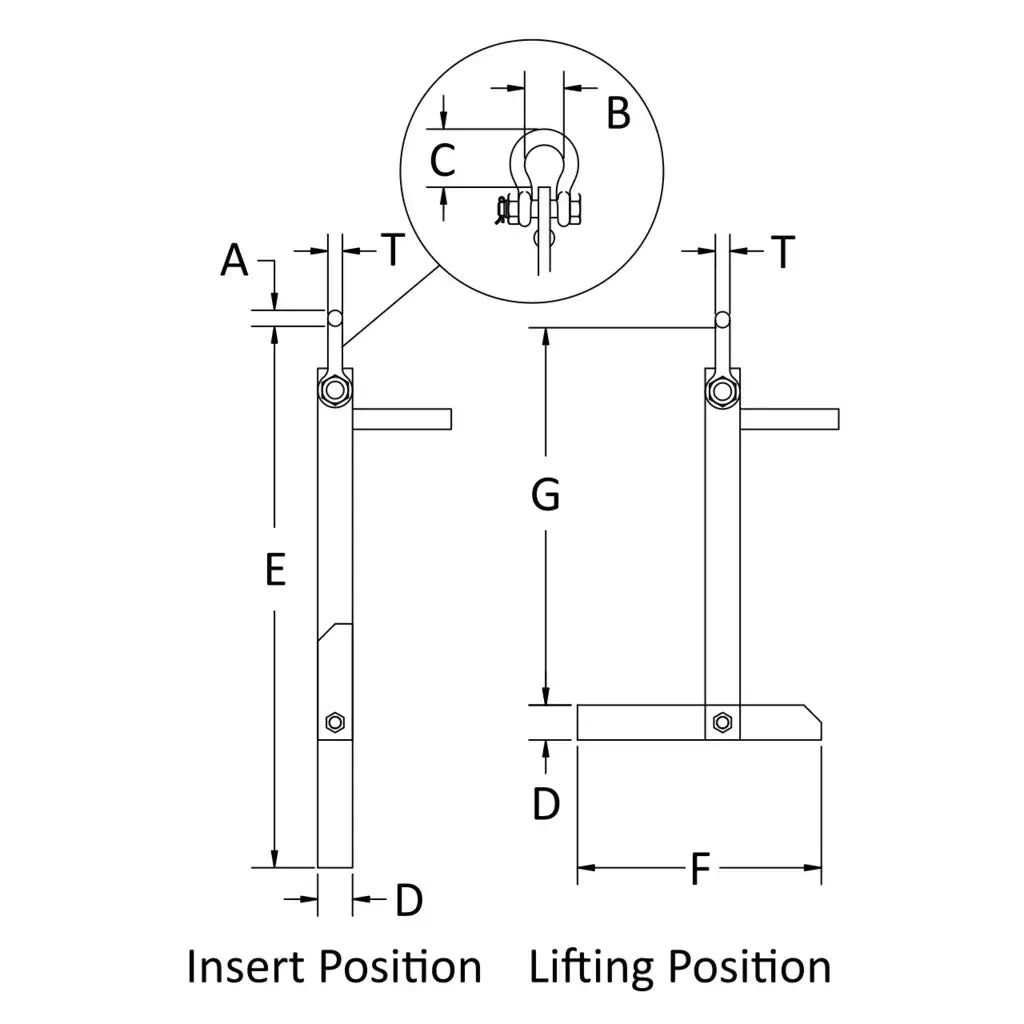

  • Model Number: CPP-3
  • Capacity: 3 tons
  • Lift Arm Height: 1.75 in
  • Lift Arm Length: 12 in
  • Min Hole Diameter: 2.5 in
  • Weight: 18 lbs
  • Shackle Size: 0.75 in
  • Min Pipe Inner Diameter: 14 in
  • Overall Height: 27.62 in
  • Shackle Opening Height: 2.93 in
  • Shackle Opening Width: 1.93 in
  • Headroom to Top of Load: 20 in
  • Shackle Thickness: 0.75 in
