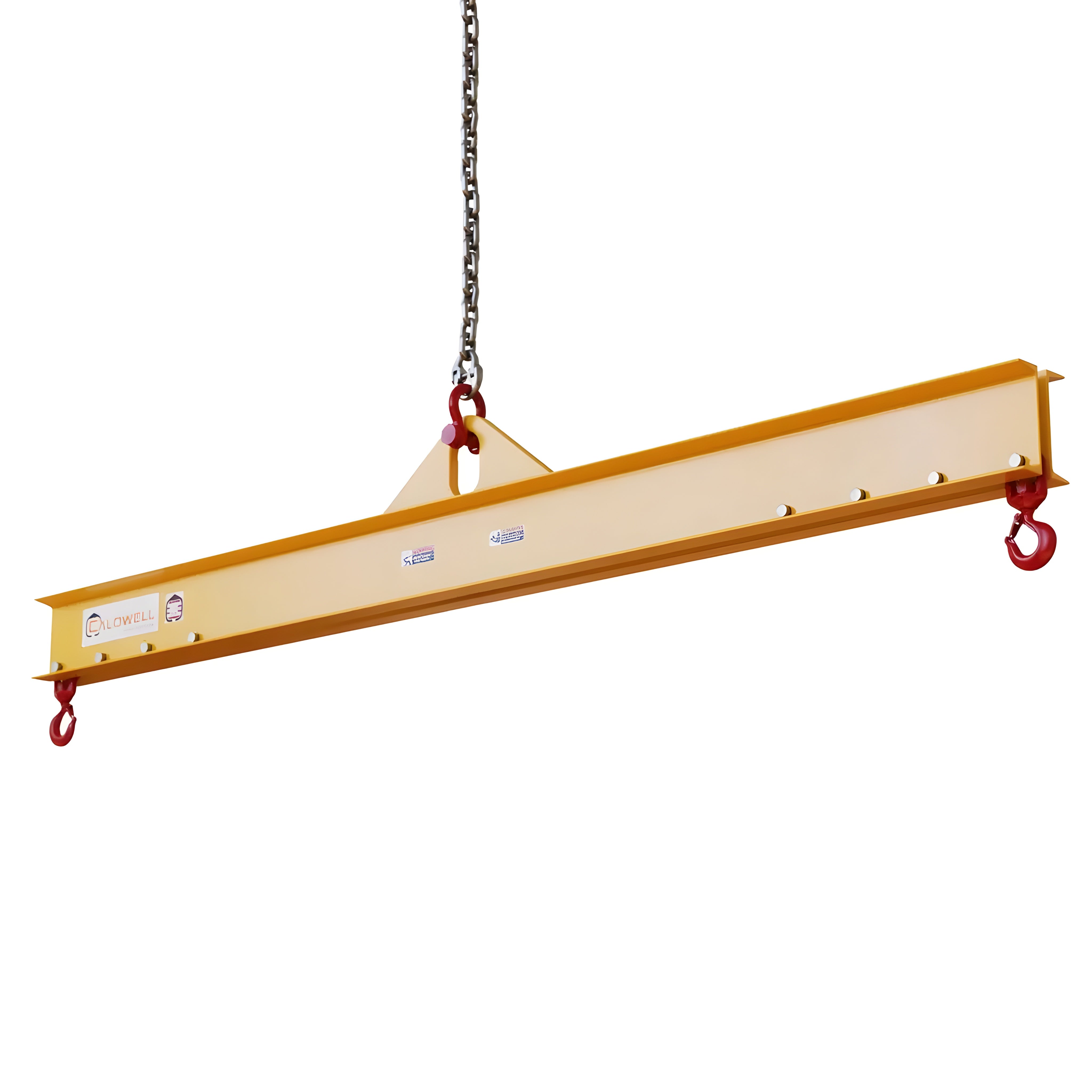

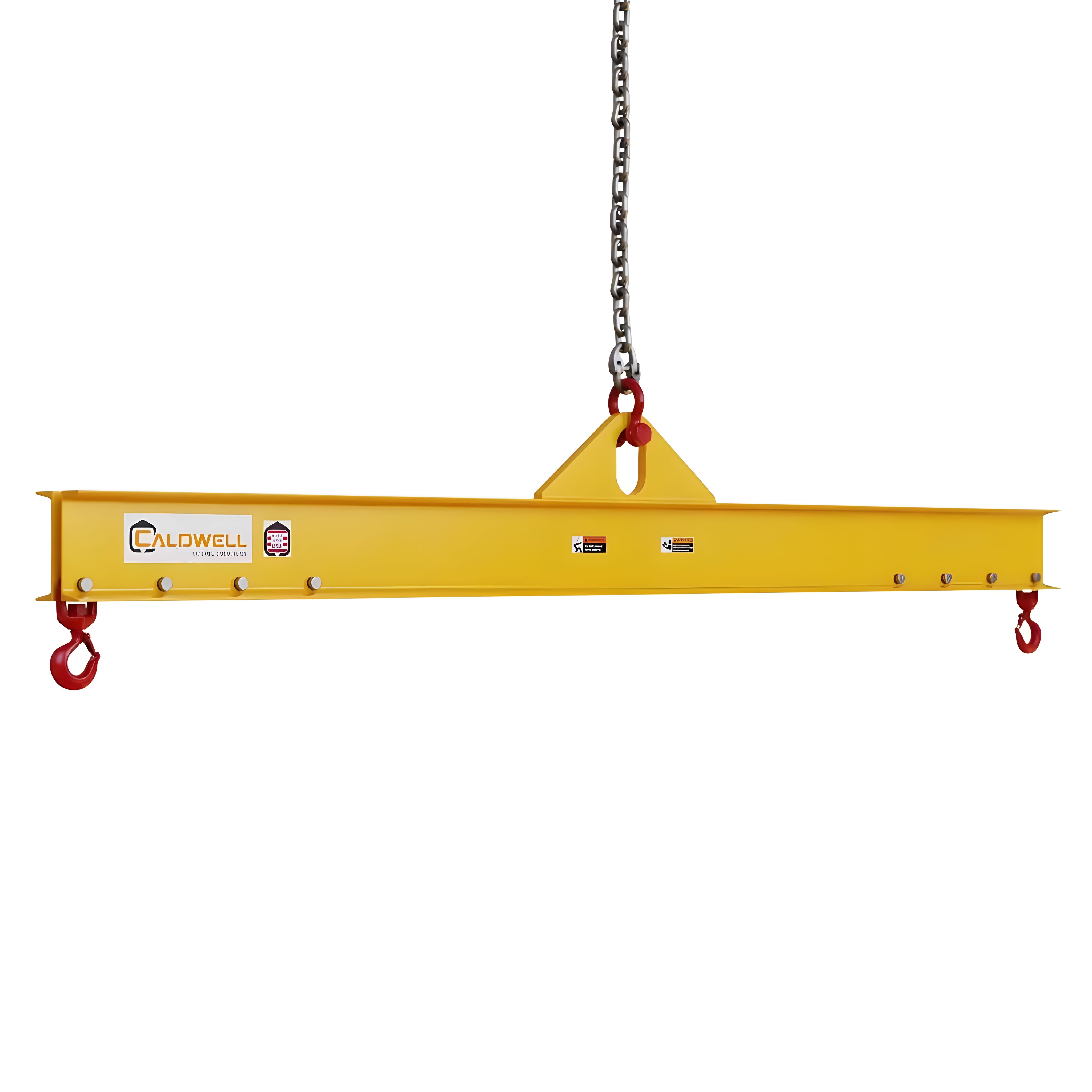

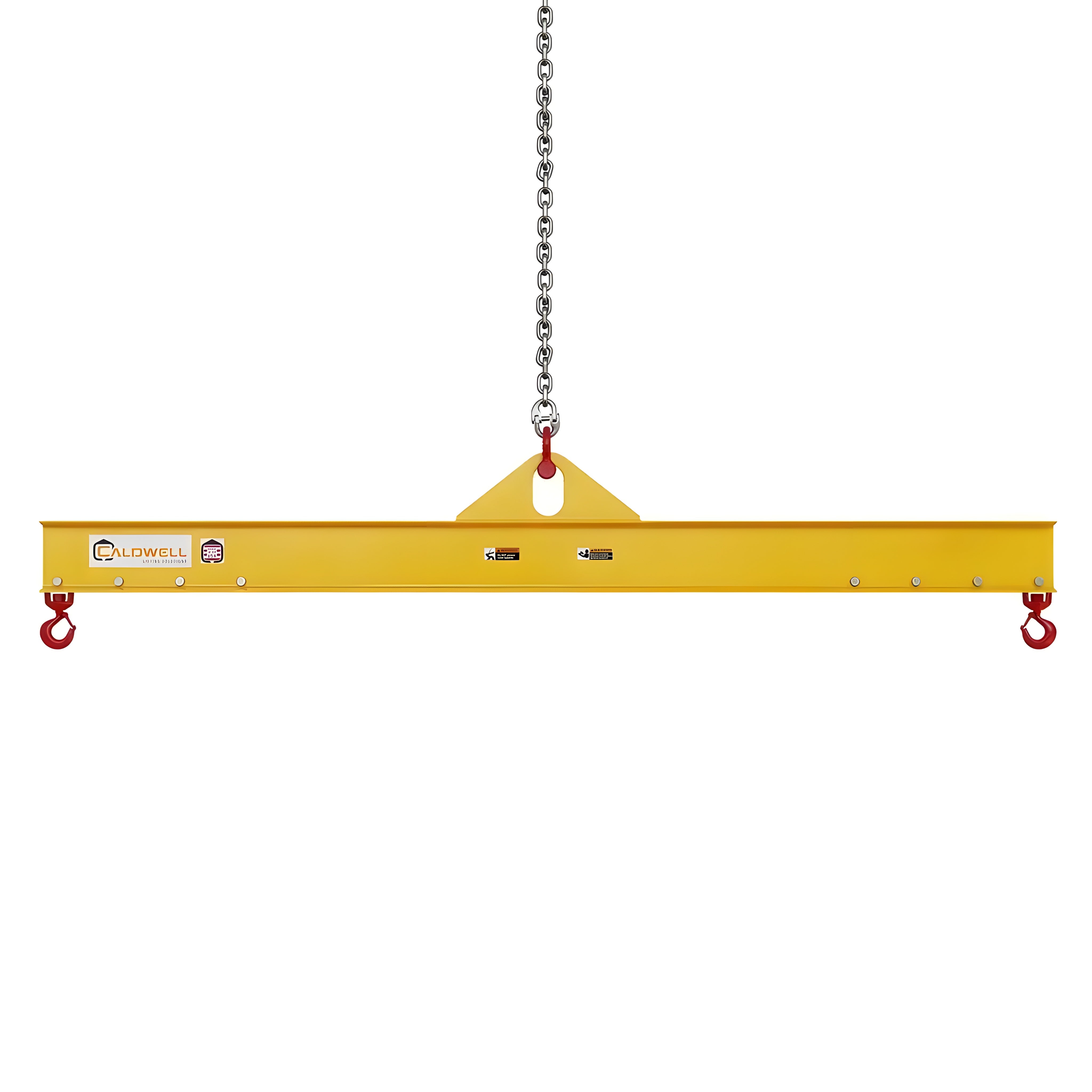

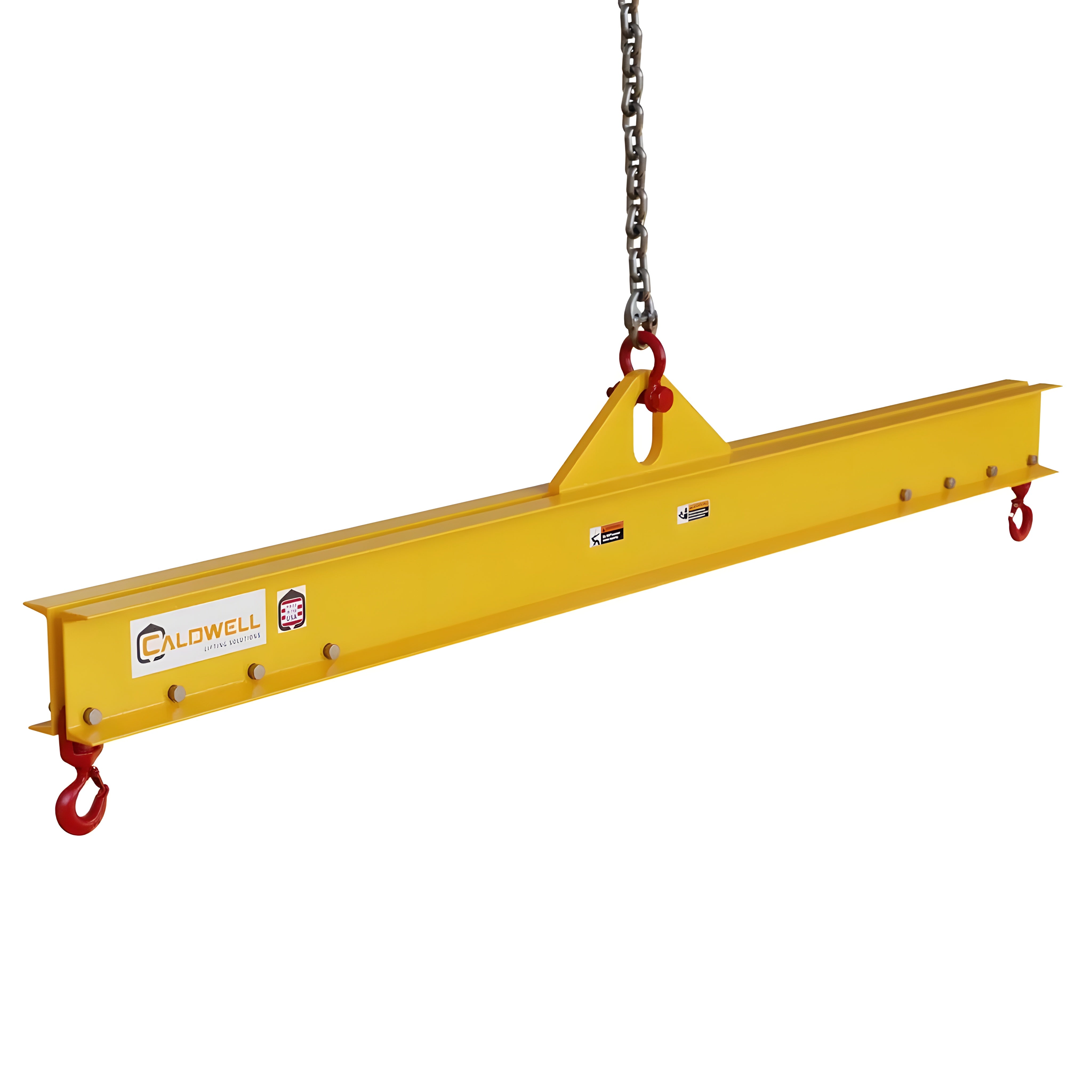

Low-Headroom Multiple-Spread Lifting Beam – 4ft - 1 Ton - Model 20 – Caldwell

SKU: 34-200202 ONE TON
$970.00
Estimated Lead Time:

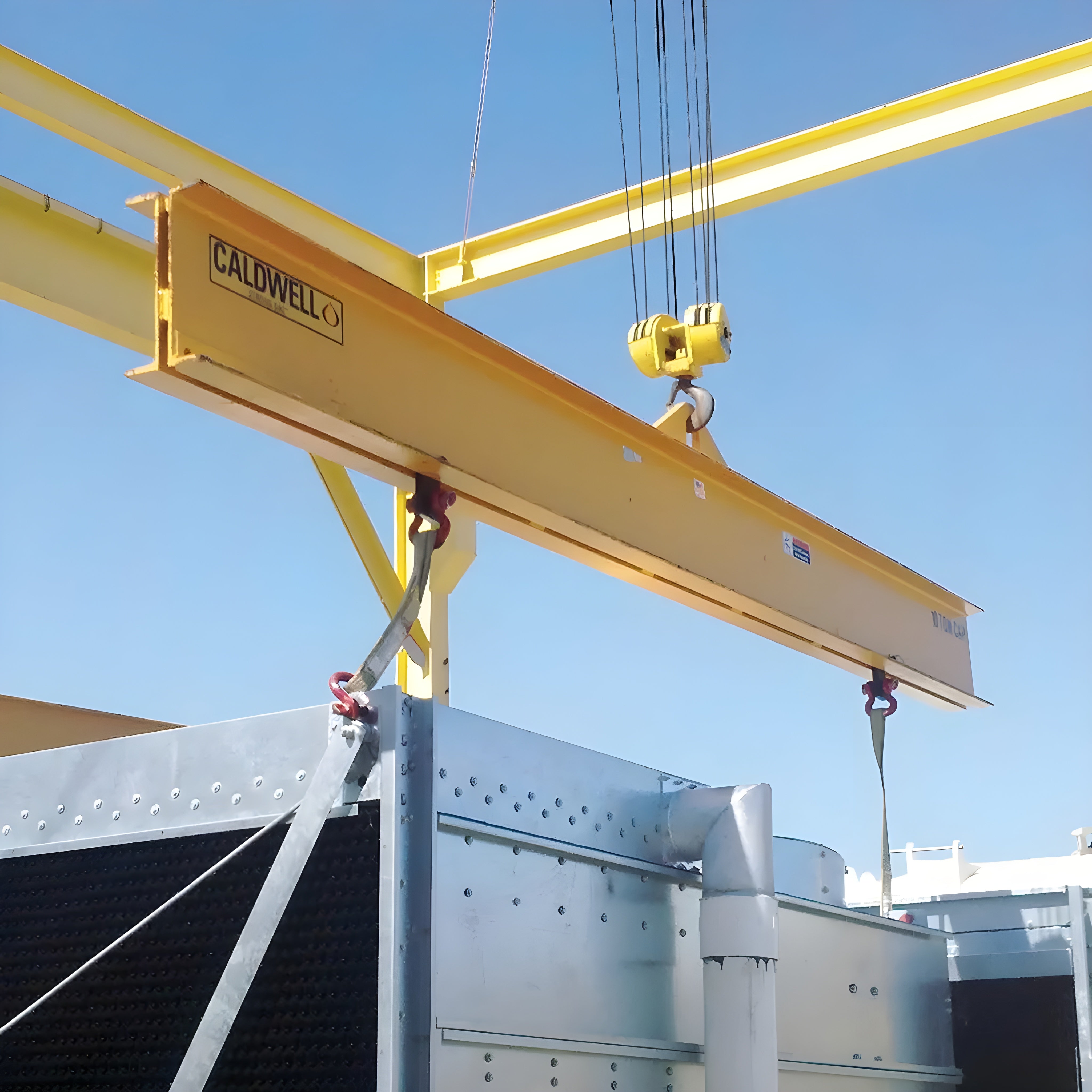

Versatility is the name of the game with the Model 20 Low-Headroom Multiple-Spread Lifting Beam. Used across the country in manufacturing and industrial applications, it's a favorite on construction sites, too.

Made in the USA
  • Model Number: 20-1-3
  • Capacity: 1 Ton

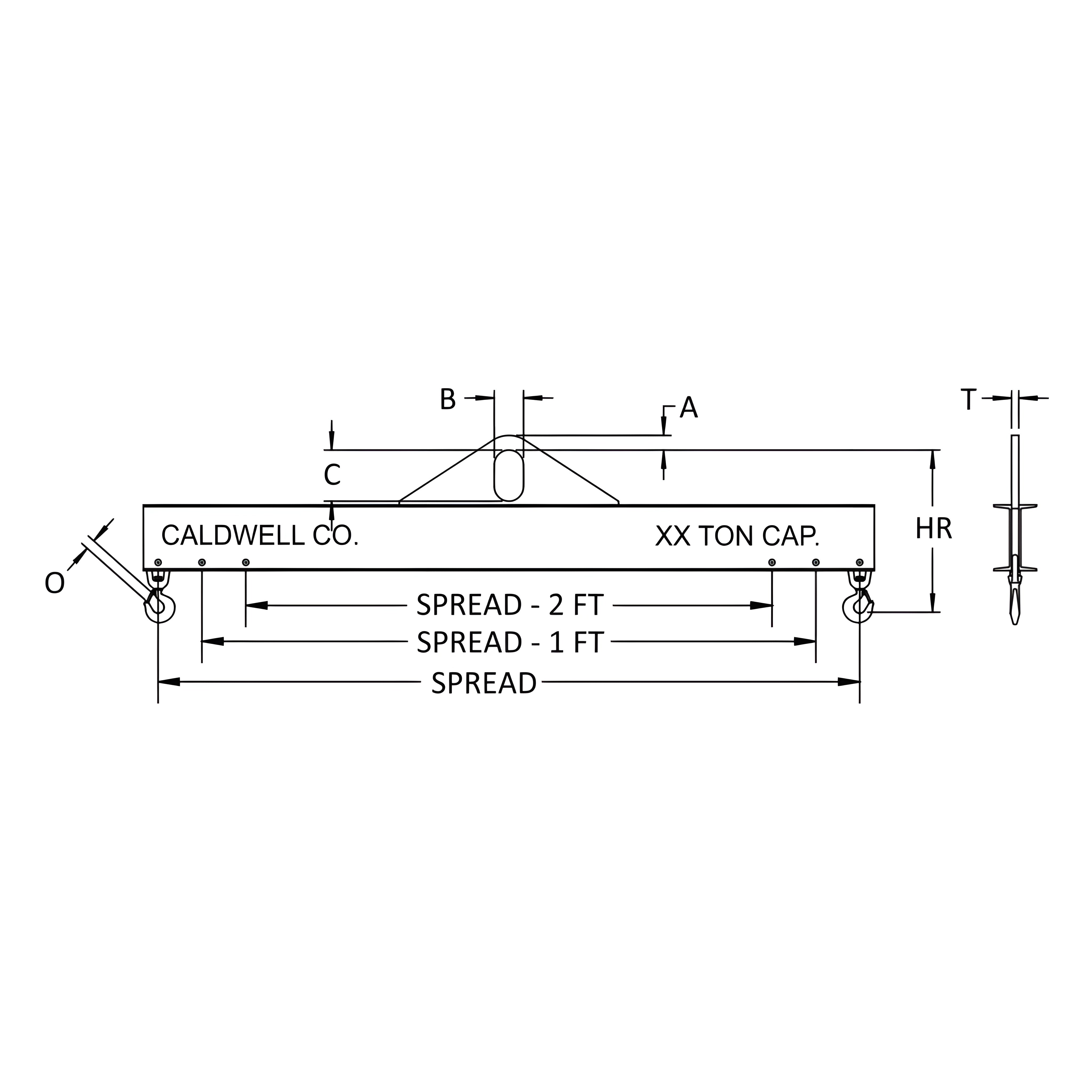

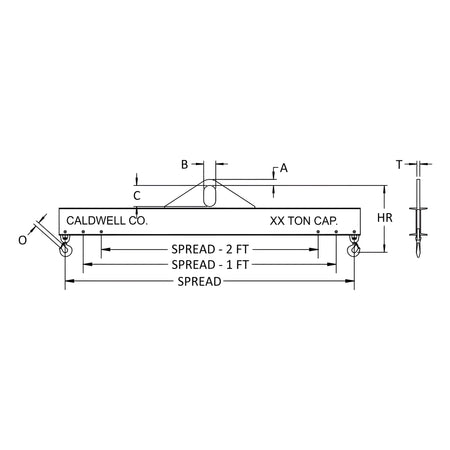

  • Max Spread: 36"
  • Headroom: 12.75"
  • Bail Depth: 0.88"
  • Bail Opening Width: 3"
  • Bail Opening Height: 5"
  • Bail Thickness: 0.75"
  • Hook Opening With Latch: 0.88"
  • Weight: 40 lbs
  • I-Beam Construction With Two Lifting Spreads
  • Swivel Hooks With Hook Latches Included
  • Custom Options: Extra Holes, Additional Shackles/Hooks, Pin-Type Bail
  • Complies With ASME Standard.

Spec Sheet (PDF)
User Manual (PDF)
