Adjustable Pipe Tong – 7" to 12" Diameter – 1 ton - Model PLT – Caldwell

SKU: 108-1-7/12
Regular price $1,396.88
Estimated Lead Time:

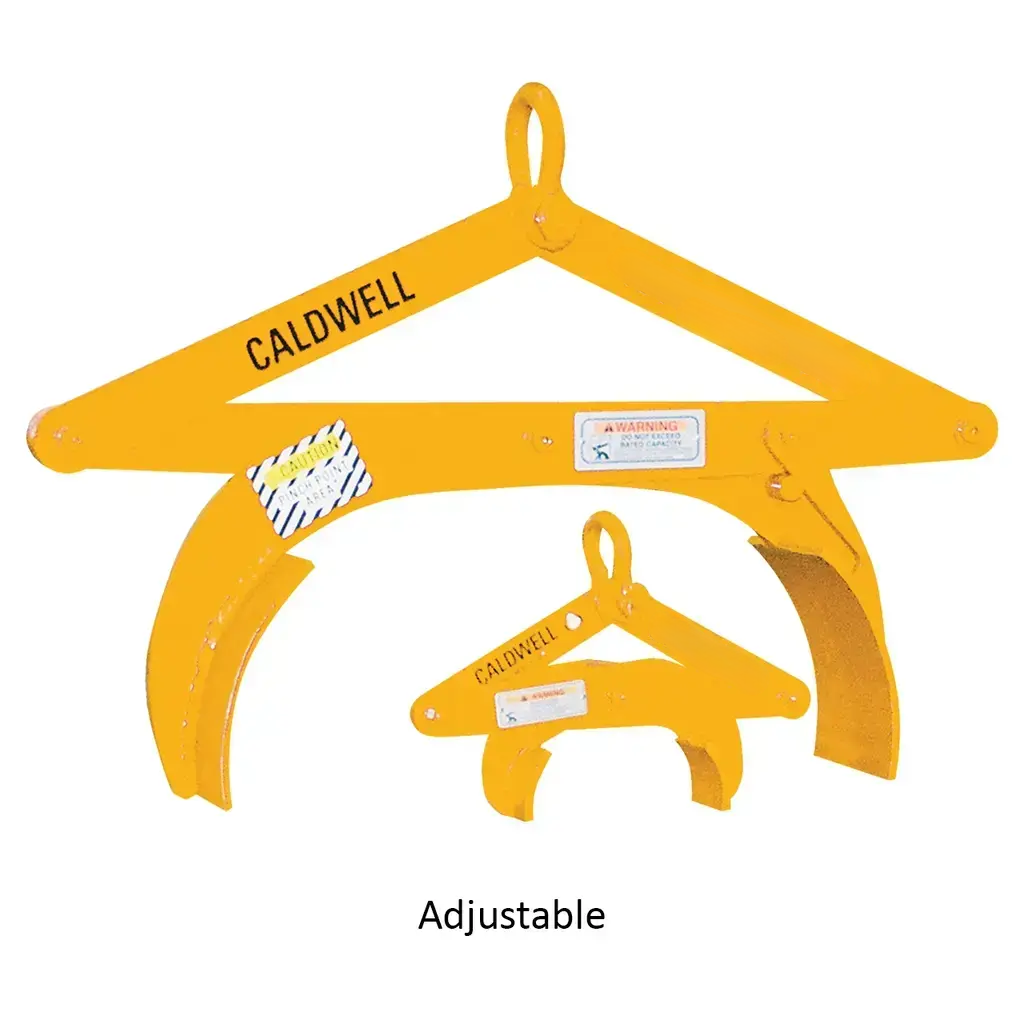

The Caldwell PLT Adjustable Pipe Tong (Model 67-084) is engineered for safe and efficient handling of pipe, round bars, and cast pipe. Constructed with heavy-duty steel curved gripping arms, these tongs are fully adjustable to lift pipe diameters ranging from 7" to 12". Optional replaceable polyurethane pads are available to protect smooth or polished surfaces, making this tong ideal for a wide variety of applications. For maximum safety and stability, the PLT Adjustable Pipe Tong should be used in pairs with a lifting or spreader beam. With a 2000 lb capacity and compliance with ASME standards, this tong delivers the strength, safety, and reliability needed for industrial, fabrication, and construction environments. Dependable and easy to use, it’s the perfect solution for secure pipe handling. Need a custom setup? Give us a call to configure one for your lifting needs.
  • Model Number: 67-084 (PLT Adjustable)
  • Capacity: 2000 lbs
  • Headroom (Max): 35.81 in
  • Headroom (Min): 25.95 in
  • Pad Width: 6 in
  • Weight: 49 lbs
  • Pipe Diameter Range (Bare Steel): 7 in – 12 in
  • Pipe Diameter Range (With Urethane Pads): 6.25 in – 11.25 in
  • Shackle Opening: 1.31 in
  • Shackle Thickness: 0.5 in
