Adjustable Pipe Tong – 4" to 8" Diameter – 1 ton - Model PLT – Caldwell

SKU: 108-1-4/8
Regular price $1,196.25
Estimated Lead Time:

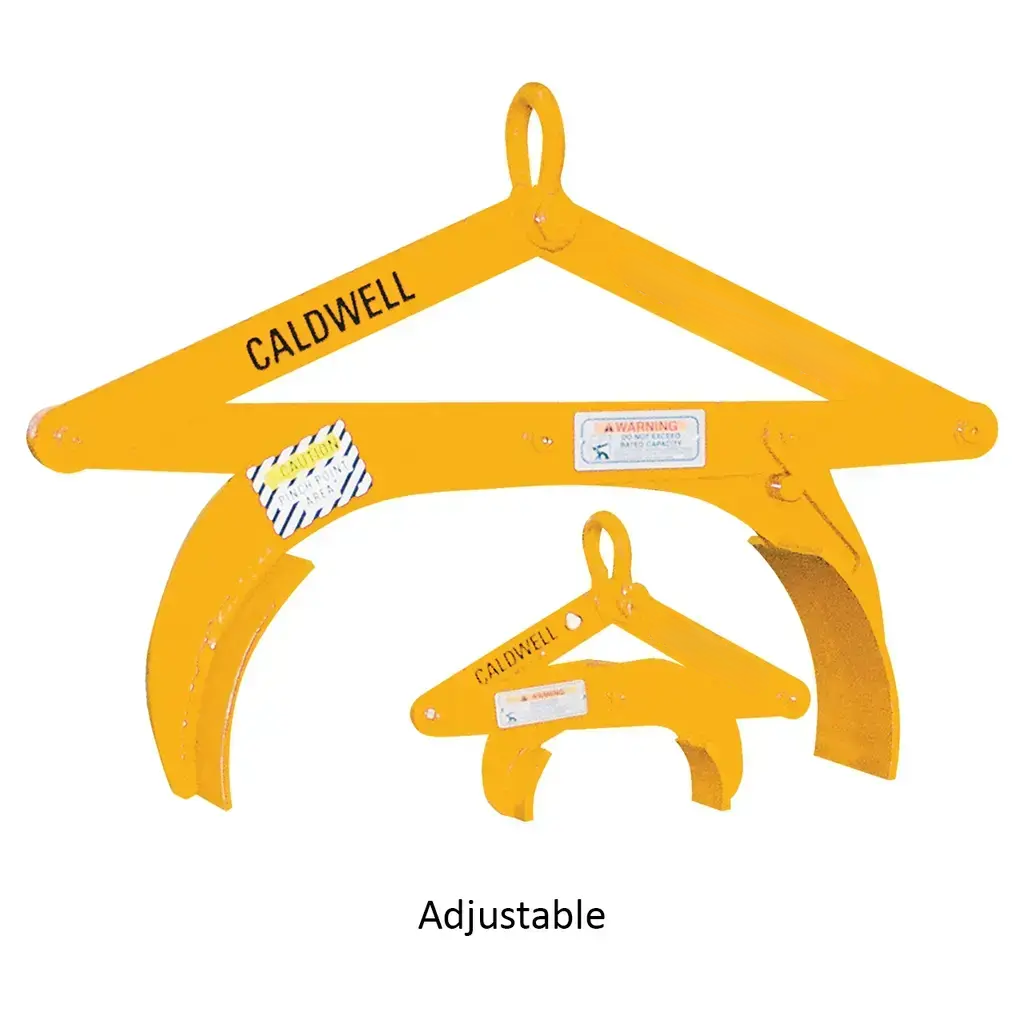

The Caldwell PLT Adjustable Pipe Tong (Model 67-083) is designed for safe and efficient lifting of pipe, round bars, and cast pipe. Constructed with sturdy steel curved gripping arms, these tongs are adjustable to accommodate pipe diameters ranging from 4" to 8". Optional replaceable polyurethane pads are available to protect smooth or polished surfaces, making the tong suitable for sensitive applications. For maximum stability, these tongs should be used in pairs with a lifting or spreader beam. With a load capacity of 2000 lbs and compliance with ASME standards, the PLT Adjustable Pipe Tong is a dependable solution for industrial, fabrication, and construction lifting needs. Rugged, versatile, and easy to use, it delivers both safety and performance. Need a custom solution? Give us a call to configure one tailored to your application.
  • Model Number: 67-083 (PLT Adjustable)
  • Capacity: 2000 lbs
  • Headroom (Max): 26.49 in
  • Headroom (Min): 19.18 in
  • Pad Width: 5 in
  • Weight: 29 lbs
  • Pipe Diameter Range (Bare Steel): 4 in – 8 in
  • Pipe Diameter Range (With Urethane Pads): 3.25 in – 7.25 in
  • Shackle Opening: 1.31 in
  • Shackle Thickness: 0.5 in
