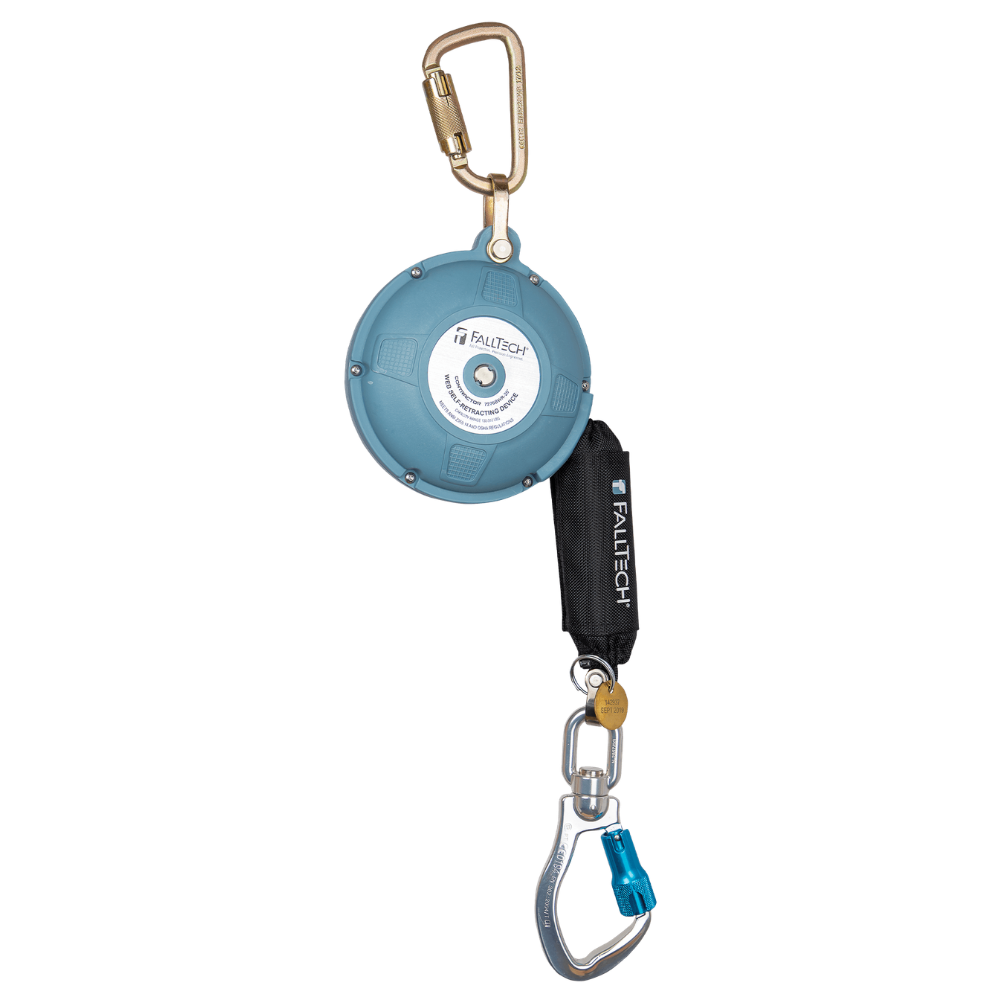

20' Contractor Web Class 1 SRL with Swivel Aluminum Carabiner – FallTech

SKU: 7276BWR
$412.00
Estimated Lead Time:1 to 2 Days

The FallTech 20' Contractor Web Class 1 Self-Retracting Lifeline is engineered to deliver dependable fall protection with smooth, controlled deceleration. It features a Dyneema® web lifeline that resists abrasion while maintaining trusted strength for demanding jobsite conditions.

The durable glass-filled nylon housing surrounds an internal steel frame to provide exceptional impact resistance. An internal braking system combined with an external energy absorber ensures positive stopping action and consistent deceleration. The external energy absorber is protected by a ViewPack® cover with an inspection window and WrapPack label protection for easy visual inspection. The SRL includes an aluminum alloy swivel carabiner for lifeline connection and an alloy steel anchorage carabiner.
  • Product Type: Self-Retracting Lifeline (SRL)
  • Lifeline Length: 20 ft
  • SRL Class/Type: Class 1 SRL
  • Webbing: Dyneema®; 4,500 lb minimum static strength
  • Energy Absorber: Polyester tear-away
  • Lifeline Connector: Aluminum alloy; 5,000 lb minimum static strength, 3,600 lb gate strength
  • Anchorage Connector: Plated alloy steel; 5,000 lb minimum static strength, 3,600 lb gate strength
  • Static Strength: 3,600 lb minimum
  • Average Arrest Force: 900 lb
  • Maximum Arrest Force: 1,800 lb
  • Maximum Arrest Distance: 42 in
  • ANSI User Capacity: 130 to 310 lb maximum
  • OSHA User Capacity: 130 to 310 lb maximum
  • Compliance: ANSI Z359.14-2021, OSHA 1926.502 and 1910.66

User Manual (PDF)
