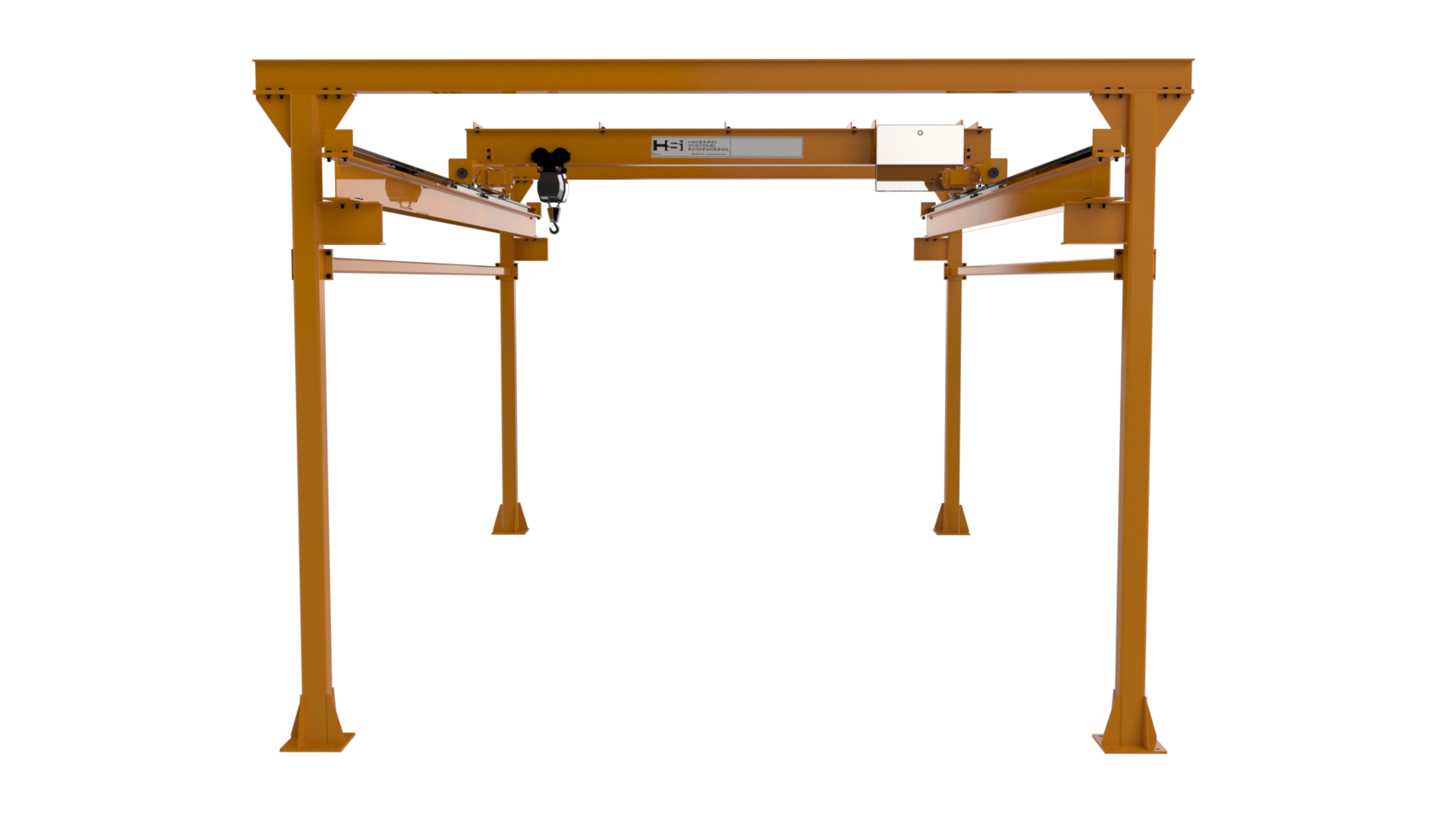

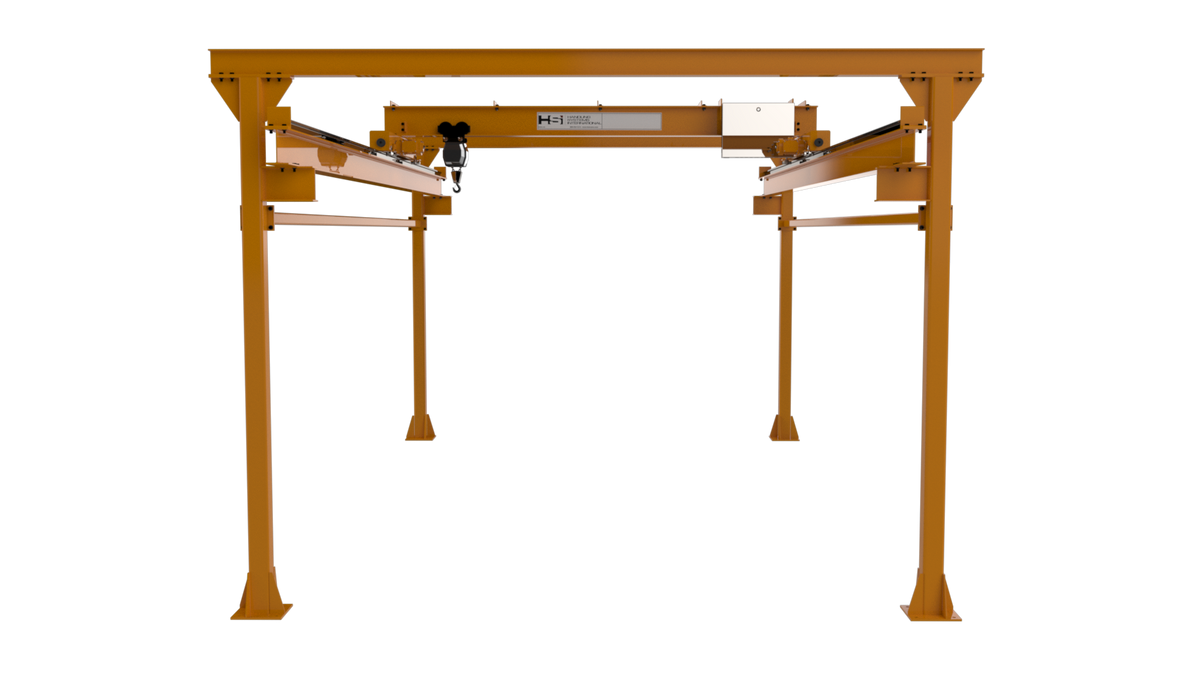

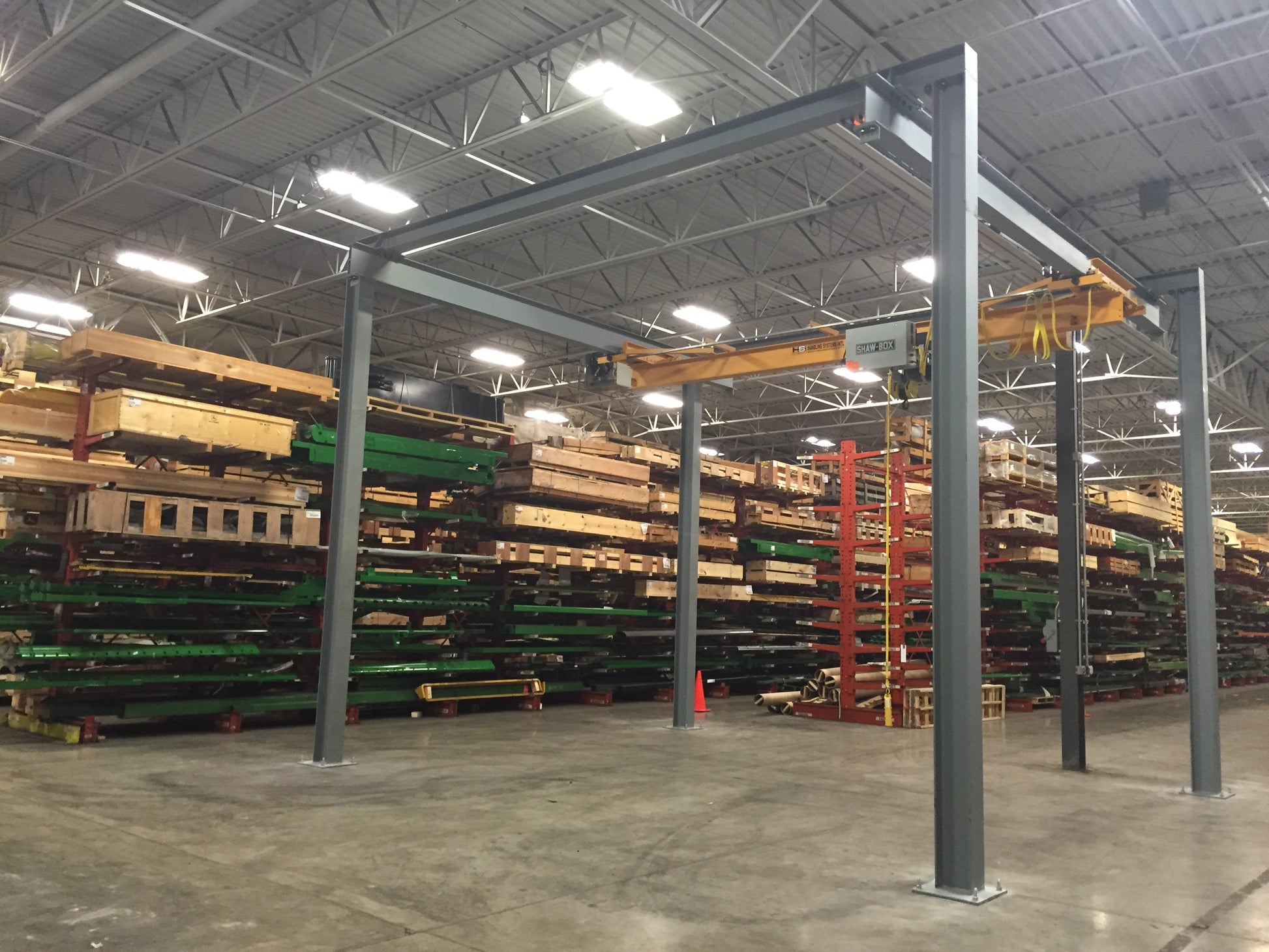

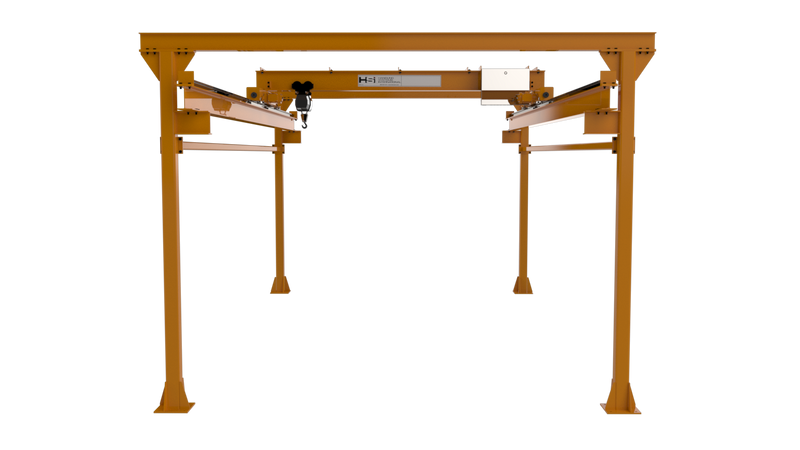

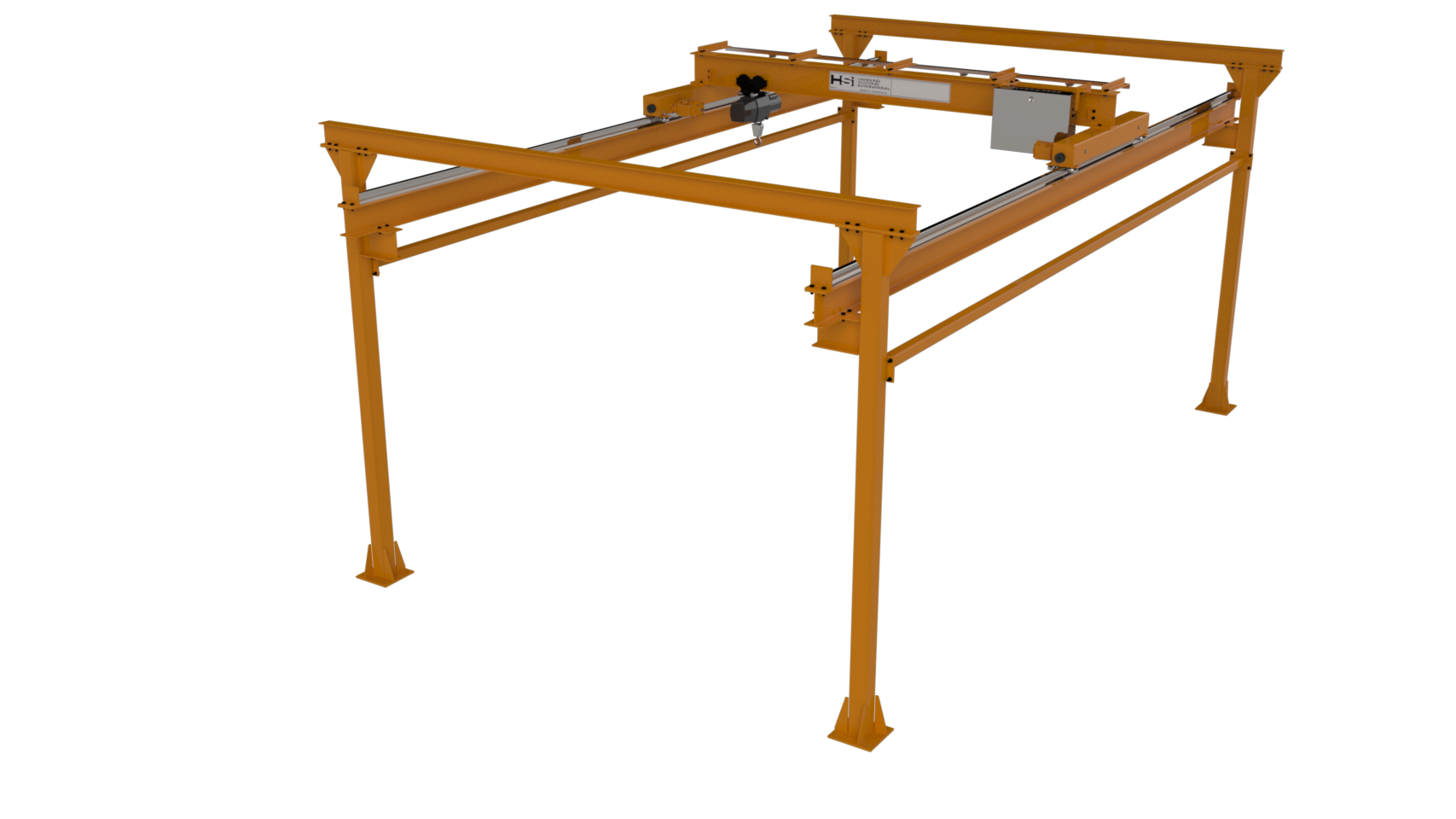

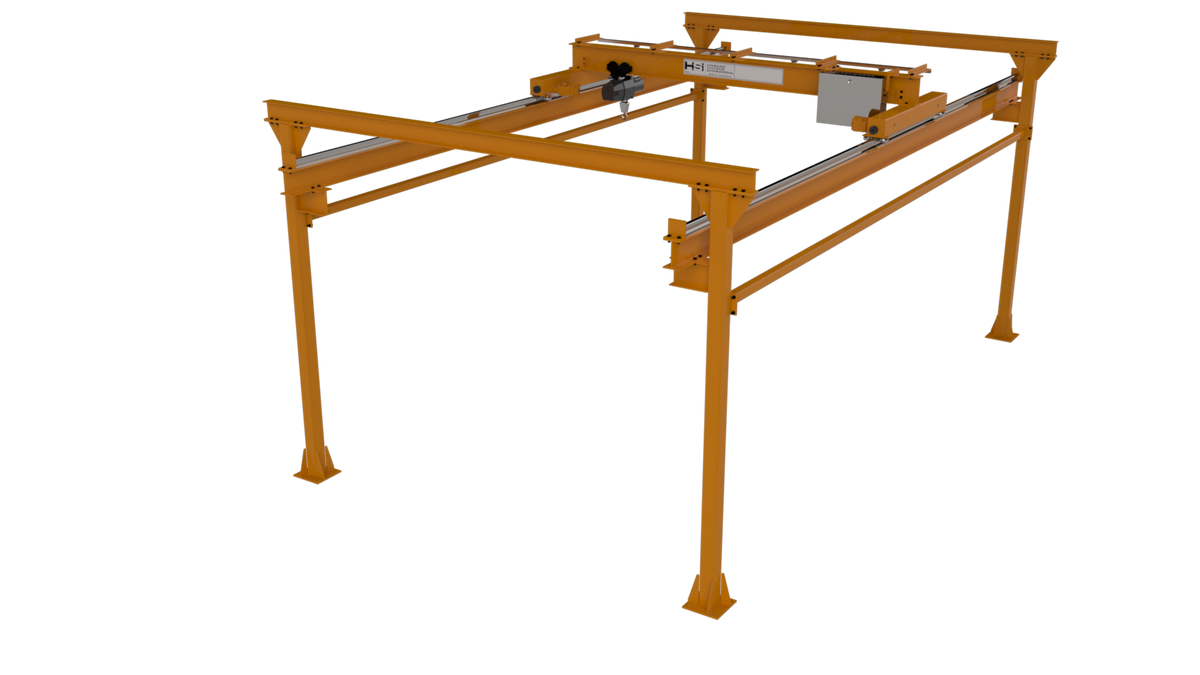

Freestanding bridge crane system that includes the support structure, traveling bridge crane, electric chain hoist and festoon system. The fully motorized x,y,z motions increase production efficiency and safety.
Made in the U.S.A.
- Capacity: 2 ton (4,000 lbs.)
- Lift Height: 15'-0"
- Overall Height: ±18'
- No. of Column: 4 (20' runway), 6 (40' runway) or 8 (60' runway)
- Voltage: 460v-3ph-60hz
- Bridge Speed: 80 fpm (VFD)
- Hoist Speed: 14 fpm (single speed)
- Trolley Speed: 40 fpm (single speed)
- Service: Indoor, Class C
- 8-button Pendant Station from Hoist/Trolley
- Yellow Bridge w/ Gray Support Structure
- Designed and Manufactured to CMAA, AISC & AWS Standards
Includes motorized end trucks, trolley & hoist. NEMA 4 control enclosure, flat cable festoon system for hoist power & control on bridge, conductor bar electrical system on runway.
DETAILED DIMENSIONAL DRAWING WILL BE PROVIDED FOR APPROVAL AFTER PURCHASE
*Typically ships in 6 to 8 weeks
