Pipe Hook – 2 ton - Model PH – Caldwell

SKU: PH-1
$66.56
Estimated Lead Time:

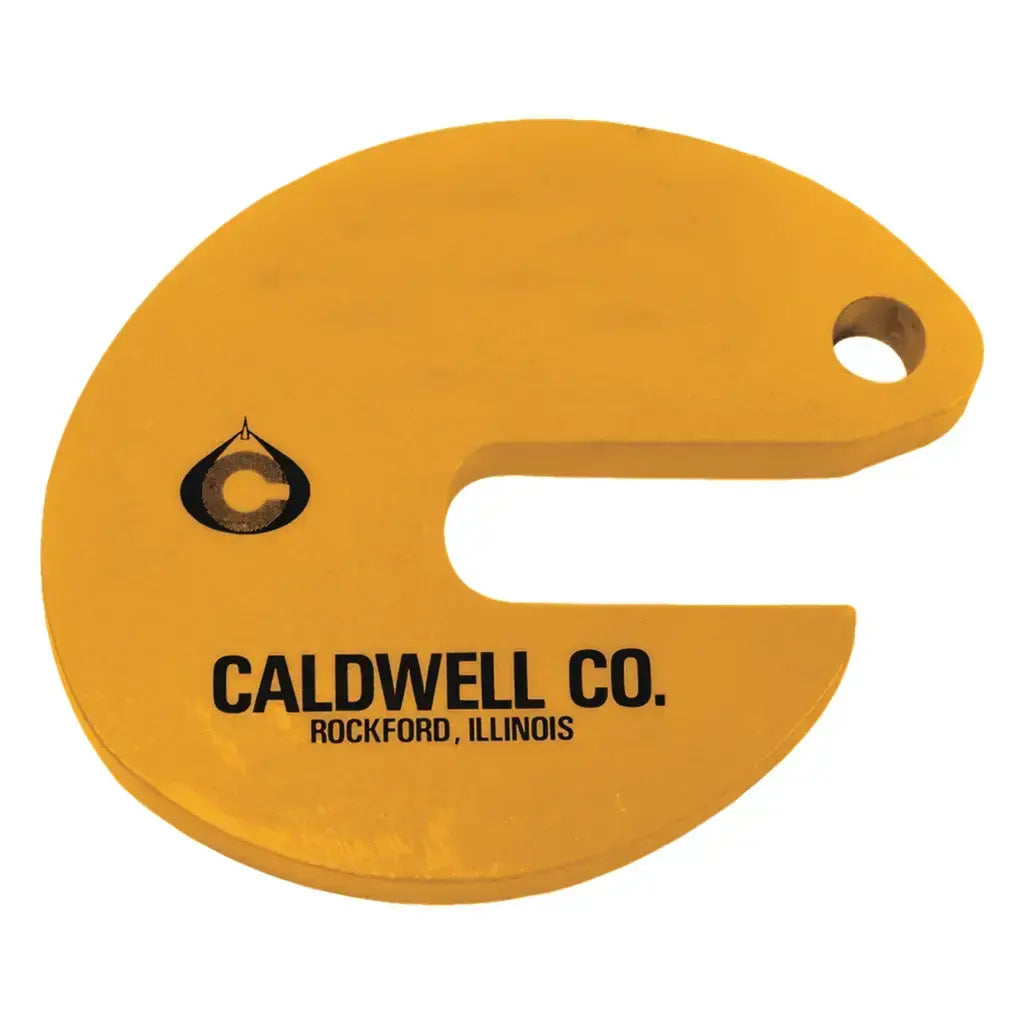

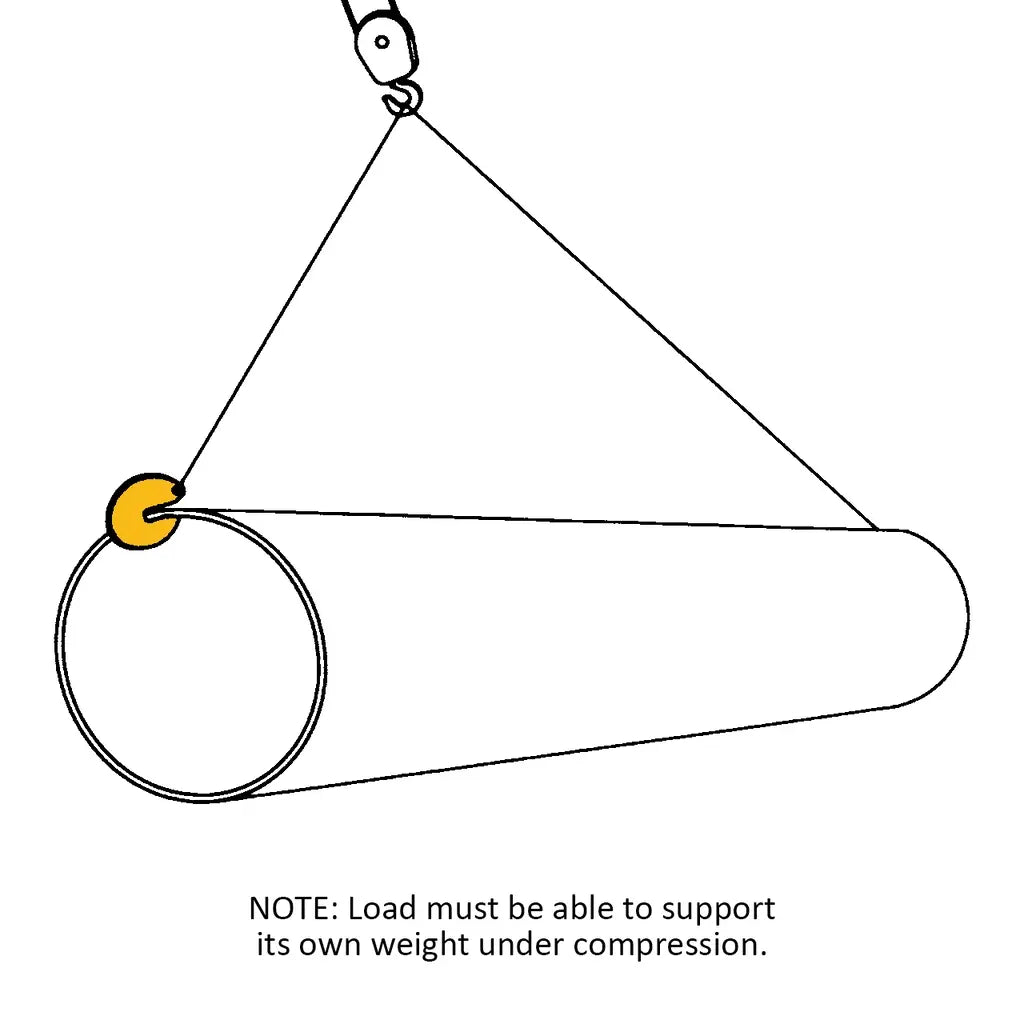

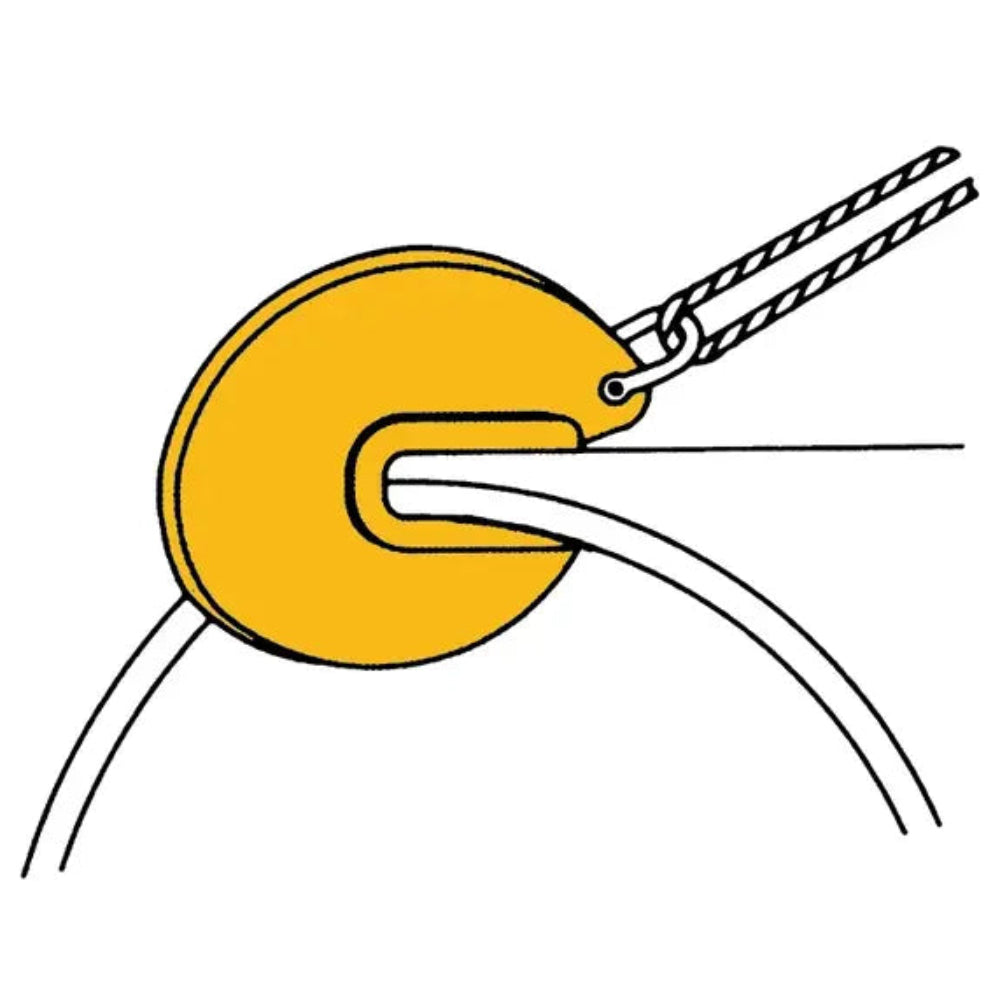

The Caldwell Model PH Pipe Hook is simplicity personified. Just attach a shackle to the lifting point, slide the “mouth” over the end of the pipe, and you’re ready to lift. Designed for handling both steel and cast iron pipe, this durable hook offers a fast and efficient way to move pipe sections safely. Built to comply with ASME standards, the PH-1 is intended for use only in pairs to ensure load stability.
  • Model Number: PH-1
  • Capacity: 2 tons
  • Bolt Type Anchor Shackle Capacity: 2 tons
  • Weight: 7 lbs
  • Width: 3.75 in
  • Shackle Pin Diameter: 0.62 in
  • Sling Diameter: 0.63 in
  • Depth: 1.84 in
  • Hole Diameter: 0.69 in
  • Max Height: 5.24 in
  • Max Opening: 1.5 in

Spec Sheet (PDF)
