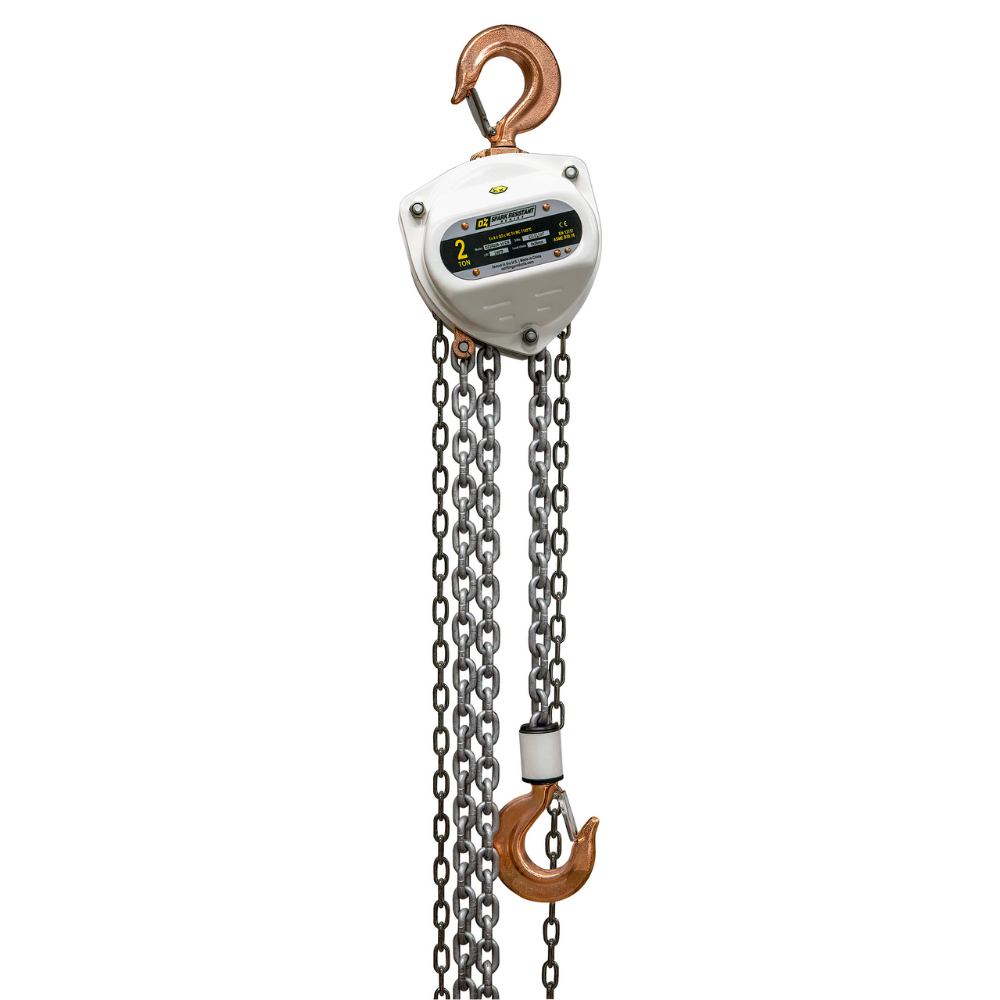

2 ton Hand Chain Hoist - Spark Resistant - OZ Lifting

SKU: OZSR020-10CH
$2,095.51
Lift
Estimated Lead Time:

The Spark Resistant Chain Hoist with a 2 T capacity delivers explosion-proof safety for applications in potentially explosive atmospheres. Conforming to EU standards ATEX94/9/EC and the Machinery Directive 2006/42/EC, it meets an explosion-proof level of EX II2 GD c IIIC T135°C. Suitable for Zone 1 & 2 (gas) and Zone 21 & 22 (dust) environments, this hoist ensures reliable and secure operation in demanding conditions.
  • Capacity: 4000 lbs
  • Certified explosion-proof for hazardous environments
  • Suitable for Zones 1 & 2 (gas) and Zones 21 & 22 (dust)
  • Type EX-F3 spark-resistant design
  • Dacromet® finish load chain provides a spark-resistant surface
  • Minimal lifting effort required (20%–35% less than competitors)
  • Unique hand wheel design prevents chain jamming and enables smooth operation from various angles
  • Fully-enclosed gearing protects gears from contamination and debris
  • Copper-plated hooks, hand wheel, and roller guides enhance spark-resistance
  • Stainless steel safety latches and hand chain
  • Fully-machined lift wheel
  • Versatile for both lifting and pulling applications
  • Low headroom design maximizes lift in confined spaces
  • Weather-proof load holding brake with a twin pawl system for secure load handling
  • Roller bearings on all gears and shafts for smooth, maintenance-free operation
  • Copper riveted ID tags with a unique serial number and test certificate for traceable performance
  • Includes a free spare set of latches

Data Sheet (pdf)
