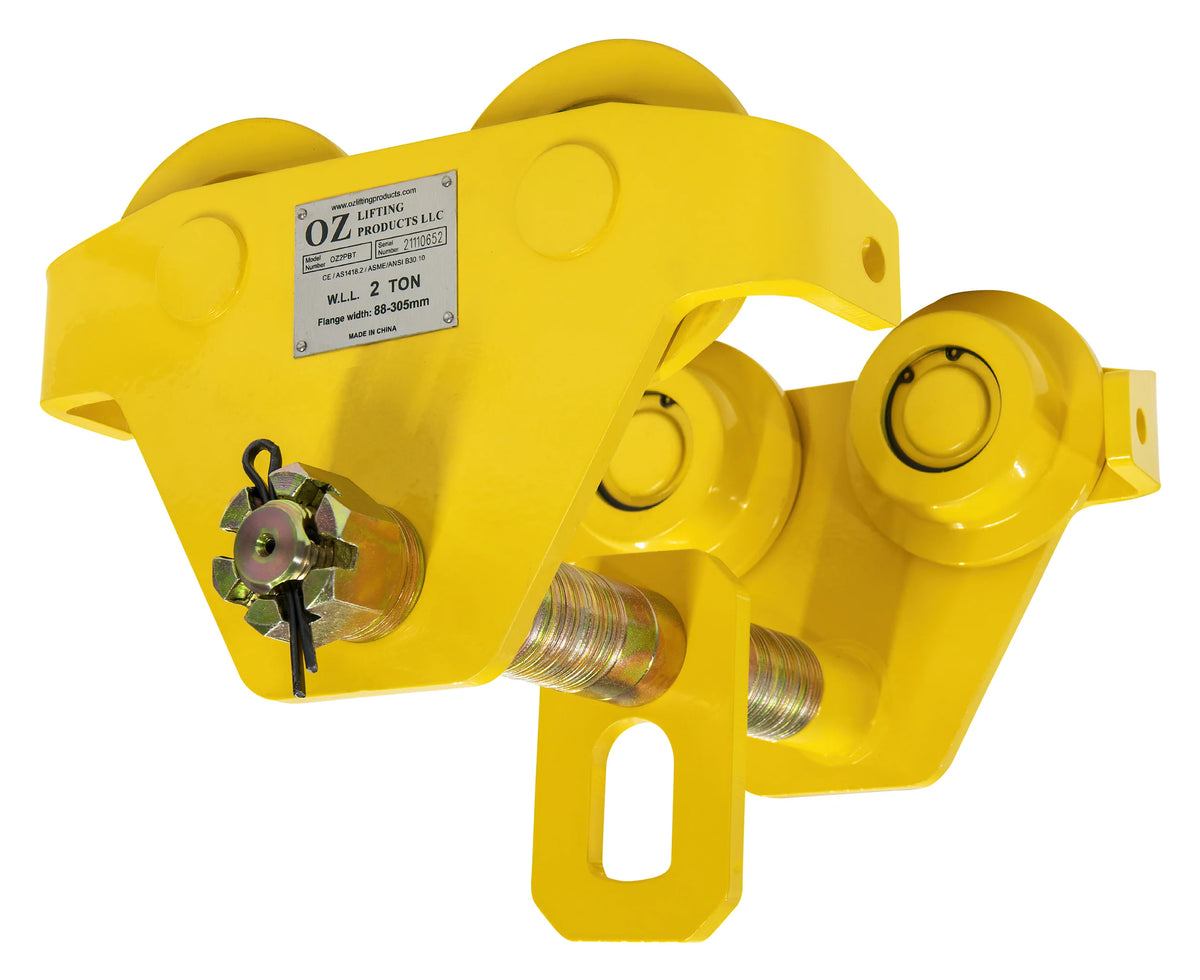

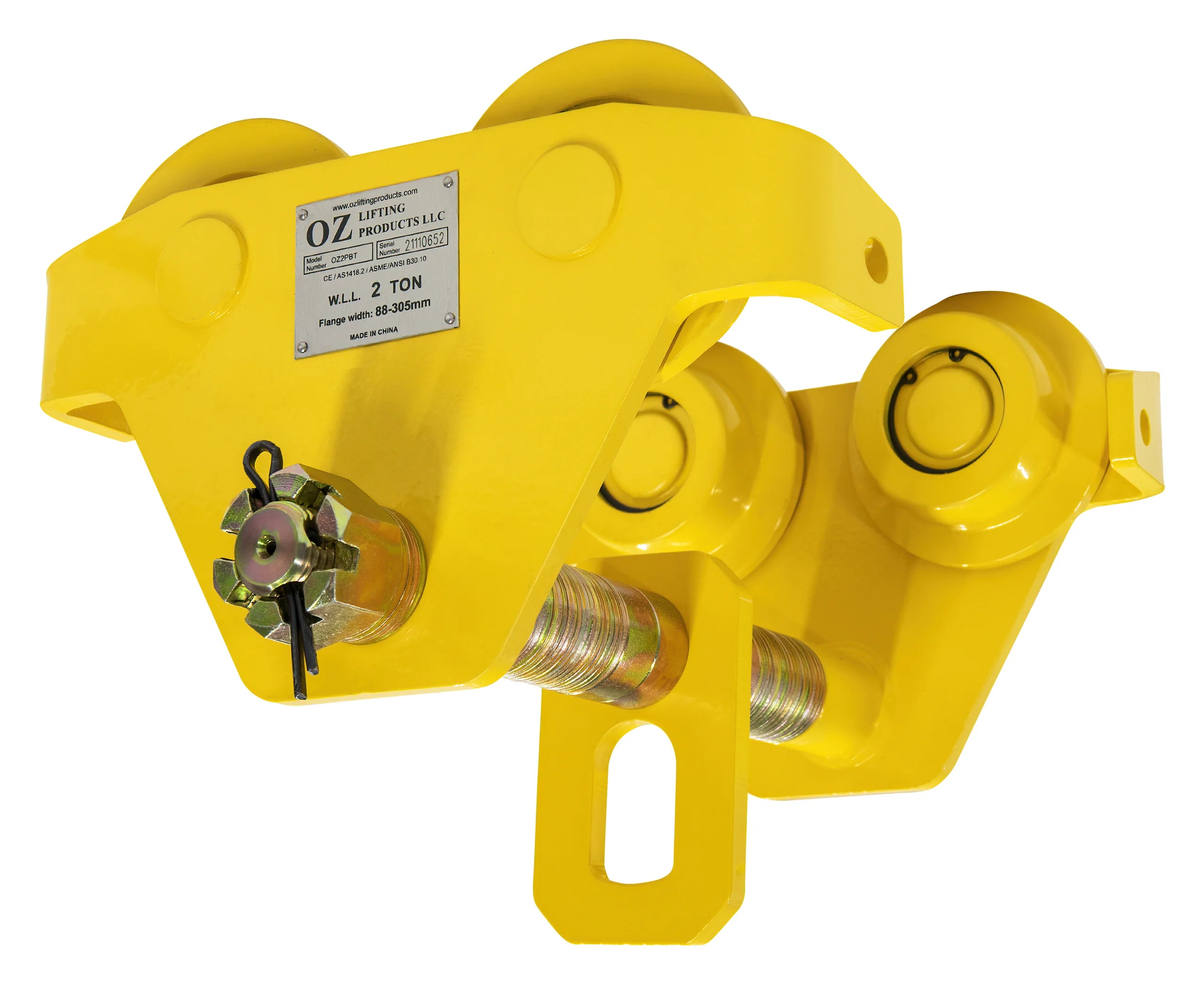

2 ton Electric Chain Hoist w/ Push Trolley - OZ EC - Single Speed - 115v|1 Phase

SKU: OZ4000EC-OZ2PBT
$2,319.56
Lift Length
Wireless Adapter
Estimated Lead Time:1 to 2 Weeks

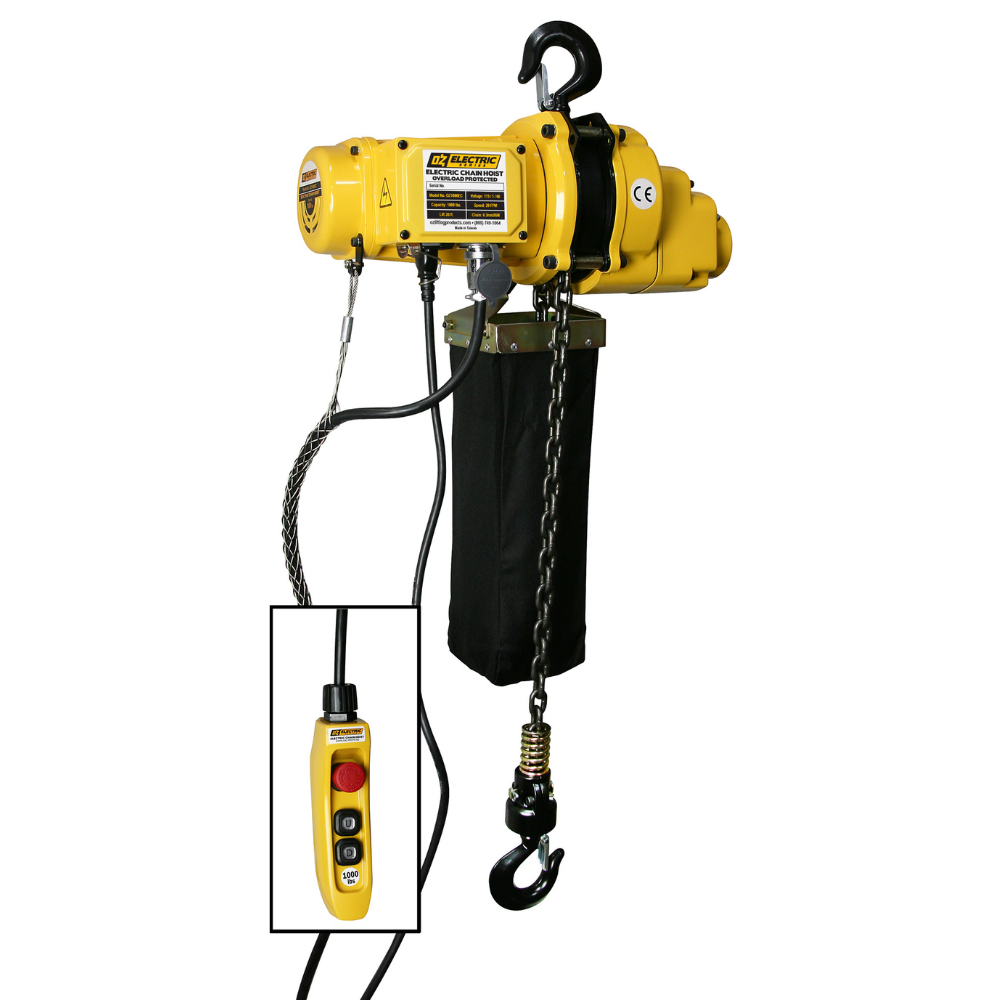

The Electric Chain Hoist offers top-tier performance with a 4000 lb lifting capacity and the option of wired or wireless remote control. Designed for heavy-duty lifting, this hoist features precision-machined gears and a dual braking system for safe, smooth operation. Its ability to operate on a standard 115V power source ensures versatility and reliability. Whether you choose wired or wireless control, the Electric Chain Hoist provides the power and flexibility needed for demanding industrial applications.


  • 2 ton Capacity
  • 6.5fpm Lifting Speed
  • Flange Range: 3.46" to 12"
  • 115v|1ph|60hz Power
  • Overload protection with a high-performance friction clutch
  • Forged carbon steel hooks, with bottom hook rotation to prevent chain twisting
  • Load sheave reduces vibration and wear for smooth lifting
  • Precision-machined, heat-treated gears with oil bath lubrication
  • Dual braking system for instant and safe operation
  • Grade 80 case-hardened alloy steel chain for long service life
  • H3 duty class with 30% duty cycle for versatile applications
  • Ergonomic IP64 pendant or remote controls with emergency stop
  • Lightweight, compact aluminum body
  • Includes durable vinyl chain bag
  • Individual serial number and test certificate

Data Sheet (pdf)

User Manual (pdf)
