Adjustable Spreader Beam – 4' to 6' Spread - 2 Ton – Model 32 – Caldwell

SKU: 34-3211
$1,661.00
Estimated Lead Time:

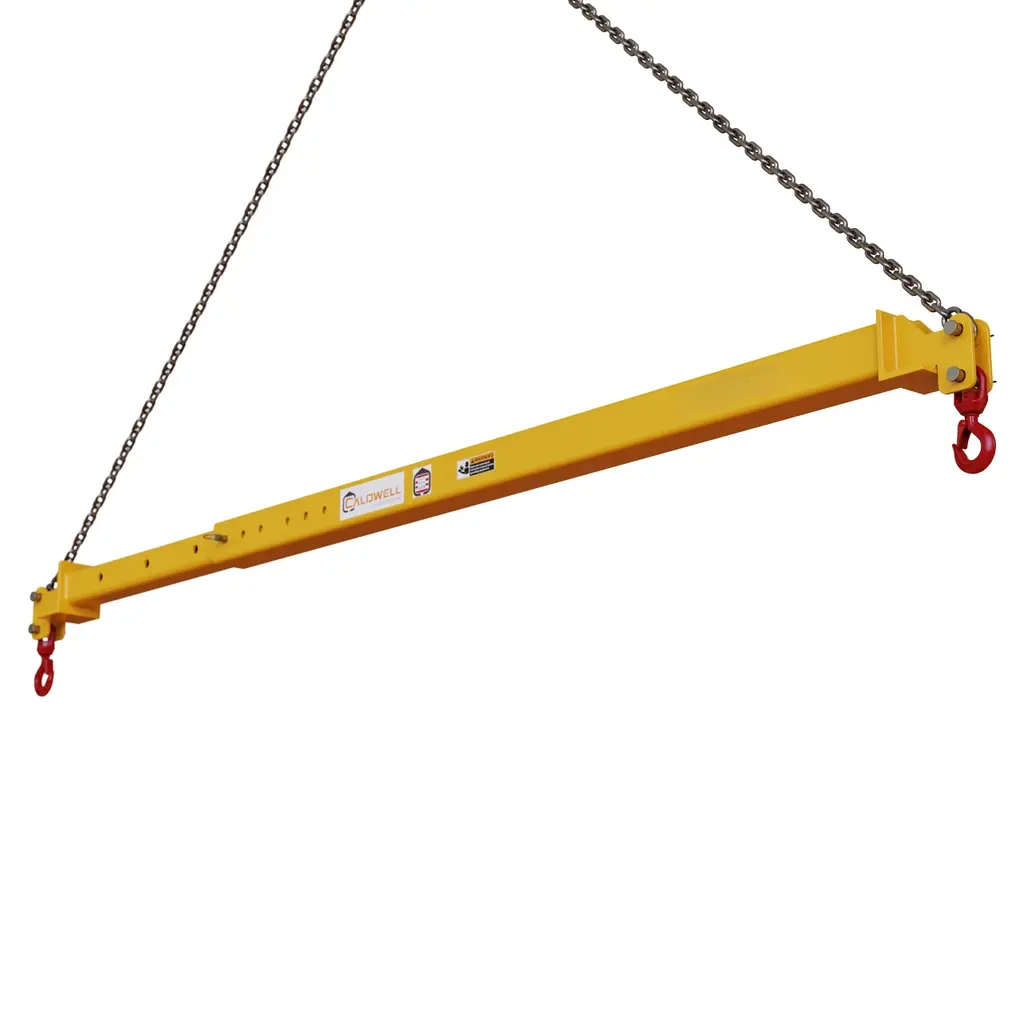

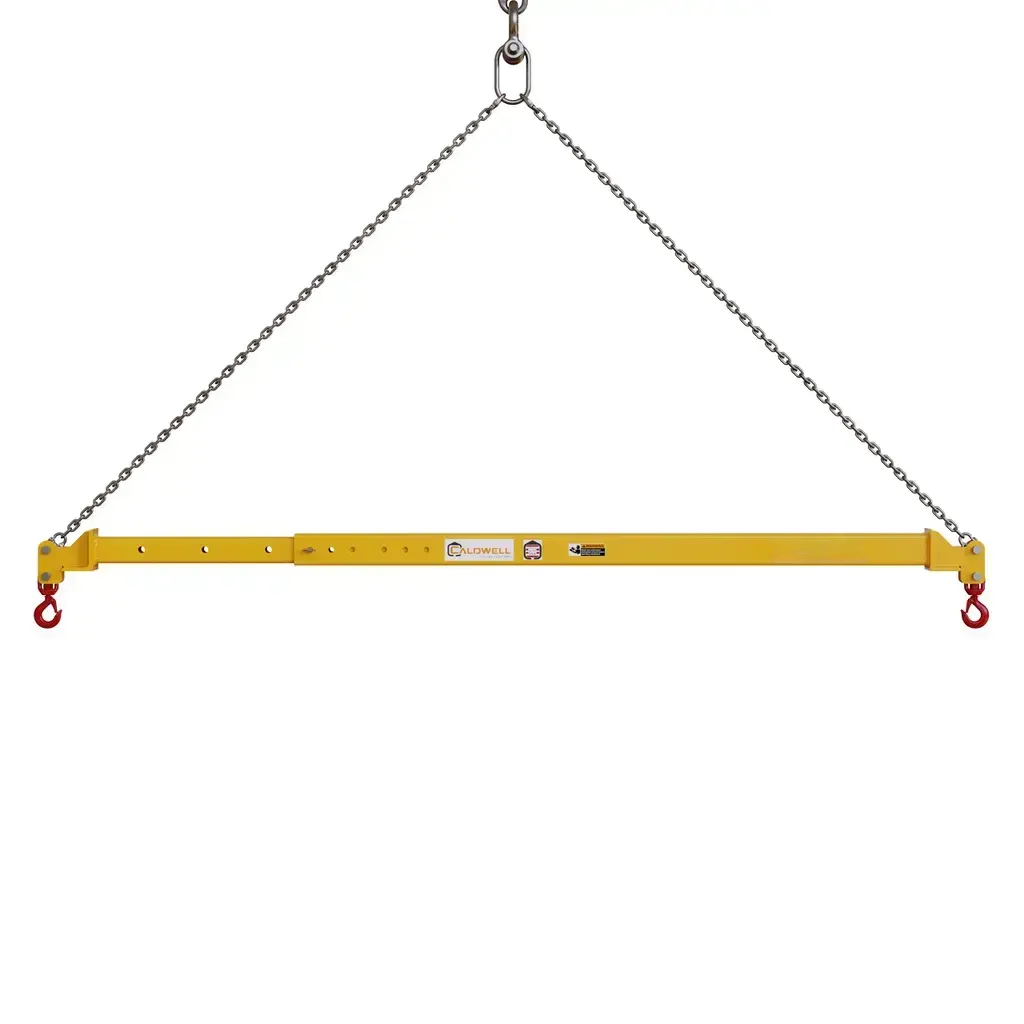

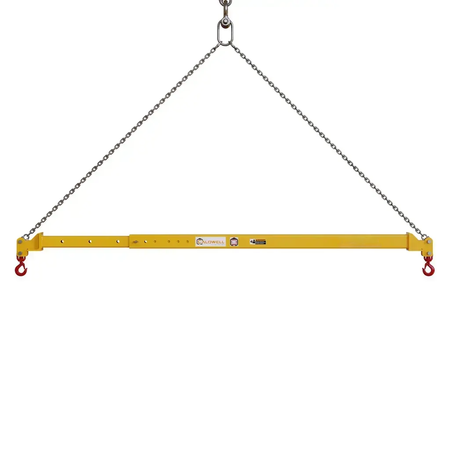

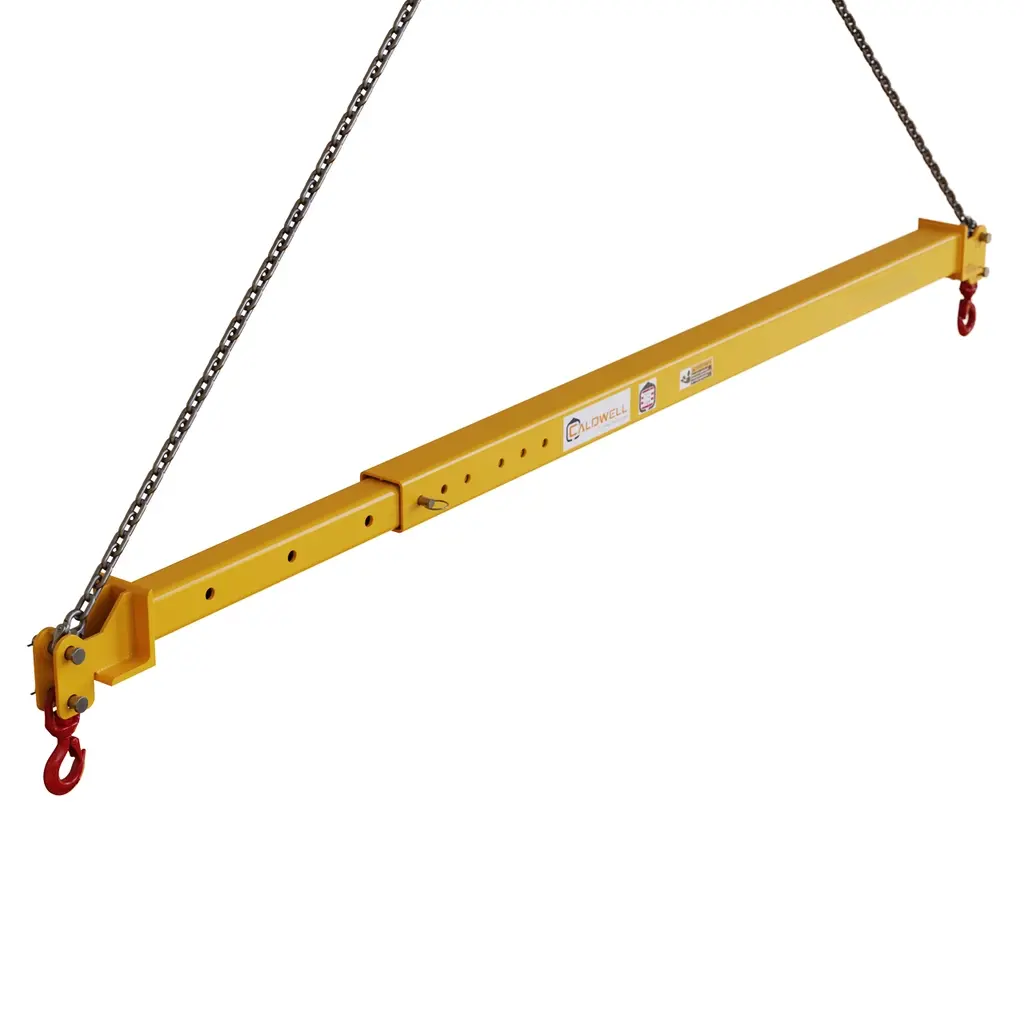

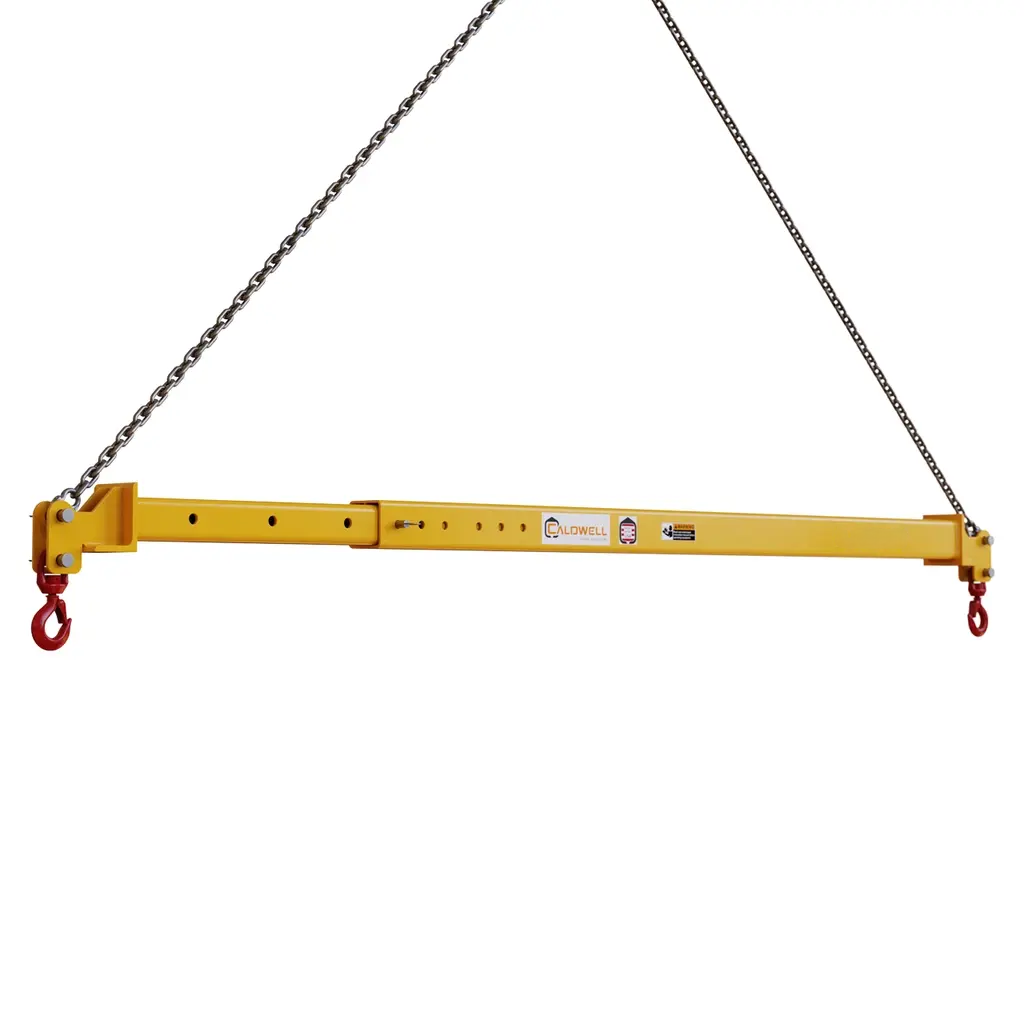

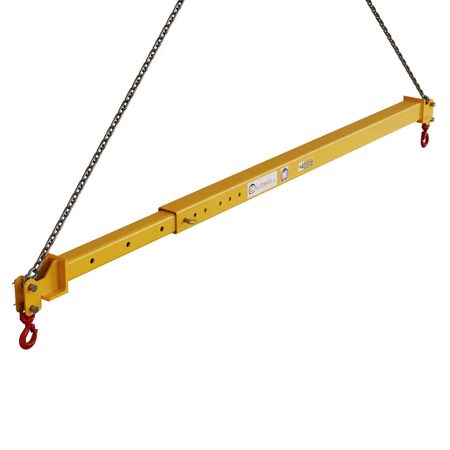

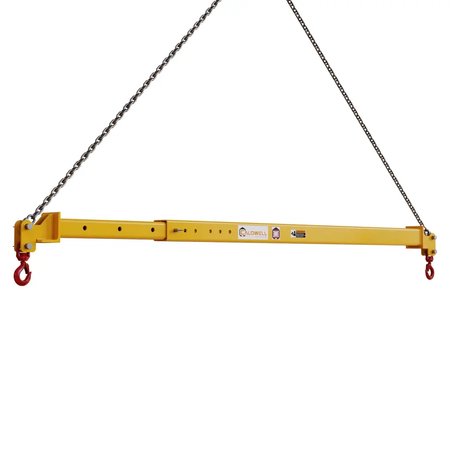

The Caldwell Model 32 Adjustable Spreader Beam with swivel hooks is designed for applications where headroom is not limited and added stability is required.

*Available with Chain or Wire Rope Rigging Upon Request*

Made in the USA
  • 4000 lbs Capacity

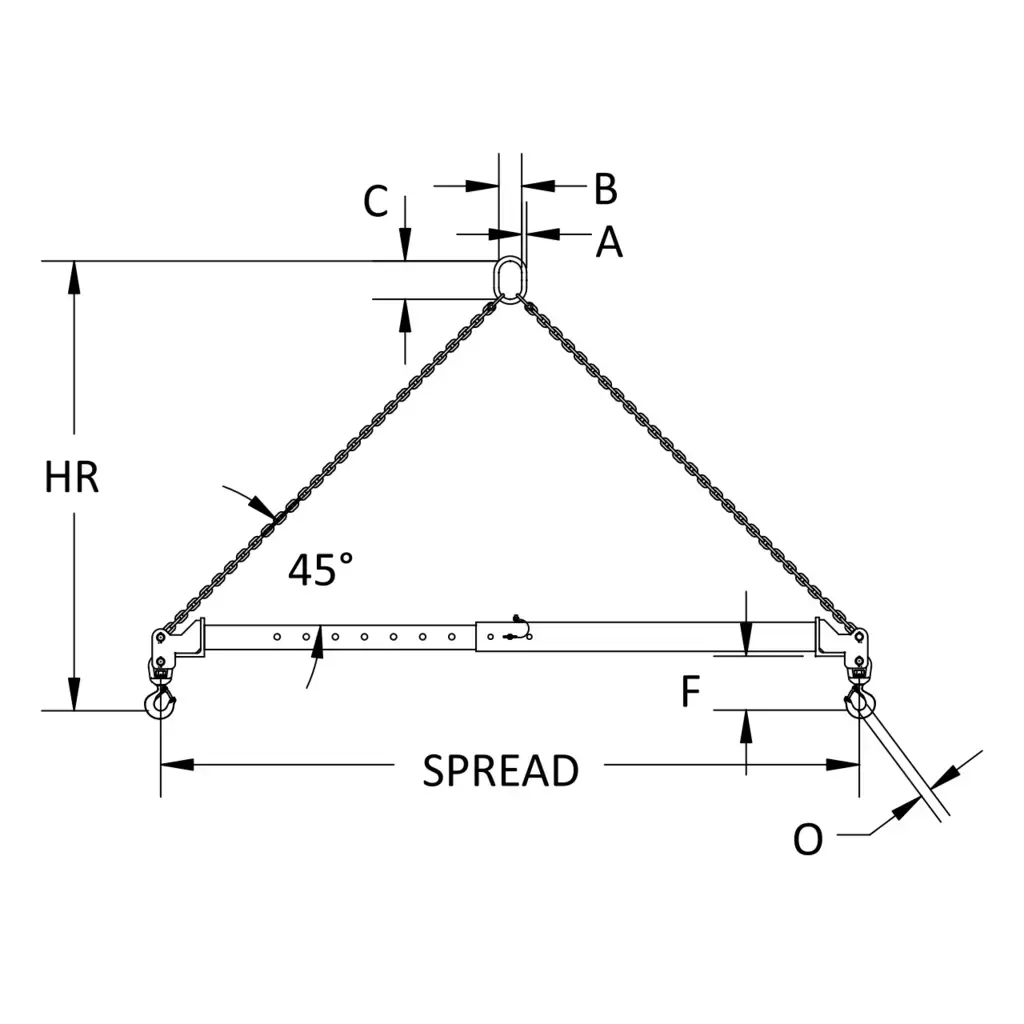

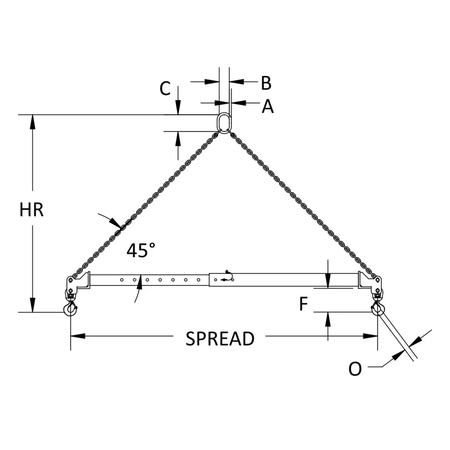

  • Bail Oblong Diameter: 0.5 in
  • Bail Opening Width: 2.36 in
  • Bail Opening Height: 3.94 in
  • Headroom Max: 57 in
  • Headroom Min: 48 in
  • Hook Clearance: 5.5 in
  • Hook Opening With Latch: 0.97 in
  • Max Spread: 6 ft
  • Min Spread: 4 ft
  • Complies with ASME standards

Spec Sheet (PDF)
