Adjustable Spreader Beam – 6' to 10' Spread - 2 Ton – Model 32 – Caldwell

SKU: 34-3212
$1,746.00
Estimated Lead Time:

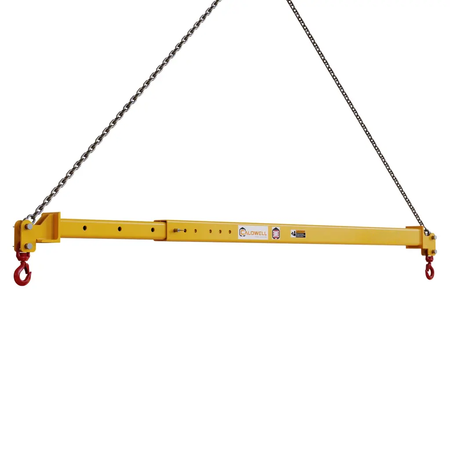

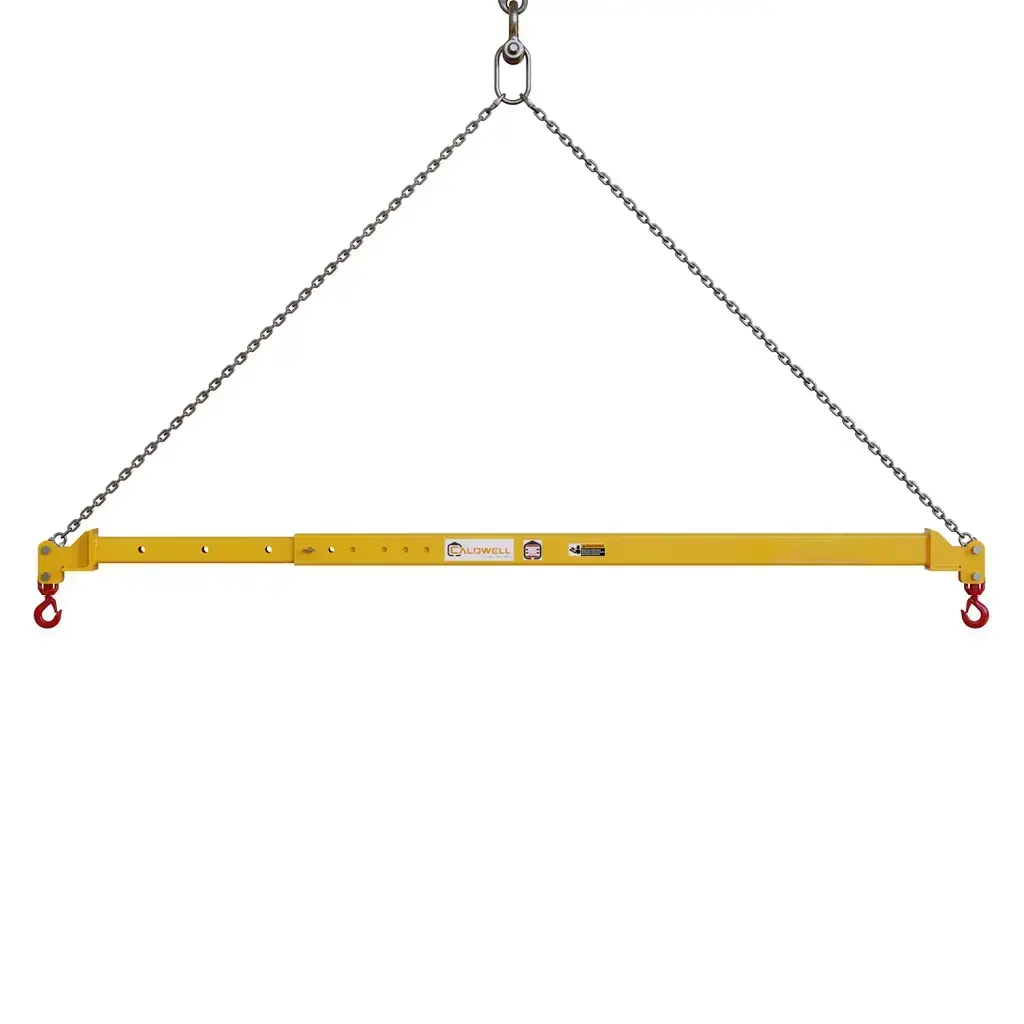

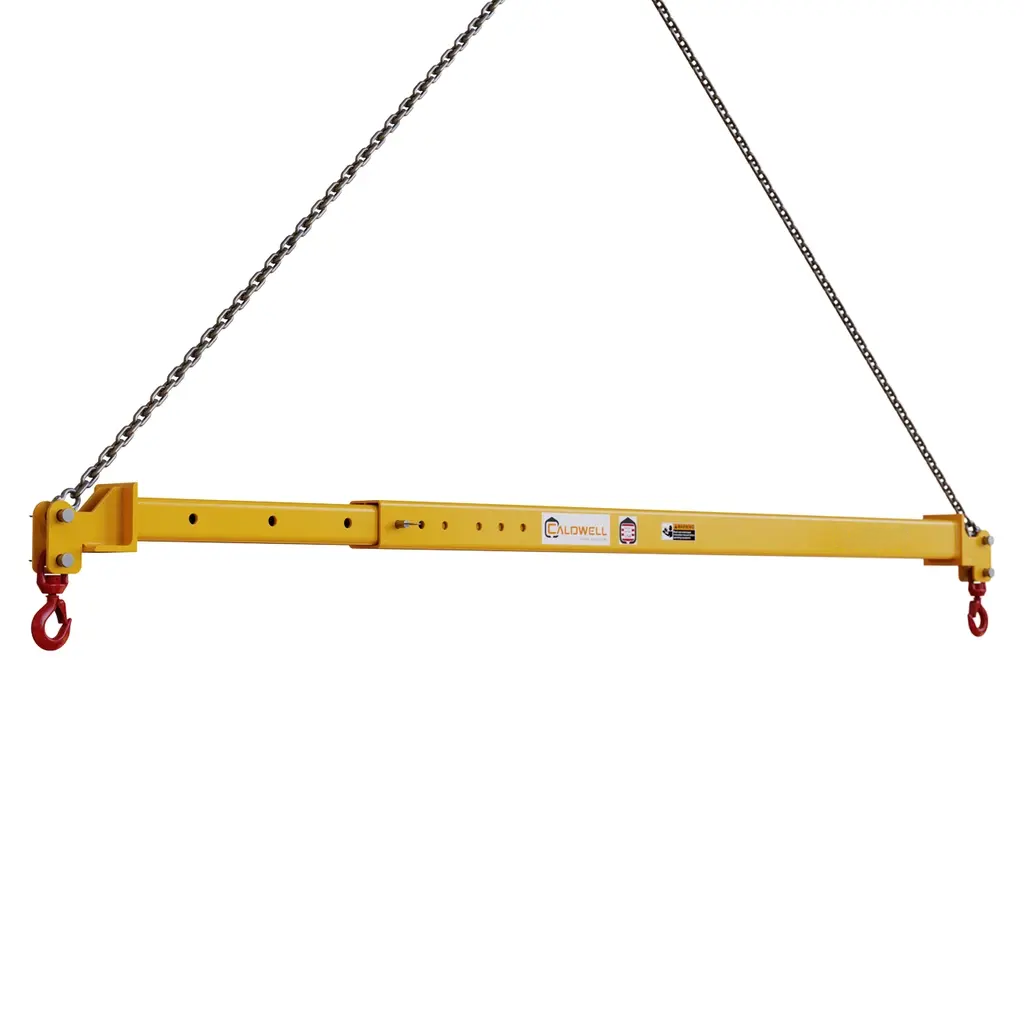

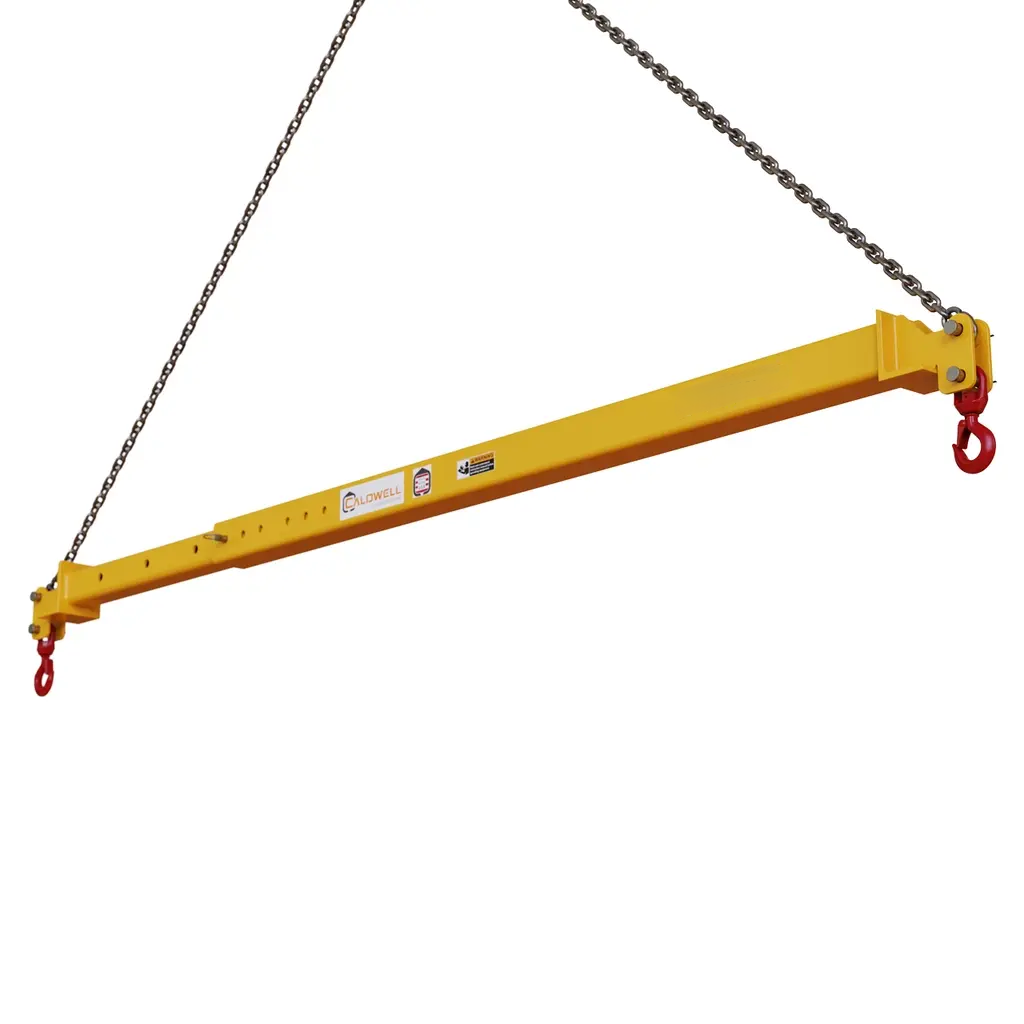

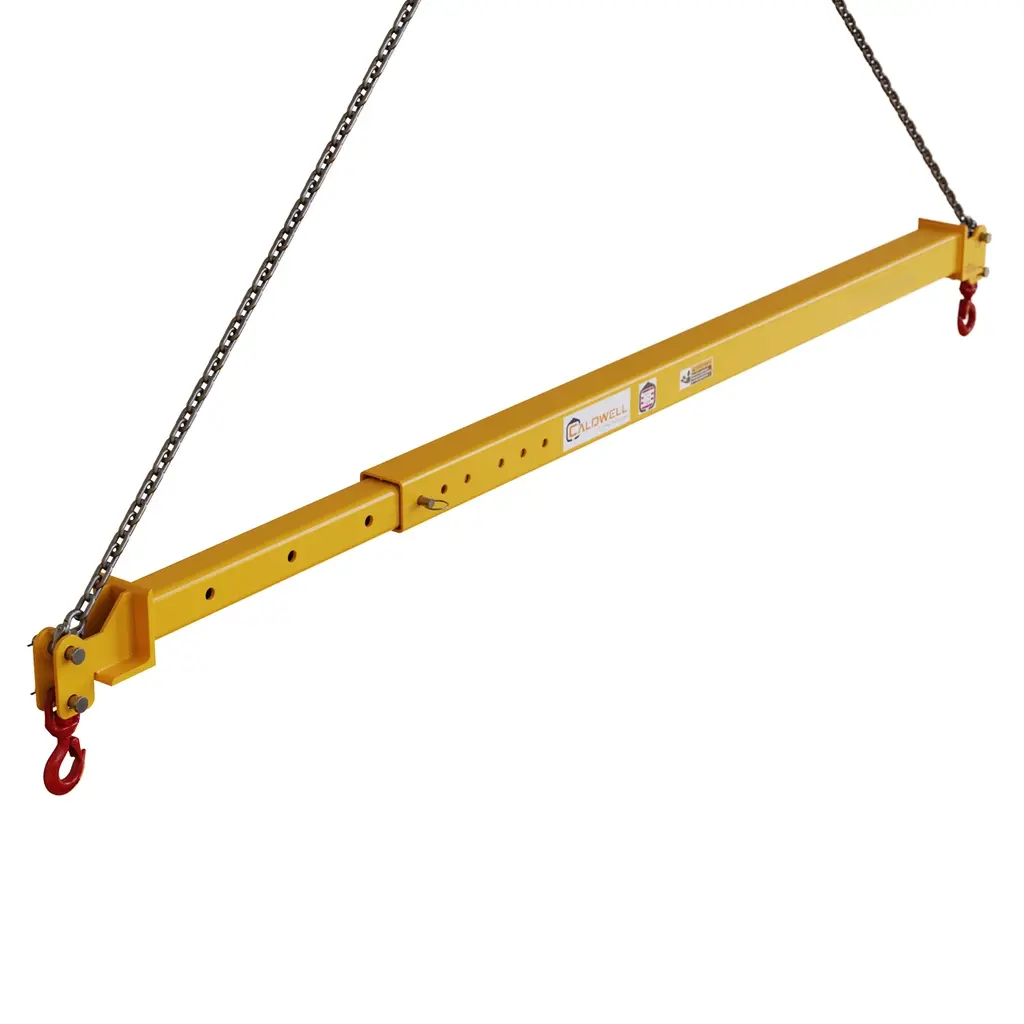

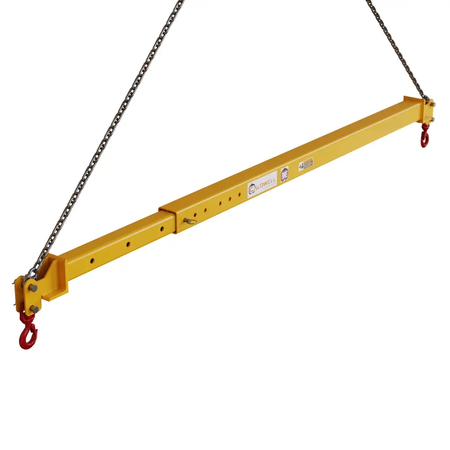

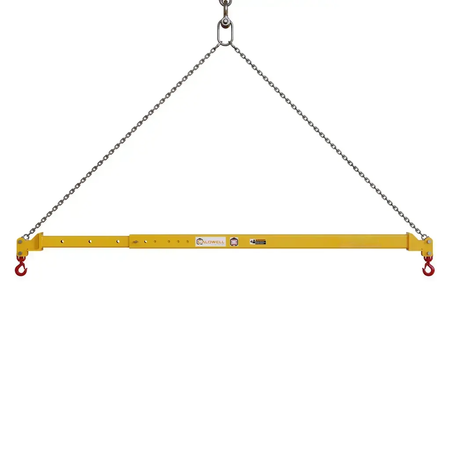

The Caldwell Model 32 Adjustable Spreader Beam with swivel hooks is designed for applications where headroom is not limited and added stability is required.

*Available with Chain or Wire Rope Rigging Upon Request*

Made in the USA

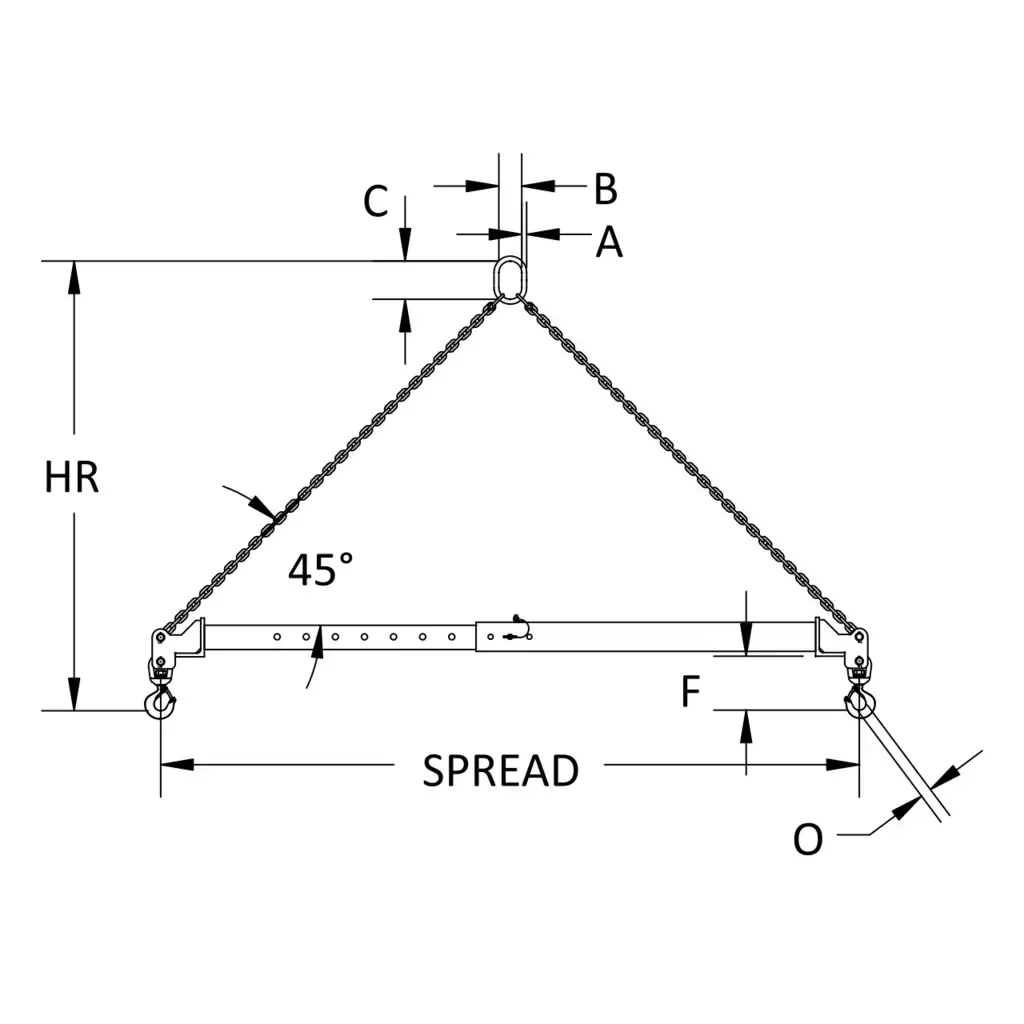

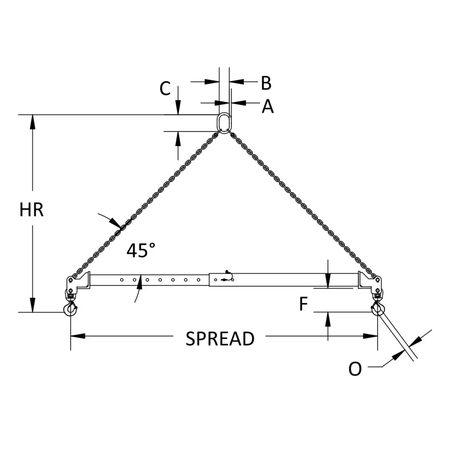

  • 4000 lbs Capacity
  • Bail Oblong Diameter: 0.5 in
  • Bail Opening Width: 2.36 in
  • Bail Opening Height: 3.94 in
  • Headroom Max: 88 in
  • Headroom Min: 72 in
  • Hook Clearance: 5.5 in
  • Hook Opening With Latch: 0.97 in
  • Max Spread: 10 ft
  • Min Spread: 6 ft
  • Complies with ASME standards
