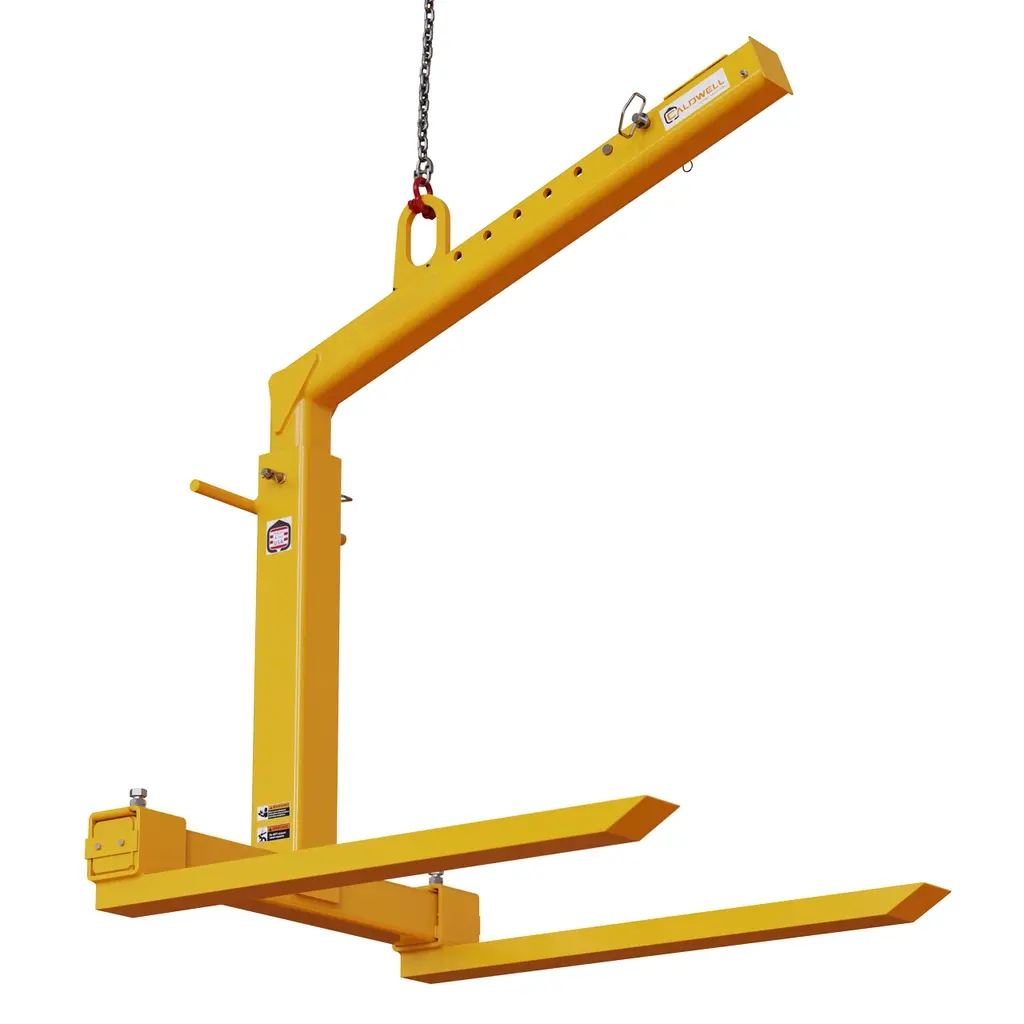

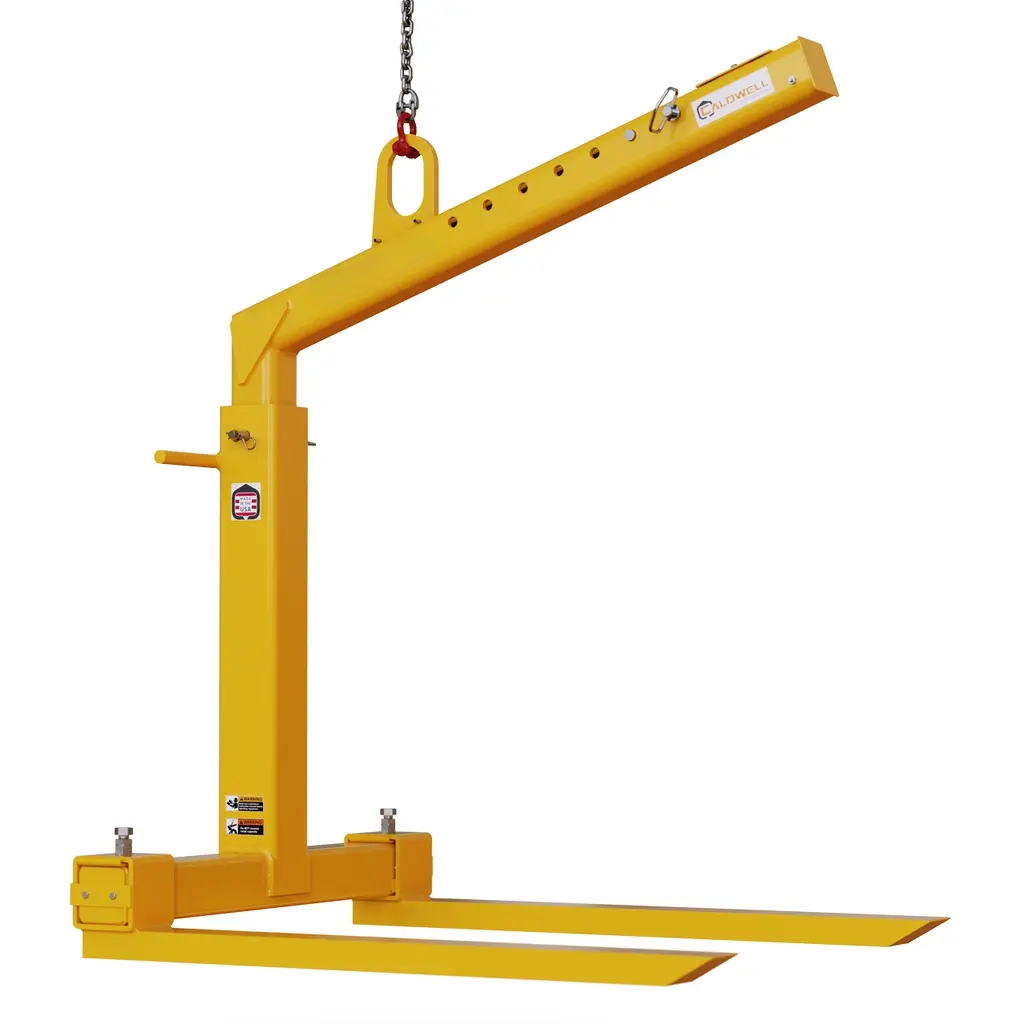

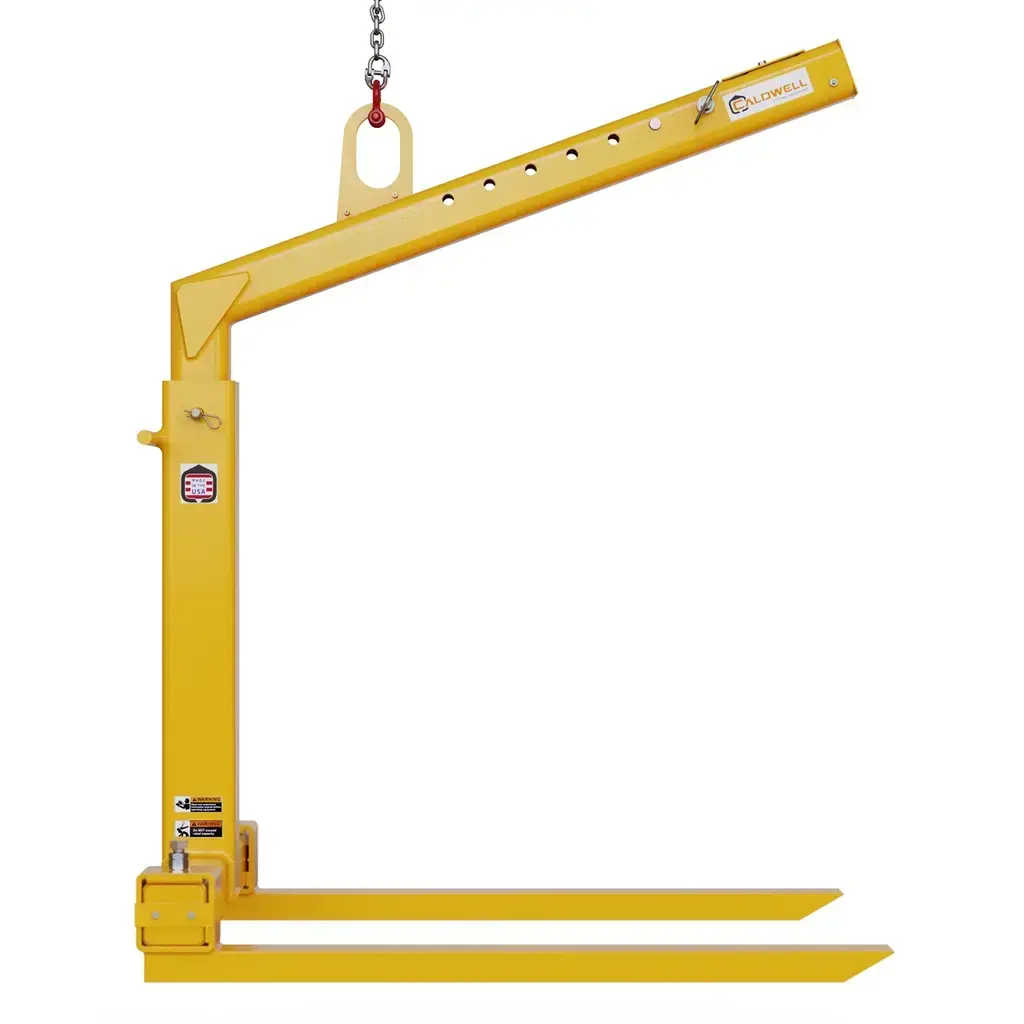

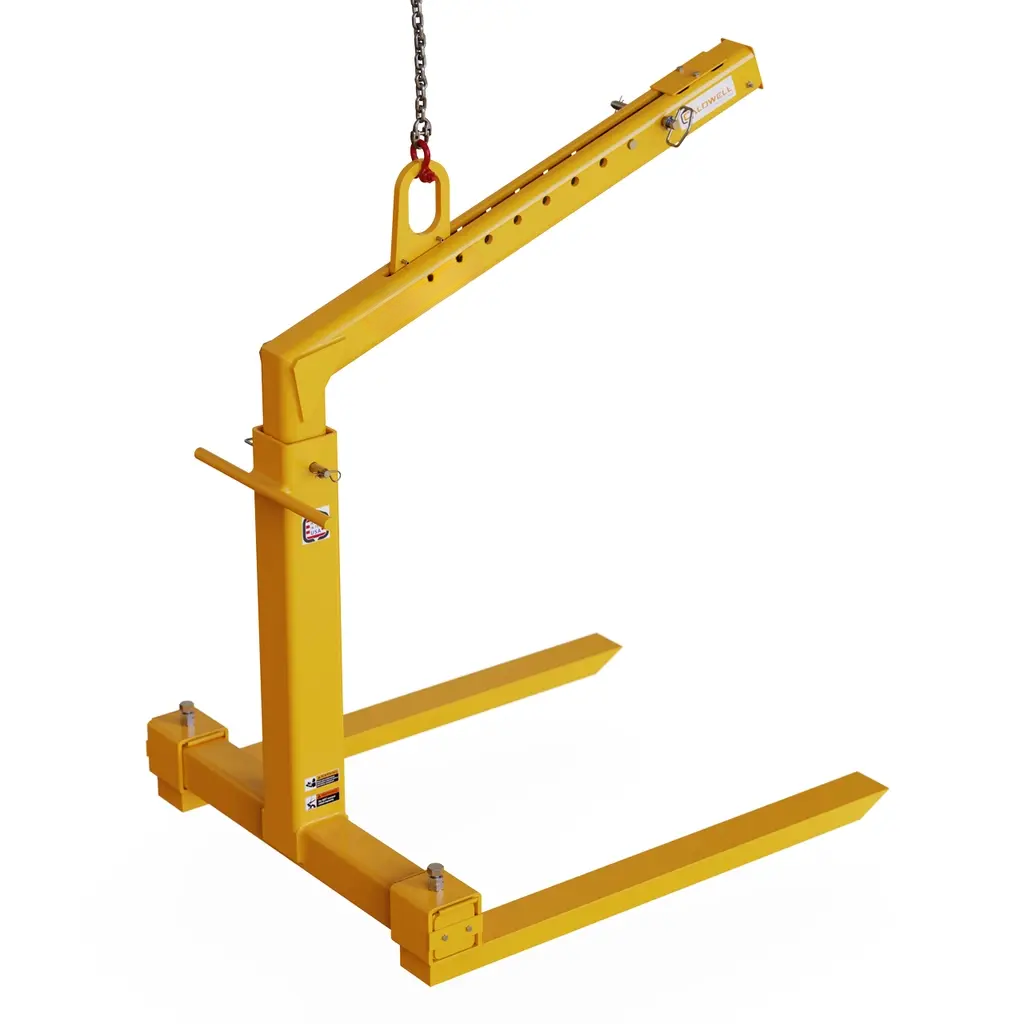

Adjustable Load Lifter – 42" Fork Length – 2 ton - Model 90ACL – Caldwell

SKU: 90ACL-2-42
Regular price $6,300.00
Estimated Lead Time:

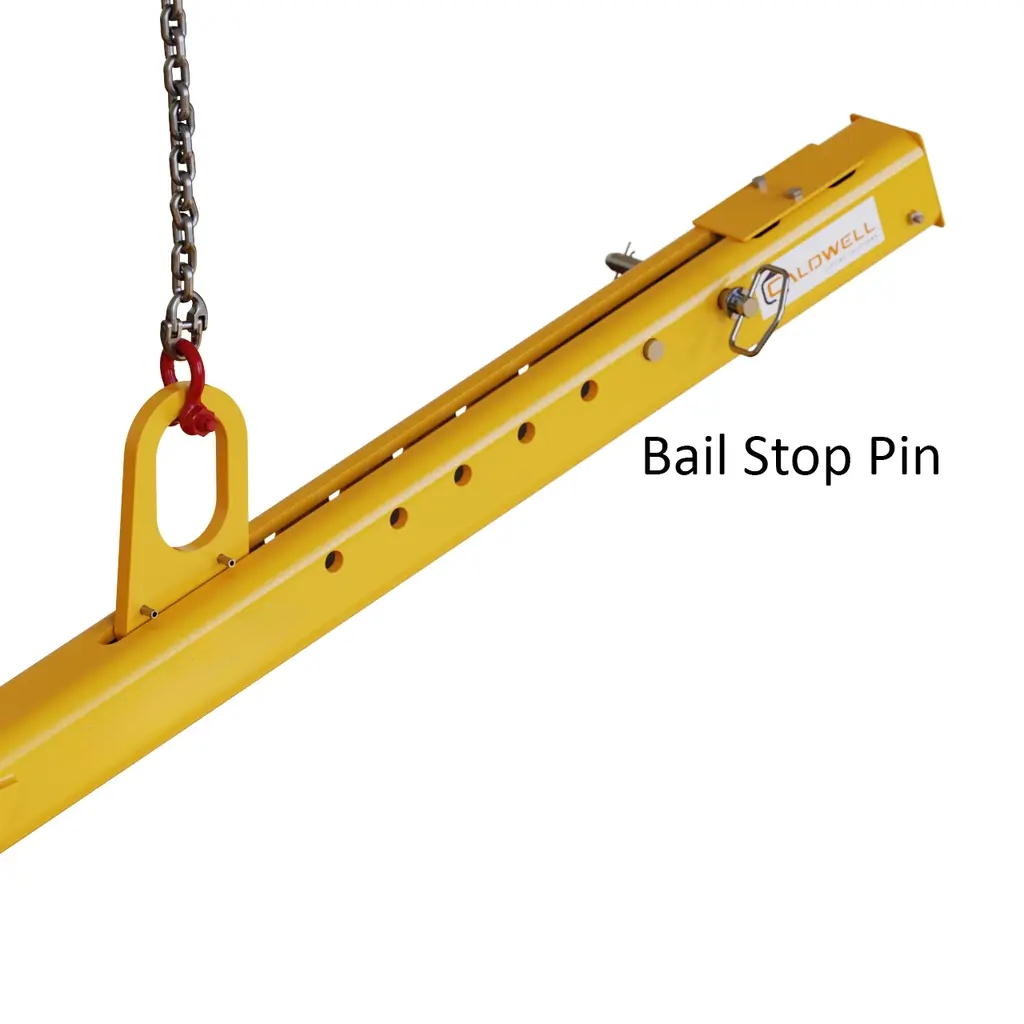

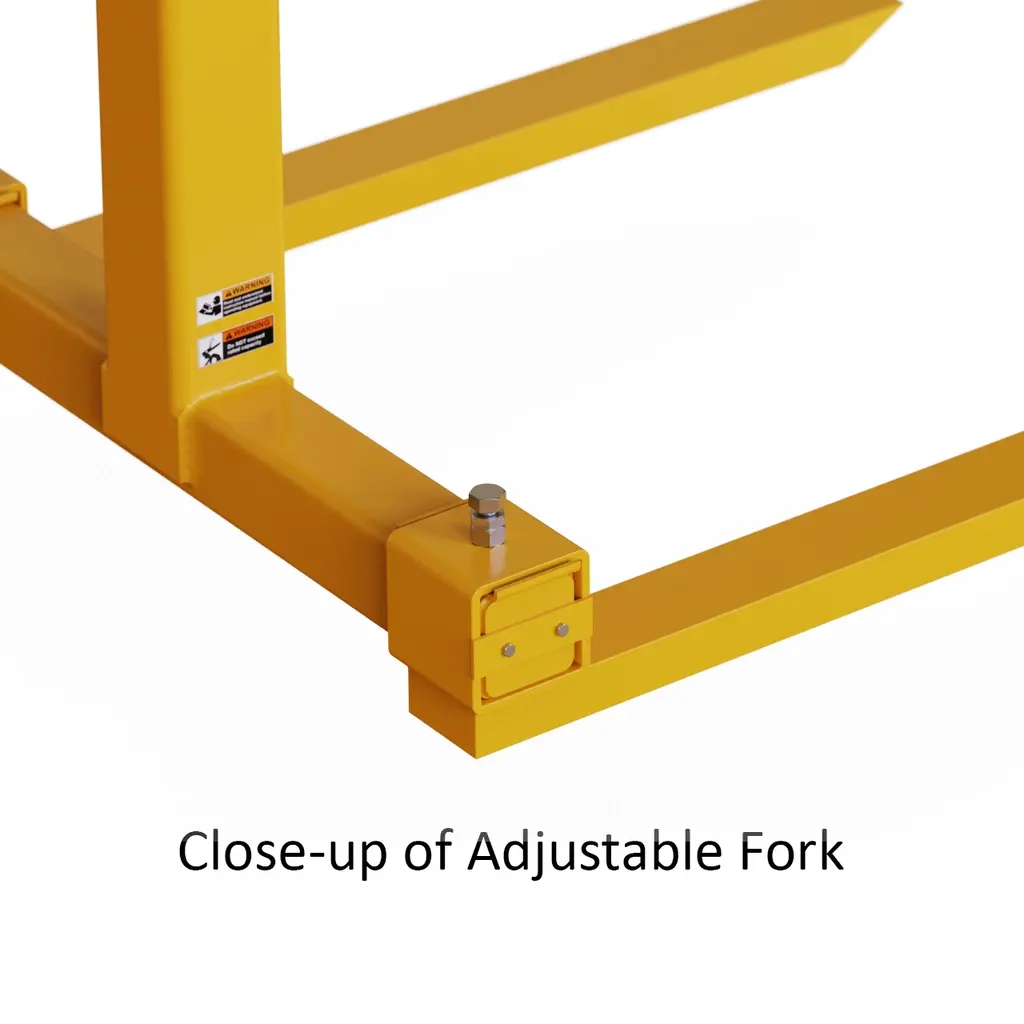

The Caldwell 2 Ton Adjustable Load Lifter (Model 90ACL-2-42) is designed for safe and efficient handling of loads with varying load centers. Its adjustable bail allows for balanced lifting, whether the pallet lifter is loaded or empty, and the auto-return bail automatically levels the lifter after unloading, saving time and reducing operator effort. With an adjustable throat for accommodating taller loads and adjustable forks for proper fork spread placement, the 90ACL-2-42 offers exceptional versatility. Its heavy-duty steel construction ensures long service life, and it meets all ASME safety standards for below-the-hook lifting devices. Need a custom configuration? Call us to build a pallet lifter tailored to your exact lifting needs.

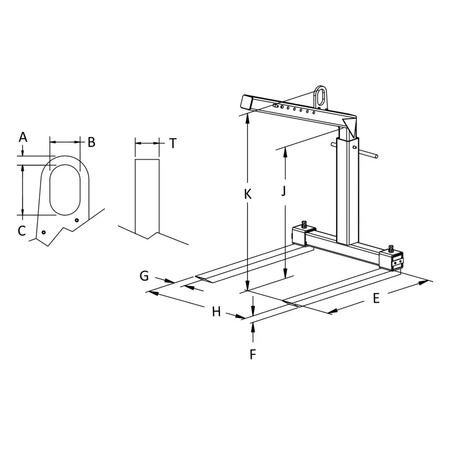

  • 4000 lbs Capacity

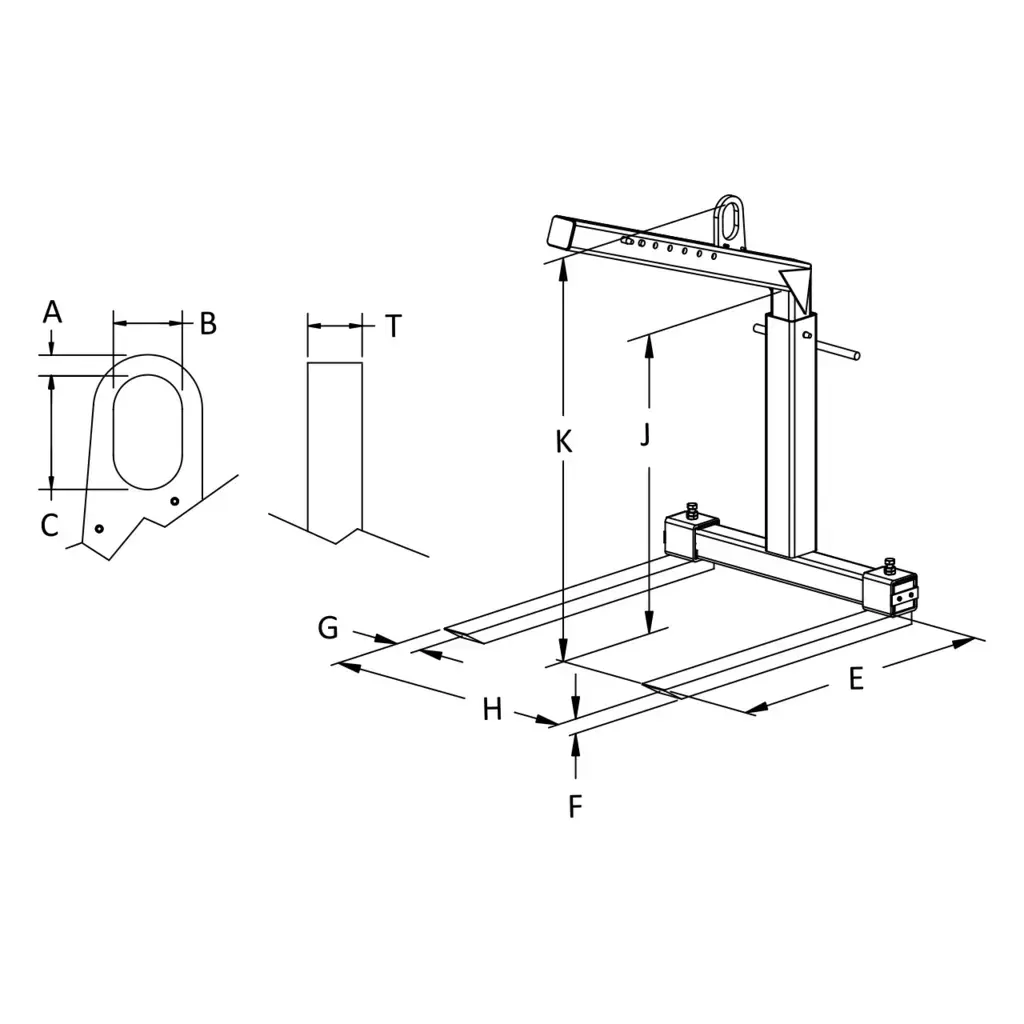

  • Bail Depth: 0.88 in
  • Bail Opening Width: 3 in
  • Bail Opening Height: 5 in
  • Bail Thickness: 0.75 in
  • Fork Length: 43 in
  • Fork Thickness: 2 in
  • Fork Width: 4 in
  • Fork Inside-to-Inside Min Width: 17.5 in
  • Fork Inside-to-Inside Max Width: 36 in
  • Headroom: 84.18 in
  • Throat Opening Max: 65 in
  • Throat Opening Mid: 53 in
  • Throat Opening Min: 41 in
  • Weight: 511.2 lbs
