18 ¼" Trailing Beam Anchor with Dual-Clamp Adjustment – 7534 – FallTech

SKU: 7534
Regular price $281.60
Estimated Lead Time:1 to 2 Days

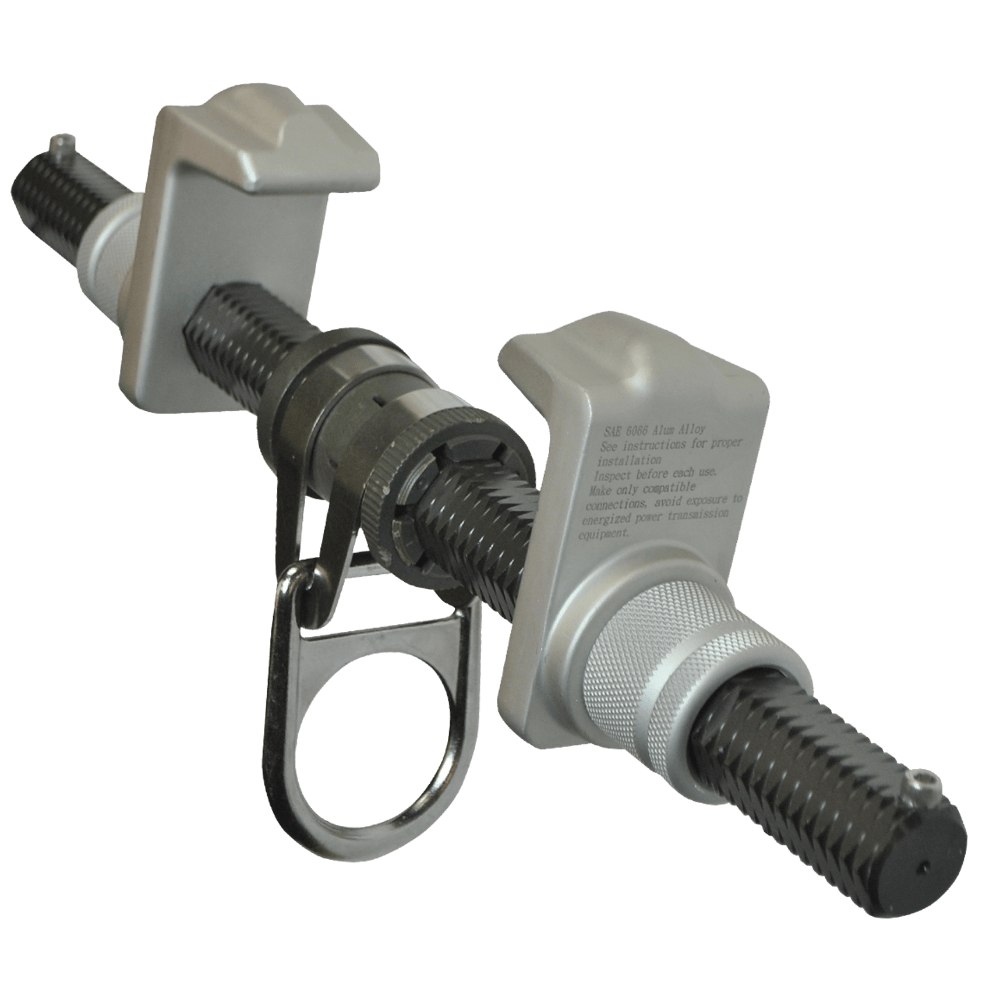

The FallTech 7534 Trailing Beam Anchor is designed for temporary mobile anchorage on horizontal I-beams. It features a threaded aluminum crossbar with adjustable jaws and knurled rings for precise, secure positioning. Recessed under-jaw ball bearings provide enhanced mobility, allowing the anchor to trail smoothly along the beam. It fits beam flanges from 3 inches to 18-1/4 inches wide and up to 1 inch thick.

  • Product Code: 7534
  • Beam Fit Range: 3 in to 18.25 in flange width; up to 1 in thickness
  • D-Ring: Plated alloy steel; 5,000 lb minimum static strength
  • Crossbar: Aluminum alloy
  • Clamp Jaws: Aluminum alloy
  • Static Strength: 5,000 lb minimum
  • ANSI User Capacity: 130 to 310 lbs
  • OSHA User Capacity: 130 to 425 lbs
  • Compliance: ANSI Z359.18-2017, OSHA 1926.502 and 1910.66
  • Weight: 6.8 lbs each
