Home » Tea Cup Pipe Carrier – 1-1/2" Cable Size – 18 ton - Model PC – Caldwell
Caldwell

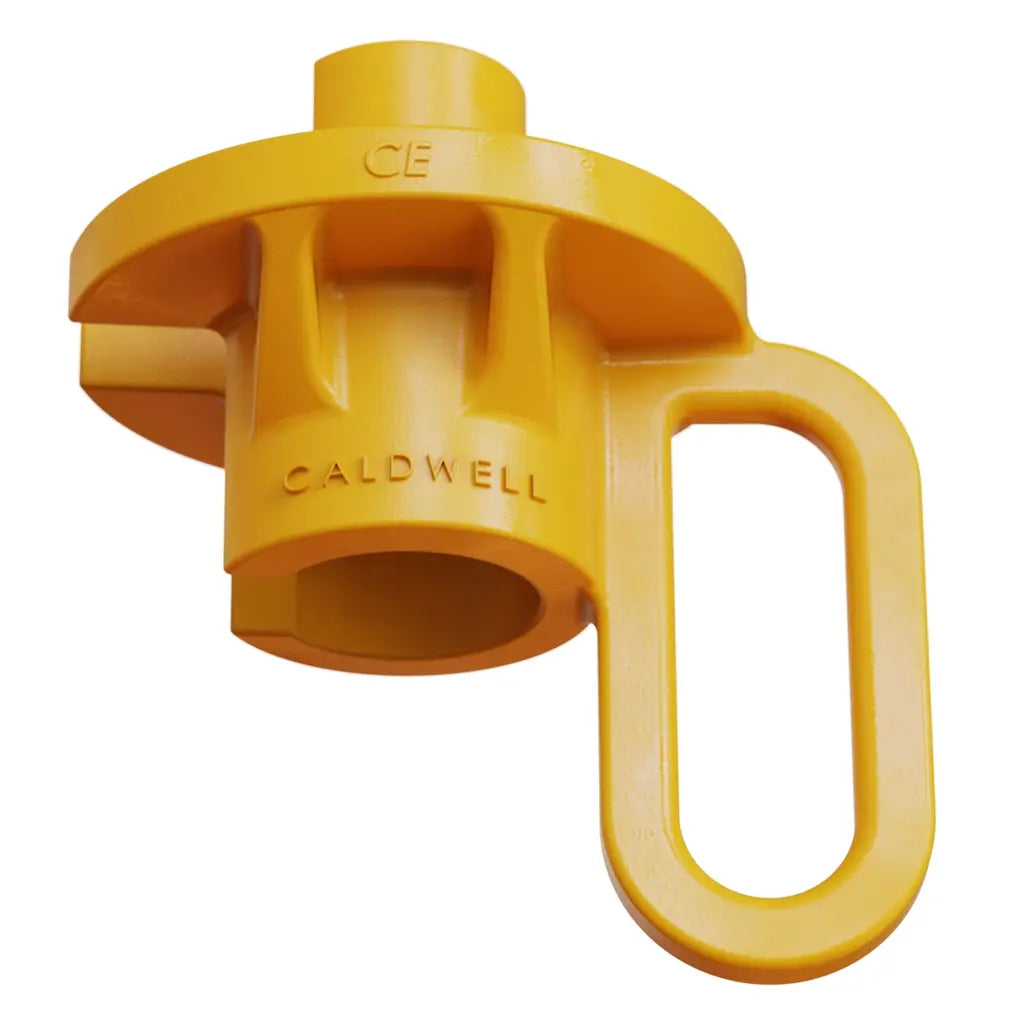

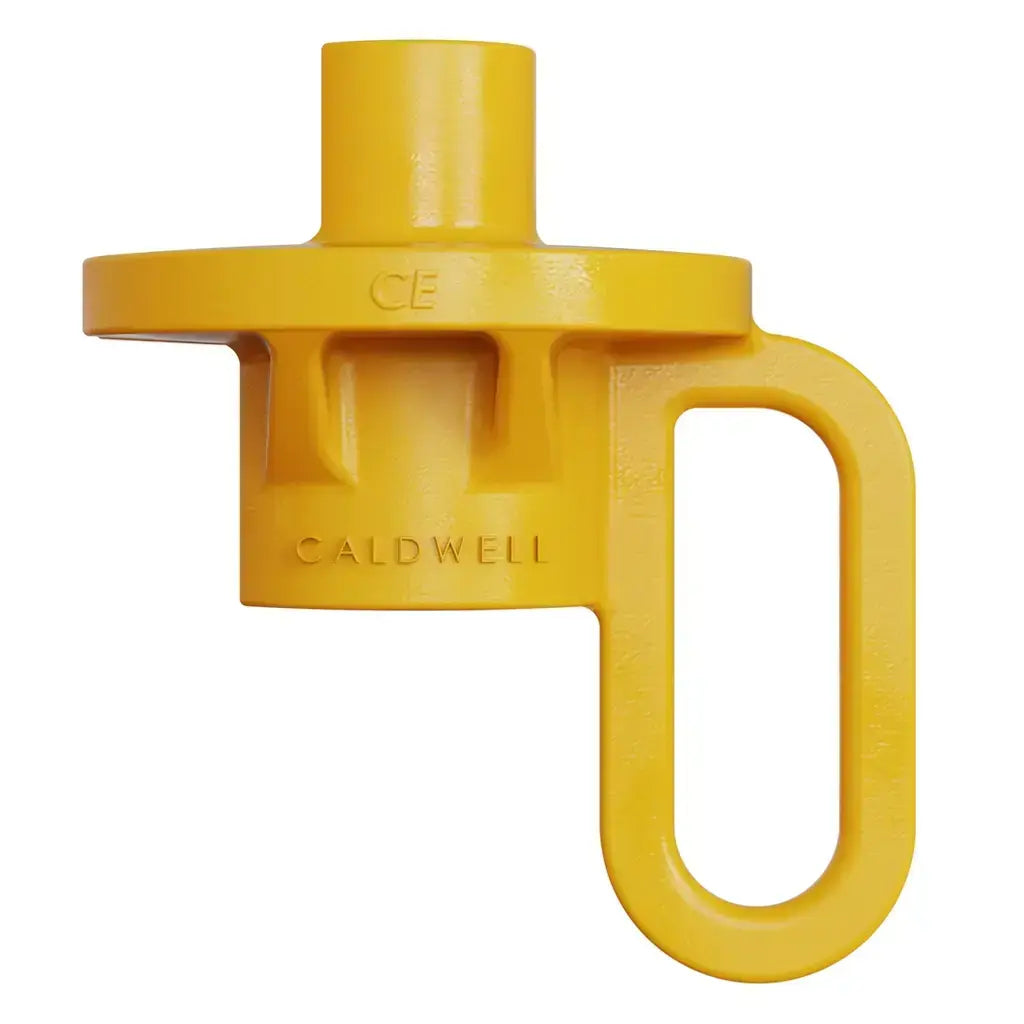

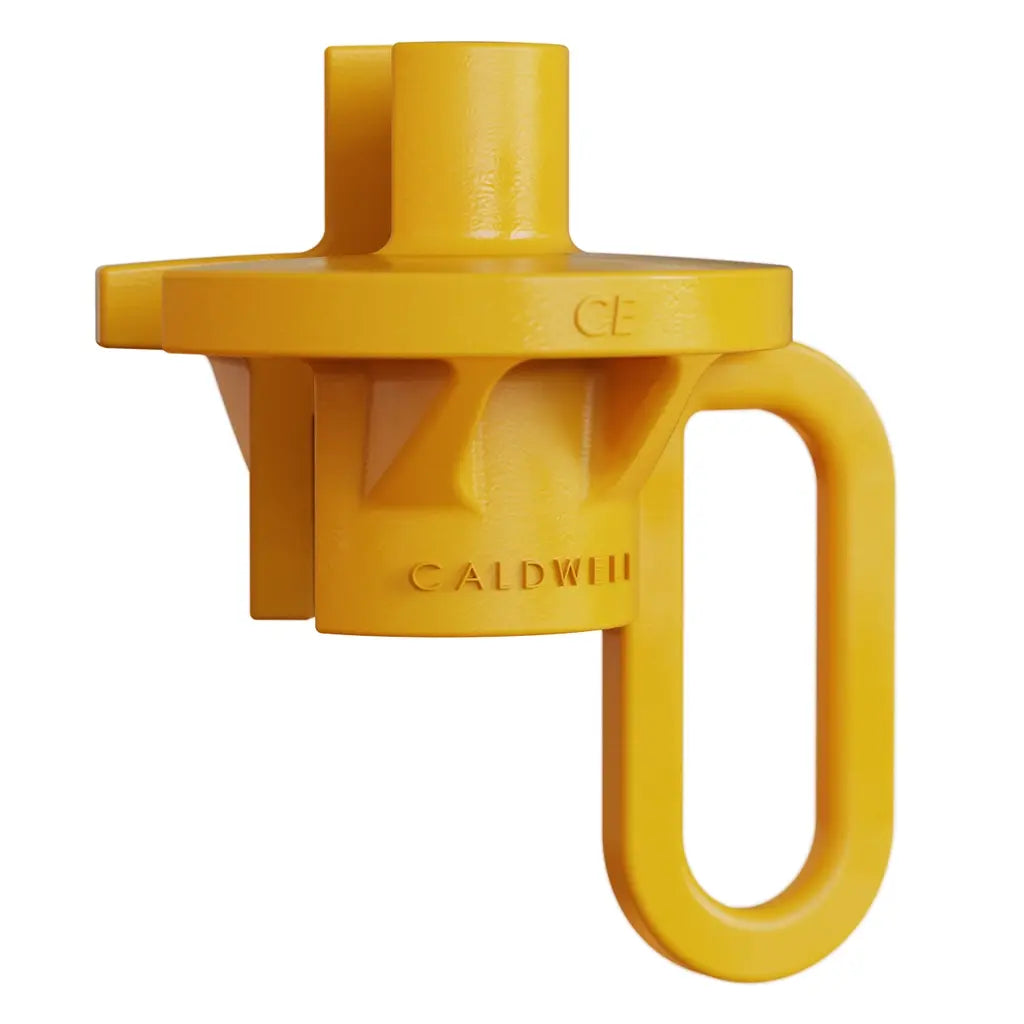

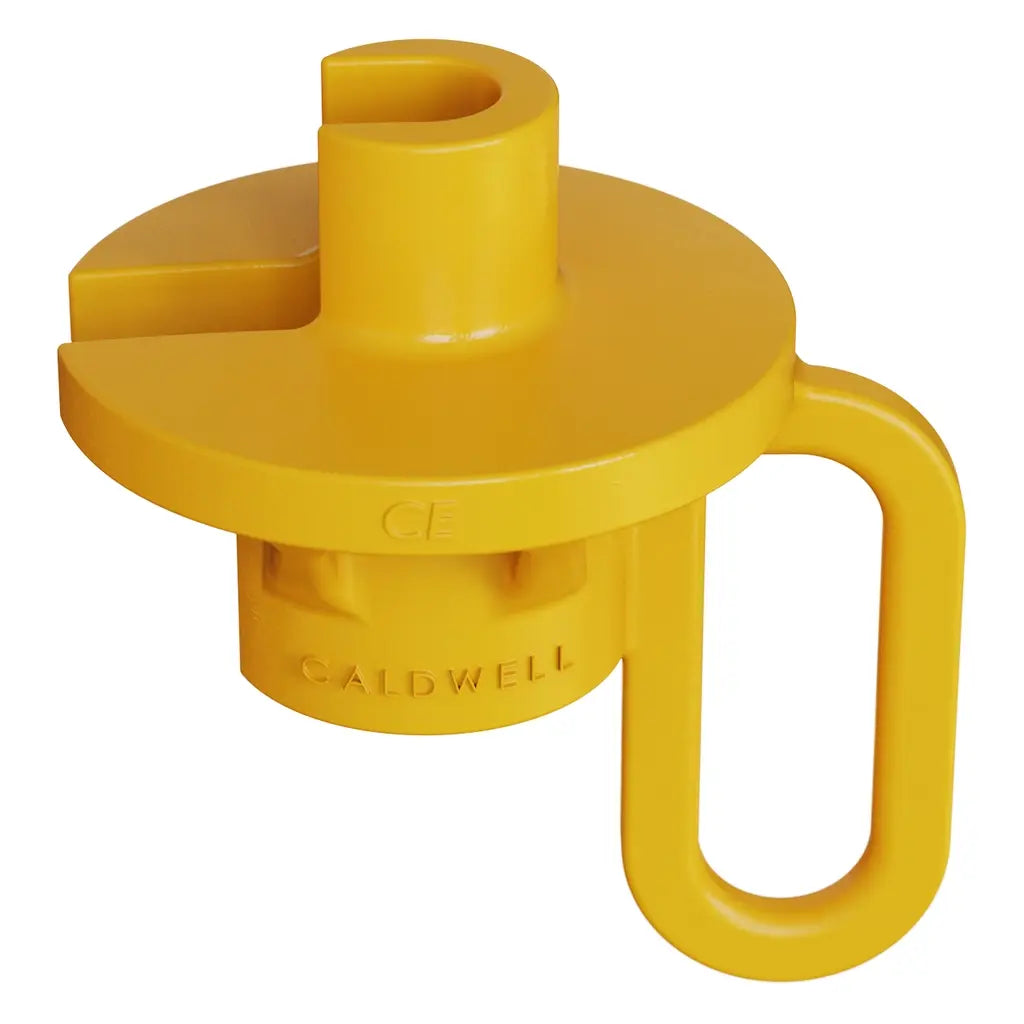

Tea Cup Pipe Carrier – 1-1/2" Cable Size – 18 ton - Model PC – Caldwell

SKU: 65-13
$314.06
Estimated Lead Time:

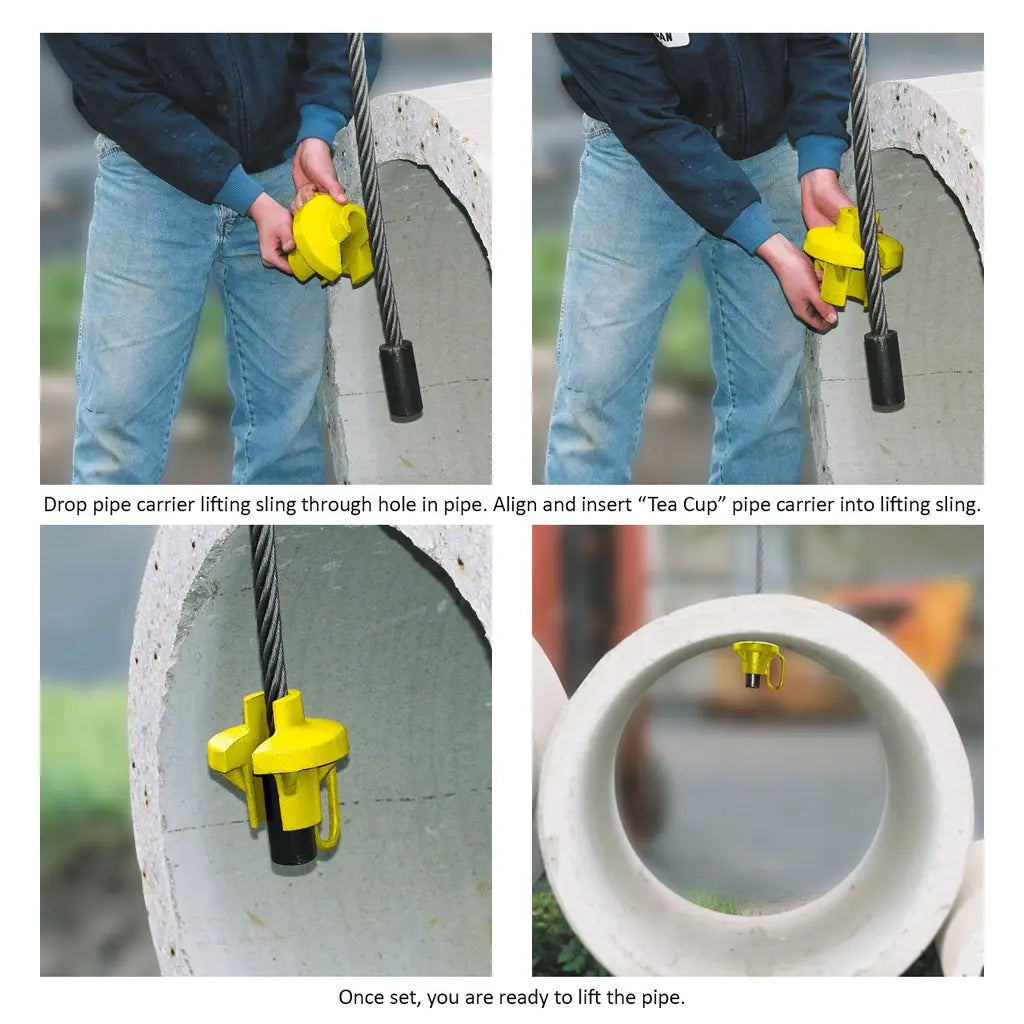

Water and sewer pipes. Designed for heavy-duty vertical lifting, it speeds up operations while protecting your investment in materials and equipment. The PC-1 1/2 is the largest model in the Tea Cup series, built for use with 1-1/2" cable and capable of lifting up to 18 tons. Like all PC models, it is ASME-compliant and designed for vertical lifting only. The optional Spoon Handle is available only for the PC-3/4 model, but the PC-1 1/2 can be paired with the optional Tea Cup Lifting Sling for even faster operation. Just drop the sling through the pipe, align, insert the Tea Cup, and lift.

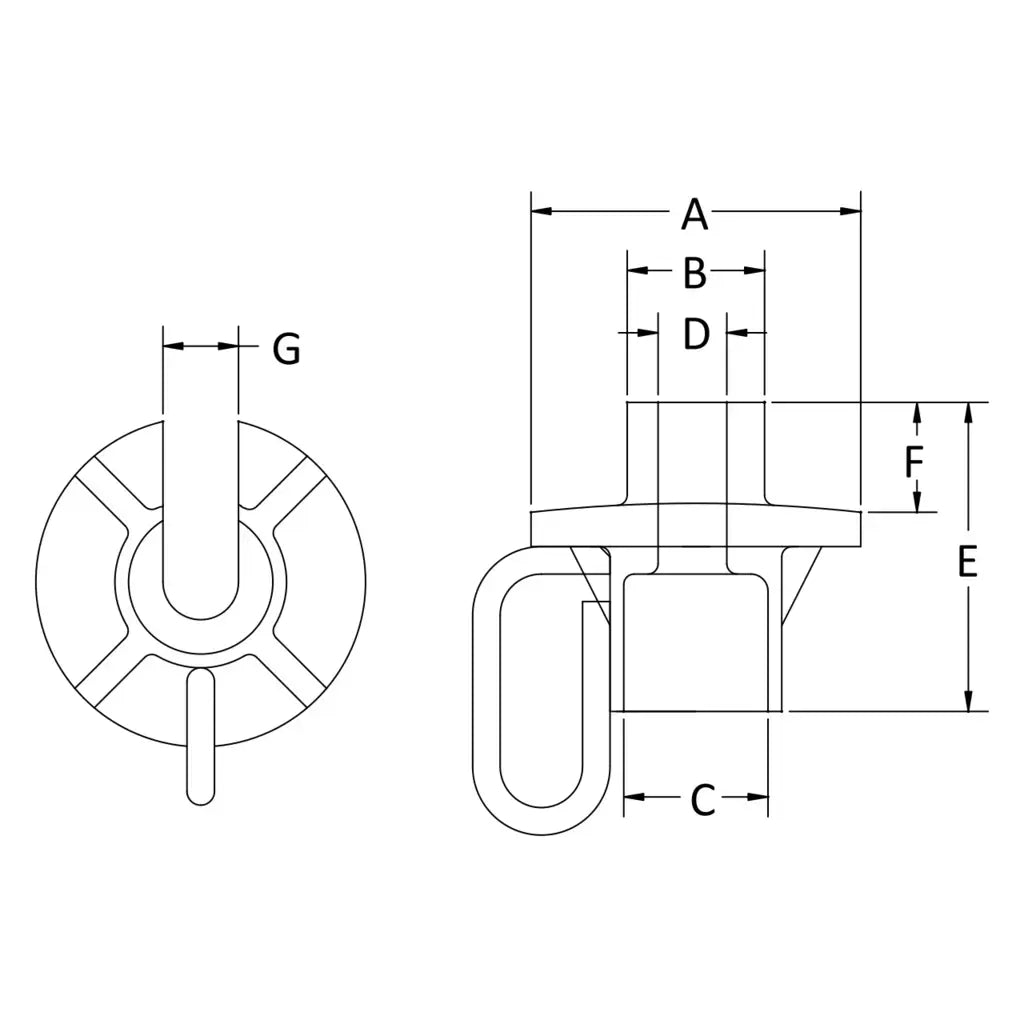

  • Model Number: PC-1 1/2
  • Capacity: 18 tons
  • Wire Rope Diameter: 1.63 in
  • Height: 7.63 in
  • Weight: 22 lbs
  • Max Diameter: 8 in
  • Flange Height: 2.75 in
  • Sleeve Diameter: 3 in
  • Wire Rope Cavity: 3.25 in
  • Wire Rope Opening: 1.63 in

Spec Sheet (PDF)
