18" Aluminum Beam Trolley Anchor – 7712 – FallTech

SKU: 7712
$604.80
Estimated Lead Time:1 to 2 Days

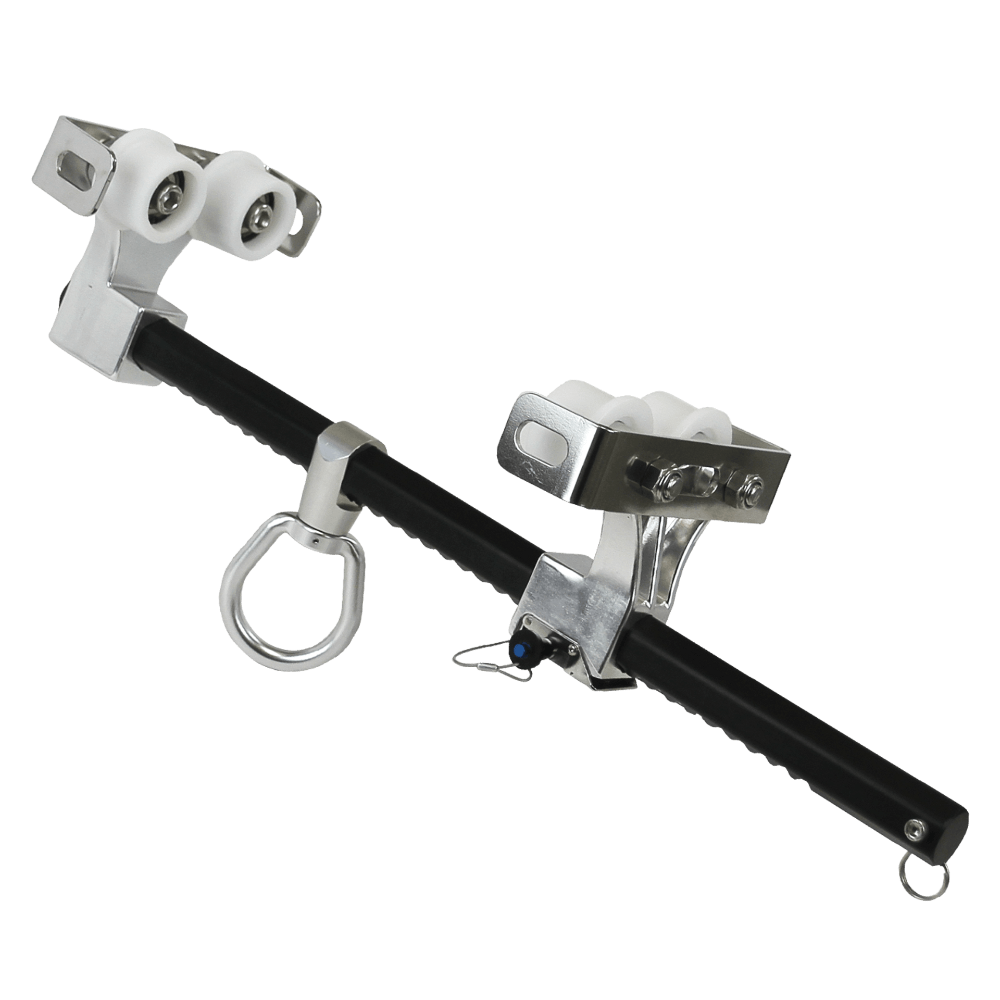

The FallTech 7712 Aluminum Beam Trolley Anchor offers a lightweight and highly mobile anchorage option for overhead horizontal I-beams. It features a single trolley adjustment with an aluminum crossbar, swiveling D-ring, and aluminum wheel plates. High-density Nylacast wheels provide smooth travel and are suitable for certain food-rated environments. The trolley fits beam flanges from 4 inches to 18 inches wide and up to 1-3/4 inches thick.
  • Product Code: 7712
  • Beam Fit Range: 4 in to 18 in flange width; up to 1.75 in thickness
  • D-Ring: Aluminum alloy; 5,000 lb minimum static strength
  • Crossbar: Aluminum alloy
  • Wheel Plates: Aluminum alloy
  • Static Strength: 5,000 lb minimum
  • ANSI User Capacity: 130 to 310 lbs
  • OSHA User Capacity: 130 to 425 lbs
  • Compliance: ANSI Z359.18-2017, OSHA 1926.502 and 1910.66
  • Weight: 8.5 lbs

Product Brochure (PDF)
User Manual (PDF)
